Ecological changes and the tradeoff and synergy of ecosystem services in western China

doi:10.1007/s11442-022-1985-6

摘要/Abstract

Abstract:

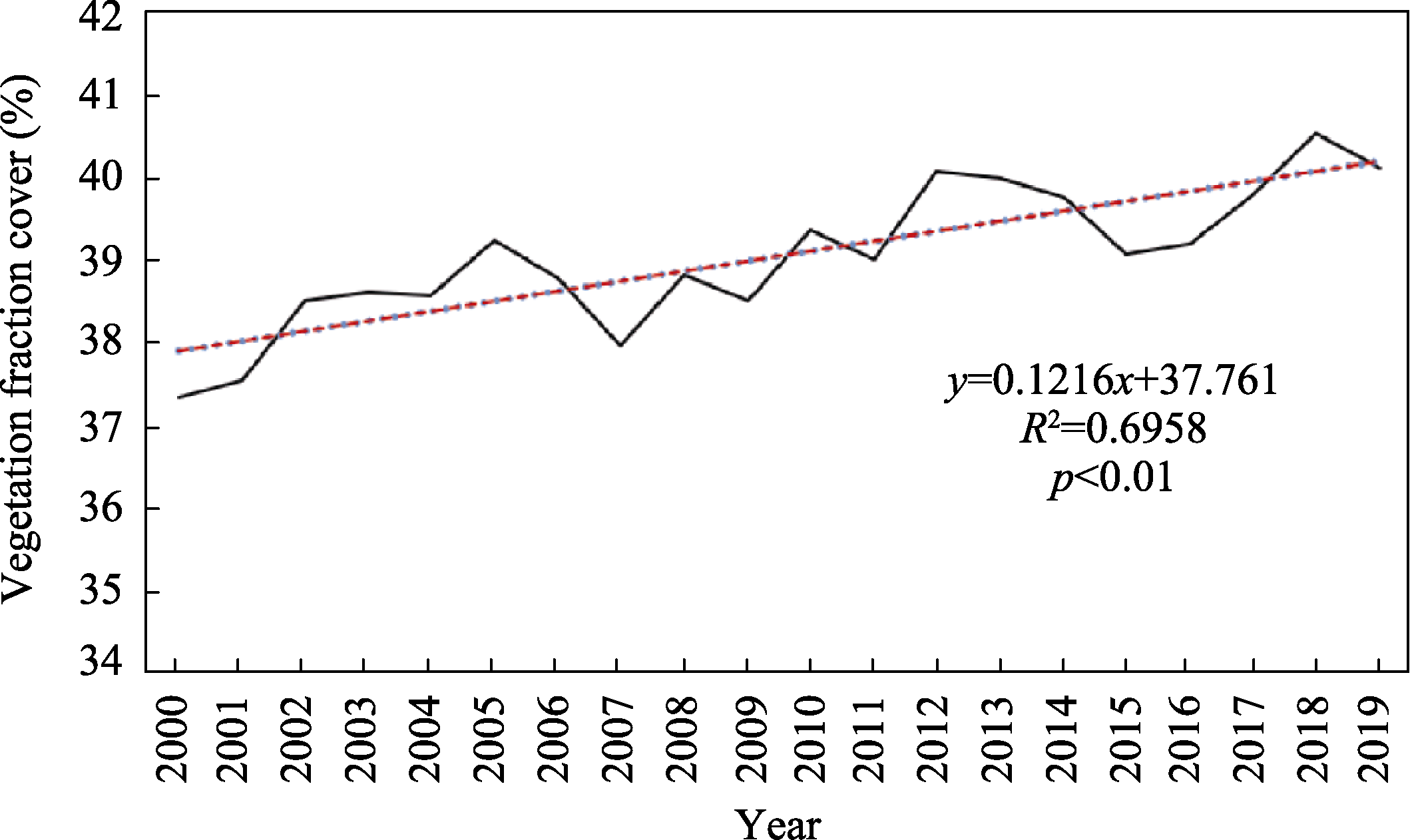

Since the implementation of the Development of Western Regions in 2000, a series of major ecological construction projects have been implemented, leading to a series of changes in the ecological conditions and ecological services of western China. This study calculated the amount of ecosystem services in total in the western region from 2000 to 2019, and analyzed ecological changes and the characteristics of spatio-temporal variations in ecological services. A relevant analysis method was applied to explore the tradeoff and synergy of service. It was found that the area of settlements and wetland ecosystems in the western region increased significantly from 2000 to 2015, whereas grassland showed a downward trend year by year. The vegetation fraction showed a decreasing belt-like distribution from south to north. It showed a fluctuating increase during 2000 to 2019, with inter-annual and large spatial differences. The water conservation service (WCS) had a slight downward trend from 2000 to 2019, and the main decreasing areas were distributed in southeastern Tibet, the western part of the Three Rivers Source region, and the karst rocky desertification area. The soil conservation service (SCS) showed an increasing but fluctuating trend, with the greatest increases observed in the Loess Plateau region, western Sichuan and Yunnan, northwest Tibet, and southeast Tibet. The windbreak and sand fixation service (SFS) showed a downward trend, and the sharp decline was mainly in the central and western parts of Inner Mongolia, Tibet and parts of northern Xinjiang. Ecosystem supply and WCS, and SCS were mainly synergistic, which were found in areas north of the Qinling Mountains-Huaihe River (QM-HR) line, especially in Ningxia and Inner Mongolia. Ecosystem supply was mainly tradeoffs with SFS, and it was found in the agriculture-pastoral transition zone. The synergistic degree of ecosystem services in areas subjected to ecological engineering policy was greater than that in non-engineering areas. Quantitative assessment of ecosystem service changes and their tradeoffs is helpful for scientific ecological management and maximizing ecological benefits.

Key words: ecosystem services, tradeoff and synergy, western region, Western Development Strategy

. [J]. 地理学报(英文版), 2022, 32(6): 1059-1075.

NIU Linan, SHAO Quanqin, NING Jia, HUANG Haibo. Ecological changes and the tradeoff and synergy of ecosystem services in western China[J]. Journal of Geographical Sciences, 2022, 32(6): 1059-1075.

图/表 13

参考文献 46

[1]	Barbier E B, Koch E W, Silliman B R et al., 2008. Coastal ecosystem-based management with nonlinear ecological functions and values. Science, 319(5861): 321-323. doi: 10.1126/science.1150349 pmid: 18202288
[2]	Cai C F, Ding S W, Shi Z H et al., 2000. Study of applying USLE and geographical information system IDRISI to predict soil erosion in small watershed. Journal of Soil and Water Conservation, 14(2): 22-24. (in Chinese)
[3]	Cao S X, Chen L, Shankman D et al., 2011. Excessive reliance on afforestation in China’s arid and semi-arid regions: Lessons in ecological restoration. Earth-Science Reviews, 104(4): 240-245. doi: 10.1016/j.earscirev.2010.11.002
[4]	Chen C P, Gao Y X, 2013. Research on ecological environment and system construction of ecological civilization in western China. Journal of Southwest Minzu University: Humanities and Social Science, 34(12): 138-141. (in Chinese)
[5]	Chen Y M, Liu G B, Zheng F L et al., 2004. Proceeding and application on soil erosion model of RUSLE. Research of Soil and Water Conservation, 11(4): 80-83. (in Chinese)
[6]	Chen Z, Zhang X, 2000. Value of ecosystem services in China. Chinese Science Bulletin, 45(10): 870-876. doi: 10.1007/BF02886190
[7]	Cheng G D, Zhang Z Q, Li R, 2000. On some issues of the ecological construction of west China and proposals for policy. Scientia Geographica Sinica, 20(6): 503-510. (in Chinese)
[8]	Dai E F, Wang X L, Zhu J J et al., 2015. Progress and perspective on ecosystem services trade-offs. Advances in Earth Science, 30(11): 1250-1259. (in Chinese)
[9]	Fryrear W D, Bilbro D J, Saleh A et al., 2000. RWEQ: Improved wind erosion technology. Journal of Soil and Water Conservation, 55(2): 183-189.
[10]	Fu B J, Yu D D, 2016. Trade-off analyses and synthetic integrated method of multiple ecosystem services. Resources Science, 38(1): 1-9. (in Chinese)
[11]	Gao J B, Zuo L Y, Wang H, 2019. The spatial trade-offs and differentiation characteristics of ecosystem services in karst peak-cluster depression. Acta Ecologica Sinica, 39(21): 7829-7839. (in Chinese)
[12]	Gong G L, Liu J Y, Shao Q Q et al., 2014b. Sand-fixing function under the change of vegetation coverage in a wind erosion area in northern China. Journal of Resources and Ecology, 5(2): 105-114. doi: 10.5814/j.issn.1674-764x.2014.02.002
[13]	Gong G L, Liu J Y, Shao Q Q, 2014a. Wind erosion in Xilingol League, Inner Mongolia since the 1990s using the revised wind erosion equation. Progress in Geography, 33(6): 825-834. (in Chinese)
[14]	Huang L, Zhu P, Cao W, 2021. The impacts of the Grain for Green Project on the trade-off and synergy relationships among multiple ecosystem services in China. Acta Ecologica Sinica, 41(3): 1178-1188. (in Chinese)
[15]	Jiapaer G, Chen X, Bao A M, 2011. A comparison of methods for estimating fractional vegetation cover in arid regions. Agricultural and Forest Meteorology, 151(12): 1698-1710. doi: 10.1016/j.agrformet.2011.07.004
[16]	Li S C, Zhang C Y, Liu J L et al., 2013. The tradeoffs and synergies of ecosystem services: Research progress, development trend, and themes of geography. Geographical Research, 32(8): 1379-1390. (in Chinese)
[17]	Li Y S, Wang G X, Wang Y B et al., 2006. Impacts of land cover change on runoff and sediment yields in the headwater areas of the Yangtze River and the Yellow River, China. Advances in Water Science, 17(5): 616-623. (in Chinese)
[18]	Li Z H, Bai Y Q, Sun J L et al., 2019. Ecological civilization construction in ecologically fragile poverty-stricken areas in western China. Strategic Study of CAE, 21(5): 80-86. (in Chinese)
[19]	Liu B Y, Nearing M A, Risse L M, 1994. Slope gradient effects on soil loss for steep slopes. Transactions of the ASAE, 37(6): 1835-1840. doi: 10.13031/2013.28273
[20]	McCool D K, Brown L C, Foster G R et al., 1978. Revised slope steepness factor for the universal soil loss equation. Transactions of the ASAE, 30(5): 1387-1396. doi: 10.13031/2013.30576
[21]	Meng X M, Cui B S, Deng W et al., 1999. An examination of the catastrophic flood in Songnen Drainage Basin: Recognition of wetland functions. Journal of Natural Resources, 14(1): 14-21. (in Chinese)
[22]	Ning J, Liu J Y, Kuang W H et al., 2018. Spatiotemporal patterns and characteristics of land-use change in China during 2010-2015. Journal of Geographical Sciences, 28(5): 547-562. doi: 10.1007/s11442-018-1490-0
[23]	Qiang X, Dan H, Yang X, 2016. Assessing changes in soil conserved ecosystem services and causal factors in the Three Gorges Reservoir region of China. Journal of Cleaner Production, 163: 172-180.
[24]	Reid W V, Mooney H A, Cropper A et al., 2005. Ecosystems and Human Well-being (Synthesis):A Report of the Millennium Ecosystem Assessment. Washington, DC: Island Press.
[25]	Ren B P, Zhang Q, 2019. Achievements, experiences and transition of economic development in the western region in 20 years of development of western China. Journal of Shaanxi Normal University (Philosophy and Social Sciences Edition), 48(4): 46-62. (in Chinese)
[26]	Saleh A, 1993. Soil roughness measurement: Chain method. Journal of Soil and Water Conservation, 48(6): 527-529.
[27]	Shao Q Q, Fan J W, Liu J Y et al., 2017. Approaches for monitoring and assessment of ecological benefits of national key ecological projects. Advances in Earth Science, 32(11): 1174-1182. (in Chinese)
[28]	Smith L M, Case J L, Smith H M et al., 2013. Relating ecosystem services to domains of human well-being: Foundation for a US index. Ecological Indicators, 28: 79-90.
[29]	Tian Y, Zhu J H, Li Q et al., 2020. Spatial and temporal distribution of soil conservation and its driving forces in the Three Gorges Reservoir area. Chinese Journal of Ecology, 39(4): 1164-1174. (in Chinese)
[30]	Wang X F, Ma X, Feng X M et al., 2019. Spatial-temporal characteristics of trade-off and synergy of ecosystem services in key vulnerable ecological areas in China. Acta Ecologica Sinica, 39(20): 7344-7355. (in Chinese)
[31]	Wen Z, Zheng H, Ouyang Z Y, 2020. Research progress on the relationship between biodiversity and ecosystem services. Chinese Journal of Applied Ecology, 31(1): 340-348. (in Chinese)
[32]	Williams J R, 1990. The erosion-productivity impact calculator (EPIC) model: A case history. Philosophical Transactions of the Royal Society Biological Sciences, 329(1255): 421-428. doi: 10.1098/rstb.1990.0184
[33]	Wischmeier W H, Smith D D, 1978. Predicting Rainfall Erosion Losses: A Guide to Conservation Planning. United States. Dept. of Agriculture. Agriculture Handbook (USA).
[34]	Wong C P, Jiang B, Kinzig A P et al., 2015. Linking ecosystem characteristics to final ecosystem services for public policy. Ecology Letters, 18(1): 108-118. doi: 10.1111/ele.12389
[35]	Wu D, Shao Q Q, Wang H R et al., 2017. Research on water conservation capacity of forest ecosystems in Shimian county, Sichuan province. Journal of Central South University of Forestry & Technology, 37: 80-86. (in Chinese)
[36]	Xue H, Li S, Chang J, 2015. Combining ecosystem service relationships and DPSIR framework to manage multiple ecosystem services. Environmental Monitoring and Assessment, 187(3): 117. doi: 10.1007/s10661-015-4303-2
[37]	Zhang J, Yuan M S, Zhang J et al., 2020. Responses of the NDVI of alpine grasslands on the Qinghai-Tibetan Plateau to climate change and human activities over the last 30 years. Acta Ecologica Sinica, 40(18): 6269-6281. (in Chinese)
[38]	Zhang K L, Shu A P, Xu X L et al., 2008. Soil erodibility and its estimation for agricultural soils in China. Journal of Arid Environments, 72(6): 1002-1011. (in Chinese) doi: 10.1016/j.jaridenv.2007.11.018
[39]	Zhang W B, Xie Y, Liu B Y, 2002. Rainfall erosivity estimation using daily rainfall amounts. Scientia Geographica Sinica, 22(6): 706-711. (in Chinese)
[40]	Zhang Z, Wu C F, Tan R, 2013. Application of ecosystem service value in land use change research: Bottlenecks and prospects. Chinese Journal of Applied Ecology, 24(2): 556-562. (in Chinese) pmid: 23705405
[41]	Zhao G F, Duan L F, 2012. Study on ecological environment and urbanization development in western China. Ecological Economy, (2): 166-169. (in Chinese)
[42]	Zhao T Q, Ouyang Z Y, Zheng H et al., 2004. Forest ecosystem services and their valuation in China. Journal of Natural Resources, 19(4): 480-491. (in Chinese)
[43]	Zhao W W, Liu Y, Feng Q et al., 2018. Ecosystem services for coupled human and environment systems. Progress in Geography, 37(1): 139-151. (in Chinese)
[44]	Zhou R P, 2019. Assessing the soil erosion control service in the typical area of Loess Plateau. Remote Sensing for Land & Resources, 31(2): 131-139. (in Chinese)
[45]	Zhu L Q, Xu S M, Chen P Y, 2003. Study on the impact of land use/land cover change on soil erosion in mountainous areas. Geographical Research, 22(4): 432-438.
[46]	Zhu P, Liu X, Zheng Y H et al., 2020. Tradeoffs and synergies of ecosystem services in key ecosystem function zones in northern China. Acta Ecologica Sinica, 40(23): 8694-8706. (in Chinese)

Ecosystems	2000	2005	2010	2015	Change area from 2000-2015	Rate of change (%)
Cropland	66.38	67.86	68.20	70.19	3.81	5.74
Forest	112.97	116.10	115.78	115.57	2.60	2.30
Grassland	281.18	272.65	266.45	245.76	-35.42	-12.60
Water bodies and wetland	19.06	21.22	19.78	26.44	7.38	38.72
Settlement	1.37	1.57	2.12	5.76	4.39	320.43
Desert	127.63	128.36	127.59	128.68	1.05	0.82
Other ecosystems	63.15	63.08	72.15	75.65	12.50	19.79

2000	2015
2000	Cropland	Forest	Grassland	Water bodies and wetland	Settlement	Desert	Others
Cropland	47.74	5.83	8.38	1.09	2.98	0.26	0.09
Forest	8.35	89.31	12.69	1.53	0.31	0.27	0.42
Grassland	11.74	18.17	194.60	8.84	1.02	21.15	25.61
Water bodies and wetland	0.52	0.32	2.62	11.93	0.09	0.83	2.72
Settlement	0.19	0.04	0.09	0.05	0.97	0.03	0.004
Desert	1.44	0.36	10.39	1.74	0.35	105.82	7.52
Others	0.20	1.48	16.91	1.21	0.04	4.06	39.23
