Spatially explicit changes of forestland in Taiwan Province from 1910 to 2010

doi:10.1007/s11442-022-1956-y

摘要/Abstract

Abstract:

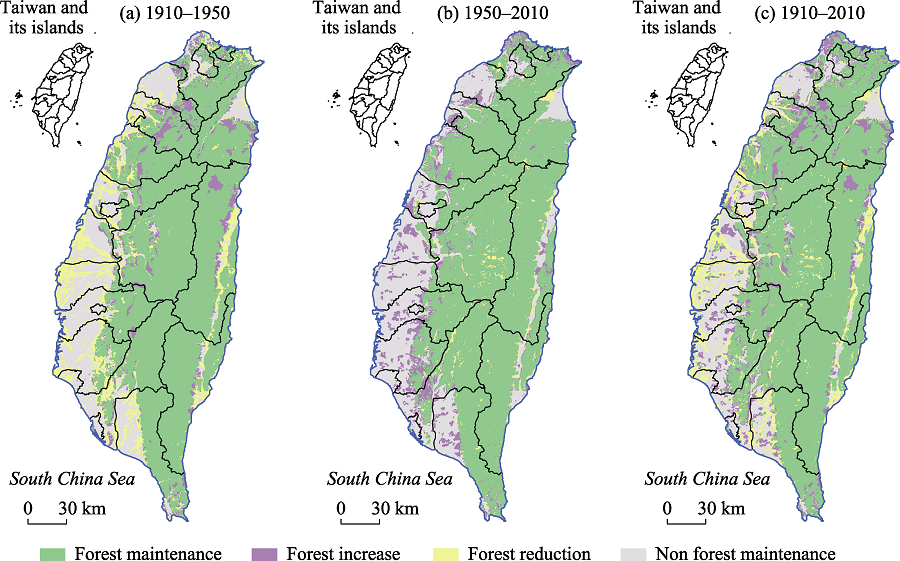

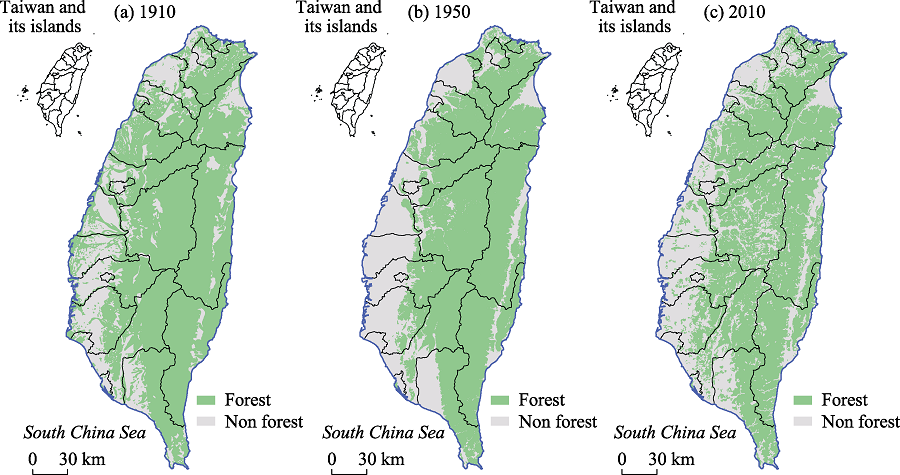

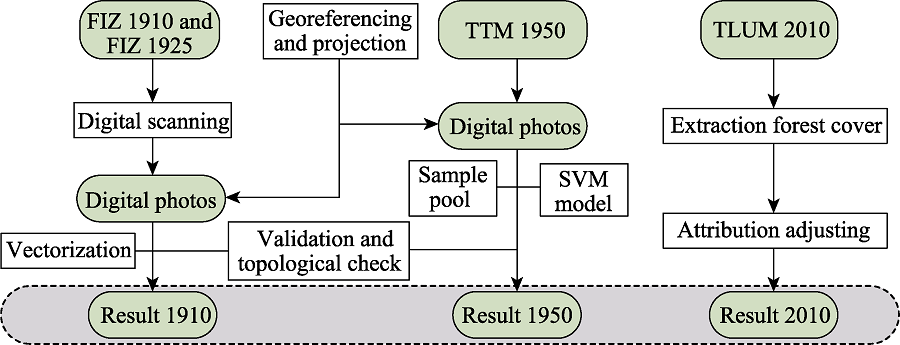

Reconstructing long-term changes of forest cover (FC) can provide reliable underlying data for carbon source/sink accounting and simulation of the effects of land use on the climate and environment. Historical maps contain a wealth of forest related information and can provide first-hand data for studying the changes in FC over a long time period. Taking the reconstruction of FC in Taiwan Province from 1910-2010 as the research object, we used map extraction and mining methods to extract forest distribution information from historical forest thematic survey maps, topographic and land cover maps, and reconstructed the spatiotemporal patterns of FC in Taiwan from 1910-2010. The results show that: first, the relative bias of the FC area extracted from the historical maps of Taiwan was below 8%, meaning the FC information contained in maps is highly accurate. Second, the FC of Taiwan has generally declined in the past 100 years. From 1910-2010, the forest area declined from 2.62×10⁶ ha to 2.47×10⁶ ha, with relatively obvious forest reduction having occurred. In stages, the forest area of Taiwan decreased by 26.39×10⁴ ha from 1910 to 1950; and increased by 10.53×10⁴ ha during the period 1950-2010. Forest reduction was obvious during the Japanese occupation period, while forest increase was remarkable during the Kuomintang period. Third, during the study period, the total area of patches maintained as forests was 2.17×10⁶ ha with little change in the overall pattern, and forests were mainly distributed in the mountain regions. The loss of forest mainly occurred in the plains, with expanding forest areas mainly in the mountain regions at high elevations and on steep slopes. Fourth, land clearing for agriculture during the Japanese occupation period has been the important driver of forest reduction in Taiwan over the past century. After retreated to Taiwan, the Kuomintang government introduced effective and remarkable reforms that led to effective restoration of forest vegetation in many areas where forests had previously disappeared.

Key words: historical map, forestland change, spatiotemporal pattern, driving force, Taiwan

. [J]. 地理学报(英文版), 2022, 32(3): 441-457.

YANG Xuhong, JIN Xiaobin, YANG Yongke, SONG Jiani, ZHANG Tong, ZHOU Yinkang. Spatially explicit changes of forestland in Taiwan Province from 1910 to 2010[J]. Journal of Geographical Sciences, 2022, 32(3): 441-457.

图/表 9

参考文献 47

[1]	Aleman J C, Jarzyna M A, Staver A C, 2018. Forest extent and deforestation in tropical Africa since 1900. Nature Ecology & Evolution, 2: 26-33.
[2]	Brandolini F, Reynard E, Pelfini M, 2020. Multi-temporal mapping of the Upper Rhone Valley (Valais, Switzerland): Fluvial landscape changes at the end of the Little Ice Age (18th-19th centuries). Journal of Maps, 16(2): 212-221. doi: 10.1080/17445647.2020.1724837
[3]	Cervera T, Pino J, Marull J et al., Understanding the long-term dynamics of forest transition: From deforestation to afforestation in a Mediterranean landscape (Catalonia, 1868-2005). Land Use Policy, 80: 318-331. doi: 10.1016/j.landusepol.2016.10.006
[4]	Chen Y Y, Huang W, Wang W H et al., 2019. Reconstructing Taiwan’s land cover changes between 1904 and 2015 from historical maps and satellite images. Scientific Reports, 9: 3643. doi: 10.1038/s41598-019-40063-1
[5]	Ciupa T, Suligowski R, Ealek G, 2016. Use of GIS-supported comparative cartography and historical maps in long-term FC changes analysis in the holy cross mountains (Poland). Baltic Forestry, 22(1): 63-73.
[6]	Clawson M, 1979. Forests in the long sweep of American history. Science, 204(4398): 1168-1174. pmid: 17772408
[7]	Esser G, Hoffsradt J, Mack F et al., 1994. High-resolution biosphere model, documentation, model version 3.00.00[R]. Giessen: Justus-Liebig University.
[8]	Fan B M, Dong Y, 2001. Percentage of FC in different historic periods of China. Journal of Beijing Forestry University, 23(4): 60-65. (in Chinese)
[9]	Ge Q S, Dai J H, He F N et al., 2008. Research on land use and land cover change and carbon cycle of China during the past 300 years. Science in China Series D: Earth Science, 38(2): 197-210. (in Chinese)
[10]	Goldewijk K K, Beusen A, Doelman J et al., 2017. Anthropogenic land use estimates for the Holocene: HYDE3.2. Earth System Science Data, 9(2): 927-953. doi: 10.5194/essd-9-927-2017
[11]	Goldewijk K K, Beusen A, Drecht G V et al., 2011. The HYDE 3.1 spatially explicit database of human-induced global land-use change over the past 12 000 years. Global Ecology and Biogeography, 20(1): 73-86.
[12]	Han Z Q, Ran Y H, Liu J X et al., 2016. The changing distribution of rocky desertification in the Guangxi Region. 1930s to 2000. Acta Geographica Sinica, 71(3): 390-399. (in Chinese)
[13]	He F N, Ge Q S, Dai J H et al., 2008. Forest change of China in recent 300 years. Journal of Geographical Sciences, 18(1): 59-72. doi: 10.1007/s11442-008-0059-8
[14]	He F N, Li S C, Zhang X Z, 2014. Spatially explicit reconstruction of FC of Southwest China in the Qing Dynasty. Geographical Research, 33(2): 260-269. (in Chinese)
[15]	He F N, Li S C, Zhang X Z, 2015. A spatially explicit reconstruction of FC in China over 1700-2000. Global and Planetary Change, 131: 73-81. doi: 10.1016/j.gloplacha.2015.05.008
[16]	Hou R L, Yang Y D, Man Z M, 2020. Gridded reconstruction of spatiotemporal evolution of cropland in the Zhangjiu River Basin in Yunnan Province from 1700 to 1978. Acta Geographica Sinica, 75(9): 1966-1982. (in Chinese)
[17]	Houghton R, Hackler J, 1999. Emissions of carbon from forestry and land-use change in tropical Asia. Global Change Biology, 5(4): 481-492. doi: 10.1046/j.1365-2486.1999.00244.x
[18]	Houghton R, Hobbie J, Melillo J et al., 1983. Changes in the carbon content of terrestrial biota and soils between1860 and 1980: A net release of CO₂ to the atmosphere. Ecological Monographs, 53(3): 236-262.
[19]	Jiang H Z, Zhang F H, 1999. National forest parks in Taiwan. World Forestry Research, 12: 37-41. (in Chinese)
[20]	Jiang W T, 2015. Research on urban population of Jiangnan in the Republic of China based on GIS and the data of topographic maps. Researches in Chinese Economic History, (4): 39-56. (in Chinese)
[21]	Kaplan J, Krumhardt K, Zimmermann N, 2009. The prehistoric and preindustrial deforestation of Europe. Quaternary Science Reviews, 28(27/28): 3016-3034. doi: 10.1016/j.quascirev.2009.09.028
[22]	Li H, 1997. Three formulations of converting ancient Mu into modern Mu. Agricultural History of China, 16(3): 5-7. (in Chinese)
[23]	Li J, Ye Y, Wei X Q, 2019. Reconstruction of cropland change in the southern area of the Daqing River Basin over the past 300 years. Progress in Geography, 38(6): 883-895. (in Chinese)
[24]	Li S, He F, Zhang X, 2014. An approach to spatially explicit reconstruction of historical forest in Northeast China. Journal of Geographical Sciences, 24 (6): 1022-1034. doi: 10.1007/s11442-014-1135-x
[25]	Lian L C, Wan Z W, Ju M et al., 2020. Reconstruction of the cropland area and its spatial distribution pattern at Dongting lake district of Hunan province in the middle of the Republic of China. Journal of Geo-information Science, 22(5): 989-996. (in Chinese)
[26]	Liao Y S, 2016. Analysis of basic topographic map of China: Data from the United States Army Cartographic Office in 1954. China Surveying and Mapping, 3: 58-59. (in Chinese)
[27]	Lin D, 1983. The changes of forest resources in China. Agricultural History of China, 2: 26-36. (in Chinese)
[28]	Liu J Y, Kuang W H, Zhang Z X et al., 2014. Spatiotemporal characteristics, patterns and causes of land use changes in China since the late 1980s. Acta Geographica Sinica, 69(1): 3-14. (in Chinese)
[29]	Liu J Y, Zhang Z X, Zhuang D F et al., 2003. A study on the spatial temporal dynamic changes of land use and driving forces analyses of China in the 1990s. Geographical Research, 22(1): 1-12. (in Chinese)
[30]	Liu M, Tian H, 2010. China’s land cover and land use change from 1700 to 2005: Estimations from high-resolution satellite data and historical archives. Global Biogeochemical Cycles, 24(3): 285-286.
[31]	Miao L, Zhu F, He B et al., 2013. Synthesis of China’s land use in the past 300 years. Global and Planetary Change, 100: 224-233. doi: 10.1016/j.gloplacha.2012.10.021
[32]	Pongratz J, Reick C, Raddatz T et al., 2008. A reconstruction of global agricultural areas and land cover for the last millennium. Global Biogeochemical Cycles, 22(3): 147-147.
[33]	Ramankutty N, Foley J, 1999. Estimating historical changes in global land cover: Croplands from 1700 to 1992. Global Biogeochemical Cycles, 13(4): 997-1028. doi: 10.1029/1999GB900046
[34]	Shi N, 1991. On the historical distribution and vicissitude of the national vegetation of China. Collections of Essays on Chinese Historical Geography, 3: 43-73. (in Chinese)
[35]	Steyaert L, Knox R, 2008. Reconstructed historical land cover and biophysical parameters for studies of land-atmosphere interactions within the eastern United States. Journal of Geophysical Research Atmospheres, 113(D2): 194-204.
[36]	Szypula B, 2020. Digital adaptation of the Geomorphological Map of Upper Silesian Industrial Region, Poland (1:50,000): Old map new possibilities. Journal of Maps, 16(2): 614-624. doi: 10.1080/17445647.2020.1800528
[37]	Tian H, Banger K, Bo T et al., 2014. History of land use in India during 1880-2010: Large-scale land transformations reconstructed from satellite data and historical archives. Global and Planetary Change, 121: 78-88. doi: 10.1016/j.gloplacha.2014.07.005
[38]	Wan Z W, Jia Y L, Jiang M X et al., 2018. Reconstruction of urban land use and urbanization level in Jiangxi Province during the Republic of China period. Acta Geographica Sinaca, 73(3): 550-561. (in Chinese)
[39]	Wei X, Ye Y, Zhang Q et al., 2019. Reconstruction of cropland change in North China Plain area over the past 300 years. Global and Planetary Change, 176: 60-70. doi: 10.1016/j.gloplacha.2019.01.010
[40]	Yang D S, 1995. The current situation of Taiwan forestry. World Forestry Research, (4): 50-56. (in Chinese)
[41]	Yang F, He F N, Li S C et al., 2019a. Exploring spatiotemporal pattern of grassland cover in western China from 1661 to 1996. International Journal of Environmental Research and Public Health, 16: 3160. doi: 10.3390/ijerph16173160
[42]	Yang X, Jin X, Du X et al., 2016a. Multi-agent model-based historical cropland spatial pattern reconstruction for 1661-1952, Shandong Province. Global and Planetary Change, 143: 175-188. doi: 10.1016/j.gloplacha.2016.06.010
[43]	Yang X, Jin X, Guo B et al., 2015. Research on reconstructing spatial distribution of historical cropland over 300 years in traditional cultivated regions of China. Global and Planetary Change, 128: 90-102. doi: 10.1016/j.gloplacha.2015.02.007
[44]	Yang X H, Jin X B, Lin Y N et al., 2016b. Review on China’s spatially-explicit historical land cover datasets and reconstruction methods. Progress in Geography, 35(2): 159-172. (in Chinese)
[45]	Yang X H, Jin X B, Xiang X M et al., 2018. Reconstructing the spatial pattern of historical forest land in China in the past 300 years. Global and Planetary Change, 165: 173-185. doi: 10.1016/j.gloplacha.2018.03.015
[46]	Yang X H, Jin X B, Xiang X M et al., 2019b. Carbon emissions induced by farmland expansion in China during the past 300 years. Science China Earth Science, 62(2): 423-437. doi: 10.1007/s11430-017-9221-7
[47]	Ye Y, Fang X, Zhang X et al., 2009. Coverage changes of forestland and grassland in northeastern China during the past 300 years. Journal of Beijing Forestry University, 31(5): 137-144. (in Chinese)

Map/Abbreviation	Year		Scale	Covered area	Forest representation	Sources
Map/Abbreviation	Topicality	Period	Scale	Covered area	Forest representation	Sources
The forest investigation zone in Taiwan Province (FIZ1910)	1910	1910-1915	1:500 000	Broad part of Taiwan Province except the Central Mountain Range	Colored polygon filled with green or pink; dotted line boundaries	http://thcts.ascc.net/htwn_ch.htm the data list name is the rd 03-2, -3, -4 and -7.
The forest investigation zone in Taiwan Province (FIZ1925)	1925	1925-1930	1:300 000	Central Mountain Range	Colored polygon filled with green, orange, or red*; dotted line boundaries

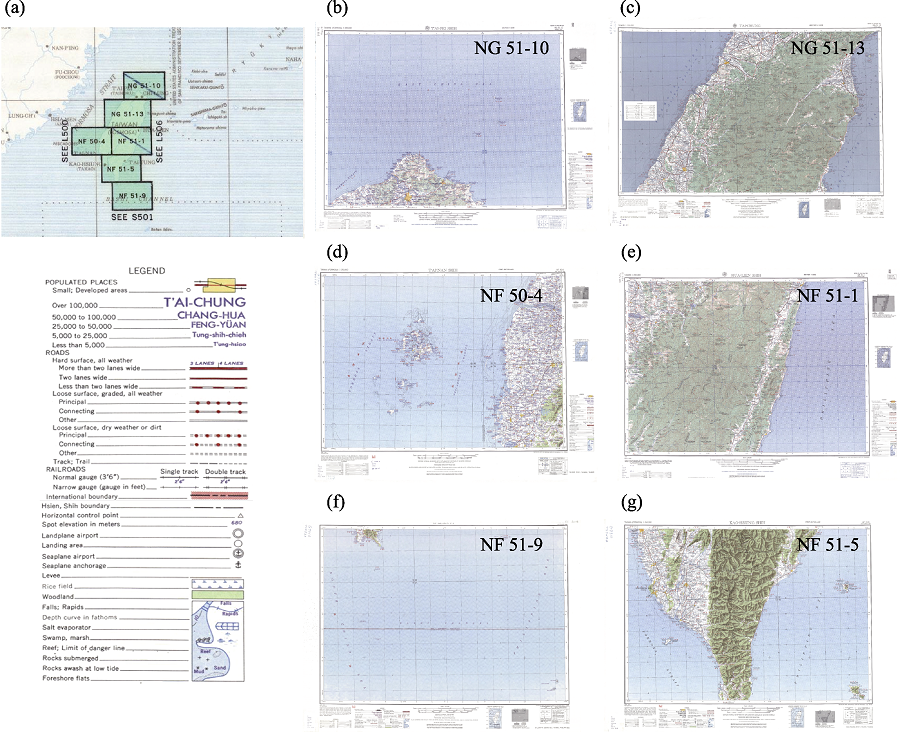

Taiwan topo- graphic maps (TTM1950)	1950	1945-1950	1:250 000	The whole of Taiwan Province	Colored polygon filled with pale green; dotted line boundaries, contour line and rivers; dotted features symbol	http://www.utexas.edu/
Taiwan land use map (TLUM2010)	2010	2010	1:100 000	The whole of Taiwan Province	Forest type polygon	Liu et al., 2014
