Critical threshold of periodic point bar scour and sediment body transport path in tidal reaches: A case study of Fujiangsha reach, Yangtze River
Wang Jianjun (1980-), PhD and Associate Professor, E-mail: wangjianjunb@126.com |
Received date: 2022-06-01
Accepted date: 2022-11-03
Online published: 2023-06-26
Supported by
National Key Research and Development Program of China(2021YFB2600500)
National Natural Science Foundation of China(52279066)
Jiangsu Water Conservancy Science and Technology Project(2020001)
The evolution of point bars in changing sections of a downstream tidal current limit is periodic. Accordingly, assessing the critical morphology and hydrodynamic characteristics of point bar scour and the sediment transport process of scour sediment bodies can support river regulation and waterway maintenance. The frequent scour of point bars in changing sections of tidal current limits within the Yangtze River directly restricts waterway stability. This study examined the Fujiangsha reach of the Yangtze River, hydrological data on sediment transport, and riverbed topography from 1950. The Jingjiang bank tail exhibited an evolutionary cycle (siltation>scour>siltation), with a primary period ranging from 3-6 years. Additionally, certain morphological and dynamic conditions were necessary for scour. The Datong station flow (Q) ranged from 20,000-40,000 m3·s-1 for ≥180 days·yr-1, enabling the bank silt layers to widen. Scour occurred during flooding and was concentrated in areas 5.0-7.5 km downstream from Ebizui. When Q≥40,000 m3·s-1, scouring occurred in the bank middle and lower reaches, whereas Q≥50,000 m3·s-1 for >50 consecutive days, scour occurred at the tail as well. Moreover, the volume of the scour shoals increased with the number of high-flow days (≥60,000 m3·s-1). Bottom sand transport mainly occurred in the low-bank zone. Before the project’s second phase, the longitudinal transport of the scouring sand bodies occurred as follows: Jingjiang bank > low bank on the north side of Shuangjiansha > Fubei anabranch. During the second phase, the longitudinal transport route changed to Jingjiang bank > Fubei anabranch. The Jingjiang bank volume was also reduced; thus, its development was controlled. Owing to changes in the longitudinal transport routes, dredging should be conducted in areas where scouring sand bodies are separately transported from the tail, thereby reducing the load of dredging and maintenance for the Fubei anabranch during dry years.
WANG Jianjun , YANG Yunping , ZHANG Mingjin , ZHU Lingling , LI Shaowu , WEN Yuncheng . Critical threshold of periodic point bar scour and sediment body transport path in tidal reaches: A case study of Fujiangsha reach, Yangtze River[J]. Journal of Geographical Sciences, 2023 , 33(6) : 1334 -1358 . DOI: 10.1007/s11442-023-2132-8

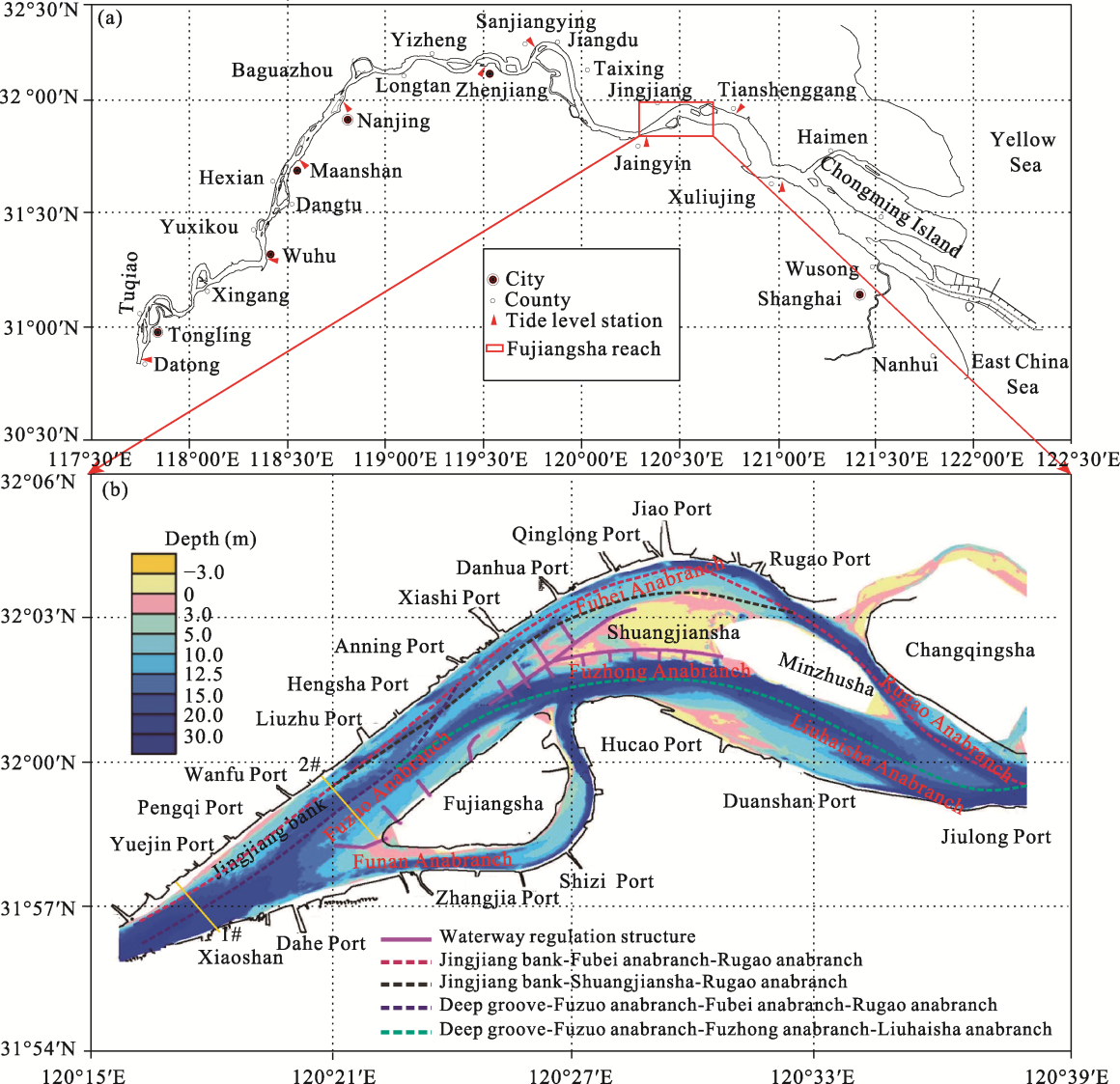

Figure 1 Reach locations and characteristic cross-sections of the Fujiangsha reach, Yangtze River: (a) Research used for research; (b) Profile of the reach (in August 2016) |
Table 1 Data types and sources |
Data type | Time span | Data characteristics | Data sources |
---|---|---|---|
Hydrology | 1950-2019 | Daily, monthly, and annual average flows | Hydrology Bureau of Changjiang Water Resources Commission, Changjiang Waterway Bureau, Nanjing Deep Waterway Engineering Construction Headquarters, Nanjing Hydraulic Research Institute |
Runoff and sediment | 1967-2018 | Split ratio of branches (1967-2018), sediment diversion ratio of branches (2012-2018), and sediment measurement data of the entire reach (Feb, Aug 2016) | |
Riverbed topography | 1959-2019 | 10.0 m isobaths (1959-2002), and measured water depth scatterplots (2004-2019, scale 1:10,000) |

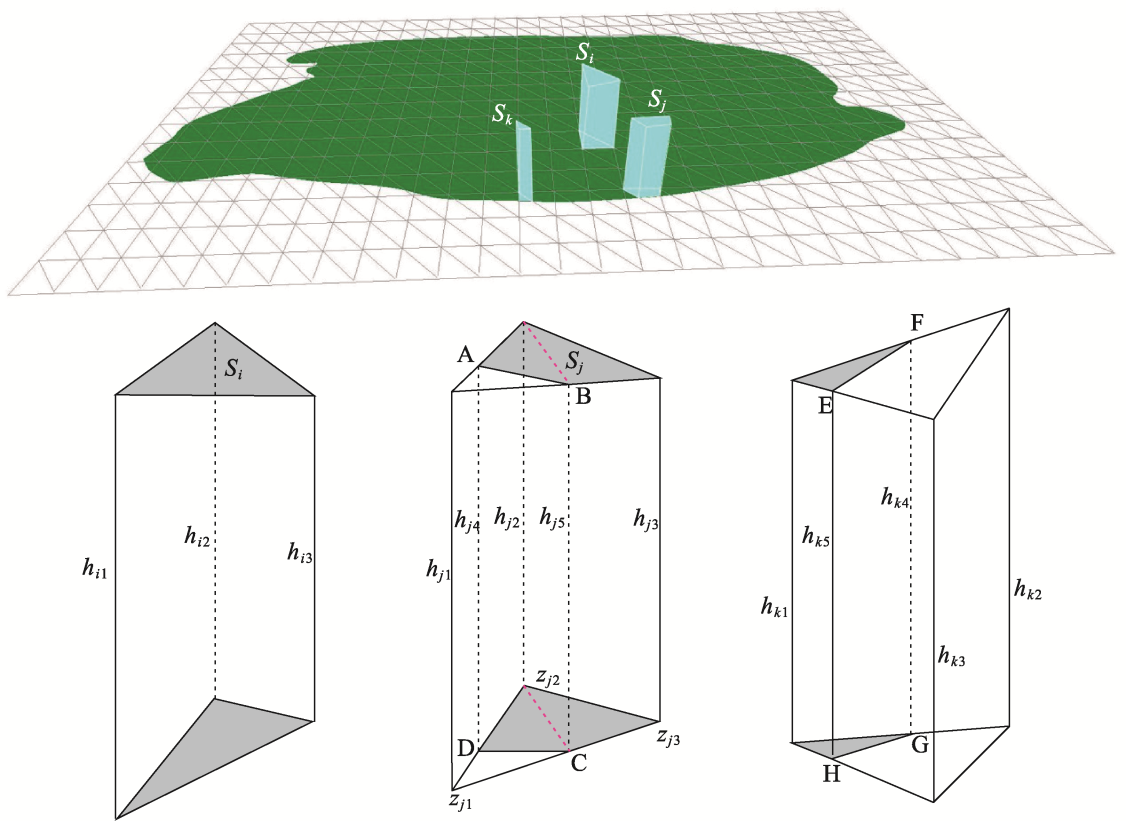

Figure 2 Calculation of the volume of the bank and river channel |

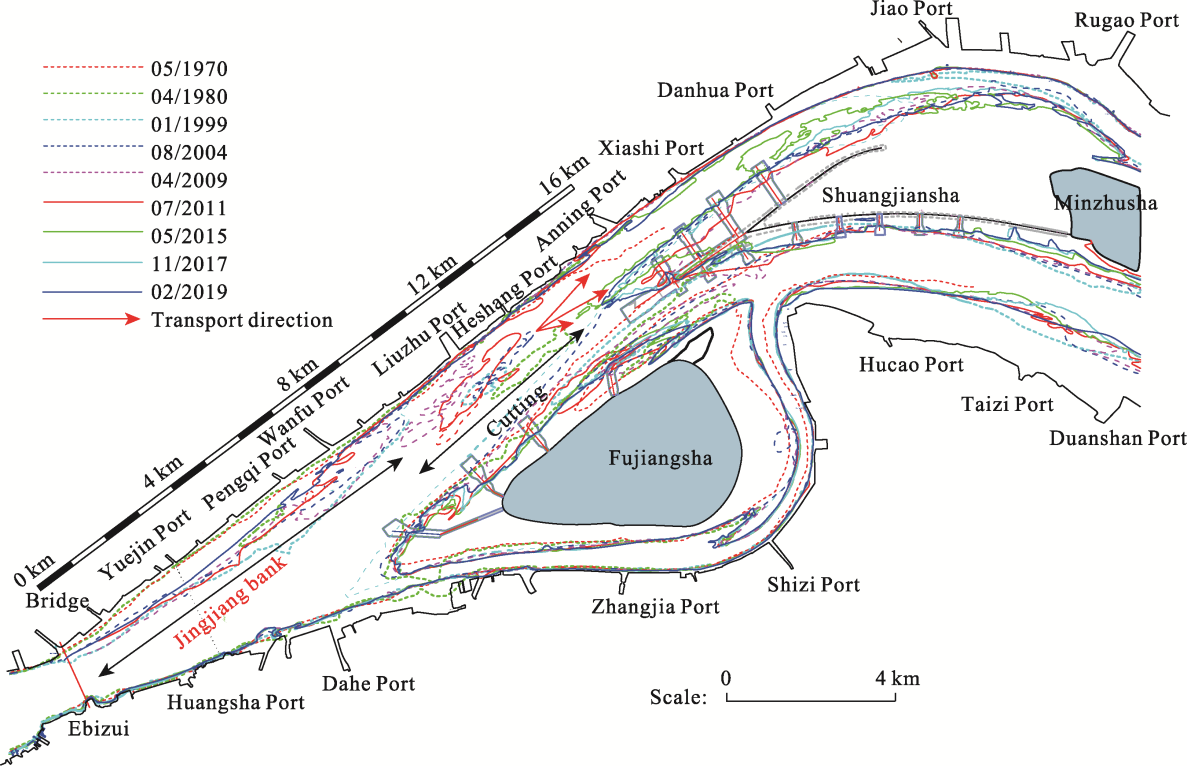

Figure 3 Changes in the 10.0-m isobath of the Jingjiang bank |

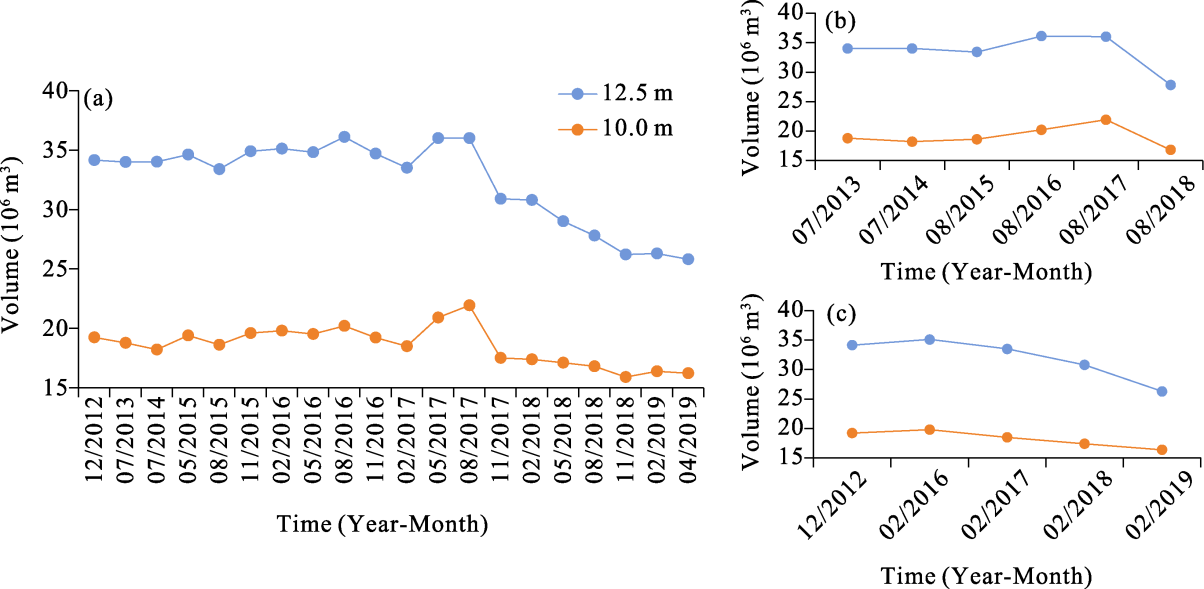

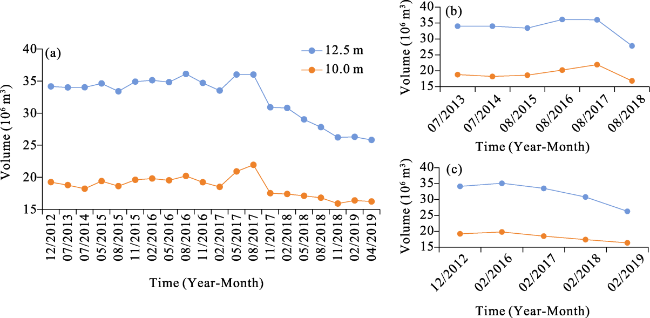

Figure 4 Changes in the 10.0-m isobath volume of the Jingjiang bank: (a) Volume of the bank during 2012-2019; (b) Flood season; (c) Dry season |

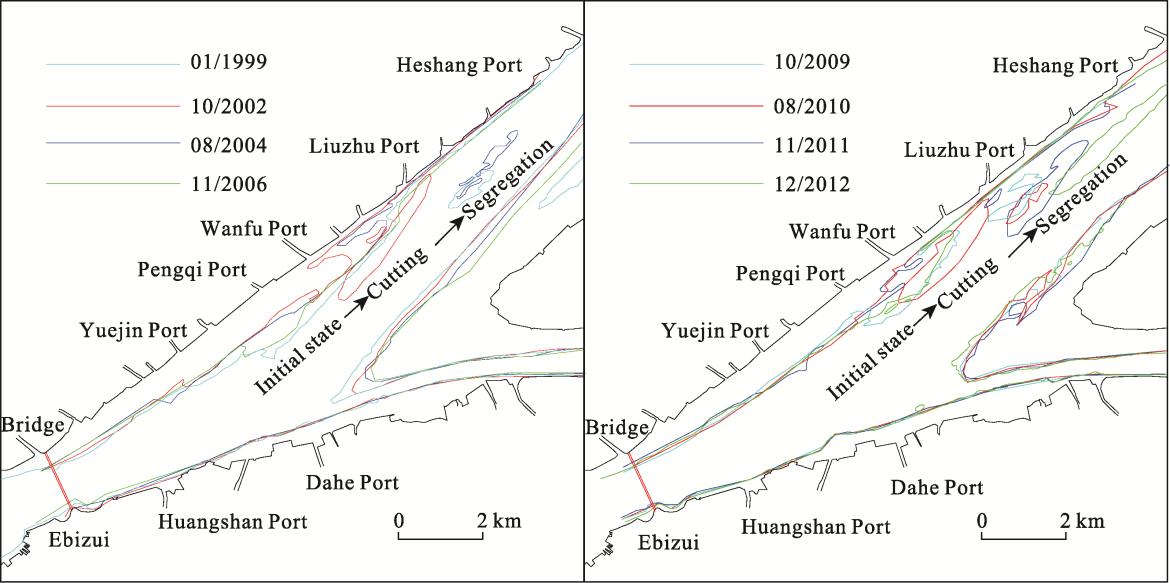

Figure 5 Changes in the 10.0-m isobath of the Jingjiang bank from 1999-2012 |

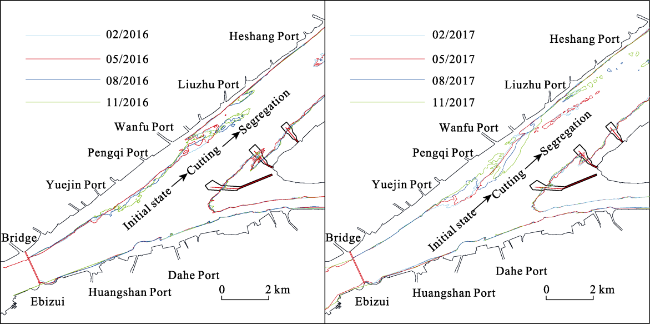

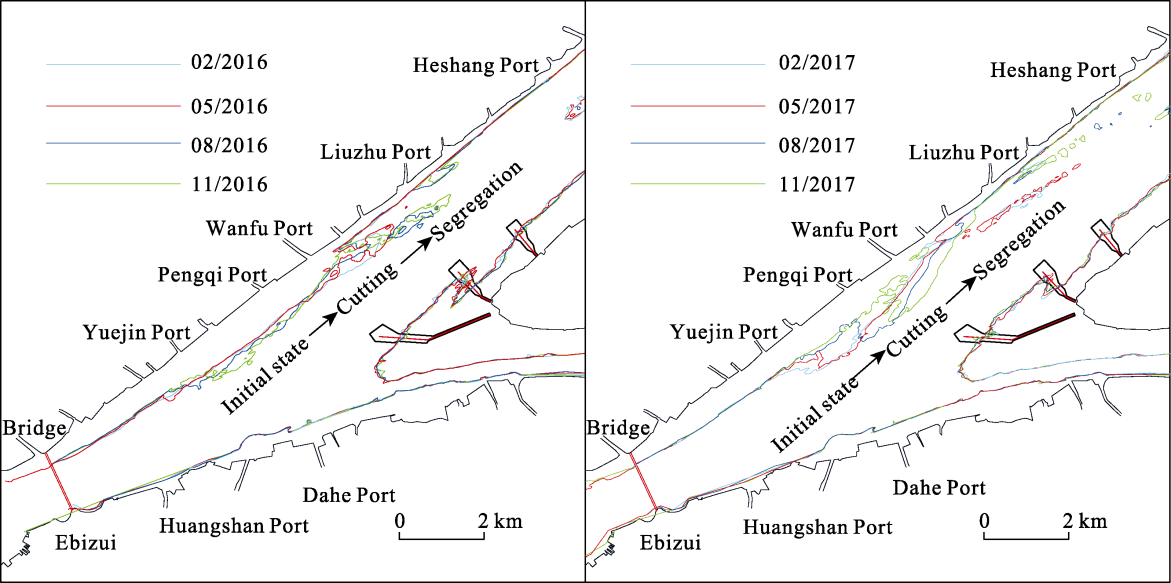

Figure 6 Changes in the 10.0-m isobaths of the Jingjiang bank in 2016 and 2017 |

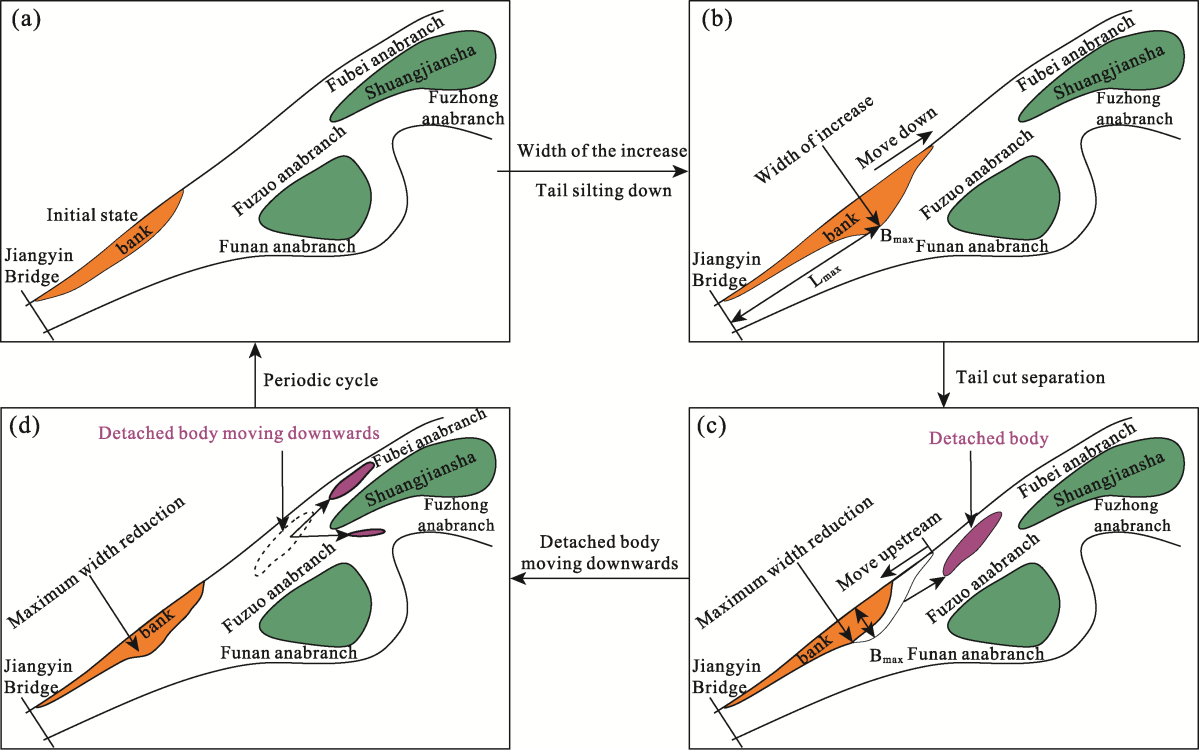

Figure 7 Evolutionary features of the Jingjiang and nearby bank: (a) Original state; (b) Silting state (early); (c) Silting state (late); (d) Transport state |

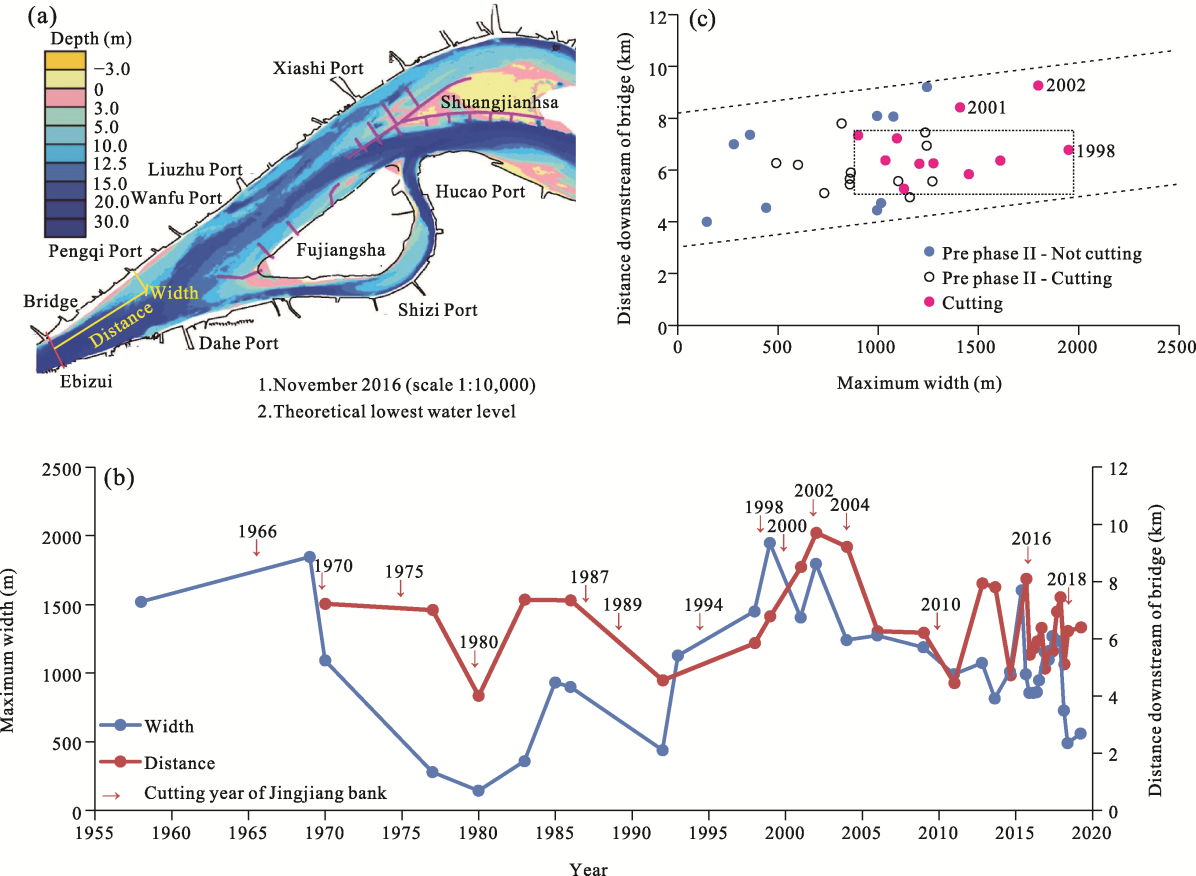

Figure 8 Morphological parameters of scouring in the Jingjiang bank: (a) Map of morphological parameters; (b) Morphological parameters of the Jingjiang bank over the analysis period; (c) Maximum width position |

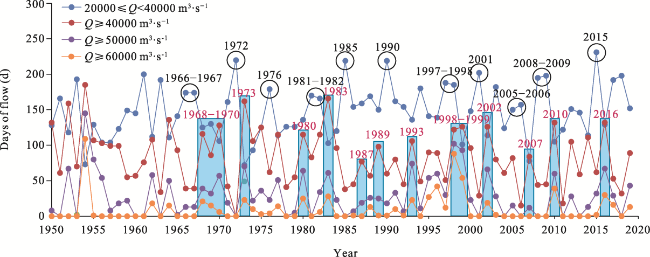

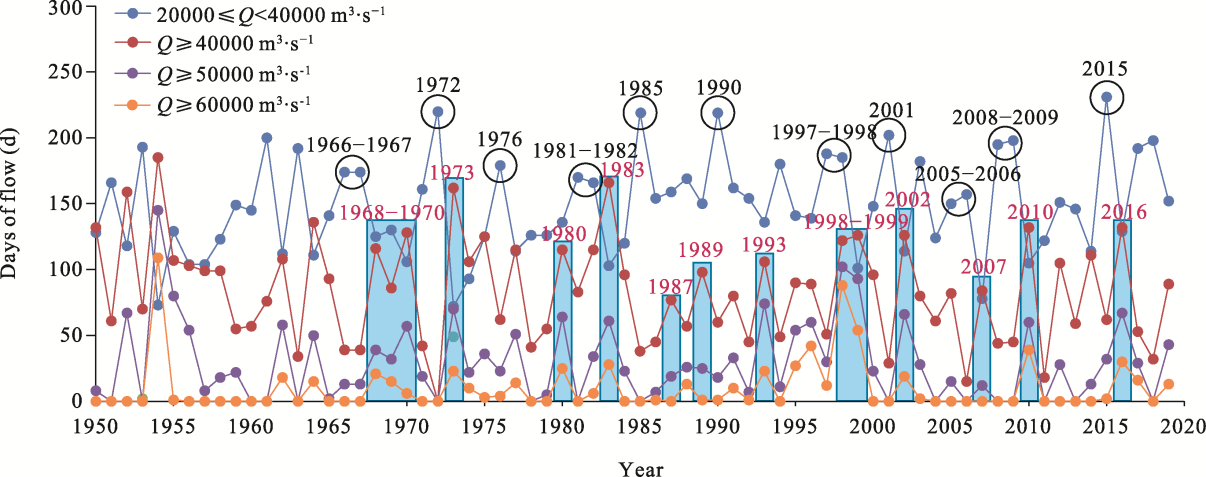

Figure 9 Relationship between the characteristic flows at the Datong station and the scouring in the Jingjiang bank |

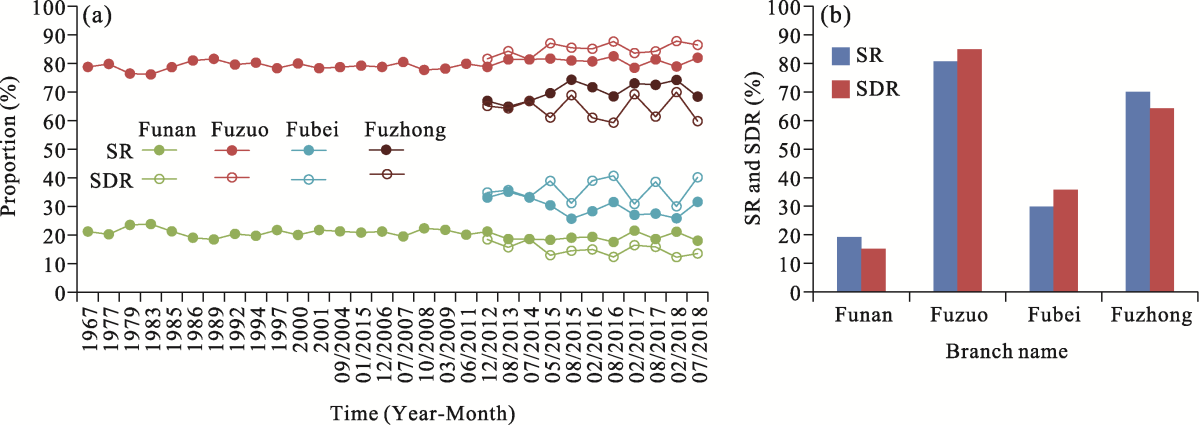

Figure 10 Split ratio and sediment diversion ratio in the Fujiangsha reach: (a) SR and SDR; (b) Relationship between SR and SDR |

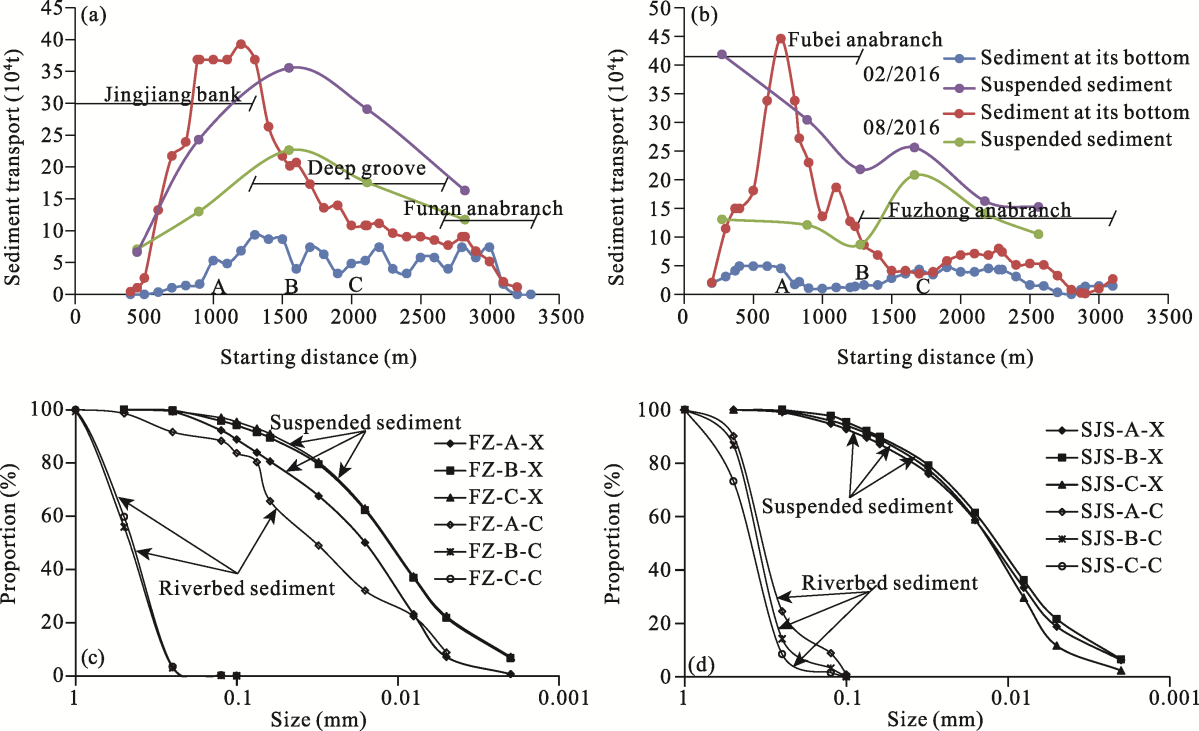

Figure 11 Suspended sand and bottom sediment transport pathways of the: (a) Xiaoshan section (1#); (b) Fuzuo section (2#); (c) Sediment grading of the Fuizuo section; (d) Sediment grading of the Fubei section |

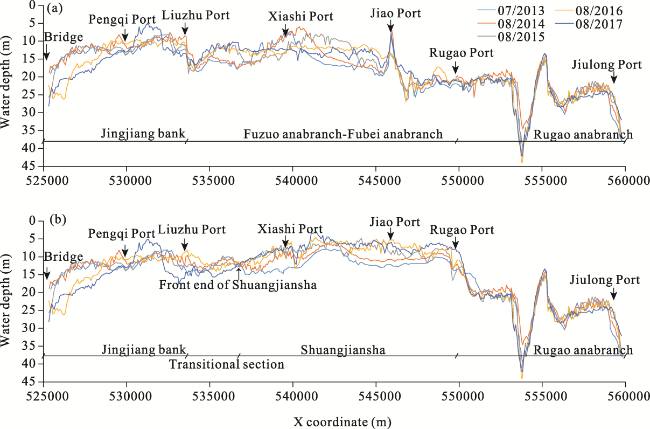

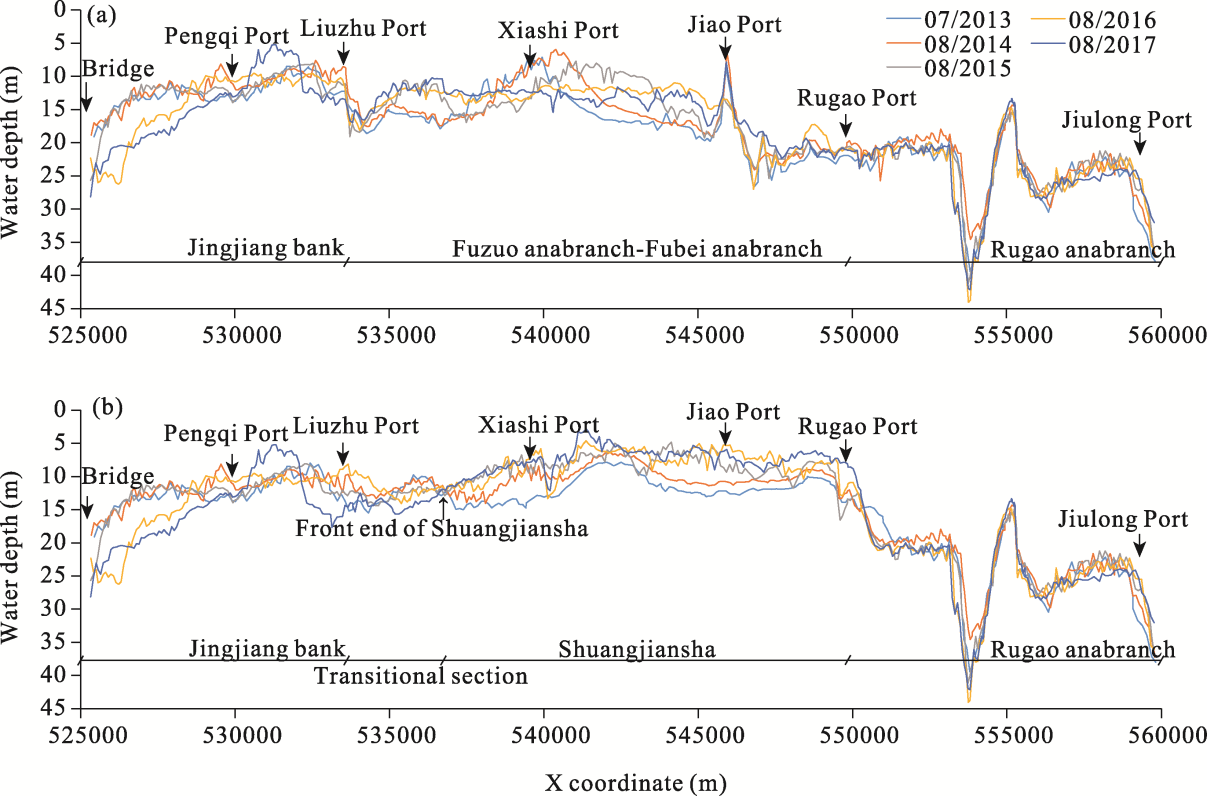

Figure 12 Jingjiang bank to Fubei anabranch transport model: (a) Jingjiang bank-Fubei anabranch-Rugao anabranch; (b) Jingjiang bank-Shuangjiansha-Rugao anabranch |

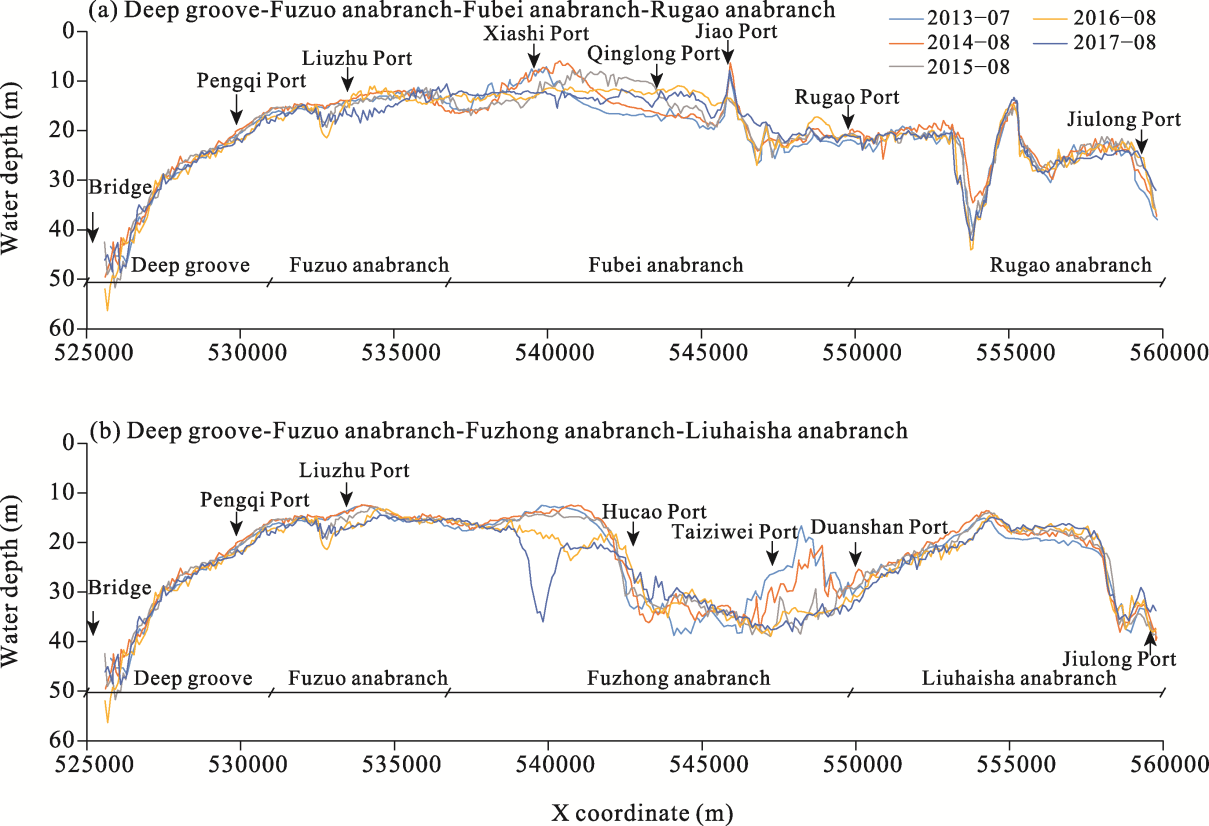

Figure 13 Deep trough to Fubei and Fuzhong anabranch transfer mode: (a) Jingjiang bank-Fubei anabranch-Rugao anabranch and (b) Jingjiang bank-Shuangjiansha-Rugao anabranch |

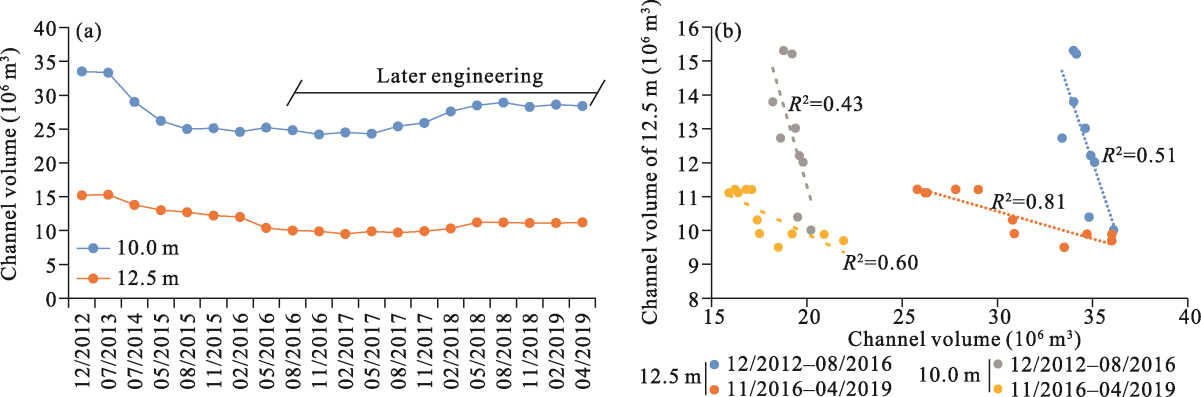

Figure 14 Relationship between the volume of the Jingjiang bank and the channel capacity of Fubei anabranch: (a) Fubei anabranch; (b) Channel and Jingjiang bank volumes |
Table 2 Dredging and maintenance volume of Fubei anabranch |
Volume/Year | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 |
---|---|---|---|---|---|---|---|---|---|---|
Dredging and maintenance (×104 m3) | 30.03 | 0 | 283.36 | 375.14 | 404.59 | 552.625 | 443 | 95.84 | 739.14 | 886.9 |
Runoff (×108 m3) | 10078 | 6671 | 10020 | 7878 | 8919 | 9139 | 10450 | 9378 | 8028 | 9334 |
Sediment (×108 t) | 1.86 | 0.718 | 1.61 | 1.17 | 1.20 | 1.16 | 1.52 | 1.04 | 0.831 | 1.05 |

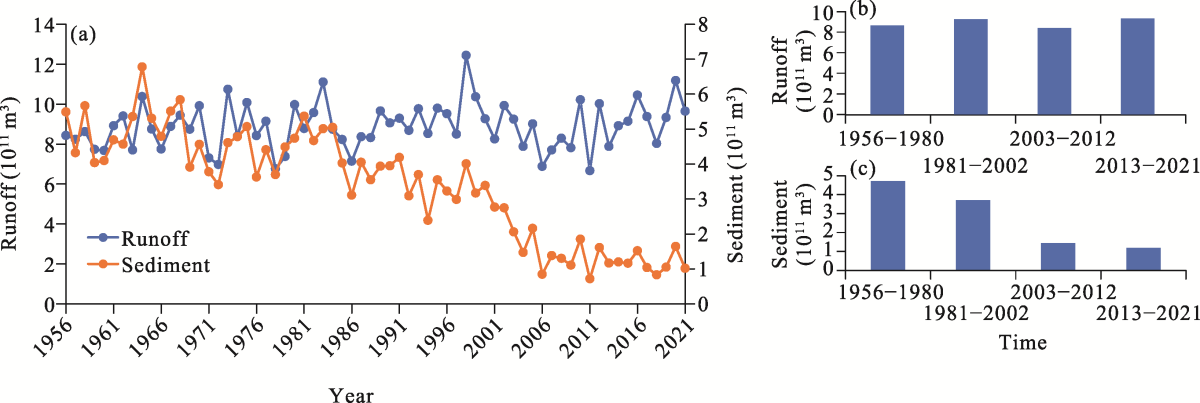

Figure 15 Changes in runoff and sediment of the Datong Station: (a) Runoff and sediment; (b) Runoff; (c) Sediment |
Table 3 Statistics of riverbed scouring and deposition from the Three Gorges Dam to the estuary of the Yangtze River |
Period | Reach | |||
---|---|---|---|---|
Yichang-Hukou | Hukou-Jiangyin | Jiangyin-Xuliujing | Yangtze Estuary | |
1975-2001 | -16871 | 12728 | -4191 | 14320 |
-649 | 490 | -161 | 573 | |
2001-2021 | -262439 | -170648 | -61700 | -8170 |
-14186 | -8532 | -3085 | -409 |
