Developing socio-hydrology: Research progress, opportunities and challenges

  • XIA Jun , 1, 2 ,
  • DONG Yi , 1, 3, * ,
  • ZOU Lei 1
Expand
  • 1. Key Laboratory of Water Cycle and Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
  • 2. State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, China
  • 3. University of Chinese Academy of Sciences, Beijing 100049, China
*Dong Yi, PhD Candidate, specialized in socio-hydrology. E-mail:

Xia Jun, PhD and Professor, specialized in hydrology and water resource research. E-mail:

Received date: 2021-07-15

  Accepted date: 2022-02-14

  Online published: 2022-11-25

Supported by

National Nature Science Foundation of China(41890824)

National Nature Science Foundation of China(42101043)

Strategic Priority Research Program of the Chinese Academy of Sciences(XDA23040304)

Abstract

The development of industrialization and urbanization has intensified the coupling of human activities and hydrological processes and promoted the emergence of socio-hydrology. This paper addresses the issue of socio-hydrology due to new development and social demand for hydrological sciences and sustainable development. Four key scientific issues are identified through systematic analysis and summary of the relative research and international progress, i.e., (1) the long-term dynamic process of socio-hydrological system evolution; (2) quantitative description and driving mechanism analysis of socio-hydrological coupling system; (3) prediction of the trajectories of socio-hydrological system co-evolution, and (4) integrated water resource management from the perspective of water systems. Moreover, opportunities and challenges for developing socio-hydrology are emphasized, including (1) strengthening the research of interdisciplinary theoretical systems; (2) improving and broadening socio-hydrological research technical methods, and (3) supporting integrated water resources management (IWRM) for sustainable utilization goals (SDGs). The review is expected to provide a reference for the future development of socio-hydrology discipline.

Cite this article

XIA Jun , DONG Yi , ZOU Lei . Developing socio-hydrology: Research progress, opportunities and challenges[J]. Journal of Geographical Sciences, 2022 , 32(11) : 2131 -2146 . DOI: 10.1007/s11442-022-2040-3

1 Introduction

Since the Anthropocene, with industrialization and urbanization, human exploitation of natural resources has put enormous stress on the natural systems. The spatial variability of earth processes has become more intense due to the dual influence of climate change and human activities. The development of the water system has shown an increasingly unpredictable and uncertain trend, resulting in a global water crisis (Pande and Sivapalan, 2017). Traditional hydrology originated from observations and a summary of natural hydrological phenomena (Koutsoyiannis, 2011). The appearance of water-related challenges motivated a paradigm shift in hydrological research, which changed from taking the natural water cycle as the research object (Chow, 1965) to taking into account observations and a summary of natural hydrological phenomena (Koutsoyiannis, 2011).
Based on stable assumptions and regarding human activity as an exogenous of the water cycle, Ehrlich et al. (1971) proposed the I=PAT equation to evaluate the impact of human activities, noting that the impact of human activities on the natural environment is related to the population size, consumption level and technological capabilities. Instead of considering one-way effects, Falkenmark (1977) proposed the concept of “hydro-sociology” to explore the two-way feedback between human activities and the water cycle, which was defined as “a science that studies the interaction between humans and water (Falkenmark, 1979). On the basis of previous research results regarding human-water relationship, the integrated water resources management (IWRM) was proposed at the International Conference on Water and the Environment (ICWE) in 1992, which emphasized incorporating the impact of human activities into water resource management (Gorre-Dale, 1992). In terms of research methods, Falkenmark (1997) proposed models to explain and visualize fundamental interactions between human and water and established a conceptual framework including rural and urban water use. In 2004, relying on the Earth System Alliance (EESP), the Global Water System Plan (GWSP) was established (Alcamo et al., 2005). The core task of GWSP is to discover how humans influence the dynamics of the water system and inform decision-makers how to mitigate the environmental and socioeconomic consequences of these effects (Alcamo et al., 2005). Wang et al. (2004) coupled natural and artificial water cycles in the “dualistic water cycle” model and developed the dual water cycle theory. Their theory focuses on the co-evolution process of natural and artificial water cycles as well as social driving forces such as population, economics, technology, policy, and government; additionally, water value and water culture were also mentioned. In this period, although many studies had carried out meaningful explorations on human-water interaction, the ignorance of the nonlinear characteristics of human activities made it hard to explain some unintended consequences, such as the irrigation paradox and others (Pande and Sivapalan, 2017). In that case, the paradigm of hydrology research has undergone a further change (Wagener et al., 2010), more disciplines were integrated to explore the dynamic mutual feedback mechanism between society and hydrological systems.
In 2012, Sivapalan et al. (2012) introduced the concept of socio-hydrology, which indicates that the study of human-water relationship has entered the third stage, that is, the study of co-evolution. Following this concept, Wei et al. (2017) systematically summarized the theories, methods and application of socio-hydrology under the theoretical framework constructed by Sivapalan et al. (2012). The International Association of Hydrological Sciences (IAHS), which promotes the development of hydrological sciences to better serve society as its mission (Mao et al., 2017), identified the ten-year science plan that we are currently in as follows: “Panta Rhei-Everything Flows: change in hydrology and society”. The theme aims to better understand the process of controlling the water cycle by emphasizing the dynamics of the water cycle and the rapidly changing human system and improving the ability to predict the dynamics of water resources to support the sustainable development of society in a changing environment (Montanari et al., 2013). The plan is transitioning through the fourth phase (2019-2021), which is named the synthesis phase. The target of this phase is understanding, estimating and predicting science in practice, and thus revealing the key points of socio-hydrological research. The socio-hydrological development process is shown in Figure 1.

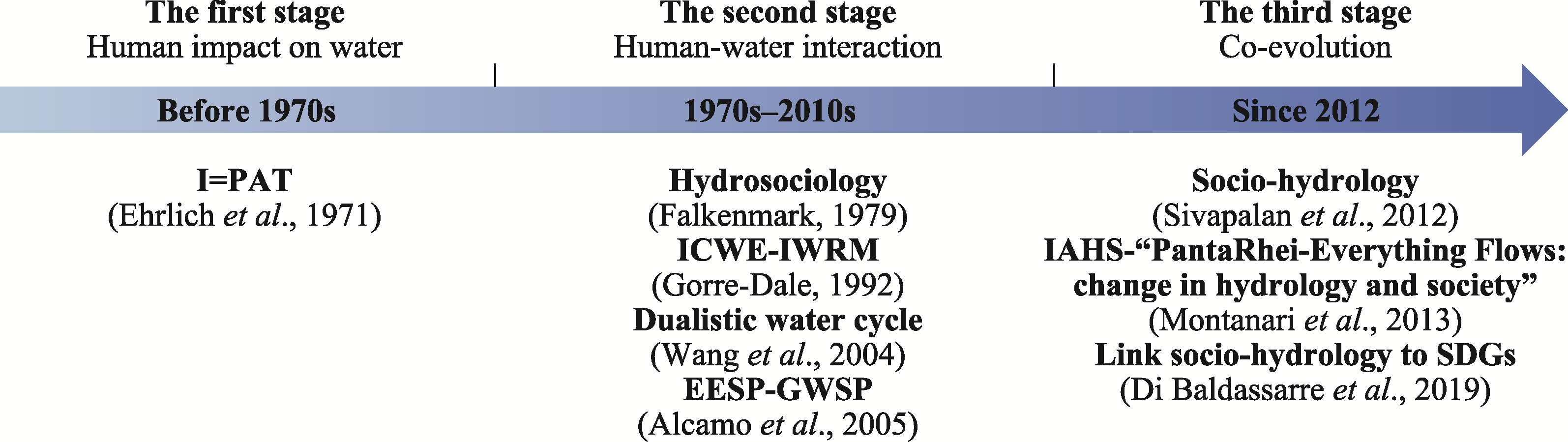

Figure 1 The development process of socio-hydrology
As a discipline supporting water resources management, seeking solutions to water crises has always been the development direction and driving force of socio-hydrology research. Since the beginning of the 21st century, water security issues have become more prominent and humans face severe challenges threatening sustainable development (Braga et al., 2014). The IAHS identified six water crisis hot spots, including ecological degradation, increasing flood risk, water conflict, water quality deterioration, increasing drought severity and groundwater depletion. Di Baldassarre et al. (2019) believe that socio-hydrology is able to provide practical scientific support for understanding these phenomena and has great prospects for addressing the sustainable development goals (SDGs). Undoubtedly, the growing water crisis has brought unprecedented opportunities and challenges to socio-hydrology, and in that case, this paper systematically reviews and analyzes the development and current situation of socio-hydrology. By reviewing the development process of socio-hydrology, combing the research status, and discussing key scientific issues, we propose the current opportunities and challenges that socio-hydrology is facing, hopefully providing a meaningful reference for the future development of the discipline.

2 Analysis of socio-hydrology research status

2.1 Bibliometric analysis of literature

To better understand the hot spots in socio-hydrology research, a keyword co-occurrence map of socio-hydrology (Figure 2) is drawn by VOSviewer software (developed by the Center for Science and Technology Studies (CWTS), Leiden University, Netherlands). The data selected is based on the Science Citation Index Expanded (SCI-E) and Social Sciences Citation Index (SSCI) from the Web of Science (WoS) database. In order to obtain the most relevant literature data, the search topic is set as “sociohydrolog* OR socio-hydrolog* OR social hydrolog*” (Wang and Zhang, 2016). The least occurrences of the keyword to be shown in the co-occurrence map are set as 10. According to the results carried out by VOSviewer, there are 2686 keywords in the existing socio-hydrological literature, and 66 keywords meet the threshold. In the co-occurrence map, every single node represents a keyword. The larger the node means the higher the frequency of keyword occurrence, and the shorter the line segment between two nodes means the closer the correlation between them. As shown in Figure 2, there are five clusters and the core keywords of each cluster are socio-hydrology, management, framework, sustainability, and river-basin respectively. In other words, the above keywords are the frontiers that have received the most attention in socio-hydrology.

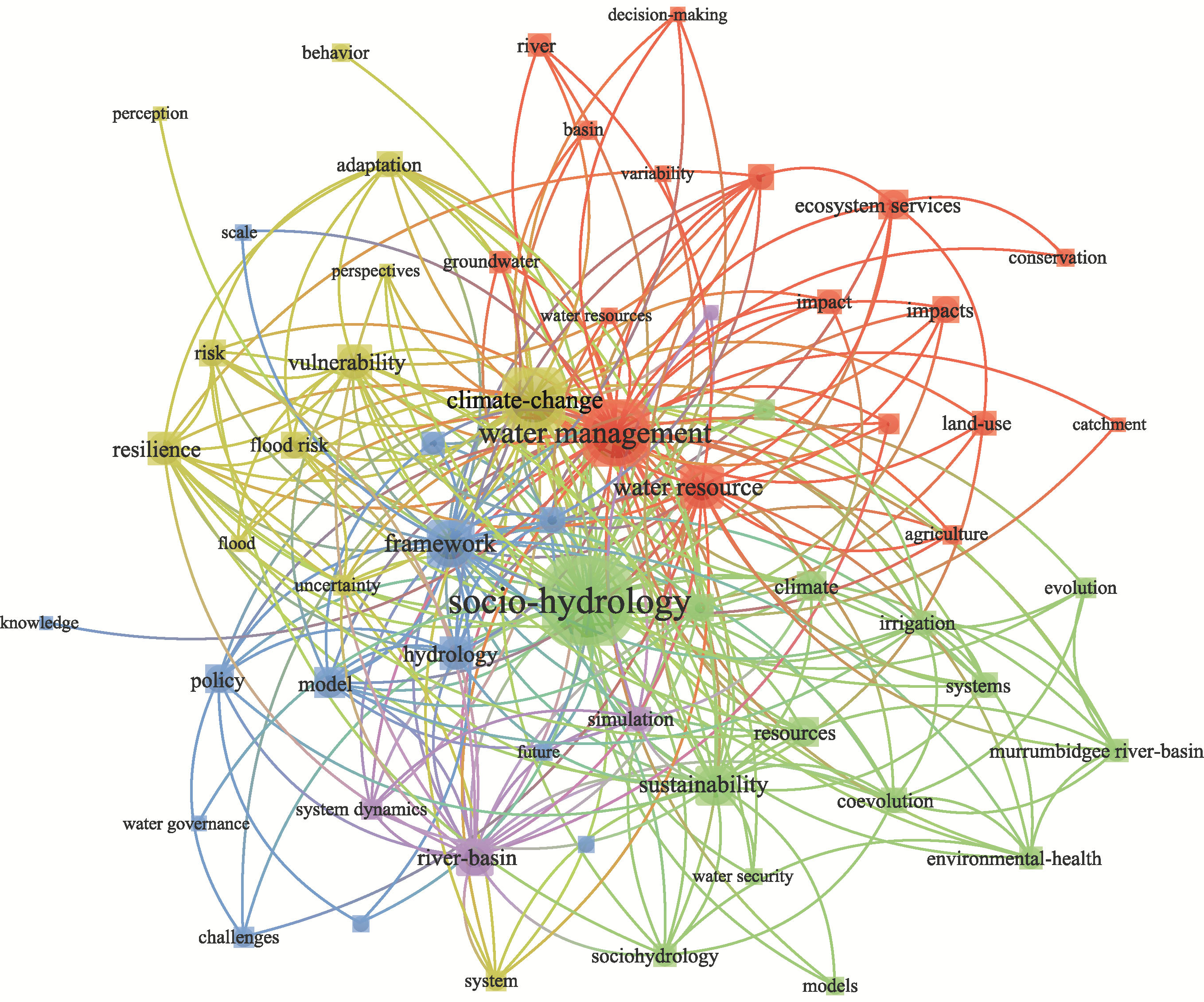

Figure 2 Keyword co-occurrence map of publications in the socio-hydrological field

2.2 Main research content of socio-hydrology discipline

There is a consensus that the emergent water-related issues like irrigation paradox and flooding events have put forward questions for socio-hydrology (Sivapalan et al., 2012; Pande and Sivapalan, 2017). According to Sivapalan et al. (2014), socio-hydrology is a use-inspired science and the core aim of socio-hydrology is to give scientific explanations of those phenomena from the perspective of human-water dynamics mutual feedback. Regarding the goal, scientists carry out research mainly from three aspects. The first is the reconstruction and interpretation of the historical evolution of socio-hydrological systems. The time scale of this type of research is normally hundreds or even thousands of years, a lot of them focus on a specific aspect of the human-water relationship, such as water-related values, policies, and technologies and bibliometric methods may be used to analyse the massive text data. The second is the simulation of the human-water mutual feedback process and the exploration of the regular pattern. Socio-hydrological models are often required in this type of research (Sivapalan, 2015). The existing socio-hydrological models can be classified as data-based models, physics-based models and conceptual models according to the way of expression, bottom-up models and top-down models according to the framework structure or distributed models and lumped models according to whether heterogeneity is considered (Blair and Buytaert, 2016). The models commonly used in socio-hydrology research include agent-based model (ABM), system dynamics (SD), Bayesian networks (BN) etc. The third is management and response to extreme hydrological events and other water crisis issues. Some specific cases may be analysed to explore what role socio-hydrology can play in responding to sustainable development. The representative research examples corresponding to each of the above categories and the methods they have adopted are listed in Table 1.
Table 1 Representative studies of socio-hydrology in the past ten years
Category Reference Research object Approach Region
Reconstruction and interpretation of the historical evolution of socio-hydrological systems Lu et al. (2015) Human-water
relationship
Top-down method based on Budyko assumption Heihe river basin, China
Xiong et al. (2016) Water issues Content analysis China
Wei et al. (2015) Water issues Content analysis Australia
Xiong et al. (2014) Water issues Mapping knowledge domain China
Zhao et al. (2014) Water resources
management
Historical analysis China
Simulation of the human-water mutual feedback process and the exploration of the regular pattern Elshafei et al. (2014) Socio-hydrology
system
SD Murray-Darling Basin (MDB), Australia
Aghaie et al. (2020) Ground water supply ABM Rafsanjan, Iran
Fabre et al. (2015) Supply-demand
dynamics
Component modelling Herault catchment, France, and Ebro catchment, Spain
Srinivasan et al. (2015) Water supply and
demand
Multiple-hypothesis model Chennai, India
van Dam et al. (2013) Policy options BN Nyando Papyrus wetland, Kenya
Wu et al. (2019) Virtual water use Input-output analysis Worldwide
Lopez-Nicolas et al. (2018) Ground water supply Water poverty Index San Luis Potosi, Mexico
Zhou et al. (2015) Human-water
relationship
Conceptual model Murrumbidgee catchment, Australia
Management and response to
extreme hydrological events and other water crisis issues
Di Baldassarre et al. (2013) Human-flood
interactions
System dynamics Fictional catchment
Viglione et al. (2014) Human-flood
interactions
System dynamics Fictional catchment
Gunda et al. (2018) Water stress Hydrological model and system dynamic model Valdez acequia, New Mexico
Kuil et al. (2016) Drought process Conceptual model Ancient Maya
Sawada and Hanazaki (2020) Human-flood
interactions
Model-data integration Punjab province of the Indus River basin, Pakistan
Yu et al. (2017) Flood resilience Evolutionary game theory Coastal Bangladesh
Van Loon et al. (2019) Human influence on hydrological droughts Paired-catchment analysis Cases in the UK and Australia

2.3 Research gaps in addressing the water crisis

The theory and methodology of socio-hydrology have developed rapidly since it was first proposed. Nevertheless, as an emerging subject, socio-hydrology is still in its infancy and lacks a complete and mature theoretical system and method system. There are several research gaps existing in addressing the water crisis as follows: (1) there is a lack of a clear mechanism of human-water interaction. Although some studies do make reasonable attempts at exploring the human-water relationship, they are basically based on a holistic macro-framework (Liu et al., 2014) or carry out research from a perspective of traditional hydrology, i.e., they use water balance to describe changes in hydrological and social systems (Zhou et al., 2015), which is difficult to accurately and objectively reflect the systematic interaction between society and hydrology and resulted in the research on the coupling mechanism of socio-hydrological systems is not sufficient. Also, there are other studies considering the process of two-way interactions between social systems and hydrological systems, some are often too simplified and lack an in-depth analysis of the mechanism of co-evolution (Savenije and Van der Zaag, 2008). (2) Much current research is merely qualitative research while the quantitative description is rather vital for model construction and interpretation in socio-hydrological research as it can accurately reveal the co-evolution process of human-water systems and predict the future situation. Therefore, there is a need for more quantitative scientific methods as the primary method of socio-hydrology research (Madani and Shafiee-Jood, 2020). (3) As an interdisciplinary subject involving multiple scales and processes, socio-hydrology often faces the dilemma of lack of data. Socio-hydrological research requires multisource data from hydrological and social systems and appropriate temporal and space scales must be guaranteed, however, researchers always have to face the difficulties in getting enough data and material from different fields (Cotte et al., 2014).

3 Key scientific issues of socio-hydrology inquiry

Sivapalan et al. (2014) believed that a theoretical framework of socio-hydrology should be able to help people to explain the past, understand the present, and illuminate sustainable future trajectories of socio-hydrological system co-evolution. Based on that and given the core goals of socio-hydrological science mentioned above, we believe that socio-hydrology inquiry should focus on the following key scientific issues which are oriented to the historical evolution of the socio-hydrological system, the current (or continuous) mutual feedback mechanism, the future development trends and the integrated management of water resources.

3.1 The long-term dynamic process of socio-hydrological system evolution

From a historical perspective, water has played a vital role in developing societies in no matter which culture. Many civilisations’ emergence, development, and death are always closely related to water (Sivapalan et al., 2012). Water resource management policies, water conservancy engineering measures, water use methods, irrigation technologies and ways to deal with floods in different historical periods can, to some extent, reflect the level of social development at that period. Therefore, carrying out long-term historical socio-hydrological research on the time scale of hundreds or even thousands of years is undoubtedly necessary.
Socio-hydrology evolution includes changes in both the social and hydrological system and the dynamic process of their mutual feedback. Those processes can take a relatively long time due to a time lag in the interaction between hydrological and social systems. For instance, changes in land use (such as urbanization, agricultural expansion, or intensification) always have long-term effects on erosion and sediment transfer rates and nutrient fluxes (Kalnay and Cai, 2003). Additionally, large-scale water diversion (such as water storage, hydroelectric power generation, and irrigation projects) may affect the hydrological process and water quality of inland waters for decades to hundreds of years (Qiu and Zhu, 2013). What’s more, agricultural, aquaculture, and industrial pollution sources that directly or indirectly pollute water bodies (such as the release of chemical substances, fertilizer use, sewage and sludge treatment, and atmospheric deposition) may have legacy effects on water bodies for decades or even longer (Huang et al., 2004). Besides, the natural system itself is changing slowly with a hysteresis effect (Parmesan and Yohe, 2003). So a long timescale is quite necessary for historical socio-hydrological analysis to uncover the evolution trajectory of each sector and agent in the whole system.
Faced with the fact that historical data are often scarce, hydrologic reconstruction has become a key to historical socio-hydrological research, as it can provide long-term data on hydrological variables and other related environmental variables, including human activities (Montanari et al., 2013). The proxy data material for hydrological reconstruction includes tree rings, lake deposits, ice cores, pollen, historical documents, etc. By using proxy data, climate change data such as runoff, precipitation, temperature and extreme hydrological events (Mischke et al., 2003; Sivakumar et al., 2007; Razumovskii and Gololobova, 2008; Sivakumar, 2009; Molotch et al., 2015) as well as human activity data such as residential areas, the establishment of water conservancy projects and farmland reclamation (Karmanov et al., 2011) can be produced. With the development of geographic information system (GIS) and remote sensing (RS) technology, studies using a combination of historical literature and modern technology have been widely carried out in the field of human geography, enabling the use of historical population surveys, demographic statistics, and population migration memory population spatial distribution analysis to be realized (McLeman et al., 2010).
In summary, carrying out socio-hydrological research on a scale of hundreds or even thousands of years is of great significance to understanding the dynamic process of the co-evolution of socio-hydrological system. Hydrologic reconstruction provides a basis for understanding the evolutionary laws of the natural environment on different scales and its relationship with human activities; thus, it serves as the premise for revealing the evolutionary mechanism of a long-term human-water coupling system. It is foreseeable that the future research direction will be not only the description of the evolution process of human-water system but also the detailed analysis of the mutual feedback process so as to gain experience and enlightenment from history to improve the current water resource management and future prediction level.

3.2 Quantitative description and driving mechanism analysis of socio-hydrological coupling system

Quantitative research is as important as qualitative to socio-hydrology as it enables researchers to test hypotheses, simulate systems, and predict the future development trajectory of the system. The content analysis method is a common quantitative analysis method that reveals trends and structural patterns from text data (Stockwell et al., 2009) which can qualitatively and quantitatively analyse text information (Insch et al., 1997) to provide an effective tool for tracking changes in media reports (Kirilenko et al., 2012). Wei et al. (2015) used the content analysis method to quantitatively analyse the evolution of water issues in Australia through newspaper coverage. Whaley and Weatherhead (2016) conducted a directed content analysis of seven key water policy documents of England to investigate the contribution English water policy can make for adaptive co-management. Another quantitative method which is becoming increasingly popular is mapping knowledge domain. It is an emerging cross-cutting frontier that spans the fields of science, information science, scientometrics, computer science, and applied mathematics. Mapping knowledge domain includes a process of mining, analysing, classifying, navigating and visualizing (mapping) knowledge (Shiffrin and Börner, 2004) that can reveal the structural relationship and evolution process of a knowledge field. The approach of mapping knowledge domain is applied to similar research objects and employs similar information carriers with content analysis but is more dynamic, intuitive, and adaptable to the era of information explosion. As an emerging big data technology, the application of mapping knowledge domain in socio-hydrology implies the great potential of big data in socio-hydrological research.
The development of quantitative description methods has made the uncovering of the driving mechanism of the socio-hydrological coupling systems more likely to come true. Also, there are many existing studies on coupling systems of nature and society inspiring the research on the driving mechanism of socio-hydrological coupling system. Coupled human and natural systems (CHANS) (Liu et al., 2007) and Socio-ecological systems (SESs) (Rogachev et al., 2017) are two topics closely related to socio-hydrology as they both take the keywords in socio-hydrology research like resilience (Uribe-Castaneda et al., 2018), policy (Konar et al., 2016) or co-evolution (Ferraro et al., 2019) into thinking around and thus have similar research issues (Blair and Buytaert, 2016). It can be speculated that there is a general thinking that applies to all of the above studies. Socio-hydrology should gain experience from the theoretical systems and technical methods of other studies or disciplines (Seidl and Barthel, 2017; Wesselink et al., 2017) and strengthen the quantitative study of the two-way feedback process between society and hydrological system to better understand and interpret the human-water coupling system.

3.3 Prediction of the trajectories of socio-hydrological system co-evolution

A key role of socio-hydrology is to support the formulation of water resources management policies (Melsen et al., 2018). To achieve the goal, scientific and accurate quantitative prediction of the co-evolution trajectories of the socio-hydrological system is of vital importance. The goal of prediction is to let decision-makers understand the consequences of the proposed decision, whether it is irreversible, and how to incorporate new information to make the decision more adaptive. Conventional prediction is always based on static scenario assumptions that assume the factors in the social system are in a stable state during the study period (Fiseha et al., 2014). However, the nonlinear feedback characteristics of human activities are always overlooked which has created obstacles to the prediction of human-water systems co-evolution. It is well-known that factors such as people’s values, beliefs, education levels, etc. have significant effects on people’s behavioural characteristics, resulting in changes in policies and systems, which might, in turn, affect individual behaviours (Srinivasan et al., 2017). The above processes are complex and full of uncertainty (Yu and Rockstrom, 2015) and may result in emergent behaviour and unintended consequences (McMillan et al., 2016). Faced with the difficulties in socio-hydrological prediction, Srinivasan et al. (2017) argued that stakeholder participation should be promoted and the local scale should be integrated with the global scale when appropriate. In addition, socio-hydrological models should be able to interpret adaptive responses by different sectors to simulate unexpected and emergent situations, although this is clearly challenging. There are other excellent papers proposing some solutions for how to better model socio-hydrological prediction in detail (Troy et al., 2015; Blair and Buytaert, 2016), and we highly recommend them.
In addition to modelling, we believe that big data has a great potential in socio-hydrological prediction. Big data technology enables the transformation of a very difficult prediction problem into a relatively simple description problem, which is beyond the reach of traditional small data sets. Also, big data methods are in line with characteristics of the Internet era and more easily describe and capture collective human activities in geographic space through social media networks (Ren et al., 2019). For example, Moat et al. (2014) discussed how to use big data to predict collective behaviour in the real world, Jiang and Ren (2019) predicted the living structure of human activities by using big data. In fact, the development of big data prediction is relatively mature in the field of environmental change prediction (Soltis and Soltis 2016). Chang et al. (2018) established a big data access framework to realize the analysis of air quality. Athey (2017) discussed how to use big data to address policy problems on the basis of machine learning. Based on the above research, we can reasonably believe that there are bright prospects for big data in socio-hydrological prediction.

3.4 Integrated water resource management from the perspective of water systems

The water-related challenges involving climate, ecology, environment, and society in a changing world are complex, often manifested as water shortages, water pollution, water ecological crises, water disasters, and water management problems. As mentioned before, GWSP contributes to clarifying the control factors of the water cycle as well as surface processes at different temporal and spatial scales based on the multi-circle evolution and revealing the impact of human activities and climate change on land surface water volume, water quality, environment, and social economy. What is more, GWSP provides a scientific basis for reducing flood and drought disaster risk, supporting the sustainable use of water resources, ecological protection and water pollution control, etc. Water governance under the guidance of GWSP should include not only the regulation of water resource engineering construction but also the regulation of the legal system of water and institutional construction, water economy and water price regulation as well as water management system innovation. Undoubtedly, the water system provides new ideas for addressing water-related challenges. According to the GWSP, Xia et al. (2018) believed that the core process of water problems is the water cycle, and at the same time biological and biogeochemical processes as well as humanistic process of social and economic development and management are also involved. Water resources management from the perspective of water system is the key to solving the problems. Referring to the structure of the natural water cycle proposed by GWSP, a social water cycle is shown in Figure 3 to illustrate the sectors and processes in social water cycle.

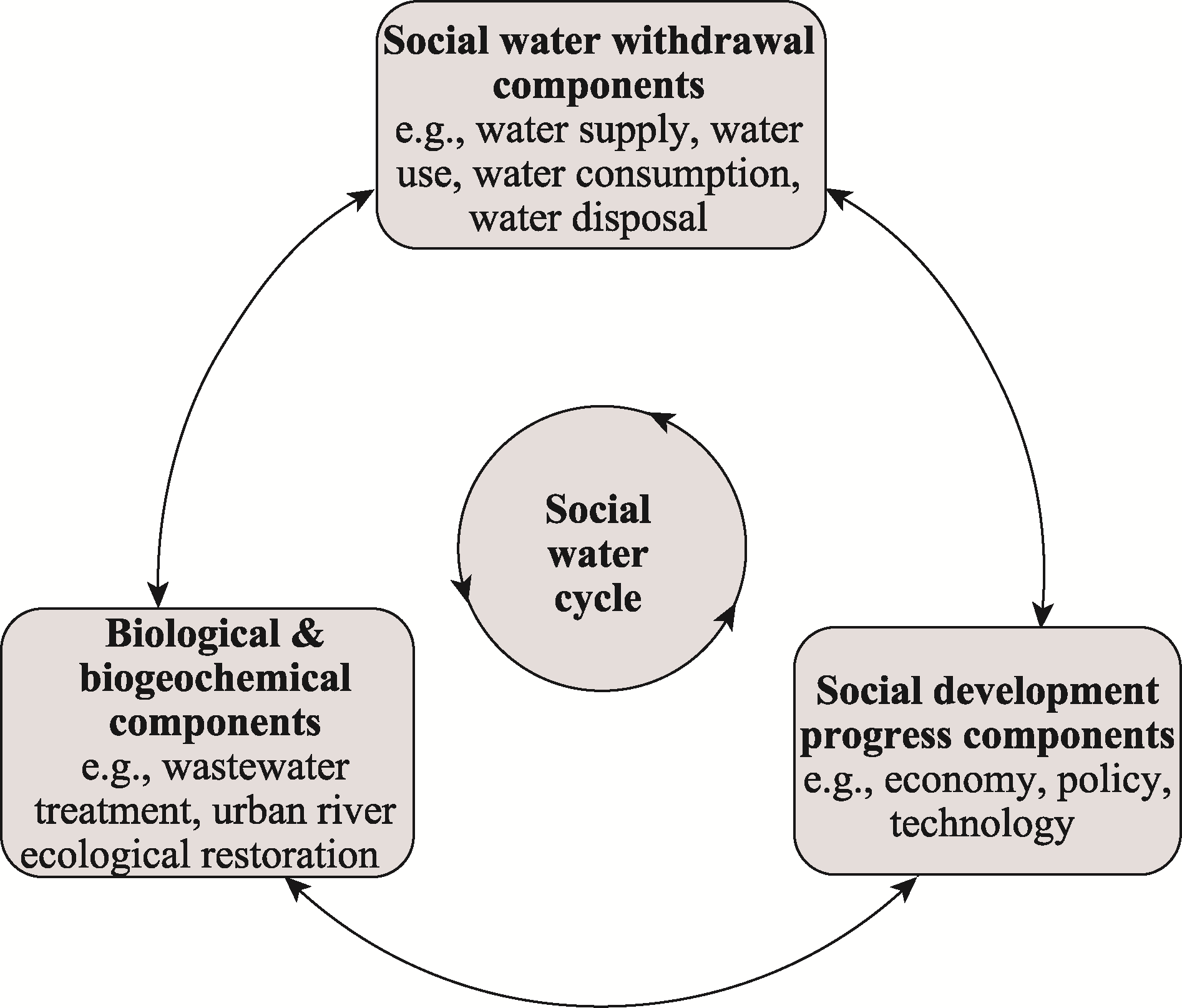

Figure 3 Social water cycle from the perspective of the water system

4 Opportunities and challenges for socio-hydrology development

4.1 Strengthening the research of interdisciplinary theoretical systems

Socio-hydrology intersects with many other disciplines or theories. For example, complex system science is often applied to socio-hydrological modelling (Liu et al., 2007), and hydro-economics focuses on the issue of water resource allocation, which is seen as a key determinant of the interactions between social and natural systems (Lu et al., 2018). Sociology systematically studies human social behaviour (Portes, 1998), including population and social groups, social systems, behavioural norms, and society evolution (Bottomore, 2010). Those disciplines provide theoretical support for the social side of research on socio-hydrological systems.
McCurley and Jawitz (2017) believed that combining other disciplines that were formerly exotic for hydrology might promote the generation of new insights and provide different perspectives to answer old questions. As mentioned previously, developing interdisciplinary theory is a vital method for understanding the interaction relationship between humans and water systems in this rapidly changing world (Seidl and Barthel, 2017; Wesselink et al., 2017) since it can lead to a better understanding of human-water interactions, help to correct assumptions and address uncertainties (Di Baldassarre et al., 2016). In the past, the research and modelling of socio-hydrology were mainly carried out by hydrologists, which might cause the problem of oversimplifying the description and analysis of the social sectors. In recent years, the problem is gradually becoming more aware and the research trend has moved to exploring how to combine natural sciences and social sciences with the aim of applying interdisciplinary methods to socio-hydrology, including a comparison of the principles of action between different disciplines and a delineation of the cooperation scope. Wesselink et al. (2017) argued that plentiful social research cases related to water could provide a basis for conceptual and quantitative modelling of socio-hydrology. Massuel et al. (2018) proposed an interdisciplinary socio-hydrological research method that expanded of analysis and modelling of the water system and complemented traditional hydrological methods, the method provides people with a deeper understanding of the mechanism behind problems related to water and inspires debates on the interactions between social and political decisions.
It is foreseeable that with the development of the understanding on the relationship between human and water, more other disciplines will be creatively combined with socio-hydrology. The exploration and development of interdisciplinary methods will undoubtedly be opportunities and challenges for socio-hydrology discipline.

4.2 Improving and broadening socio-hydrological research technical methods

How to solve the difficulties in socio-hydrological modelling and improve the scientificity and accuracy of the model is an urgent challenge faced by socio-hydrology (Blair and Buytaert, 2016). Regarding the bidirectional interactions between society and water, there have been a lot of attempts. For example, based on the water system theory mentioned in 3.4 and research related to urban water system simulation, Zhang et al. (2021) proposed a theoretical framework for the urban water system. In the framework, the socio-economic water withdrawal process module of the model considers the impact of policy, technology, and society on the water consumption and drainage of various industries. This consideration quantifies the influence of technological factors and policy factors on the evolution of the model and reveals the coupling driving mechanism of urban water-society-environment.
Generally speaking, the research on the socio-hydrological mutual feedback mechanism often faces difficulties from several aspects. First, human variables are quite complex and full of uncertainty when the prediction model involves social, economic and political systems (Wagener et al., 2010). Second, considering the long time and large spatial scale of socio-hydrology, it is difficult to accumulate enough data to run, calibrate, and validate a model (Blair and Buytaert, 2016), the observations may not be sufficient to support predictions of changing environments. Third, there is always a time lag of the social impact on the natural system, which makes the essence of the related water problems can be easily concealed by complex dynamic factors. Fourth, human society is changing rapidly, while the changes in the natural environment are rather slow; when different data are input together into an integrated model, the coordination of the spatial and temporal scales can be difficult (Blomquist and Schlager, 2005). In addition, a variety of complexities such as algorithm complexity, deterministic complexity and aggregate complexity also exist (Manson, 2001) when applying the modelling method. In that context, the multisource data utilization capabilities of models need to be improved, and the detailed description of hydrological processes that are driven by social forces need to be strengthened to make simulations of the social and hydrological processes coupling more accurate. It is noted that the explosive development of big data has enabled it to be applied in social science, policy, environment, water conservancy and many other fields (Chen et al., 2014). Based on the characteristics of big data technology and referring to its application experience in other fields, we believe that big data can also contribute to broadening the ways to obtain socio-hydrological data (Pei et al., 2020), finding laws from complex socio-hydrological processes (Wang and Zhang, 2016) and visualizing the results (van Eck and Waltman, 2009).

4.3 Supporting integrated water resources management (IWRM) for sustainable utilization goals (SDGs)

Indeed, from a global perspective, the current water crisis facing humans is essentially a water resource management crisis (Voeroesmarty et al., 2010). There is an urgent need for scientific and effective water resource management plans since strengthening the sustainable management of catchment water resources is considered a fundamental measure to address the water crisis. IWRM is supposed to provide solutions to address water crisis and reach SDGs by coordinating the development of water resources and the social economy while also considering the effect on the ecological environment. Xia et al. (2017) constructed a framework of integrated urban water systems, reflecting the interrelationships among hydrological components, water pollution components, and water management components. In addition, the IWRM applied in the Murray Darling Basin in Australia has provided an advanced experience in catchment management (Xia et al., 2009). There is a consensus that water resource management must shift from natural hydrological concepts to socio-hydrological concepts, which requires the support of socio-hydrological theory and methods. The process of socio-hydrology supporting the IWRM for SDGs is described in Figure 4. Briefly, the emergence of water crises poses questions to socio-hydrology, which requires socio-hydrology to initially understand the reasons for these phenomena. And then, to alleviate or solve water crises, IWRM provides solutions based on the causes of the water crises. Socio-hydrology is expected to analyse the influence mechanism of management measures and provide theoretical and technical support for IWRM as well as predict the possible impact and results of IWRM. After the measures are implemented, socio-hydrology also needs to evaluate the actual effects to guide the next adjustment and improvement. In addition, aiming to achieve the targets of SDGs, socio-hydrology should broaden its scope from floods, droughts and other conventional water-related issues to food, energy production and human health, which are included in SDGs (Herrera, 2019).

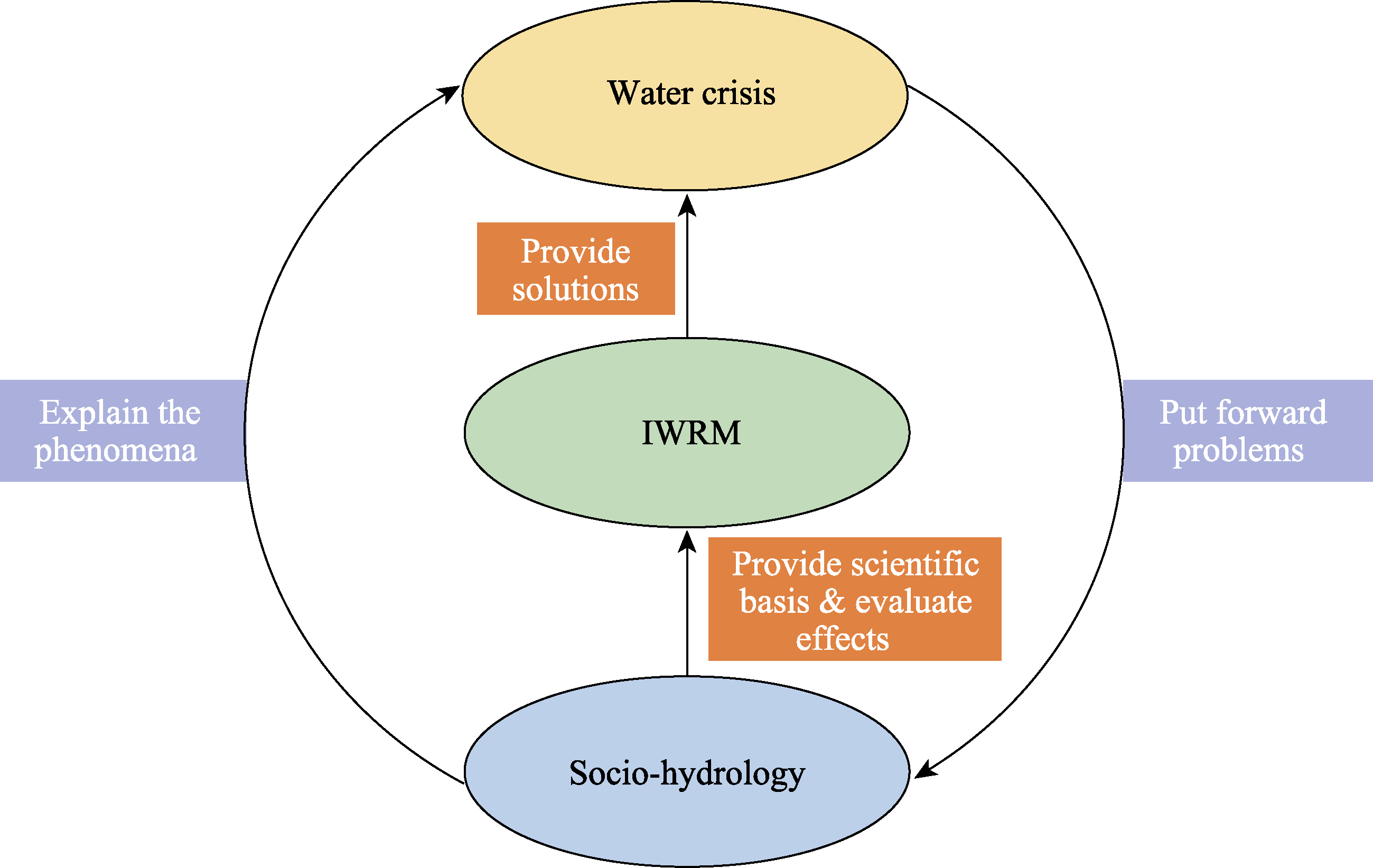

Figure 4 The process of socio-hydrology supporting IWRM for SDGs

5 Concluding remark

In this paper, we started from the shifts in the hydrology research paradigm and conducted a literature review of socio-hydrology. We argued that the discipline of socio-hydrology has experienced a slow to rapid development process but has not yet reached a mature stage. The understanding of the relationship between human and water has changed from seeing the human impact as an exogenous factor to the exploration of the internal dynamic mutual feedback mechanism. In view of the connotation of socio-hydrology under the current research background, further research on four key scientific issues is needed: the long-term dynamic process of socio-hydrological system evolution, quantitative description and driving mechanism analysis of socio-hydrological coupling system, prediction of the trajectories of socio-hydrological system co-evolution and IWRM from the perspective of water systems. These key scientific issues explore the dynamic feedback relationship and coupling mechanism between social and hydrological systems from the three perspectives of history, the present and the future and help people more comprehensively and deeply understand the human-water coupling system. And based on the key scientific issues, we propose the opportunities and challenges that socio-hydrology is facing: (1) Strengthening interdisciplinary research theoretically and making the disciplinary system of socio-hydrology more perfect. (2) Improving and broadening socio-hydrological research technical methods. Appropriate alternative methods, including big data, should be considered to combine with the model or to become an option. (3) Enhancing the practicability of the discipline, increasing the support for IWRM to meet water crisis problems, and exploring the future of the discipline in practice.
[1]
Aghaie V, Alizadeh H, Afshar A, 2020. Emergence of social norms in the cap-and-trade policy: An agent-based groundwater market. Journal of Hydrology, 588: 125057.

DOI

[2]
Athey S, 2017. Beyond prediction: Using big data for policy problems. Science, 355(6324): 483-485.

DOI

[3]
Blair P, Buytaert W, 2016. Socio-hydrological modelling: A review asking “why, what and how? Hydrology and Earth System Sciences, 20(1): 443-478.

[4]
Blomquist W, Schlager E, 2005. Political pitfalls of integrated watershed management. Society & Natural Resources, 18(2): 101-117.

[5]
Bottomore T B, 2010. Sociology (Routledge Revivals): A Guide to Problems and Literatures. London: Routledge.

[6]
Chang Y S, Lin K, Tsai Y, et al. 2018. Big data platform for air quality analysis and prediction. Hualien: 2018 the 27th Wireless and Optical Communication Conference (WOCC): 111-113.

[7]
Chen C, Philip L, Zhang C Y, 2014. Data-intensive applications, challenges, techniques and technologies: A survey on big data. Information Sciences, 275: 314-347.

DOI

[8]
Cotter M, Berkhoff K, Gibreel T, et al. 2014. Designing a sustainable land use scenario based on a combination of ecological assessments and economic optimization. Ecological Indicators, 36: 779-787.

DOI

[9]
Di Baldassarre G, Brandimarte L, Beven K, 2016. The seventh facet of uncertainty: wrong assumptions, unknowns and surprises in the dynamics of human-water systems. Hydrological Sciences Journal-Journal Des Sciences Hydrologiques, 61(9): 1748-1758.

DOI

[10]
Di Baldassarre G, Sivapalan M, Rusca M, et al. 2019. Sociohydrology: Scientific challenges in addressing the Sustainable Development Goals. Water Resources Research, 55(8): 6327-6355.

DOI PMID

[11]
Di Baldassarre G, Viglione A, Carr G, et al. 2013. Socio-hydrology: Conceptualising human-flood interactions. Hydrology and Earth System Sciences 17(8): 3295-3303.

DOI

[12]
Elshafei Y, Sivapalan M, Tonts M, et al. 2014. A prototype framework for models of socio-hydrology: Identification of key feedback loops and parameterisation approach. Hydrology and Earth System Sciences, 18(6): 2141-2166.

DOI

[13]
Fabre J, Ruelland D, Dezetter A, et al. 2015. Simulating past changes in the balance between water demand and availability and assessing their main drivers at the river basin scale. Hydrology and Earth System Sciences, 19(3): 1263-1285.

DOI

[14]
Falkenmark M, 1977. Water and mankind: A complex system of mutual interaction. Ambio, 3-9.

[15]
Falkenmark M, 1979. Main problems of water use and transfer of technology. GeoJournal, 3(5): 435-443.

DOI

[16]
Falkenmark M, 1997. Society’s interaction with the water cycle: A conceptual framework for a more holistic approach. Hydrological Sciences Journal-Journal Des Sciences Hydrologiques, 42(4): 451-466.

DOI

[17]
Ferraro P J, Sanchirico J N, Smith M D, 2019. Causal inference in coupled human and natural systems. Proceedings of the National Academy of Sciences of the United States of America, 116(12): 5311-5318.

DOI PMID

[18]
Fiseha B M, Setegn S G, Melesse A M, et al. 2014. Impact of climate change on the hydrology of upper Tiber River Basin using bias corrected regional climate model. Water Resources Management, 28(5): 1327-1343.

DOI

[19]
Gunda T, Turner B L, Tidwell V C, 2018. The influential role of sociocultural feedbacks on community-managed irrigation system behaviors during times of water stress. Water Resources Research, 54(4): 2697-2714.

DOI

[20]
Huang G, Wang X, Qian H, et al. 2004. Negative impact of inorganic fertilizes application on agricultural environment and its countermeasures. Ecology and Environment, 13(4): 656-660.

[21]
Insch G S, Moore J E, Murphy L D, 1997. Content analysis in leadership research: Examples, procedures, and suggestions for future use. Leadership Quarterly, 8(1): 1-25.

DOI

[22]
Jiang B, Ren Z, 2019. Geographic space as a living structure for predicting human activities using big data. International Journal of Geographical Information Science, 33(4): 764-779.

DOI

[23]
Kalnay E, Cai M, 2003. Impact of urbanization and land-use change on climate. Nature, 423(6939): 528-531.

DOI

[24]
Kirilenko A, Stepchenkova S, Romsdahl R, et al. 2012. Computer-assisted analysis of public discourse: A case study of the precautionary principle in the US and UK press. Quality & Quantity, 46(2): 501-522.

[25]
Konar M, Evans T P, Levy M, et al. 2016. Water resources sustainability in a globalizing world: Who uses the water? Hydrological Processes 30(18): 3330-3336.

DOI

[26]
Koutsoyiannis D, 2011. Scale of water resources development and sustainability: Small is beautiful, large is great. Hydrological Sciences Journal, 56(4): 553-575.

DOI

[27]
Kuil L, Carr G, Viglione A, et al. 2016. Conceptualizing socio-hydrological drought processes: The case of the Maya collapse. Water Resources Research, 52(8): 6222-6242.

PMID

[28]
Liu J G, Dietz T, Carpenter S R, et al. 2007. Coupled human and natural systems. Ambio, 36(8): 639-649.

DOI

[29]
Liu Y, Tian F, Hu H, et al. 2014. Socio-hydrologic perspectives of the co-evolution of humans and water in the Tarim River basin, Western China: The Taiji-Tire model. Hydrology and Earth System Sciences, 18(4): 1289-1303.

DOI

[30]
Lopez-Nicolas A, Pulido-Velazquez M, Rouge C, et al. 2018. Design and assessment of an efficient and equitable dynamic urban water tariff. Application to the city of Valencia, Spain. Environmental Modelling & Software, 101: 137-145.

[31]
Lu Z, Wei Y, Feng Q, et al. 2018. A framework for incorporating social processes in hydrological models. Current Opinion in Environmental Sustainability, 33: 42-50.

DOI

[32]
Lu Z, Wei Y, Xiao H, et al. 2015. Evolution of the human-water relationships in the Heihe River basin in the past 2000 years. Hydrology and Earth System Sciences, 19(5): 2261-2273.

DOI

[33]
Madani K, Shafiee-Jood M, 2020. Socio-hydrology: A new understanding to unite or a new science to divide? Water, 12(7): 1-26.

DOI

[34]
Manson S M, 2001. Simplifying complexity: A review of complexity theory. Geoforum, 32(3): 405-414.

DOI

[35]
Mao G, Xia J, He X, et al. 2017. Hydrology in a coupled human-natural system research, innovation, and practices. Bulletin of the American Meteorological Society, 98(12): ES295-ES298.

DOI

[36]
Massuel S, Riaux J, Molle F, et al. 2018. Inspiring a broader socio-hydrological negotiation approach with interdisciplinary field-based experience. Water Resources Research, 54(4): 2510-2522.

DOI

[37]
McCurley K L, Jawitz J W, 2017. Hyphenated hydrology: Interdisciplinary evolution of water resource science. Water Resources Research, 53(4): 2972-2982.

DOI

[38]
McMillan H, Montanari A, Cudennec C, et al. 2016. Panta Rhei 2013-2015: Global perspectives on hydrology, society and change. Hydrological Sciences Journal-Journal Des Sciences Hydrologiques, 61(7): 1174-1191.

[39]
Melsen L A, Vos J, Boelens R, 2018. What is the role of the model in socio-hydrology? Discussion of “Prediction in a socio-hydrological world”. Hydrological Sciences Journal-Journal Des Sciences Hydrologiques, 63(9): 1435-1443.

DOI

[40]
Moat H S, Preis T, Olivola C Y, et al. 2014. Using big data to predict collective behavior in the real world. Behavioral and Brain Sciences, 37(1): 92-93.

DOI PMID

[41]
Pande S, Sivapalan M, 2017. Progress in socio-hydrology: A meta-analysis of challenges and opportunities. Wiley Interdisciplinary Reviews: Water, 4(4): e1193.

[42]
Parmesan C, Yohe G, 2003. A globally coherent fingerprint of climate change impacts across natural systems. Nature, 421(6918): 37-42.

DOI

[43]
Pei T, Song C, Guo S, et al. 2020. Big geodata mining: Objective, connotations and research issues. Journal of Geographical Sciences, 30(2): 251-266.

DOI

[44]
Portes A, 1998. Social Capital: Its origins and applications in modern sociology. Annual Review of Sociology, 24: 1-24.

DOI

[45]
Qiu C, Zhu J-R, 2013. Influence of seasonal runoff regulation by the Three Gorges Reservoir on saltwater intrusion in the Changjiang River Estuary. Continental Shelf Research, 71: 16-26.

DOI

[46]
Ren Z, Jiang B, Seipel S, 2019. Capturing and characterizing human activities using building locations in America. Isprs International Journal of Geo-Information, 8(5): 200.

DOI

[47]
Rogachev A F, Ostrovskaya V N, Natsubidze A S, et al. 2017. Tools for sustainability management of socio-ecological systems in the globalizing world. Nizhny Novgorod: Scientific and Practical Conference on Humans as an Object of Study by Modern Science, 241-247.

[48]
Savenije H H G,Van der Zaag P, 2008. Integrated water resources management: Concepts and issues. Chemistry of the Earth: Parts A/B/C, 33(5): 290-297.

DOI

[49]
Sawada Y, Hanazaki R, 2020. Socio-hydrological data assimilation: Analyzing human-flood interactions by model-data integration. Hydrology and Earth System Sciences, 24(10): 4777-4791.

DOI

[50]
Seidl R, Barthel R, 2017. Linking scientific disciplines: Hydrology and social sciences. Journal of Hydrology, 550: 441-452.

DOI

[51]
Shiffrin R M, Borner K, 2004. Mapping knowledge domains. Proceedings of the National Academy of Sciences of the United States of America, 101: 5183-5185.

[52]
Sivapalan M, 2015. Debates perspectives on socio-hydrology: Changing water systems and the “tyranny of small problems” socio-hydrology. Water Resources Research, 51(6): 4795-4805.

DOI

[53]
Sivapalan M, Konar M, Srinivasan V, et al. 2014. Socio-hydrology: Use-inspired water sustainability science for the Anthropocene. Earth’s Future, 2(4): 225-230.

DOI

[54]
Sivapalan M, Savenije H H G, Bloeschl G, 2012. Socio-hydrology: A new science of people and water. Hydrological Processes, 26(8): 1270-1276.

DOI

[55]
Srinivasan V, Sanderson M, Garcia M, et al. 2017. Prediction in a socio-hydrological world. Hydrological Sciences Journal-Journal Des Sciences Hydrologiques, 62(3): 338-345.

[56]
Srinivasan V, Thompson S, Madhyastha K, et al. 2015. Why is the Arkavathy River drying? A multiple-hypothesis approach in a data-scarce region. Hydrology and Earth System Sciences, 19(4): 1905-1917.

DOI

[57]
Stockwell P, Colomb R M, Smith A E, et al. 2009. Use of an automatic content analysis tool: A technique for seeing both local and global scope. International Journal of Human: Computer Studies, 67(5): 424-436.

[58]
Troy T J, Pavao-Zuckerman M, Evans T P, 2015. Debates perspectives on socio-hydrology: Socio-hydrologic modeling: Tradeoffs, hypothesis testing, and validation. Water Resources Research, 51(6): 4806-4814.

DOI

[59]
Uribe-Castaneda N, Newton A,Le Tissier M, 2018. Coral reef socio-ecological systems analysis & restoration. Sustainability, 10(12): 4490.

DOI

[60]
van Dam A A, Kipkemboi J, Rahman M M, et al. 2013. Linking hydrology, ecosystem function, and livelihood outcomes in African Papyrus wetlands ysing a Bayesian network model. Wetlands, 33(3): 381-397.

DOI

[61]
van Eck N J, Waltman L, 2009. VOSviewer: A computer program for bibliometric mapping. Rio de Janeiro:12th International Conference of the International-Society-for-Scientometrics-and-Informetrics, 886-897.

[62]
Van Loon A F, Rangecroft S, Coxon G, et al. 2019. Using paired catchments to quantify the human influence on hydrological droughts. Hydrology and Earth System Sciences, 23(3): 1725-1739.

DOI

[63]
Viglione A, Di Baldassarre G, Brandimarte L, et al. 2014. Insights from socio-hydrology modelling on dealing with flood risk: Roles of collective memory, risk-taking attitude and trust. Journal of Hydrology, 518: 71-82.

DOI

[64]
Voeroesmarty C J, McIntyre P B, Gessner M O, et al. 2010. Global threats to human water security and river biodiversity. Nature, 467(7315): 555-561.

DOI

[65]
Wagener T, Sivapalan M, Troch P A, et al. 2010. The future of hydrology: An evolving science for a changing world. Water Resources Research, 46: W05301.

[66]
Wang X, Zhang Z, 2016. Tendency analysis of socio-hydrology research based on bibliometrics. Advance in Earth Sciences, 31(11): 1205-1212.

[67]
Wei J, Wei Y, Western A, et al. 2015. Evolution of newspaper coverage of water issues in Australia during 1843-2011. Ambio, 44(4): 319-331.

[68]
Wesselink A, Kooy M, Warner J, 2017. Socio-hydrology and hydrosocial analysis: Toward dialogues across disciplines. Wiley Interdisciplinary Reviews: Water, 4(2): e1196.

[69]
Whaley L, Weatherhead E, 2016. Managing water through change and uncertainty: Comparing lessons from the adaptive co-management literature to recent policy developments in England. Journal of Environmental Planning and Management, 59(10): 1775-1794.

DOI

[70]
Wu X D, Guo J L, Li C H, et al. 2019. Global socio-hydrology: An overview of virtual water use by the world economy from source of exploitation to sink of final consumption. Journal of Hydrology, 573: 794-810.

DOI

[71]
Xia J, Zhang X, Wei F, et al. 2018. Water system theory and its practices in China. South-to-North Water Transfers and Water Science & Technology, 16(1): 1-7, 13. (in Chinese)

[72]
Xia J, Zhang Y, Xiong L, et al. 2017. Opportunities and challenges of the sponge city construction related to urban water issues in China. Science China-Earth Sciences, 60(4): 652-658. (in Chinese)

DOI

[73]
Xiong Y, Wei Y, Zhang Z, et al. 2016. Evolution of China’s water issues as framed in Chinese mainstream newspaper. Ambio, 45(2): 241-253.

DOI

[74]
Xiong Y, Zhang Z, Wei Y, et al. 2014. On a quantitative method for water culture evolution research: Mapping knowledge domains. Advance in Earth Sciences, 29(1): 92-103.

[75]
Yu D J, Sangwan N, Sung K, et al. 2017. Incorporating institutions and collective action into a sociohydrological model of flood resilience. Water Resources Research, 53(2): 1336-1353.

DOI

[76]
Yu X, Rockstrom J, 2015. Water resilience for human prosperity. Journal of the American Water Resources Association, 51(2): 581-582.

[77]
Zhang X, Liao C, Wei F, et al. 2021. Research on the nexus model of urban water system. Water Resources Protection, 37(1): 14-19, 27. (in Chinese)

[78]
Zhao H, Zhang Z, Zhao R, 2014. Historical changes and the enlightenments of water resources managing system of Heihe River Basin. Arid Land Geography, 37(1): 45-55. (in Chinese)

[79]
Zhou S, Huang Y, Wei Y, et al. 2015. Socio-hydrological water balance for water allocation between human and environmental purposes in catchments. Hydrology and Earth System Sciences, 19(8): 3715-3726.

DOI

Outlines

/
