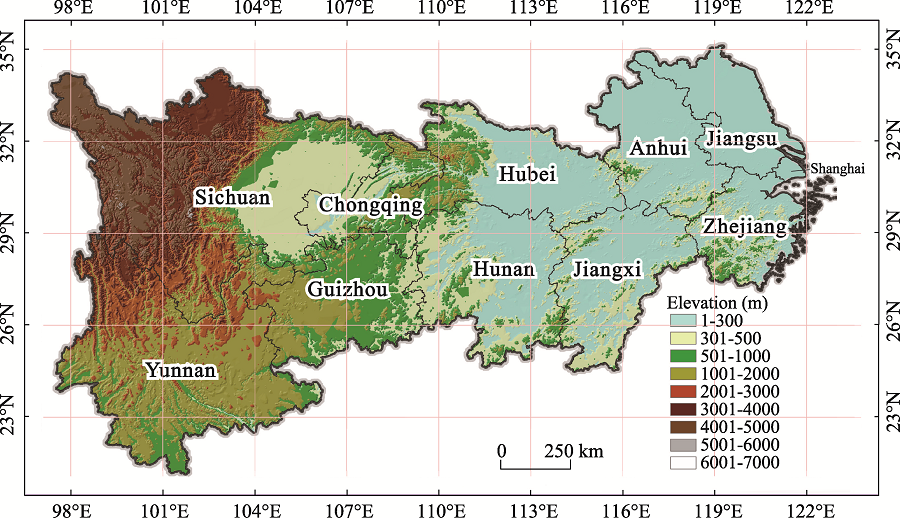

The Yangtze River Economic Belt (YREB) refers to the provinces and cities distributed along the Yangtze River. According to the Guiding Opinions of the State Council on Promoting the Development of the Yangtze River Economic Belt Based on the Golden Waterway issued by the State Council on September 25, 2014, the YREB covers 11 provinces and cities, including Shanghai, Jiangsu, Zhejiang, Anhui, Jiangxi, Hubei, Hunan, Chongqing, Sichuan, Yunnan, and Guizhou, and with an area of about 2.05 million square kilometers. The main branch of the Yangtze River flows from west to east and traverses the central part of China. The maximum difference in elevation can reach 6000 m, and the elevation decreases gradually from west to east (Figure 1). Based on the geographical location, resource environment, economic development, and other factors, the Yangtze River can be divided into three regions, namely upstream, midstream, and downstream. The upper reaches of the Yangtze River include Guizhou, Yunnan, Sichuan, and Chongqing, its middle reaches comprise Hunan, Hubei, and Jiangxi, and its downstream part includes four provinces and the cities of Anhui, Zhejiang, Jiangsu, and Shanghai. In September 2016, the Outline of the Yangtze River Economic Belt Development Plan was officially issued, and the YREB was established as “one axis, two wings, three poles and multiple spots,” which clearly defines the new direction for the construction of the YREB. It can also be anticipated that China will build a region comprising a distribution center with great comprehensive strength and that relies on the Yangtze River Golden Waterway. As one of the most active and developed areas in China, the elements such as technology and talent can flow freely within the YREB, and developing the YREB has great potential. The development of a basin economy is a strategic choice for some countries that are in the process of modernization (Zhang et al., 2010; Jin et al., 2018). In addition, the YREB is one of the main grain production regions of China, with a CL area accounting for more than 30% of the total in the country. Large lakes and rivers such as the Yangtze River, Taihu Lake, Dongting Lake, and Poyang Lake are located in the YREB, providing rich water resources and an ecological environment for agricultural and economic development. Therefore, it is of great practical significance to study the spatiotemporal variations of the CLUE in the YREB.

The Yangtze River is the longest river in China, and the YREB spans its three major regions of eastern, central, and western parts, which offer unique advantages and tremendous development potential. In 2016, the population of the YREB reached 629 million, accounting for 45.47% of the country’s total. The regional GDP reached 33718.194 billion yuan, or 45.5% of the country’s total, making it the one with the greatest comprehensive strength in China. In addition, the YREB is also one of the most important food production regions in China; the total grain output (231 million tons in 2016) accounts for 37.5% of the national total. However, the YREB is currently facing the dilemma of having uncoordinated economic development and ecological protection plans. The total discharge of wastewater in the YREB in 2016 reached 31.4 billion tons, accounting for 44% of the national total. In this regard, the State Council issued the “Environmental Protection Plan for the Yangtze River Economic Belt” in 2017, and pointed out that while promoting the development of the YREB, it was mandatory to set ecological protection as the priority and stick to a green and low-carbon sustainable development model. The YREB is one of the important areas receiving strategic support in China. Against this background, the present study analyzes the spatiotemporal variations of CLUE by including CEs as an output factor and explores the variation characteristics and factors influencing CLUE in the YREB from a low-carbon perspective. Our findings may help to ensure national food security as well as provide some clues for how to implement an environmentally friendly economic development model.

2.2.1 Indicator system for measuring the efficiency of cultivated land use

The CLUE is a measure that is used to evaluate the comprehensive utilization level of various input resources as determined by input and output indicators. Lin et al. (2017) believed that when constructing the input indicator system, the input factors for agricultural production should include CL endowment, labor, agricultural machinery, fertilizer, and pesticides. Therefore, the input resources for all aspects of CLU should be taken into account when setting up the indicator system. According to previous studies, the input indicator system for CL is mainly considered from three aspects: land input, labor input, and material input (Li et al., 2013; Wang et al., 2013, 2015). Specifically, the following seven input indicators were selected: (i) crop planting, I₁ (10³ hm²); (ii) the number of laborers in primary industry, I₂ (10⁴); (iii) the total electrical power consumption of agricultural machinery, I₃ (10⁴ kW); (iv) the amount of agricultural fertilizers applied, I₄ (10⁴ t); (v) the use of pesticides, I₅ (t); (vi) the amount of agricultural plastic film used, I₆ (t); and (vii) the effective irrigation area, I₇ (10³ hm²). The two main output indicators were the desirable output and the undesirable output. The desirable output mainly concerns the economic and agricultural aspects with the desirable output indicators including the total output values for agriculture, forestry, animal husbandry, and fisheries, O₁ (10⁸ yuan) and total grain output, O₂ (10⁴ t). The undesirable output indicators mainly comprise total CEs, O₃ (10⁴ t), including the following six categories: (i) loss of organic carbon caused by agricultural tillage; (ii) CEs from agricultural machinery operations; (iii) CEs from manufacturing and use of agricultural fertilizers; (iv) CEs from manufacturing and use of pesticides; (v) CEs from manufacturing and use of agricultural plastic sheets; and (vi) indirect generation of CEs via activities such as farmland irrigation and electricity consumption. The total amount of CEs is calculated by$E=\sum{{{E}_{i}}}=\sum{{{T}_{i}}\cdot {{\delta }_{i}}}$, where T_i and δ_i are the values of each carbon source and the CE coefficient, respectively. The specific relevant CE indicator coefficients are given in Table 1.

2.2.2 Indicators of factors influencing cultivated land use efficiency

When selecting CLUE indicators, Li et al. (2011) measured the intensity of CLU in Shandong province based on five aspects, namely multi-cropping index, labor intensity, capital intensity, land productivity, and labor productivity. Wang et al. (2013) pointed out that the factors influencing CLUE include population density, urbanization rate, per capita GDP, multi-cropping index, and per hectare fertilizer rate. The main factor that influences grain output has been converted from a per hectare fertilizer basis to the quantity and quality of labor per hectare. Based on the above research and in full consideration of the effectiveness and availability of data, the following indicators were selected to construct the indicator system for CLU. 1) From the perspective of CL characteristics, the per capita CL area (PC) for each province and city in the YREB was selected as an indicator. 2) From the perspective of the development level of the study area, the per capita GDP (PG) and the primary industry product (PP) were selected as indicators. 3) From the perspective of the level of technological development, the electrical power consumption for agricultural machinery (MP) per hectare and the number of agricultural technicians per 10,000 people (AT) were selected as indicators. 4) From the perspective of policy, the per capita environmental pollution control investment (PI) was selected as an indicator.

2.2.3 Data sources

In the input indicator system for CLUE, most of the data were derived from the China Rural Statistical Yearbook (2008-2017). The number of laborers in primary industry was derived from the statistical yearbooks of the provinces and cities in the YREB from 2008 to 2017. In analyzing the factors influencing the CLUE, the following data sources were also consulted: the Land Survey Results Sharing Application Service Platform (http://tddc.mlr.gov.cn/to_Login), the China Science and Technology Database in the EPS data platform (http://olap.epsnet.com.cn/), and the China Environmental Protection Database (http://hbk.cei.cn/aspx/default.aspx). The specific data sources are listed in Table 2.

2.3.1 Cultivated land use efficiency model

First proposed by Tone (2001) on the basis of the traditional DEA model, the SBM solved the problem that the radial model does not contain slack variables for inefficiency measurements. The SBM is very closely related to the CCR and BCC models. The calculation principle of the SBM-undesirable model is to incorporate both the desirable and undesirable outputs into the measurement model of efficiency. A decision unit uses N inputs $x=\left( {{x}_{1,\cdots ,}}{{x}_{N}} \right)\in R_{N}^{+}$, which can produce M kinds of expected outputs $y=\left( {{y}_{1,\cdots ,}}{{y}_{M}} \right)\in R_{M}^{+}$ and I kinds of unexpected outputs $b=\left( {{b}_{1,\cdots ,}}{{b}_{I}} \right)\in R_{I}^{+}$. Considering each province as a decision-making unit (DMU) and assuming that there are KDUMs $\left( k=1,\cdots ,K \right)$, the SBM-undesirable model is expressed as

where$(s_{n}^{x},s_{m}^{y},s_{i}^{b})$represents the slack values of input redundancy, inadequate desirable output, and redundant undesirable output. The addition of the constraint of $\sum\limits_{k=1}^{K}{{{z}_{k}}},$$\rho <1$ indicates that the DMU is inefficient (i.e., efficiency loss). To understand the source of inefficient CLU in each DMU, the inefficient value of CLU is decomposed as

where IE_x is the inefficiency due to input redundancy, IE_y is that due to inadequate desirable output, and IE_b is that due to redundant undesirable output.

Equation 3 can be used to calculate the reducible ratio of the input and undesirable output variables of the DMU from the perspective of input and output, and the expandable ratio of the desirable output variable, namely

where P₁ is the reducible ratio of the n-th input of the DMU, P₂ is the expandable ratio of the desirable output of the m-th item of the DMU, and P₃ is the reducible ratio of the undesirable output of the i-th item of the DMU.

2.3.2 The Tobit model

The Tobit model is a type of model in which the dependent variable has roughly continuous positive values but contains a part of the observation values with a positive probability of zero. Tobin (1958) performed probit regression on the consumption of durable goods, and probit regression is now widely used in various types of research. Given that the model parameters with censored data are estimated by the least-squares method and the estimators are inconsistent, the Tobit model was used in the present study for regression analysis when examining the factors influencing CLUE. The basic structure of the Tobit model is

where y_it is the observed dependent variable, x_it is the independent variable, β^T is the parameter vector to be estimated, and ${{\varepsilon }_{it}}$~$N\left( 0,{{\delta }^{2}} \right)$.

After selecting six indicators as the factors influencing CLUE—namely (i) per capita CL area (PC), (ii) per capita GDP (PG), (iii) primary industrial product (PP), (iv) electrical power consumption of agricultural machinery (MP) per hectare, (v) number of agricultural technicians per 10,000 people (AT), and (vi) per capita environmental pollution control investment (PI)—the following regression model was constructed according to the basic principles of the Tobit model:

where CE is the CLUE of the provinces and cities in the YREB in the SBM, c is a constant term, ε_it is a random error term, t is the year from 2007 to 2016, and i represents different provinces and cities within the YREB.

2.3.3 Normalization

Because of the influences of socio-economic development, geographical location, administrative area, and other factors, CEs differ greatly among provinces and cities. To better evaluate the spatiotemporal variations of CEs in the YREB as a whole, the data must be normalized before being analyzed, that is, the exponential processing of the statistical data. There are many methods for data normalization, with min-max normalization and Z-score normalization being commonly used. Min-max normalization is a linear transformation of the original data and was adopted in the present study. The formula is

where x is a raw datum, x_max is the maximum value in that year, x_min is the minimum value in that year, and x ʹ is the normalized value.

According to the CE sources and the CE coefficients presented in Table 1, combined with the CE calculation formula$E=\sum{{{E}_{i}}}=\sum{{{T}_{i}}\cdot {{\delta }_{i}}}$, the utilization coefficients for CL in the 11 provinces and cities in 2007-2016 in the YREB were calculated. The specific CEs from CLU are given in Table 3, from which the following can be seen. 1) From the perspective of the YREB as a whole, the total CEs from CLU showed an upward trend before 2014 and decreased gradually thereafter. At province and city level, the CEs for CL also showed a rise at first and then a slowly decreasing trend. The turning points occurred around 2013-2014, suggesting that in the YREB, the CEs from CL in various provinces and cities showed the same trend over time. 2) In 2007, the CEs from CL in Jiangsu province were the highest (4,082,200 tons). By 2016, the province with the highest CEs from CL in the whole year was Anhui province (4,013,600 tons). However, between 2007 and 2016, the region with the highest average CEs was Hubei province, with 4,119,500 tons. The above three provinces are concentrated in the southeastern part of the YREB and show a certain spatial agglomeration. The region with the lowest average CEs was Shanghai, with only 424,400 tons. The main reason for this is that Shanghai has the smallest urban area as well as the smallest CL area in the YREB compared with the other regions; also the agricultural industrial production of Shanghai accounts for only a small proportion of its gross regional product. 3) The CEs for provinces and cities in the YREB tended to be unified over time, with average CEs over three million tons accounting for nearly half of the total number of provinces and cities. These were Jiangsu, Anhui, Hubei, Hunan, and Sichuan provinces, with CEs of 4,064,400, 4,051,900, 4,119,500, 3,234,400, and 3,242,300 tons, respectively.

To represent more directly the spatiotemporal evolutions of CEs from CLU for the provinces and cities in the YREB, CEs for 2007, 2010, 2013, and 2016 were selected as representative data; the data were normalized by Equation 6, and the processed results were divided into four levels, namely micro-emissions (0-0.25), mild emissions (0.25-0.5), intermediate emissions (0.5-0.75), and heavy emissions (0.75-1). The ArcGIS software (version 10.2) was used to characterize spatially the differences in CEs for CL from the various provinces and cities in the YREB. The deeper colors represent higher relative CEs (Figure 2).

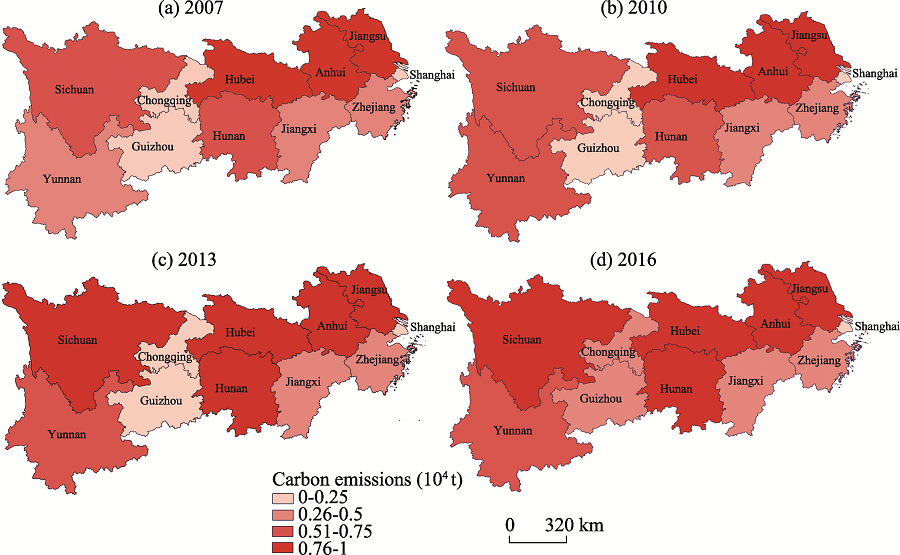

Figure 2 shows that with time, the overall color of the YREB gradually deepens, indicating that the CEs show certain spatial clustering and positive correlation with respect to spatial distribution. The focus of the spatial distribution of CEs in the YREB shifted from the southeast to an equilibrium position involving the east and the west, and the mild emission areas in the west gradually shifted to the intermediate emission areas; while the intermediate emission areas gradually shifted to the heavy emission areas. Overall, the regional CEs from CL tended to be balanced. These results showed a gradually increasing spatial agglomeration of the CE intensities for the various provinces and cities in the YREB, and that the arable land use efficiency and agricultural technology levels between adjacent cities had a certain spillover effect, and that exchange and cooperation between adjacent regions were frequent. On the whole, there was a convergence of the time dimension in the regions with high CEs in the YREB. The provinces and cities with initially high CEs had a higher probability of maintaining this status. By 2016, except for Shanghai, which was still characterized by micro-emissions, no provinces and cities were classified as micro-emission areas due to two reasons. First, the CEs from CL in the various provinces and cities in the YREB showed a generally increasing trend over the past 10 years. Second, secondary and tertiary industries are the pillar industries of Shanghai, and thus the CEs from CL in Shanghai were much lower than those of other areas, leading to the relatively higher CEs from CL in other areas.

To determine how CEs affect CLUE, the CCR model and SBM with the DEA Solver Pro software (version 5.0) were used to measure the utilization rate of CL in the various provinces and cities in the YREB. In the SBM, CEs were used as an undesirable output to measure the CLUE. The results for CLUE by the CCR model and SBM for 2007, 2010, 2013, and 2016 were selected as shown in Table 4, from which the following can be seen. 1) The CLUE from the perspective of CEs can more accurately represent the comprehensive level of CLU in the local area. The CLUE is a significant indicator that reflects the level of regional agricultural economic development. The CLUE under CE constraints not only has high dependence on agricultural technology, but also fully reflects the sustainable development of CLU. After the inclusion of CEs as an undesirable output, the CLUE in the various provinces and cities in the YREB was generally reduced. 2) Regardless of whether the CCR model or SBM was used, the CLUE for the provinces and cities in the YREB showed an overall upward trend with time. Given that the DEA model is based on the relative utilization efficiency, for comparison purposes (vertical basis), it can be seen that the CLUE for some regions in 2016 attained a value of one. Compared with other provinces and cities, some regions have maintained high CLUE since 2007, and their CLUE shows a value of one in 2007 and 2013.

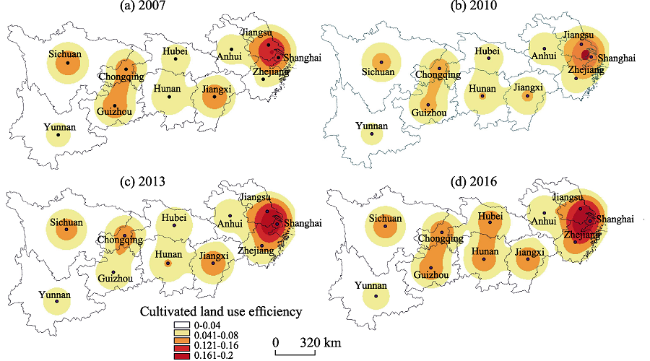

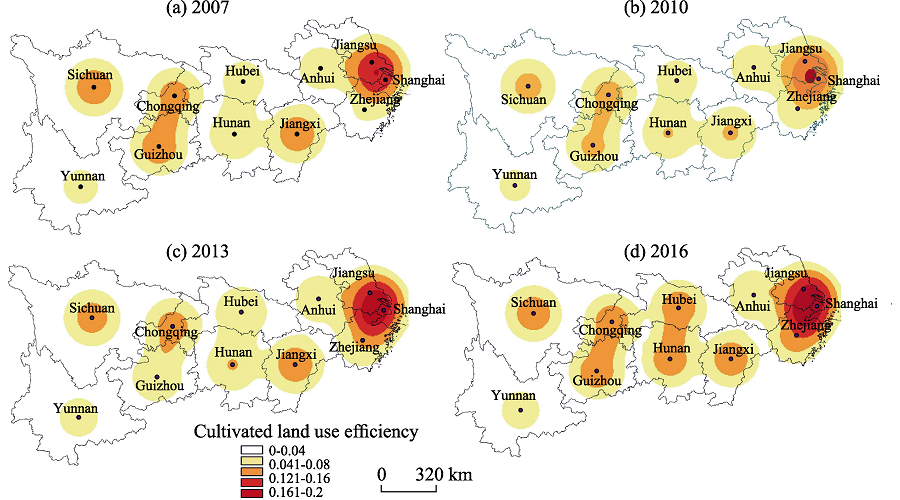

On the basis that including CEs as an undesirable output represents the CLUE more objectively, the CLUE was mainly analyzed from a low-carbon perspective. To analyze the spatiotemporal variations of CLUE in the various provinces and cities of the YREB, the years 2007, 2010, 2013, and 2016 were selected as representative time points, and a kernel density analysis was performed using the ArcGIS (version 10.2) spatial analysis software. As shown in Figure 3, different colors represent different levels of CLUE.

The results in the above figures and tables can be summarized as follows.1) In the YREB, the CLUE under the constraint of CEs has spatial spillover effects and regional synergies. Specifically, the areas with high utilization efficiency for CL radiated to those with low utilization efficiency. The kernel density circle centered on Jiangsu-Shanghai in the southeast expanded year by year and gradually spread to the central area of Zhejiang province. Among all the provinces and cities, Zhejiang showed the most obvious increase (from 0.418 to 1.000) in CLUE over 10 years. 2) The CLUE for various provinces and cities in the YREB showed an upward trend in the time dimension, while the kernel density showed that the spatial dimension was high in the east and low in the west. High-nuclear-density areas are concentrated in the Yangtze River Delta. However, the CLUE in the middle reaches of the Yangtze River was maintained overall at equilibrium. Among the areas, Shanghai, Jiangsu, Jiangxi, Hunan, Chongqing and Sichuan were the provinces and cities with the highest CLUE. 3) In the YREB, the kernel density circle for the CLUE for Yunnan indicated that this province was always sluggish compared with the other regions. For instance, Yunnan has been displaying a lower growth rate of CLUE for a considerable time, that is, from 2007 to 2016 the CLUE only increased from 0.4993 to 0.5461, which may be attributed to the low soil quality and the sloping nature of the CL in this region. Most of the topography of Yunnan province is mountainous or plateaus with steep slopes. Besides, the positive effects of technological progress have lagged to some extent with Yunnan's agricultural production technology being relatively underdeveloped, thus the feedback effect on the CLUE may not yet have been realized. Therefore, the local government should do more to promote CLUE in Yunnan province through policy encouragement, active prevention and control of soil erosion, and construction of terraces. 4) The CLUE in Jiangxi and Jiangsu was at relatively high levels during the study period, but there was a slight decline in the two provinces from 2007 to 2010. In 2010, the CLUE of Jiangsu province fell from 1 to 0.7922, and that of Jiangxi province decreased from 1 to 0.7987. According to the indicator data, the reason for this phenomenon in Jiangsu was that the CEs increased rapidly in 2007-2010 and declined slowly thereafter, which may be due to the fact that during this period, the total grain output of the province declined to some extent, but has been increasing rapidly since 2010. 5) The CLUE in Guizhou was variable, first decreasing and then increasing, thus continuous observation and monitoring are needed in this province. The government should actively encourage the uptake of scientific and technological innovations and other initiatives, and promote a steady increase in CLUE in province with the assistance of surrounding areas (i.e., Chongqing and Hubei) where there is a higher CLUE.

Using the Tobit model established in Equation 5, the Stata software (version 12) was used to analyze the correlation between CLUE and the factors influencing it. The indicators include the per capita CL area (PC), the per capita GDP (PG), the primary industrial product (PP), the electrical power consumption of agricultural machinery (MP) per hectare, the number of agricultural technicians per 10,000 people (AT) and the per capita environmental pollution control investment (PI). The results of the regression analysis are given in Table 5.

From the regression results, the PC, PG, PP, MP, and AT all passed the 5% statistical significance test, among which PC and MP passed the 1% statistical significance test. However, PI did not pass any statistical significance test, indicating that it had no significant effect on the CLUE.

The CL endowment, the economic development level and agricultural technology input for an area can significantly affect the local CLUE. 1) From the perspective of CL endowment, the per capita CL area had a significant negative impact on CLUE, indicating that controlling the CL area to a certain extent can effectively enhance the CLUE. This result indirectly reflects the possible fact that the intensity of CLU in the YREB was still not high enough, and that, despite there being extensive cultivation of large areas of land, the production capacity of CL may be rather low. The government should make more efforts to promote farmland consolidation and intensify the cultivation of land, which may help to effectively improve the CLUE. 2) The level of economic development in a region also had a significant impact on the CLUE. The significance level between per capita GDP and CLUE in the provinces and cities of the YREB was 0.004, and that between the primary industrial output value and the CLUE was 0.012, both of which pass the significance level test of 0.05 and are positively correlated. The per capita GDP is one of the important indicators to measure the level of economic development, and the primary industrial product can reflect the development level of local primary industry. Generally, economic development improves mainly the CLUE by promoting modern technology, but technological progress can also play a negative role with respect to the intensity of CEs. However, for underdeveloped areas, it will take a long time for technological progress to show reducing effects on CEs. 3) From the perspective of the relevant technical level, the number of agricultural technicians can have a significant positive impact on the CLUE, while the electrical power consumption of agricultural machinery per hectare has a negative impact. In other words, an increase in the number of agricultural technicians can realize an improvement of local CLUE. For example, every 1% increase in the number of agricultural technicians will increase the CLUE by 0.057%. The electrical power consumption of agricultural machinery per hectare is negatively correlated with the CLUE, indicating that the current mechanized production mode does not fully exploit the potential of the CL. This phenomenon may be attributable to the fragmentation and dispersion of CL in the YREB. To improve the CLUE in the region corresponding to realizing high output and low input, the government must actively encourage the recruitment of relevant technical professionals to promote improvements in agricultural technology. 4) From the perspective of policy factors, there was no significant correlation between the per capita investment in environmental pollution control and the CLUE. However, the urbanization process can have a major impact on the quantity and quality of CL. Thus, the government should actively formulate policies related to agricultural land consolidation and protection to ensure the sustainable use of CL resources and develop a green and low-carbon management system for CLU.
