A comparative study of land price estimation and mapping using regression kriging and machine learning algorithms across Fukushima prefecture, Japan
Ahmed Derdouri, specialized in GIS and remote sensing. Email: ahmed.derdouri@gmail.com
Received date: 20190219
Accepted date: 20190909
Online published: 20200725
Copyright
Finding accurate methods for estimating and mapping land prices at the macroscale based on publicly accessible and lowcost spatial data is an essential step in producing a meaningful reference for regional planners. This asset would assist them in making economically justified decisions in favor of key investors for development projects and postdisaster recovery efforts. Since 2005, the Ministry of Land, Infrastructure, and Transport of Japan has made land price data open to the public in the form of observations at dispersed locations. Although this data is useful, it does not provide complete information at every site for all market participants. Therefore, estimating and mapping land prices based on sound statistical theories is required. This paper presents a comparative study of spatial prediction of land prices in 2015 in Fukushima prefecture based on geostatistical methods and machine learning algorithms. Land use, elevation, and socioeconomic factors, including population density and distance to railway stations, were used for modeling. Results show the superiority of the random forest algorithm. Overall, land prices are distributed unevenly across the prefecture with the most expensive land located in the western region characterized by flat topography and the availability of wellconnected and highly dense economic hotspots.
Key words： land price; spatial estimation; kriging; machine learning; Fukushima prefecture; Japan
DERDOURI Ahmed , MURAYAMA Yuji . A comparative study of land price estimation and mapping using regression kriging and machine learning algorithms across Fukushima prefecture, Japan[J]. Journal of Geographical Sciences, 2020 , 30(5) : 794 822 . DOI: 10.1007/s1144202017561
Table 1 Descriptive list of reviewed literature regarding land price estimation/mapping grouped by estimation approach: (1) hedonic models, (2) geostatistical methods, (3) machine learning algorithms, and (4) comparison of various approaches
Estimation approach  Study  Study area  Method(s)  Mapping  Objective  Highlighted results

Hedonic models  (Löchl, 2006)  Canton Zurich, Switzerland  Hedonic regression  Yes  Developing an estimation model of rent and land prices  Two classified maps of land prices for residential and commercial uses
(Kim and Kim, 2016)  Seoul, South Korea  OLS and spatial regression models  No  Estimation of land value using OLS and generalized regression models  Spatial error model (SEM) found to be the best of the tested models
(Hilal et al., 2016)  Côted’Or, France  OLS  No  Estimation of the price of agricultural lands at cadastral levels based on previous real estate transactions  Hedonic prices were calculated based on a range of attributes influencing agricultural lands most notable time effects
Geostatistical methods  (Luo and Wei, 2004)  Milwaukee, Wisconsin, USA  Kriging  No  Predicting urban land values of different land use categories using kriging models  Overall average standard error of 2%
(ChicaOlmo, 2007)  City of Granada, Spain  Kriging and cokriging  Yes  Estimating and mapping housing prices using kriging and cokriging approaches  Cokriging has a lower standard error compared with that of kriging
(Inoue et al., 2007)  Tokyo 23 wards, Japan  Kriging  Yes  Mapping estimated land prices in Tokyo’s 23 wards from 1975 to 2004  Kriging modelbased results were more accurate than those for OLS with the average error ranging from 2% to 10%
Geostatistical methods  (Tsutsumi et al., 2011)  Tokyo metropolitan area, Japan  Regression kriging  Yes  Developing a system to estimate and map residential land price in the Tokyo metropolitan area  10% was the average error ratio for the exponential model but 18.3% for the Gaussian model
(Kuntz and Helbich, 2014)  Metropolitan area of Vienna, Austria  Kriging and cokriging  Yes  Mapping predicted real estate prices  Universal cokriging showed better results in terms of crossvalidation results
(ChicaOlmo et al., 2019)  City of Grenada, Spain  Regression and universal cokriging  Yes  Spatiotemporally estimating housing price variations 19882005  Regression cokriging was found to be slightly better
(Palma et al., 2019)  Italy  Jackknife kriging  No  Predicting real estate prices based on socioeconomic factors for the period 20142016  Accuracy of the model improved when considering the spatiotemporal correlation
Machine learning algorithms  (Gu et al., 2011)  A district of Tangshan city, China  Hybrid genetic algorithm and support vector machine model (GSVM), Grey Model (GM)  No  Forecasting housing prices  GSVM outperformed GM in many aspects
(Antipov and Pokryshevskaya, 2012)  Saint Petersburg, Russia  Machine learning algorithms  No  Estimating residential apartments  Random forest was found to be the most robust among all methods
(Wang et al., 2014)  Chongqing city, China  SVM optimized by particle swarm optimization (PSO), BP neural network  No  Forecasting real estate price based on PSOoptimized SVM compared to other BP neural network  PSOSVM showed higher forecasting accuracy than BP neural network
(Park and Bae, 2015)  Fairfax County, Virginia, USA  Machine learning algorithms (C4.5, RIPPER, Naïve Bayesian, and AdaBoost)  No  Prediction of housing prices using different machine learning methods  RIPPER model outperformed all selected methods
Comparison of various approaches  (Bourassa et al., 2010)  Jefferson County, Kentucky, USA  OLS, nearest neighbors, geostatistical and trend surface models  No  Comparing the outcomes of several methods estimating house prices  The geostatistical model showed better results in terms of prediction errors
(Sampathkumar et al., 2015)  Chennai metropolitan area, India  Multiple regression and neural network  No  Modeling and estimation of land prices based on economic and social factors  Neural network and multiple regression performed well with a slight superiority of the former
(Hu et al., 2016)  Wuhan city, China  Empirical Bayesian kriging (EBK), GWR, OLS  Yes  Modeling and visualizing dependency of urban residential land price and the influential variables  Estimated coefficients of variables impacting land prices depend on the location based on GWR results which outperformed OLS
(Schernthanner et al., 2016)  Potsdam, Germany  Hedonic regression, kriging, and random forest  Yes  Comparing estimated rental prices by three methods and visualize the outcome  RF found to be the most accurate method

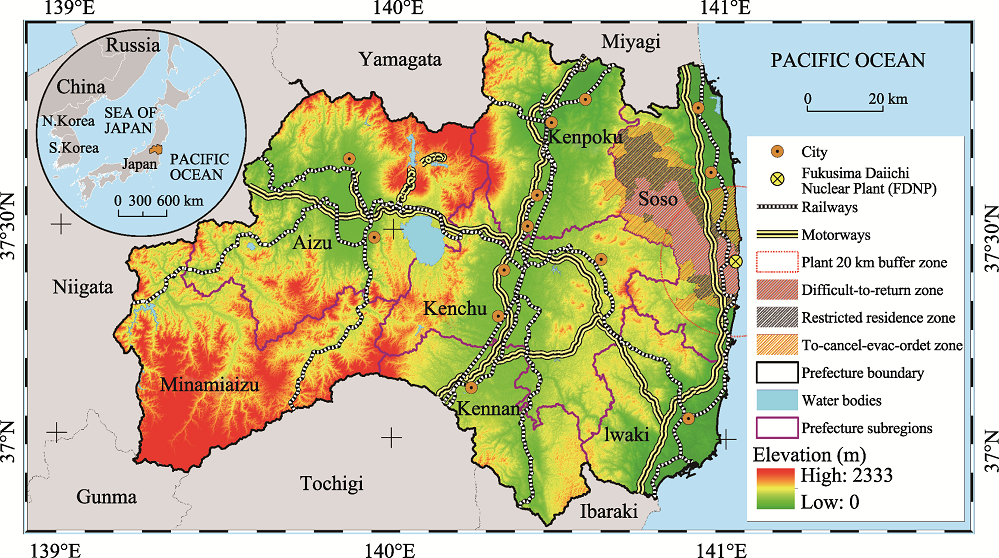

Figure 1 Fukushima prefecture and its administrative boundaries, topographic features, transportation lines, and evacuation zones after the Fukushima Daiichi Nuclear Plant disaster (as of September 2015)

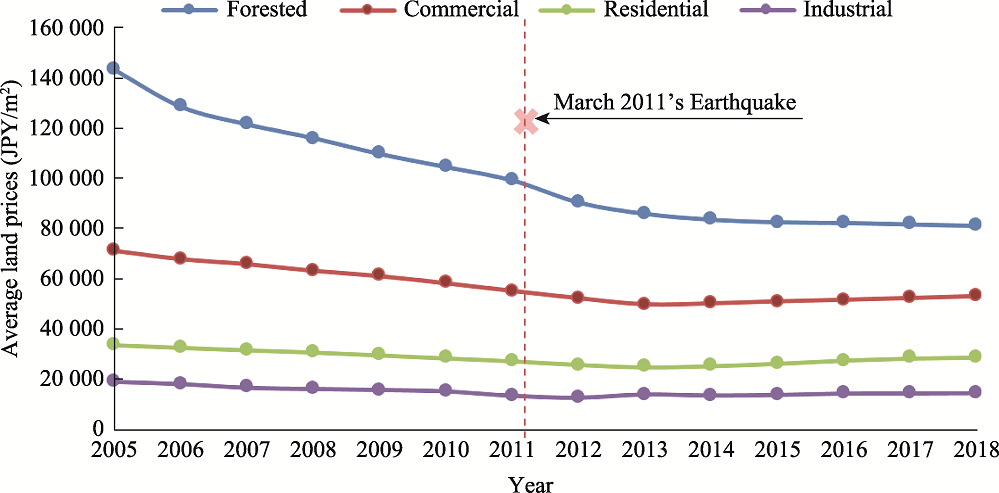

Figure 2 Changes in land prices averaged by land type in Fukushima prefecture (20052018)
Table 2 The three mathematical models used for kriging and their abbreviations
Category  Model  Abbreviation  R package

Geostatistical  Universal kriging  Exponential  krig.EXP  gstat (Pebesma, 2004)
Gaussian  krig.GAU
Spherical  krig.SPH
Table 3 Summary of spatial prediction models used in this study: Linear, nonlinear, and regression trees models are grouped as proposed by Kuhn and Johnson (2013). Abbreviations are used to refer to each method in the manuscript
Category  Model  Abbreviation  R package

Linear  Generalized linear model  GLM  base
Generalized additive model using splines  GAMS  mgcv
Support vector machines with linear kernel  SVMLinear  kernlab
Nonlinear  Multivariate adaptive regression spline  MARS  earth
knearest neighbors  kNN  base
Support vector machines with radial basis function kernel  SVMRadial  kernlab
Regression trees  Cubist  Cubist  Cubist
Stochastic gradient boosting  GBM  gbm (Ridgeway, 2005)
Random forest  RF  randomForest (Breiman, 2001)
Table 4 List of explanatory variables selected in this study with their data sources and the related abbreviations
Explanatory variables  Data  GIS function  Variable description  Abbreviation

Distance to the nearest railway station (m)  Railway stations  Near  Calculated using the railway stations layer  Distance
Area of rice fields [m^{2}]  Land uses within a square kilometer  Spatial Join  The areas of different landuses within one square kilometer classified according to the National Land Numerical Information  Paddy
Area of other agricultural land (m^{2})  Agricultural
Area of forests (m^{2})  Forests
Area of uncultivated land (m^{2})  Uncultivated
Area of roads (m^{2})  Roads
Area of railways (m^{2})  Railways
Area of other land uses (m^{2})  Other uses
Area of water bodies (m^{2})  Water
Area of seashore (m^{2})  Seashore
Area of the surface of the sea (m^{2})  Sea
Area of golf courses (m^{2})  Golf
Dummy variable for urbanization promoting area  Promoted urbanization areas  Spatial Join  A dummy variable; if the point location falls inside the area, the variable value receives 1, else 0  Promotion
Population density (persons/km^{2})  Population  Spatial Join  Calculated using the population data of 2015 for every minor municipal district  Density
Number of enterprises  Enterprises  Spatial Join  Statistical GIS data of 2015 for every minor municipal district  Enterprises
Number of employees  Employees  Employees
Elevation (m)  DEM  Extract Multi Values to Points  Elevation of the point location  Elevation
Table 5 Overview of datasets used in the study, their sources, and the year of release
Data layers  Source  Year

Land price observations (published and prefectural)  National Land Numerical Information  2015
Railway stations  2015
Land uses within 1 km^{2} area and their areas  2014
Promoted urbanization areas  2011
Population of every minor municipal district  Statistics Bureau of Japan  2015
Number of enterprises and employees of every minor municipal district
DEM  USGS

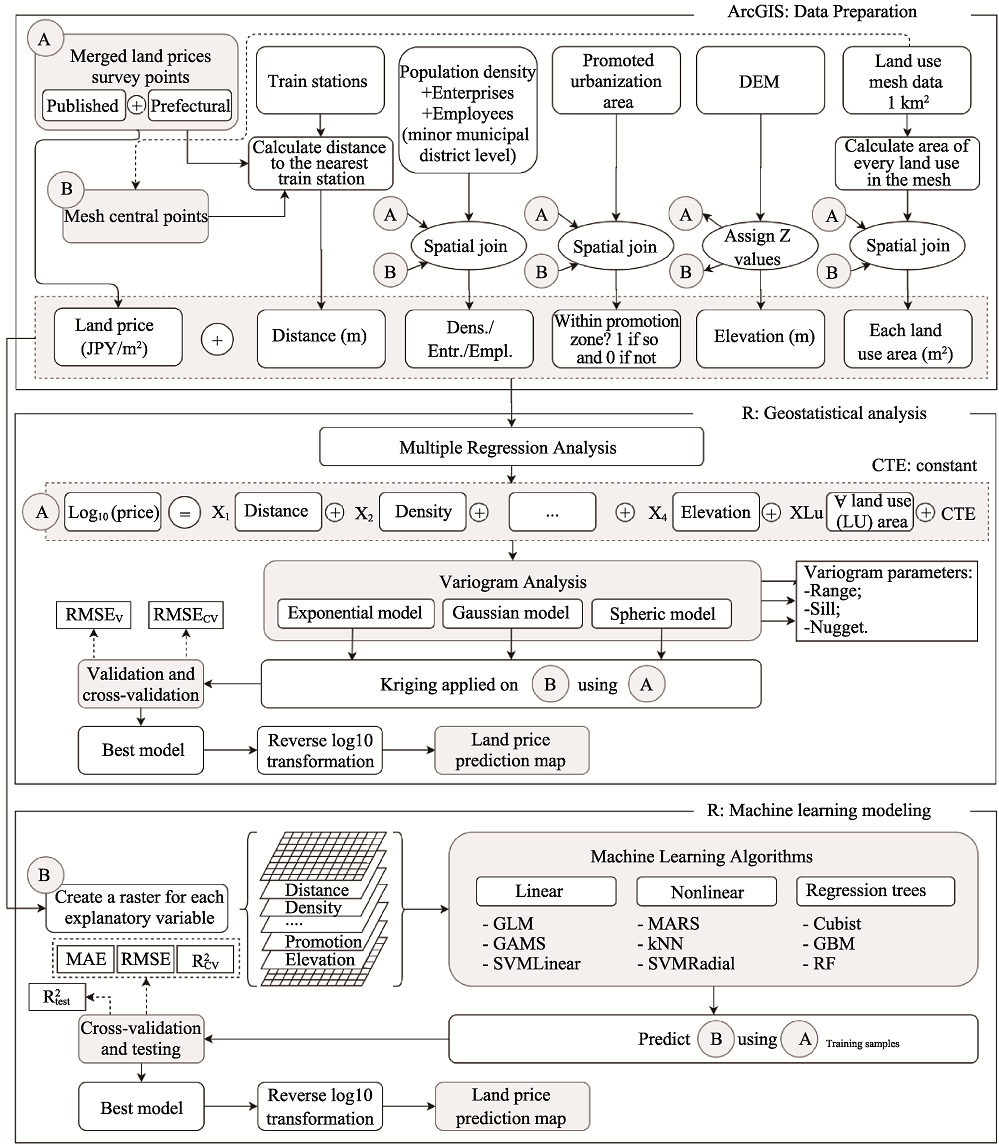

Figure 3 Methodological framework of the study

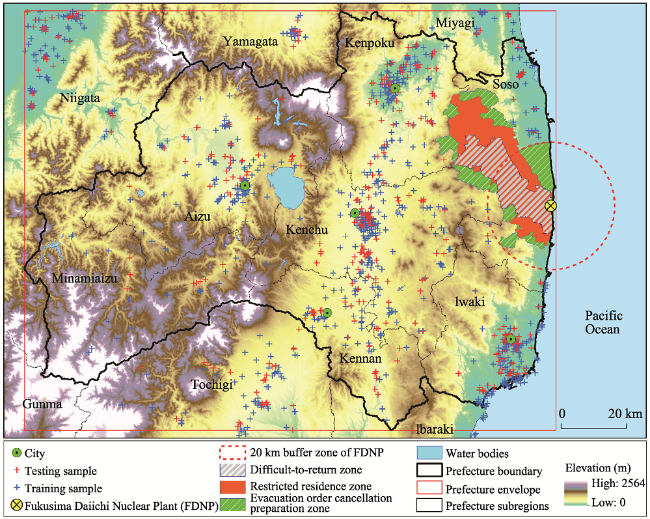

Figure 4 The distribution of land price samples in the study area
Table 6 Regression results with detailed explanatory variables and their estimated coefficients
Variables  Unit  Coefficients’ estimate

Intercept    4.439  ***
Distance to the nearest railway station  m  2.09 × 10^{5}  ***
Population density  persons/km^{2}  3.104 × 10^{5}  ***
Area of rice fields  m^{2}  3.935 × 10^{7}  ***
Area of other agricultural land  m^{2}  4.731 × 10^{7}  ***
Area of forests  m^{2}  2.733 × 10^{7}  ***
Area of uncultivated land  m^{2}  7.437 × 10^{7}  .
Area of roads  m^{2}  7.211 × 10^{7}  **
Area of railways  m^{2}  3.301 × 10^{8}
Area of other land uses  m^{2}  8.97 × 10^{8}
Area of water bodies  m^{2}  3.086 × 10^{7}  ***
Area of seashore  m^{2}  1.922 × 10^{6}
Area of the surface of the sea  m^{2}  1.25 × 10^{7}
Area of golf courses  m^{2}  5.843 × 10^{8}
Dummy variable for urbanization promoting area    1.819 × 10^{1}  ***
Elevation  m  1.556 × 10^{4}  **
Number of enterprises    3.363 × 10^{4}  **
Number of employees    2.951 × 10^{5}  *
Number of samples = 1092; residual standard error = 0.1683, multiple R^{2 }= 0.7408, adjusted R^{2} = 0.7349; Fstatistic = 125.7, pvalue = < 2.2 × 10^{16} *** = sign. at 1% level ** = sign. at 5% level

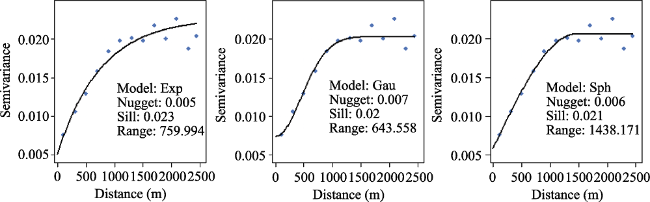

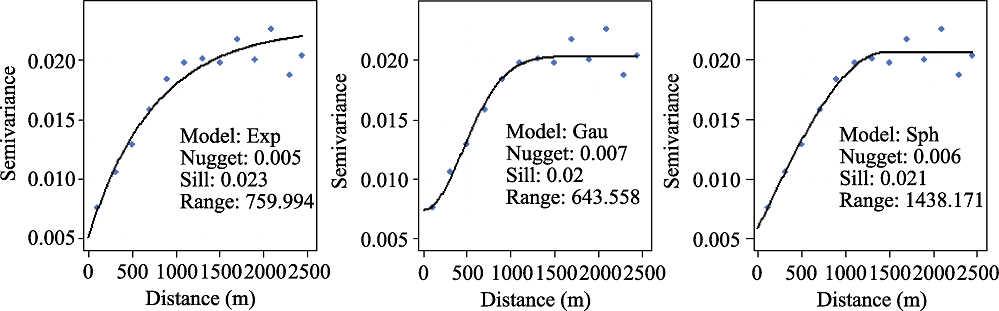

Figure 5 Fitted semivariograms for the kriging models for the year 2015: (a) Exp: Exponential (b) Gau: Gaussian (c) Sph: Spherical. The nugget, range, and sill values and the mathematical models are shown in the bottom right corner

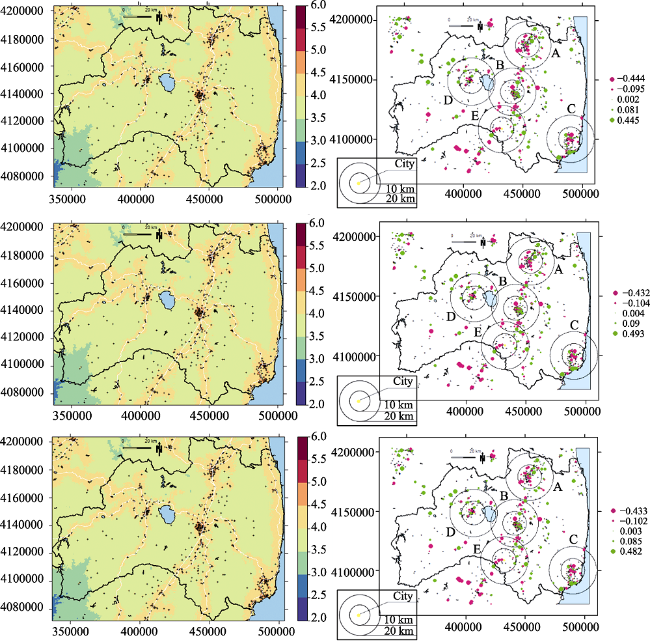

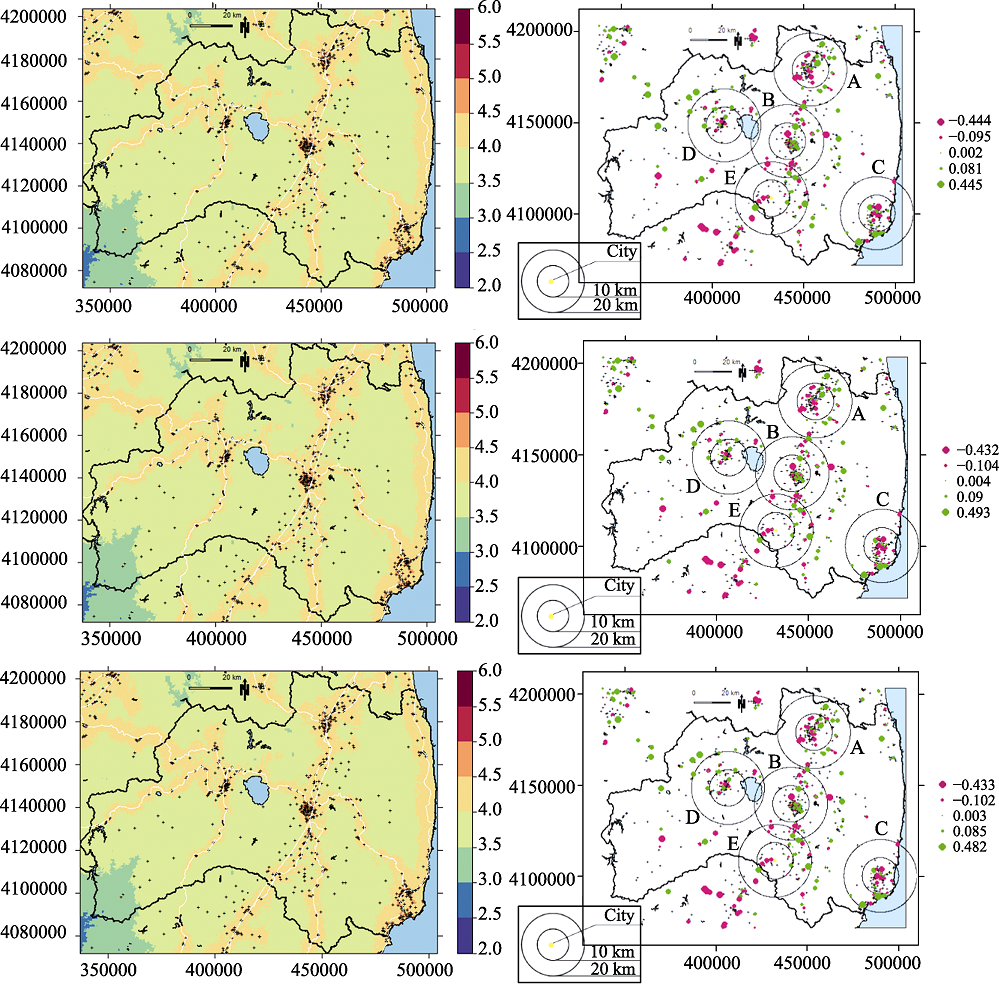

Figure 6 The results of the regression kriging for the year 2015 using the exponential model (upper), Gaussian model (middle), and spherical model (lower). On the left are the estimated logtransformed land prices using regression kriging. On the right are the validation errors in the training samples. Capital letters denote major cities within Fukushima prefecture, which are A: Fukushima, B: Koriyama, C: Iwaki, D: Aizuwakamtsu, and E: Shirakawa
Table 7 Prediction errors of validation and crossvalidation tests for the three kriging models
Mathematical models  Validation  Crossvalidation

RMSE_{V} (%)  RMSE_{CV} (%)
Exponential  15.32  15.1
Gaussian  15.86  15.57
Spherical  15.57  15.5

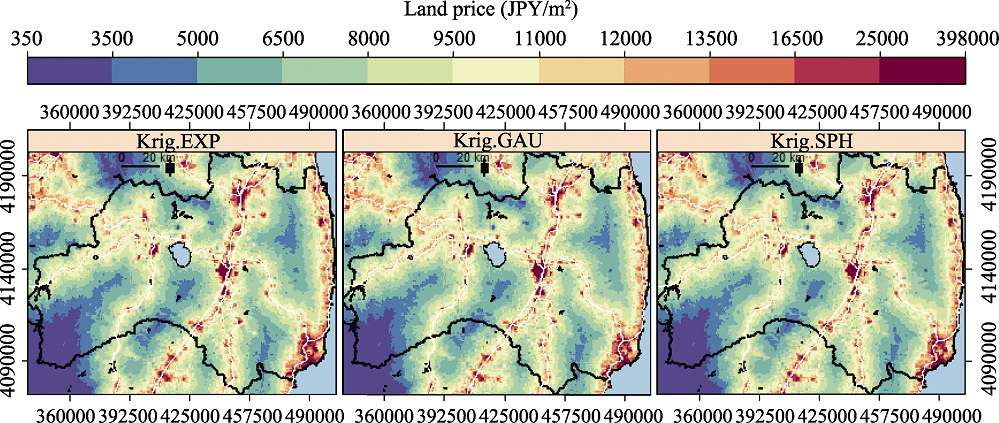

Figure 7 Land price maps for the year 2015 predicted from officially published land price observations using regression kriging based on three mathematical models (ordered from left to right): (1) Krig.EXP: Exponential model, (2) Krig.GAU: Gaussian model, and (3) Krig.SPH: Spherical model

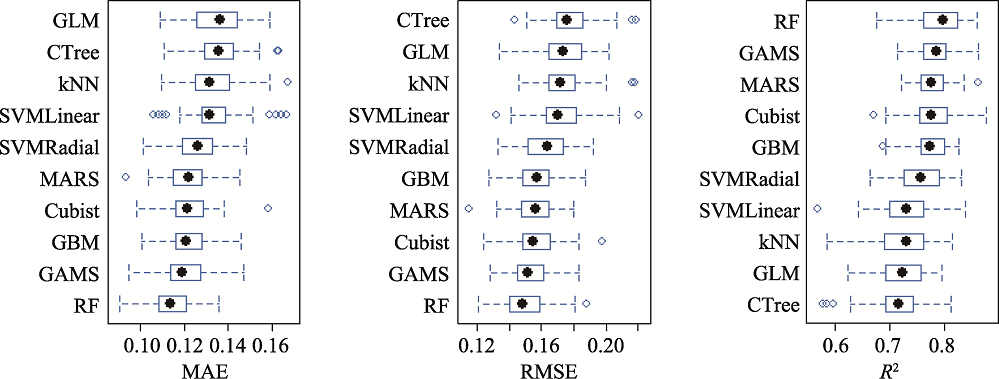

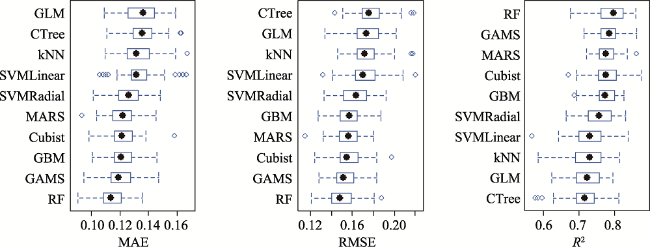

Figure 8 Boxplots of performance of machine learning methods in terms of the MAE, the RMSE, and R^{2} for the year 2015
Table 8 Prediction errors and accuracy of machine learning methods
Method  10fold crossvalidation  Testing samples  Difference

MAE (%)  RMSE (%)  R^{2}_{CV} (%)  R^{2}_{test} (%)  R^{2}_{CV} (%)  R^{2}_{test} (%)
Linear  GLM  13.50  17.29  72.47  59.94  +12.53
GAMS  12.03  15.37  78.13  68.72  +9.41
SVMLinear  13.38  17.25  72.73  59.12  +13.61
Nonlinear  MARS  12.11  15.52  77.90  70.78  +7.12
kNN  13.38  17.35  72.24  68.03  +4.21
SVMRadial  12.55  16.27  75.53  70.02  +5.51
Regression tree  Cubist  12.19  15.60  77.72  72.74  +4.98
GBM  12.16  15.68  77.40  70.83  +6.57
RF  11.39  14.97  79.17  77.68  +1.49

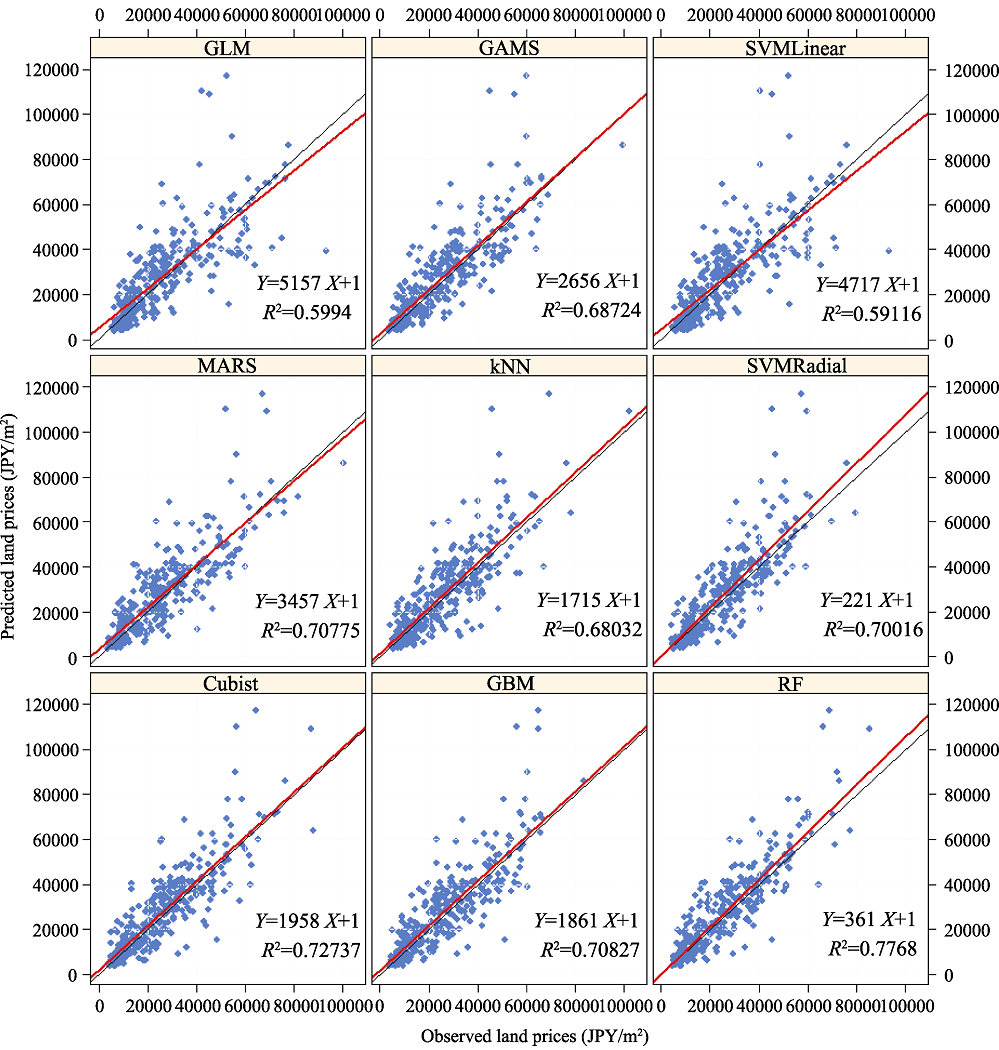

Figure 9 Observed land prices vs. predicted land prices for the year 2015 in the testing samples by different machine learning methods (ordered from left to right, up to down): (1) GLM: generalized linear model, (2) GAMS: generalized linear model using splines, (3) SVMLinear: support vector machines with linear kernel, (4) MARS: multivariate adaptive regression spline, (5) kNN: knearest neighbors, (6) SVMRadial: support vector machines with radial basis function kernel, (7) Cubist, (8) GBM: stochastic gradient boosting and (9) RF: random forest

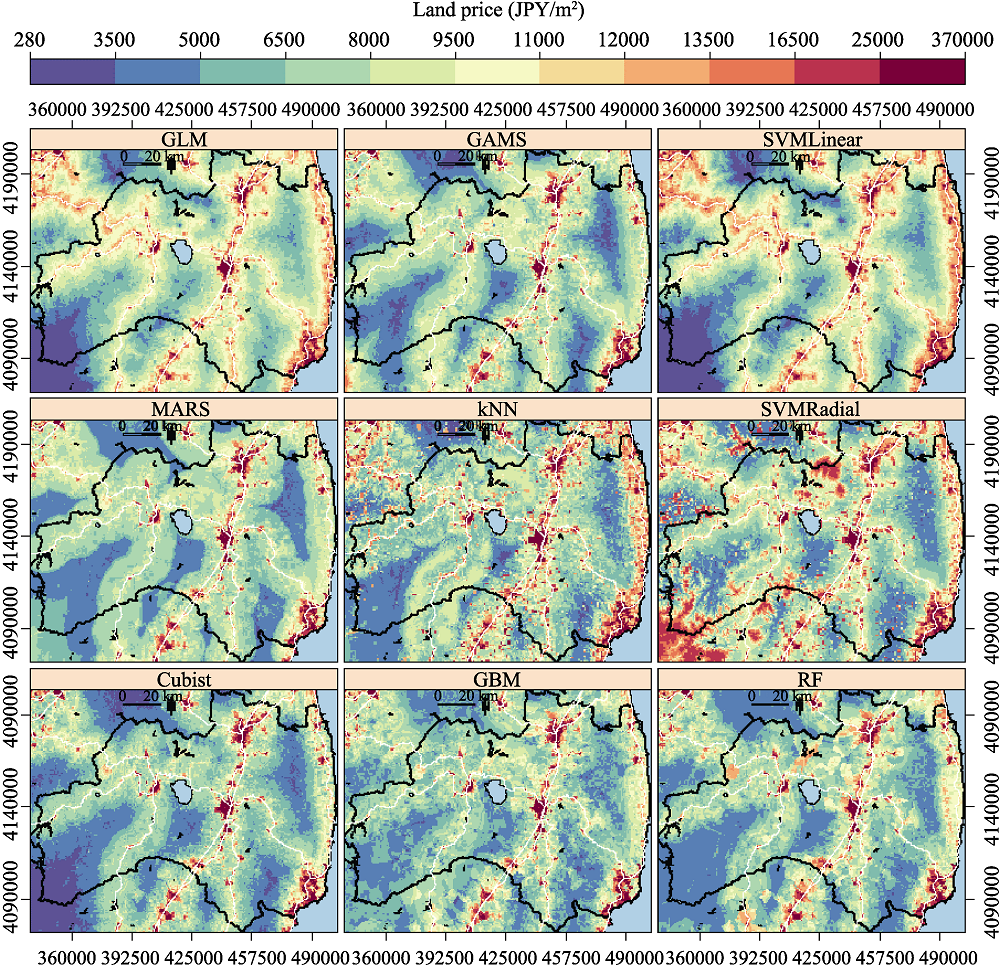

Figure 10 Land price maps for the year 2015 predicted from officially published land price observations using machine learning algorithms (ordered from left to right, up to down): (1) GLM: generalized linear model, (2) GAMS: generalized linear model using splines, (3) SVMLinear: support vector machines with linear kernel, (4) MARS: multivariate adaptive regression spline, (5) kNN: knearest neighbors, (6) SVMRadial: support vector machines with radial basis function kernel, (7) Cubist, (8) GBM: stochastic gradient boosting and (9) RF: random forest

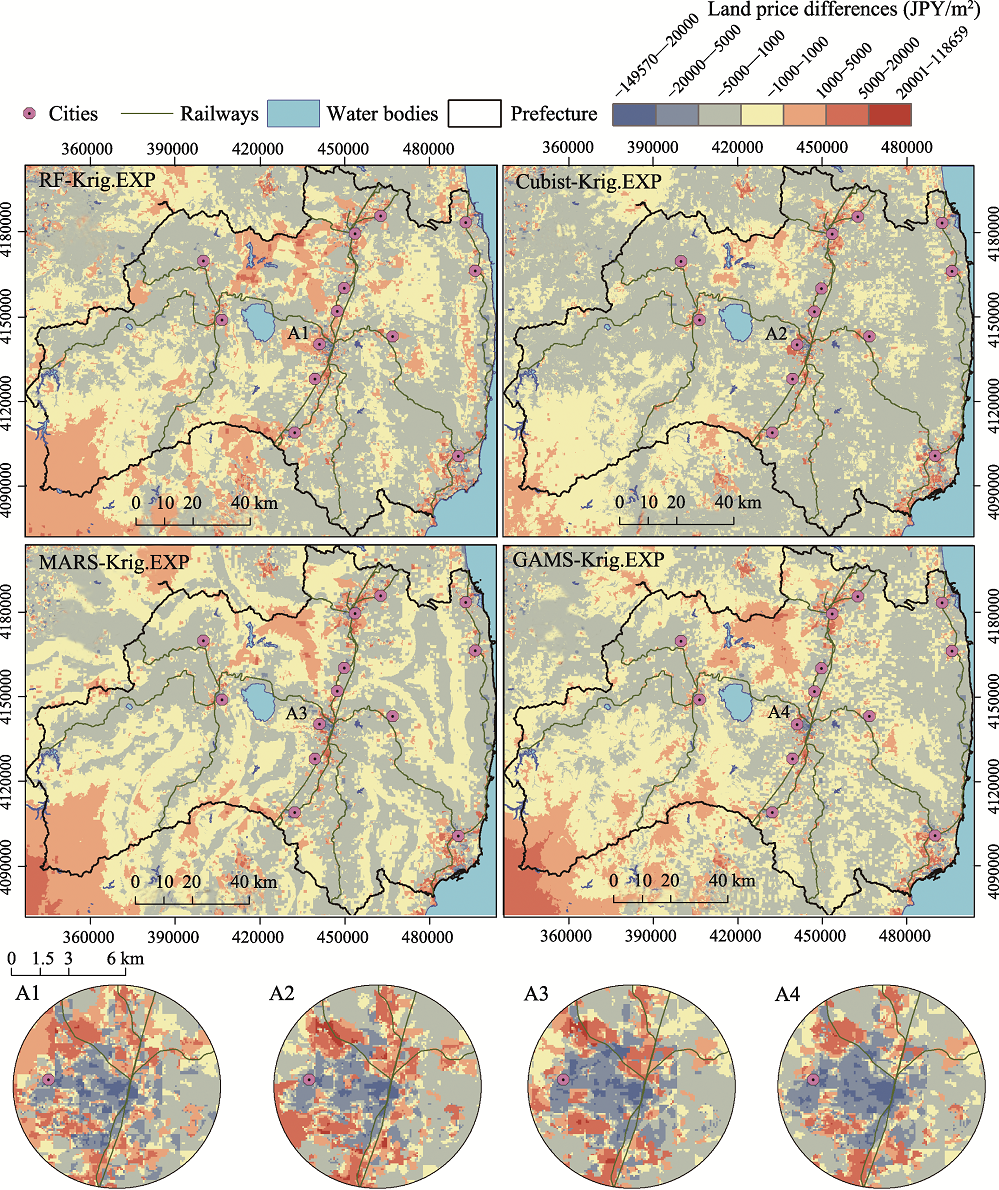

Figure 11 Maps of differences in the 2015 land prices between the bestperforming machine learning algorithms: (1) RF: Random Forest, (2) Cubist, (3) MARS: Multivariate Adaptive Regression Spline and (4) GAMS: Generalized Linear Model using Splines and kriging exponential model. A1, A2, A3, and A4 show zoomedin maps of Koriyama city and its outskirts

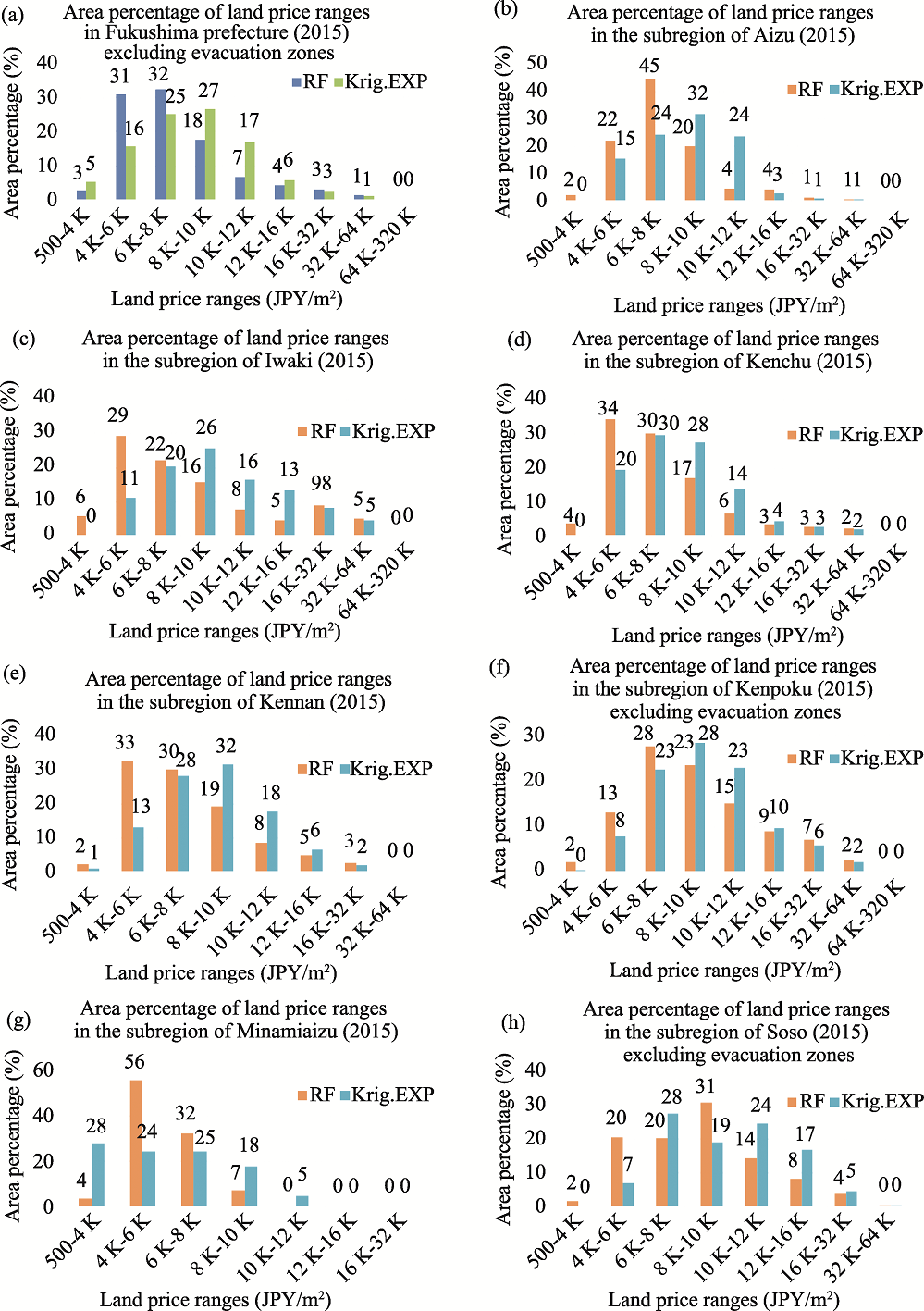

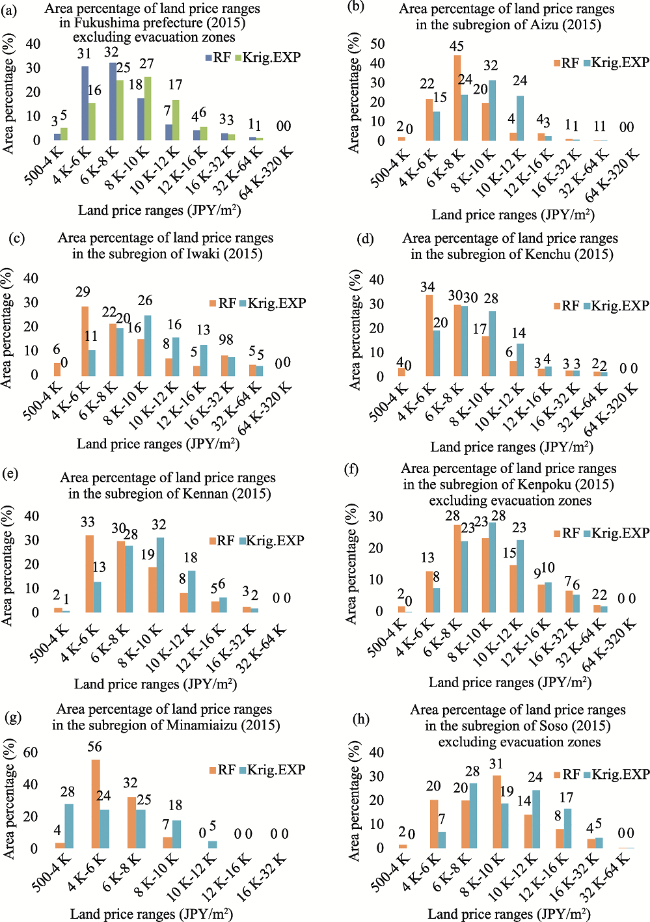

Figure 12 Area percentage of RF and krig.EXPbased estimated land price for the year 2015 distributed by predefined ranges in Fukushima prefecture and its subregions
