The spatial local accuracy of land cover datasets over the Qiangtang Plateau, High Asia

  • LIU Qionghuan 1, 2 ,
  • ZHANG Yili , 1, 2, 3, * ,
  • LIU Linshan 1 ,
  • LI Lanhui 1, 2 ,
  • QI Wei 1
Expand
  • 1.Key Laboratory of Land Surface Pattern and Simulation, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
  • 2.University of Chinese Academy of Sciences, Beijing 100049, China
  • 3.CAS Center for Excellence in Tibetan Plateau Earth Sciences, Beijing 100101, China
Zhang Yili, Professor, specialized in physical geography and biogeography. E-mail:

Liu Qionghuan, PhD Candidate, E-mail: liuqionghuan@yeah.net

Received date: 2018-05-27

  Accepted date: 2019-02-12

  Online published: 2019-12-05

Supported by

The Strategic Priority Research Program of the Chinese Academy of Sciences(Nos. XDA20040200)

The Strategic Priority Research Program of the Chinese Academy of Sciences(XDB03030500)

Key Foundation Project of Basic Work of the Ministry of Science and Technology of China(No. 2012FY111400)

National Key Technologies R & D Program(No. 2012BC06B00)

Copyright

Copyright reserved © 2019. Office of Journal of Geographical Sciences All articles published represent the opinions of the authors, and do not reflect the official policy of the Chinese Medical Association or the Editorial Board, unless this is clearly specified.
Fold

Abstract

We analyzed the spatial local accuracy of land cover (LC) datasets for the Qiangtang Plateau, High Asia, incorporating 923 field sampling points and seven LC compilations including the International Geosphere Biosphere Programme Data and Information System (IGBPDIS), Global Land cover mapping at 30 m resolution (GlobeLand30), MODIS Land Cover Type product (MCD12Q1), Climate Change Initiative Land Cover (CCI-LC), Global Land Cover 2000 (GLC2000), University of Maryland (UMD), and GlobCover 2009 (GlobCover). We initially compared resultant similarities and differences in both area and spatial patterns and analyzed inherent relationships with data sources. We then applied a geographically weighted regression (GWR) approach to predict local accuracy variation. The results of this study reveal that distinct differences, even inverse time series trends, in LC data between CCI-LC and MCD12Q1 were present between 2001 and 2015, with the exception of category areal discordance between the seven datasets. We also show a series of evident discrepancies amongst the LC datasets sampled here in terms of spatial patterns, that is, high spatial congruence is mainly seen in the homogeneous southeastern region of the study area while a low degree of spatial congruence is widely distributed across heterogeneous northwestern and northeastern regions. The overall combined spatial accuracy of the seven LC datasets considered here is less than 70%, and the GlobeLand30 and CCI-LC datasets exhibit higher local accuracy than their counterparts, yielding maximum overall accuracy (OA) values of 77.39% and 61.43%, respectively. Finally, 5.63% of this area is characterized by both high assessment and accuracy (HH) values, mainly located in central and eastern regions of the Qiangtang Plateau, while most low accuracy regions are found in northern, northeastern, and western regions.

Key words： land cover datasets; spatial accuracy assessment; remote sensing; Qiangtang Plateau; High Asia

Cite this article

LIU Qionghuan , ZHANG Yili , LIU Linshan , LI Lanhui , QI Wei . The spatial local accuracy of land cover datasets over the Qiangtang Plateau, High Asia[J]. Journal of Geographical Sciences, 2019 , 29(11) : 1841 -1858 . DOI: 10.1007/s11442-019-1992-0

1 Introduction

Land cover (LC) information is basis data for various scientific research endeavors, including environmental science and ecology. These data are also key for understanding the sustainable use of land resource as well as for government decision-making and also exert important impacts on downstream analyses. Classified LC maps have become one of the most important products of remote sensing (RS) surveys, enabling environmental and natural resources monitoring, modeling and management from local-to-global scales (Sutherland et al., 2009; Estes et al., 2018). In concert with the development of RS and GIS technologies, numerous global and regional LC products have emerged that utilize RS images as a data source. Indeed, more than 20 global and regional scale LC products were available and freely accessible in 2016 (Grekousis et al., 2015). However, due to inconsistencies in classification systems and technologies as well as image acquisition time and spatial resolution, clear differences in accuracy are seen when different data are applied at regional or global scales (Herold et al., 2008; Gong et al., 2013). These discrepancies have seriously undermined the effective use of LC datasets for research in many fields (Congalton et al., 2014; Tsendbazar et al., 2015) and means that it is very important to analyze the accuracy of existing information in this area (Foody, 2002; Moristette et al., 2002; Wulder et al., 2014).
Previous researchers have chosen to utilize relative assessment methods to compare overall area and spatial consistencies as well as differences between multiple LC datasets (McCallum et al., 2006; Herold et al., 2008). Studies conducted to date have also compared the spatial consistency of global or regional LC datasets based on different products and with various resolutions (Fritz et al., 2011; Kaptué Tchuenté et al., 2011) while others have selected a particular product for reference, Global Land Cover 2000 (GLC2000), for example, to compare and assess the overall accuracy of other global datasets (Schultz et al., 2015). In other research, scholars have utilized sample points for reference in order to assess and validate the accuracy of global LC datasets (Stehman, 2009, 2014; Gong et al., 2013; Bai et al., 2015; Lei et al., 2016; Wickham et al., 2017).
Error matrix values as well as those for overall accuracy (OA), producer’s accuracy (PA), and user’s accuracy (UA), have proven to be the most precise and therefore commonly applied statistical approaches for evaluating LC accuracy. These measures and the way in which they are calculated, have, however, been criticized in the past for not providing any indication of error spatial distribution, because non-stationary error distributions occur, for example, in the presence of heteroscedastic residual distributions (Comber et al., 2012). The appropriateness of information conveyed by an error matrix may therefore be limited when specific local conditions vary. In this paper, therefore, we focused on spatial variations in classification accuracy at the level of individual pixels (Comber et al., 2012; Khatami et al., 2017a; Khatami et al., 2017b), and the analyses presented here are also based on field points and sample blocks.
Grassland degradation, glacier retreat, lake expansions, and other eco-environmental changes on the Qinghai-Tibet Plateau have received increasing levels of scientific attention over the last 30 years (Liu et al., 2008; Yao et al., 2012; Nie et al., 2017). Indeed, land cover change (LCC) on the Qiangtang Plateau, the hinterland of the Qinghai-Tibet Plateau, plays a key role in the regional eco-environment and is thus an important component of the overall plateau ecosystem. It is therefore necessary for us to take full advantage of existing data as well as the accuracy of currently available numerical simulations in tandem with RS inversion data in order to develop comprehensive assessments (Zhang et al., 2013). A limited number of scientific investigations have, however, been conducted in this region because of the extremely harsh natural environment of the Qiangtang Plateau, and basic research data is therefore lacking for the development of accurate spatial predictions.
The analyses presented in this study are based on 923 sampling points from across the Qiangtang Plateau as well as seven large-scale LC datasets. These datasets comprise the International Geosphere Biosphere Programme Data and Information System (IGBPDIS) compilation, Global Land cover mapping at 30 m resolution (GlobeLand30), the MODIS Land Cover Type product (MCD12Q1), Climate Change Initiative Land Cover (CCI-LC), Global Land Cover 2000 (GLC2000), data collected by the University of Maryland (UMD), and GlobCover 2009 (GlobCover). We utilized GWR to assess local spatial accuracy and sought to address a number of research questions including what is the overall spatial accuracy of LC data available for the Qiangtang Plateau? Which areas are characterized by high levels of local accuracy? And which LC data compilations are more accurate for particular local areas on the plateau?

2 Study area

The Qiangtang Plateau is located between 32°10°-36°32°N and 79°42°-92°05°E and encompasses the northern flank of the Gangdise-Nyainqentanglha mountains, the southern Kunlun Mountains, the eastern Karakoram Mountains, and the western Tanggula Mountains (Figure 1). A series of complex landforms and a cold-dry climatic regime characterizes this region. The Qiangtang Plateau has an average altitude of 5025 m, ranging between 4153 m and 6854 m, an annual rainfall of 154.9 mm (Li et al., 2017), and an average temperature below zero degree centigrade (Yao et al., 2015). This region encompasses a vast area of alpine desert grassland, being characteristic as simple vegetation type and low fractional cover of vegetation. In addition, the vegetation of the Qiangtang Plateau is extremely fragile because of the harsh weather conditions that characterize this region, and once threatened, this biotope cannot be restored.

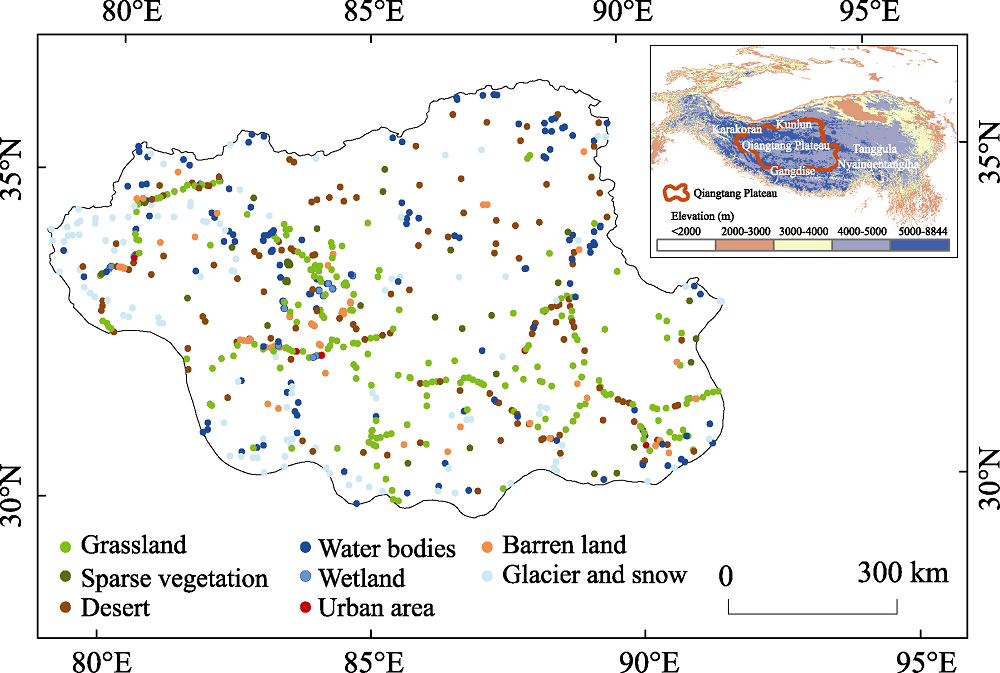

Figure 1 Map showing the study area discussed in this analysis as well as the distribution of sampling points on the Qiangtang Plateau

3 Data sources and methods

3.1 Sampling points

The sampling points used for this analysis are uniformly distributed across the entire region of interest. However, because of the uneven distribution of each class and field condition limitations, we are unable to guarantee that the same numbers of sampling points occur within each category. We utilized a total of 923 sampling points, of which 163 are derived from previous research (Gong et al., 2013; Yang et al., 2017), alongside 152 water bodies data points based on Google Earth images and Panoramio photographs that are each 2 km by 2 km in size. We also included 110 glacier samples extracted from the Second Glacier Inventory Dataset of China published by the Cold and Arid Regions Scientific Data Center (Guo et al., 2014) that are also 2 km by 2 km in size. The remaining 498 sample points used here are the result of field investigations carried out by our research team between 2013 and 2016. Our sample spatial distribution is summarized in Figure 1 while detailed descriptions of these data are presented in Table 1.
Table 1 Class description of field sample points over the Qiangtang Plateau*
LC type Number of
sample points		 Definition LC type Number of sample points Definition
Grassland 219 Region mainly covered with a community of cold-tolerant perennial herbaceous plants. In this region, this LC type mainly comprises meadows covered with Kobresia littledalei and K. pygmaea, a plant coverage area dominated by taxa with some cold tolerance, especially xerophytic perennial herbaceous species. Wetland 80 Broad areas covered with herbs or woody plants, usually transitional zones between land and water.
Sparse vegetation 53 Plants comprise continuous vegetation that extends up to the permanent snow line, as well as a zone encompassing coverage between 5% and 40% of total surface that consists of cold-adapted plants such as cold habitat perennial axis-shaft root grasses, cushion plants, and lichens. One area, for example, contains cushion plants such as Arenaria serpyllifolia and Androsace tapete. Urban area 26 Land covered with
buildings.
Desert 45 Desert areas are widely distributed in this region and are characterized by the presence of semi-shrubs and their dwarf counterparts (e.g., Ceratocarpus latens, Ajania pallasiana) as well as C. compacta. Barren land 142 Barren land, sand, rock, and saline areas with vegetation coverage less than, or equal to, 10%.
Water
bodies		 152 Long-strip depressions that naturally form along the ground surface as well as land below the perennial water level developed under natural conditions. Glacier and snow 110 Land that is perennially covered with snow or ice.
Total 923

*We selected locations for sampling based on vegetation type investigations in order to encompass uniform land cover, neighborhood consistency, and good representation. Representative spatial range varies according to the distribution of LC types, however; in the case of large areas of grassland or desert, a circular area with a radius between 500 m and 1,000 m was selected and sampling was carried out at a central point. Sampling points in each case can therefore be represented by a circular area between 30 m and 50 m in diameter.

3.2 Land cover datasets

Although more than 20 global LC products are currently available within 10 data series (Grekousis et al., 2015), seven were selected for this analysis (Table 2). Five of these data series, GlobeLand30, CCI-LC, GlobCover, MCD12Q1, and Global Land Cover 250 m China (GLC250 m_CN), comprise 22 datasets for different years, and one (GLC250 m_CN) is not currently shared publicly. We therefore selected four datasets that capture the most recent years from the remaining four compilations above (i.e., those released publicly prior to December 2016) alongside three others that comprise different series (i.e., UMD, IGBPDIS, and GLC2000) that have been widely applied for long-term LCC research. However, the International Satellite Land Surface Climatology Project Initiative II (ISLSCP II) dataset was not utilized as it actually comprises 12 distinct datasets. A further available data series (Geo-Wiki) was also not selected for analysis because of inherent temporal uncertainties. The LCCS (Land Cover Classification System) includes FAO (Food and Agriculture Organization, FAO), USGS (United States Geological Survey, USGS), IGBP, Simplified IGBP and UN (United Nations, UN).
Table 2 LC dataset characteristics
Dataset OA (%) Verification method Sensor Classification method Resolution Time Classification system
(Number of types)		 URL for download Reference
GLC2000 68.6 Confidence value statistical sampling SPOT4 VEGETATION Unsupervised classification 1 km 1999-2000 FAO LCCS
(23 classes)		 http://bioval.jrc.ec.europa.eu/products/glc2000/ products.php Bartholom et al.,
2005
IGBPDIS 66.9 Statistical sampling by validation working group AVHRR Unsupervised classification 1 km 1992-1993 USGS IGBP
(17 classes)		 http://edc2.usgs.gov/glcc/tabgoode_globe.php Loveland
et al.,
2000
UMD 65.0 Evaluated using other digital datasets AVHRR Unsupervised classification, decision tree classification 1 km 1992-1993 Simplified IGBP
(14 classes)		 http://www.landcover.org/data/landcover/index.shtml Hansen et al.,
2000
MCD12Q1 74.8 Cross-validation MODIS Supervised classification, decision tree classification, neural network 500 m 2001-2016 IGBP
(17 classes)		 http://e4ftl01.cr.usgs.gov/MOTA/MCD12Q1.006/ Friedl
et al.,
2010,2011
GlobCover 67.5 Statistical sampling expert’s judgement MERIS FR Supervised classification, un-
supervised classification		 300 m 2009 UN LCCS
(22 classes)		 http://due.esrin.esa.int/globcover/ Bontemps
et al.,
2011
CCI-LC 74.1 Sampling-based labeling approach MERIS Full and Reduced Resolution/ SPOT Unsupervised classification 300 m 1992-2015 UN LCCS
(22 classes)		 http://maps.elie.ucl.ac.be/CCI/viewer/index.php Belgium
et al.,
2016
GlobeLand30 80.0 Knowledge-based interactive
verification		 Landsat TM, ETM7, HJ-1A/b/ Integration of pixel- and
object-based methods with knowledge
(pok-based)		 30 m 2000, 2010 11 classes http://www.globallandcover.com Chen
et al.,
2015

3.3 Land cover data processing

Projections based on the seven LC datasets utilized here were initially converted to Albers projection (Albers_Conic_Equal_Area). Next, because the classification criteria used for LC types were different in each case and therefore restrict direct comparisons, correspondence was assessed using the approach developed by Giri (2005), Herold (2008), and Ran (2010) to establish linkage between different classification systems. We referred to existing linkages between classification systems (Giri et al., 2005; Ran et al., 2010; Kaptué Tchuenté et al., 2011) in combination with the specific definitions utilized by various data products and field investigations to develop a LC type classification system of the Qiangtang Plateau that is based on a sample point survey encompassing eight primary types. The corresponding relationships between our classification system and the four utilized in the seven datasets we evaluated are discussed elsewhere (Liu et al., 2017). Finally, we resampled and matched cell locations between CCI-LC and MCD12Q1, CCI-LC/GlobCover and MCD12Q1, and CCI-LC/MCD12Q1 and GlobeLand30, in order to compare similarities and discrepancies in LC dataset spatial patterns.

3.4 Spatial variation analysis of boolean classification data

The number of samples (or patches) is always far smaller in actuality than the number of pixels within an entire study area. At the same time, however, random single point accuracy is both accidental and often wrong. For these reasons, spatial analysis can be used to determine how single, whole-map global measures of accuracy vary. We utilized GWR to estimate OA at specific locations (i, j) with no existing samples calculated. A GWR approach is similar to an ordinary logistic regression model but coefficient estimates are allowed to vary geographically using a kernel function (Comber et al., 2012). A moving window then allows a local regression analysis to be computed in each case with points further away from the specific location under consideration contributing less to the solution.
Local spatial accuracy based on Equation (1) is weighted OA based on geographically constrained samples. This means that Equation (2) enables samples that are further away from a given location (i, j) to less significantly influence accuracy, rather than making an equal contribution. In other words, a weighted regression is performed out in cases where the weight (${{W}_{k(i,j)}} $) associated with each location (i, j) is a decreasing function of di, the distance from the window center to (i, j) (Comber et al., 2012; Yang et al., 2017). These relationships are expressed as follows:
$O{{A}_{\left( i,j \right)}}=\frac{\mathop{\sum }_{1}^{N}b{{W}_{k\left( i,j \right)}}}{\mathop{\sum }_{1}^{N}{{W}_{k\left( i,j \right)}}}*100%$
${{W}_{k\left( i,j \right)}}=\left\{ \begin{matrix} {{\left( 1-\frac{d_{i}^{2}}{{{h}^{2}}} \right)}^{2}},\ \ \ \text{if}\ {{d}_{i}}<h \\ 0,\ \ \ \ \text{ }otherwise \\ \end{matrix} \right.$
where $O{{A}_{(i,j)}}$ denotes local spatial accuracy, while ${{W}_{k(i,j)}}$ is the contribution made by the reference point to location (i, j), di refers to the distance between the reference point and location (i, j), b is a binary variable, and 1 indicates that the sample type is the same as that approximated by LC data at the reference point (otherwise b will be denoted 0). In addition, N denotes the number of samples used for local accuracy assessment at location (i, j) where h refers to the bandwidth of GWR calibration. This latter measure can either be fixed or adaptive to a subset of the nearest n sample points and different kernel functions (shapes) can be used for distance weighting. As larger bandwidths generally result in a greater degree of spatial smoothing (Gollini et al., 2015), an adaptive value of 15% was applied in Bi-squared kernel function.
We also applied an estimated kappa coefficient to further explore accuracy in this study, with $Kapp{{a}_{(i,j)}}$ defined as follows (Comber et al., 2017):
$Kapp{{a}_{\left( i,j \right)}}=\frac{N\mathop{\sum }_{i=1}^{r}{{x}_{ii}}-\mathop{\sum }_{i=1}^{r}\left( {{x}_{i+}}*{{x}_{+i}} \right)}{{{N}^{2}}-\mathop{\sum }_{i=1}^{r}\left( {{x}_{i+}}*{{x}_{+i}} \right)}$
where N denotes the total number of observations in the matrix, r is the number of rows, xii denotes the number of observations in row i and column i, while ${{x}_{i+}}$ and ${{x}_{+i}}$ are the marginal totals of row i and column i, respectively.

4 Results

4.1 Spatial distribution characteristics and area comparisons

Field surveys and related literature (CIG, 1988; Zheng, 1999; Ding et al., 2015) show that while grasslands, deserts, and barren land are the main primary LC types on the Qiangtang Plateau, the former is the most widely distributed (Figure 2). The data presented in Figure 2 shows that grassland, barren land, deserts, and water bodies can be clearly differentiated.

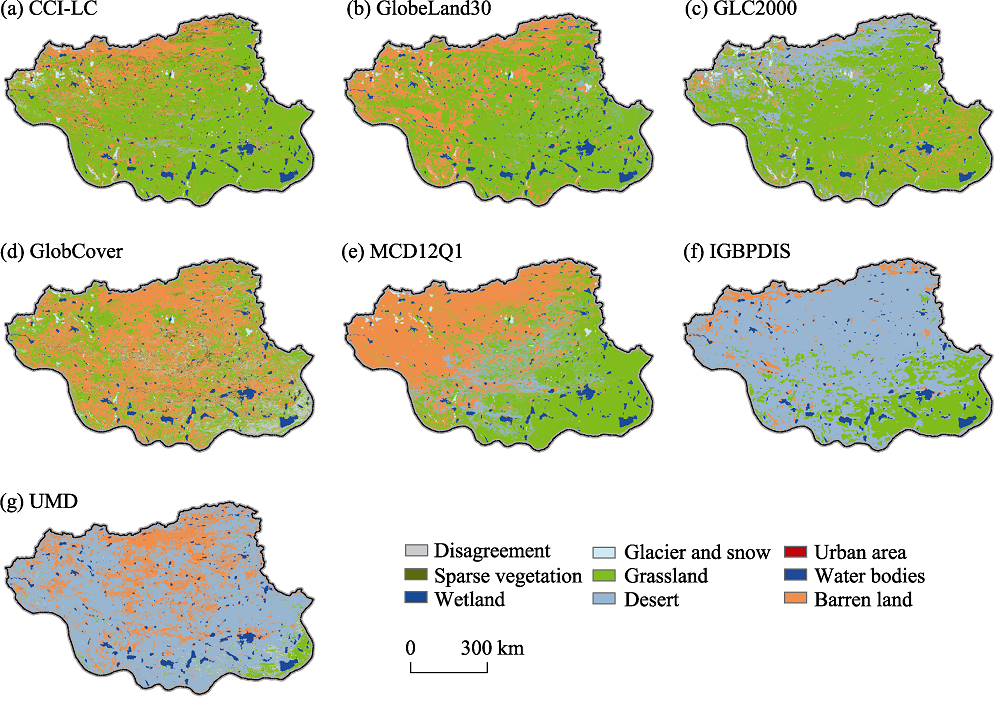

Figure 2 Map showing the spatial distribution of primary LC types within seven Qiangtang Plateau datasets
Data from CCI-LC, GlobeLand30, and GLC2000 suggest that grassland covers the entire Qiangtang Plateau, while MCD12Q1 data imply a mainly southeastern distribution (Figure 2). In GlobCover, IGBPDIS, and UMD datasets, the spatial distribution of grassland is much smaller than suggested by the other four datasets. The spatial difference is most apparent in terms of barren land which is mainly distributed in the northwestern transitional grassland in MCD12Q1, but appears in the middle of the GlobCover data. The proportion of barren land remains small and are scattered across the Qiangtang Plateau in other LC datasets, in contrast. The desert type in IGBPDIS is mainly distributed in the northeast, coincident with the spatial distribution seen in MCD12Q1, while the LC type covers almost the entire Qiangtang Plateau based on UMD data. The visual characteristics of water bodies are mainly distributed in the south, southeast, and northwest of the study area, and no significant regional differences are apparent between the seven LC datasets.
We compared the area occupied by each LC class in all datasets (Figure 3). The comparison shows that all LC types encompass areas less than 1 × 104 km2, with the exception of sparse vegetation and urban areas. The largest grassland area was recovered on the basis of GlobeLand30 data, as much as 21 times the smallest area recovered on the basis of UMD data. The discrepancy of grassland area is very similar between GlobeLand30, CCI-LC, and GLC2000 data sources as well as between GlobCover and MCD12Q1 compilations, respectively. In contrast, however, grassland areas reconstructed on the basis of GlobCover and MCD12Q1 data are much less than that estimated on the basis of CCI-LC, GlobeLand30, and GLC2000 compilations. However, the area of barren land estimated based on GlobCover and MCD12Q1 datasets is much higher than in other cases. The area of barren land is directly related to the vegetation canopy definition threshold for this LC type. Results show that the threshold vegetation canopy for barren land is less than 20% based on GlobCover data, wider than that for other LC datasets which are less than 10%.

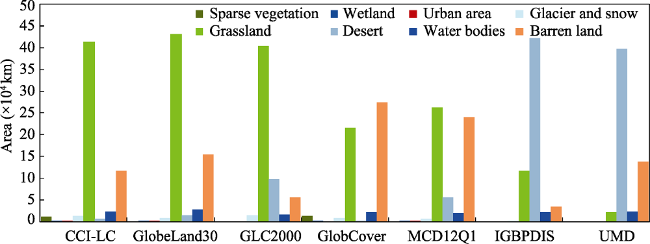

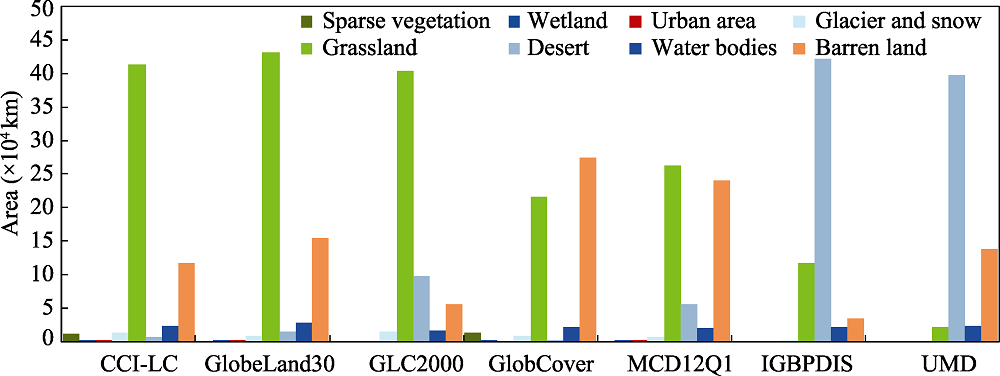

Figure 3 LC class areas in each of the seven Qiangtang Plateau datasets
Largest areas of desert are found in the study area based on IGBPDIS data (Figure 2) even though the main LC class should actually be barren land. Based on IGBPDIS and UMD data, desert areas are four times larger than in other cases. This overestimation of desert based on IGBPDIS and UMD data is strongly related to the very weak spectral differences between barren land and desert LC types and is even less differentiation on coarser resolution images. Unsurprisingly, variance in the area of water bodies reconstructed from the seven LC datasets is much smaller than other classes as the LC type is easy to classify. Areas of glacier and snow are also close to one another in most datasets, with the exception of IGBPDIS and UMD. One reason is the fact that UMD was designed based on the Simple Biosphere (SiB) model which does not include snow and glacier types. The areas of glacier types in both IGBPDIS and UMD data are closely related to the over-mapping of barren land in other datasets.
Grassland area based on CCI-LC data generally exhibits an upward trend although an overall downward trend was seen in MCD12Q1 data. Results show that although both LC datasets are characterized by an upward trend between 2004 and 2010, rates are different in both cases. Grassland area based on CCI-LC data increased rapidly but remained stable and slightly decreased when based on MCD12Q1 data. These outcomes both contrast with recent research that suggests no obvious changes in the above ground net primary productivity of grassland between 1983 and 2014 on the Tibetan Plateau (Liu et al., 2018).
At the same time, however, changes in barren land and wetland area based on CCI-LC data are in accordance with results from MCD12Q1 over the period between 2001 and 2010. These results both imply a rapidly decreasing trend, although the rate based on MCD12Q1 data was faster than CCI-LC. Changes in barren land within this area also conform to an inverse trend between 2010 and 2015. Specially, the area continues to decrease rapidly based on ​​CCI-LC data while switching​ from a reduction to an increase when based on MCD12Q1 data with a turning point around 2010.
Trends and rates of change in water bodies between the two datasets are not obviously different, but the total area of water bodies in CCI-LC is higher than that in MCD12Q1.
Areas of glacier and snow based on CCI-LC data did not change between 2001 and 2015, a result that is obviously in conflict with the result of general retreat of glaciers (Yao et al., 2012). It is therefore clear that CCI-LC data exhibits weaker classification accuracy when used to reconstruct glacier areas. In contrast, MCD12Q1 data suggest that the areas of ​​glaciers and snow rose rapidly within the study area between 2001 and 2009, another result which conflicts with our knowledge about glacial retreat (Yao et al., 2012).
Urban land types based on MCD12Q1 data did not change between 2001 and 2015, in conflict with enhanced human activities on the Qiangtang Plateau (Venter et al., 2016). The reason is that the distribution of urban land is not concentrated and the patch is broken. It remains difficult to identify smaller-scale construction land in coarse resolution images. It is the case that prior to 2013, the area of urban land reconstructed based on CCI-LC data was small and no distinct change was evident. Since 2013, however, the area of this LC type has risen dramatically.
MCD12Q1 data suggest the absence of sparse vegetation types across the study area while CCI-LC data suggests a rapid increase in this LC type between 2001 and 2008. Indeed, subsequent to 2008, the area of sparse vegetation across this region increased rapidly but decreased more and more rapid prior to this inflection point. The result is coincident with the accelerated reinforcement of the grazing pressure within this area as sparse vegetation is influenced to a greater extent by the factors (Figure 4).

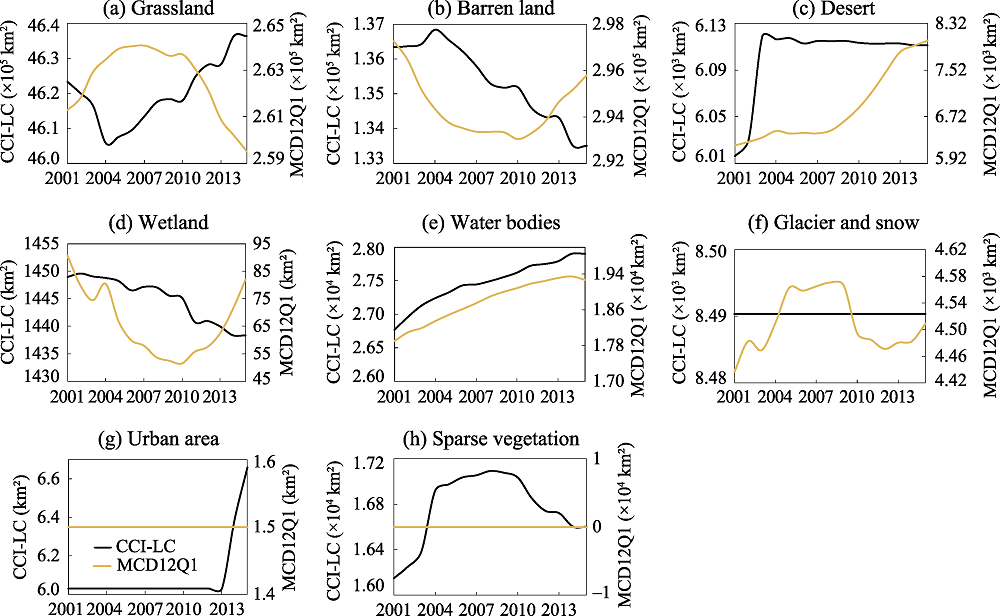

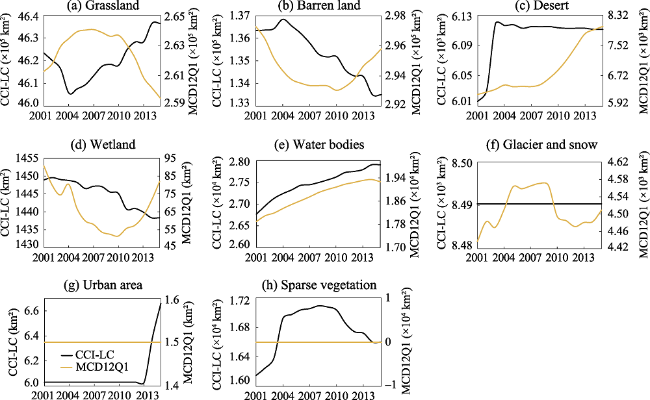

Figure 4 Time series changes of eight LC classes based on CCI-LC and MCD12Q1 data over the Qiangtang Plateau
Discrepancies between MCD12Q1 with CCI-LC LC data can also be explained by differences in classification definitions in thematic legends. It is the case that legend class descriptions are not always unique or totally clear and can therefore result in classification uncertainties. Unclear LC class descriptions can also severely hamper the conversion and joining of legends between the seven LC products and therefore further result in map uncertainties and losses in correspondence.

4.2 Spatial agreements and disagreements

Results show that high levels of spatial agreement occur mainly in the homogeneous southeastern region of the Qiangtang Plateau. Reconstructions based on MCD12Q1 (2009 and 2010), CCI-LC (2009 and 2010), MCD12Q1/CCI-LC, and GlobeLand30 data all exhibit high levels of agreement within this region as it mainly contains grasslands and lakes that are easy to differentiate compared with other LC types. However, results also show that GlobCover data exhibit a low level of accuracy in this region, and that levels of consistency between MCD12Q1/CCI-LC and GlobCover reconstructions are similarly low.
Results also show that low levels of spatial agreement are widely distributed across heterogeneous northwestern and northeastern parts of the Qiangtang Plateau. These regions mainly contain barren land and grassland. Indeed, grasslands within alpine areas are sparsely distributed and are usually withered in the autumn and winter. These features are very hard to distinguish from images and are often easily confused with barren land.

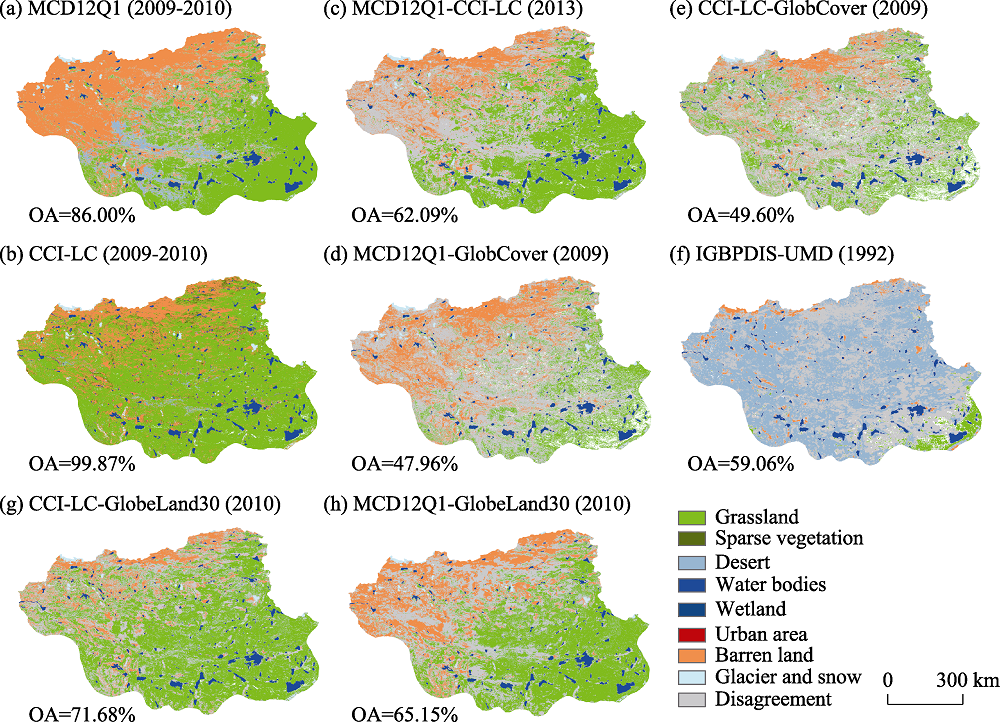

Figure 5 Maps showing spatial agreements and disagreements between different LC datasets over the Qiangtang Plateau
The results of this study show that the consistency of data for adjacent years within the same LC dataset series tends to be higher, for example, CCI-LC (2009 and 2010) and MCD12Q1 (2009 and 2010). Indeed, between the two LC datasets, the consistency of CCI-LC (99.87%) is higher than that based on MCD12Q1 (86.00%). It is the case that regions characterized by low MCD12Q1 data consistency tend to mainly contain barren land and grassland. As these two LC types are easily mixed, the fact that MCD12Q1 data is based on a single MODIS image means that this source is less accurate than CCI-LC which is developed based on multiple image sources. Data show that CCI-LC and GlobeLand30 data in their consistency are relatively highly in agreement (71.68%) within different series, even though these values are generally low amongst in other compilations.

4.3 Analysis of spatial variation accuracy

4.3.1 Assessing the accuracy of land cover datasets
Taking the seven LC datasets as a set, an assessment value greater than equal to five implies a high data assessment (H), but when this value is less than or equal to four, data assessment is low (L). The accuracy value interval was defined the same as for assessment.
The data presented in Figure 6 shows that amongst the 923 sample points, the ratio between low assessment and low accuracy (LL) is 77.14% while the ratio between high assessment and high accuracy (HH) is just 5.63%, less than the ratio between high assessment and low accuracy (HL) (17.23%). This means that from the perspective of different HL types, the ratio between desert and barren land is 4.12%, greater than either water bodies (3.79%) or grassland (2.71%). These results are indicative of a more widespread phenomenon that assessment is high across the field area but that accuracy is very low. Therefore, we can know that there is no consensus between assessment and accuracy.

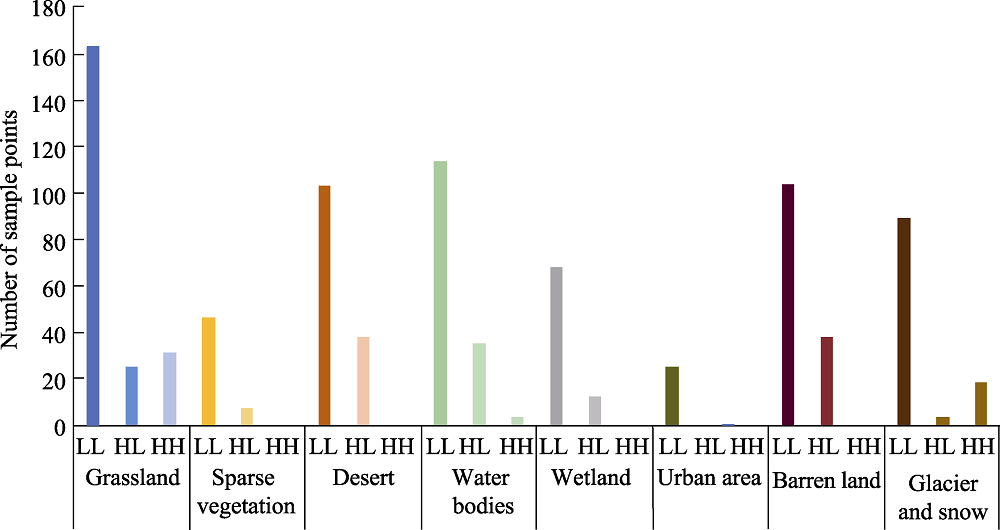

Figure 6 Assessment and accuracy frequencies of different LC categories over the Qiangtang Plateau
4.3.2 The spatial accuracy of boolean classification datasets
Local accuracy derived from our use of the GWR varies markedly across the study area. Data show that OA values for the seven LC datasets considered here range between 20% and 60% while their local accuracy values range from zero to 100%. Mean OA suggests that the highest local accuracy value seen within the seven LC datasets is for GlobeLand30 (42.08%), followed by CCI-LC (34.92%). The order of other sets is GLC2000 (34.55%), IGBPDIS (31.42%), MCD12Q1 (28.12%), GlobCover (27.62%), and UMD (26.47%). Maximum OA values also vary between the seven LC datasets, and the order of maximum OA values for datasets is GlobeLand30 (77.39%), GlobCover (74.11%), GLC2000 (66.12%), CCI-LC (61.43%), MCD12Q1 (59.76%), IGBPDI (50.76%), and UMD (47.07%). Data show that discrepancies between the seven LC datasets in terms of both mean and maximum kappa coefficients are almost the same as OA values (Table 3).
Table 3 OA values and kappa coefficients for the seven LC datasets over the Qiangtang Plateau
Datasets Mean OA Max OA Min OA Mean kappa Max kappa Min kappa
GLC2000 34.55% 66.12% 12.27% 0.11 0.32 0.00
IGBPDIS 31.42% 50.76% 9.07% 0.04 0.26 0.00
UMD 26.47% 47.07% 6.53% 0.04 0.18 0.00
MCD12Q1 28.12% 59.76% 3.69% 0.05 0.37 0.00
GlobCover 27.62% 74.11% 3.52% 0.08 0.40 0.00
CCI-LC 34.92% 61.43% 2.9% 0.15 0.45 0.00
GlobeLand30 42.08% 77.39% 9.83% 0.21 0.61 0.00
Summary 32.17% 52.05% 12.82% 0.10 0.31 0.00
The highest OA values recovered in this analysis occur in the center (H1) and the southeast (H2) of the Qiangtang Plateau, both areas are characterized by higher proportions of lakes and grassland. It is also generally the case that OA values exhibit an apparent relationship with degree of landscape heterogeneity. This region is generally characterized by relatively low landscape complexity as it is adjacent to an alpine area and human influence remains relatively weak. At the same time, data accuracy in the north (L1), northeast (L2), and west (L3) of the Qiangtang Plateau is relatively low across our datasets because of the higher landscape complexity of these regions. Large areas of desert, barren land, and grassland are also found within the L2 region. Results show that desert and barren LC types are often misclassified as grassland and that this is one key factor influencing classification accuracy. Indeed, accuracy values recovered for the southern (U) region of the Qiangtang Plateau are also quite uncharacteristic as both local maximum and minimum precision record are distributed within this area. Numerous lakes, marshy wetlands, and grasslands occur within the U region and the first two of these are easily confused.
It is not surprising that landscape heterogeneity has been regarded as the major factor contributing to the accuracy of LC datasets. This variable can significantly complicate our understanding of ground surface spectral characteristics and make RS classifications increasingly problematic. Landscape heterogeneity explains the marked discordance between data products reported in this analysis. The results show that CCI-LC, GlobeLand30, GLC2000, and GlobCover data are all highly locally accurate for the H1 region, but that MCD12Q1, IGBPDIS, and UMD data have low accuracy values. Precision of GlobCover and UMD data is low across the H2, while the other five LC datasets considered here yield high local accuracy values. Our results show that GLC2000 and IGBPDIS data are highly precise for the L1 region while the other five LC datasets yield low local accuracy values. Barren lands and desert are the dominant LC class in this region but were seriously misclassified as grassland based on CCI-LC and MCD12Q1 data. Results show that CCI-LC, GlobeLand30, and GlobCover data can be used to classify a small area of the L3 region with high precision as the altitude is high in L3 area and so most LC is labeled as glaciers. Classifications of remaining areas based on the other four LC datasets generate low accuracy values.
Our synthesis of OA and kappa coefficients for the seven LC datasets shows that areas characterized by higher data classification accuracy on the Qiangtang Plateau are mainly located centrally alongside a small region in the east. Kappa coefficients show that the LC area classified with a high degree of accuracy is small and mainly occurs in the center of the Qiangtang Plateau (Figure 8).

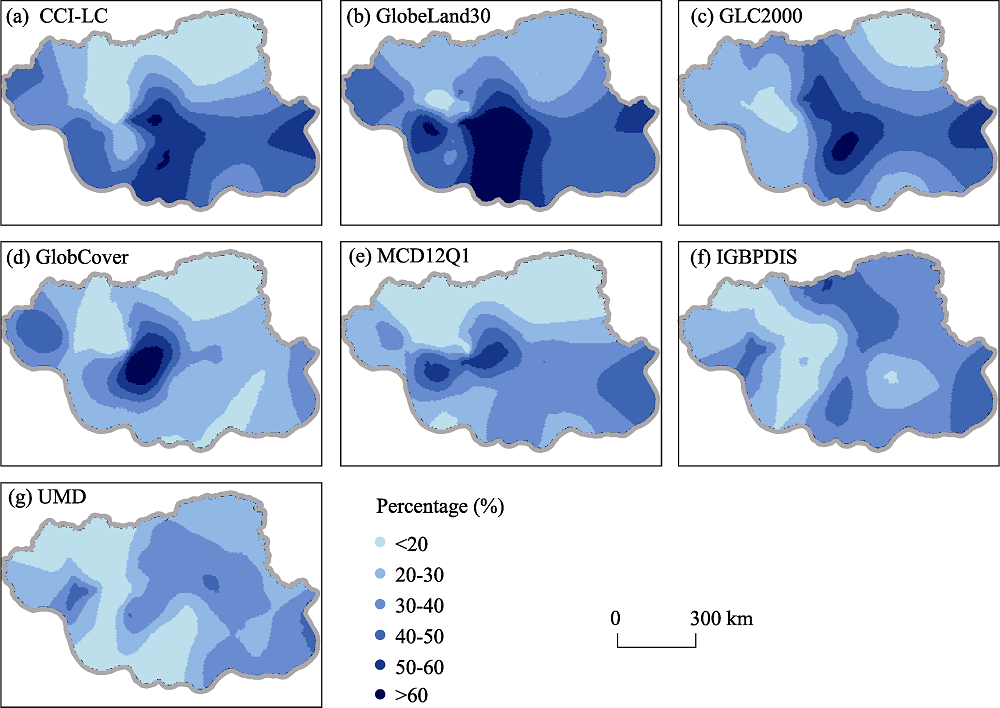

Figure 7 Maps showing OA spatial variation within the seven LC datasets over the Qiangtang Plateau

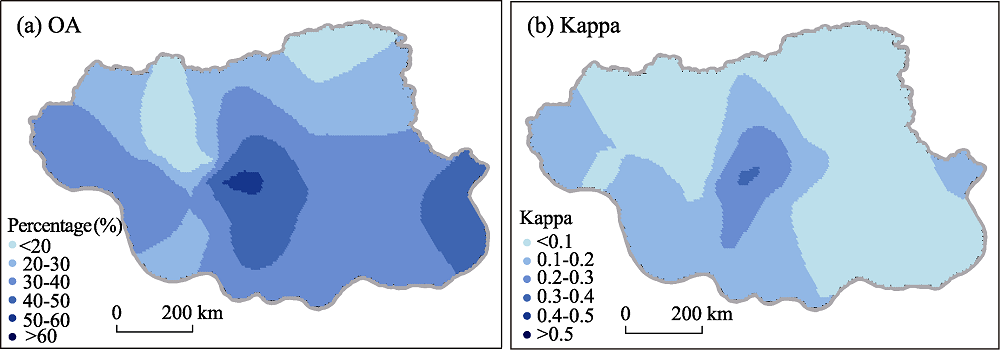

Figure 8 Maps showing the spatial distributions of OA values (a) and kappa coefficients (b) over the Qiangtang Plateau

5 Discussion

The results of this analysis show that data accuracy was influenced by the conversion between different classification systems as well as the principles and connotations of these categories which result in different interpretations of RS data across the study area (Zhang et al., 2017). Comparing our results with those previously reported by Yang et al. (2017), we agree that spatial accuracy values for CCI-LC and GLC2000 Qiangtang Plateau datasets are higher than those derived from either UMD or IGBPDIS compilations (Yang et al., 2017). At the same time, the OA values reported by Yang et al. (2017) are much higher than our results. This discrepancy can be explained by the fact that we used eight LC types in this analysis while Yang et al. (2017) utilized just three, that is, grasslands, wetlands, and waterbodies. It is also noteworthy that the bandwidth parameter used for the spatial accuracy evaluation method applied here is based on the adaptive value of a connected area, which means that the rougher the classification, the larger the bandwidth, and therefore more sample points of the same LC type will lead to a higher value. Classification accuracy shows large deviations are also the result of limited field measurement data. Future investigations and corrections will be needed in order to more precisely design classification systems.
The interpolation method used here to predict accuracy at unsampled locations should also take more factors into account in future work, especially terrain characteristics instead of just spatial distance. Additional research will therefore be necessary to examine whether, or not, error maps can be used directly to improve classifications. Indeed, as these comprise classification errors, it might be possible to subtract them from corresponding LC maps and generate enhancements. This will require ensuring that the error maps utilized are of acceptable quality.
The vegetation types and environmental characteristics of the Qiangtang Plateau significantly influence LC data classifications. The results of this analysis show that the vegetation types in this region that are particular to Qiangtang Plateau (i.e., grasslands, barren lands, and desert) exhibit limited differences in spectra, image color, and texture which can easily result in confusions over their classification. The Qiangtang Plateau environment itself also exerts a significant impact on LC data classifications as the vegetation growing season here is mostly restricted to the summer and is much shorter than in low altitude areas (Oteros et al., 2013; Zhang et al., 2013). This means that it is difficult to monitor vegetation types outside of the short growing season and images within LC datasets may have been captured at different times of the year. An image acquired outside of the growing season is likely to be much less accurately interpreted.
The fact that the sample points evaluated in this analysis were collected subsequent to RS data might also influence accuracy assessments. The sample data used here were collected in field investigations between 2013 and 2016, while the seven LC datasets were acquired over 20 years between 1992/1993 and 2013. Field investigations show that the Qiangtang Plateau mostly comprises uninhabited regions and is mainly influenced by natural factors such as precipitation, temperature, evaporation, radiation, and soil moisture, which means that overall variation in LC types is actually quite small. Indeed, because of extreme environmental conditions, the sample point data fields collected for this study are mainly from areas where there is acceptable ground transportation and are thus not evenly distributed spatially. The data presented here are nevertheless an important component of the first basic investigation on this region and therefore do provide an important reference for LC classification accuracy.

6 Conclusions

We report a number of clear spatial discrepancies amongst LC datasets in this study. High spatial agreements within the field area are mainly seen within the homogeneous southeastern region of the Qiangtang Plateau that is covered by grassland and lakes, while low spatial agreements are widely distributed across heterogeneous northwestern and northeastern areas covered with deserts, barren land, and grasslands. Data show that deserts and barren lands are more difficult to identify correctly, and that water bodies are easily confused with grasslands. We demonstrate clear time series changes discrepancy in LC data (with the exception of waterbodies) over the period between 2001 and 2015 comparing CCI-LC and MCD12Q1 compilations and highlight the existence of opposite trends in barren lands and wetlands. These results mean that LC changes across this region might not be the result of external factors in all cases, but rather due to data errors.
Calculating ratios of assessment and accuracy based on sample points and LC datasets shows that the area proportion of HL (17.23%) is higher than HH (5.63%). Therefore, it is unreasonable to use assessment method to determine classification accuracy even though low corresponding values are synchronous.
Spatial local accuracy prediction results show that OA values for the seven LC datasets range between 20% and 60%. Specifically, local accuracy values for GlobeLand30 (mean OA: 42.08%; max OA: 77.39%; mean kappa: 0.21; max kappa: 0.61) and CCI-LC (mean: OA 34.92%; max OA: 61.43%; mean kappa: 0.15; max kappa: 0.45) are higher compared with other datasets. High OA values are mainly located in the center and southeastern regions of the Qiangtang Plateau where grasslands and lakes occur, while low OA values tend to be observed in the northern, northeastern, and western regions where a mixture of deserts, barren land, and grassland are seen.

Acknowledgements

We wish to thank Zhao Zhilong, Gu Changjun, Zheng Haipeng, and Wang Yukun of the Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, for helping us to collect field sample points over the course of this study. We also thank Xiao Pengfeng and Yang Yongke of Nanjing University for providing us with access to their sample point data.
