Special Issue: Geopolitical Environment Simulation on the Belt and Road Region

An evaluation of the economic, social, and ecological risks of China-Mongolia-Russia high-speed railway construction and policy suggestions

  • DONG Suocheng , 1, 2 ,
  • YANG Yang 1, 2 ,
  • LI Fujia , 1, * ,
  • CHENG Hao 1 ,
  • LI Jingnan 1, 2 ,
  • BILGAEV Alexey 1, 2 ,
  • LI Zehong 1, 2 ,
  • LI Yu 1, 2
  • 1. Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
  • 2. University of Chinese Academy of Sciences, Beijing 100049, China
*Corresponding author: Li Fujia (1983-), Associate Professor, E-mail:

Author: Dong Suocheng (1962-), Professor, specialized in regional ecological economics, environmental economics and green development. E-mail:

Received date: 2017-09-08

  Online published: 2018-07-20

Supported by

Science and Technology Basic Resources Survey Project of China, No.2017FY101304

Major R&D Project of Chinese Academy of Sciences, No.ZDRW-ZS-2016-6-5

National Natural Science Foundation of China, No.41701639


Journal of Geographical Sciences, All Rights Reserved


The construction of China-Mongolia-Russia high-speed railways is a strategic move to promote transportation infrastructure inter-connectivity between these countries, which will accelerate the implementation of the China-Mongolia-Russia Economic Corridor. However, well-planned China-Mongolia-Russia high-speed railways demand accurately identifying construction risks, scientifically evaluating risk levels, and mapping the spatial distribution of these risks. Therefore, this study established the integrated risk evaluation model (IREM) to scientifically evaluate the economic, social, and ecological risks of China-Mongolia-Russia high-speed railway construction and determine their magnitude and spatial distribution pattern. Based on this analysis, we propose designs for the east and west China-Mongolia-Russia high-speed railways and policy suggestions to mitigate construction risks. Suggestions include developing innovative cooperation of the "high-speed railway for resources and market", strengthening communication and technology dissemination, and applying innovative engineering techniques and setting buffers; establishing collaborative prevention and control systems to mitigate the three major ecological risks in the China, Mongolia, and Russia trans-border areas; and promoting economic integration by improving strategic coordination. In summary, this study provides scientific support for designing the China-Mongolia-Russia high-speed railways minimizing construction risks.

Cite this article

DONG Suocheng , YANG Yang , LI Fujia , CHENG Hao , LI Jingnan , BILGAEV Alexey , LI Zehong , LI Yu . An evaluation of the economic, social, and ecological risks of China-Mongolia-Russia high-speed railway construction and policy suggestions[J]. Journal of Geographical Sciences, 2018 , 28(7) : 900 -918 . DOI: 10.1007/s11442-018-1512-y

1 Introduction

As one of the six core corridors planned in “the Belt and Road (B&R) Initiative”, the China-Mongolia-Russia Economic Corridor fits within the “Eurasian Economic Union” proposed by Russia and the “Prairie Road Program” proposed by Mongolia. This corridor is a key strategic area that China, Mongolia, and Russia are all dedicated to developing. In the “Plan for Construction of the China-Mongolia-Russia Economic Corridor”, which was signed in 2016 by the governments of the three countries, “promoting the development and inter-connectivity of transportation infrastructure” is prioritized as a key cooperation area among the three countries. Furthermore, the plan has an explicit directive to “construct and develop international land transportation corridor and improve potentiality of railway and road transportation capacity” (NDRC, 2016). As one of the most important achievements of modern science and technology, high-speed railways are characterized by rapid transport, large capacity, high economic efficiency, low energy consumption, and reduced environmental pollution (Okada, 1994; Xu et al., 2011, Ryder, 2012), which makes it the optimum selection for construction in the China-Mongolia-Russia international land transportation corridor. High-speed railways will both enhance communication and cooperation among the three countries, and remold the spatial distribution patterns of economies, cities, and tourism in areas along the railway corridor and promote their development (Xu et al., 2011; Yu, 2015; Wang, 2014; Wang et al., 2015a, 2015b). Therefore, constructing China-Mongolia-Russia high-speed railways will accelerate construction of the China-Mongolia-Russia Economic Corridor, which will have a significant impact on implementing the B&R Initiative. However, high-speed railway construction costs a huge investment and is often challenged by local economic, social, and ecological conditions. Furthermore, there are large differences in economic development, population scale and distribution, social system and development mode, and ecological environment in the trans-border areas of China, Mongolia, and Russia. While constructing high-speed railways in this corridor will have significant effects on local economic, social, and ecological conditions, there are multi-potential risks due to these above conditions. Therefore, accurately identifying the primary construction risks and scientifically evaluating their magnitude and spatial distribution are required to support the designs and mitigate risk during construction of the China-Mongolia-Russia high-speed railways.
At present, research on high-speed railways has primarily focused on the following aspects:
(1) High-speed railways for improving regional traffic accessibility (Givoni, 2006; Jiang, 2010; Chen, 2012; Preston, 2012; Shaw et al., 2014; Zhong et al., 2015; Mu, 2015; Jiang et al., 2016). Chen (2012) studied the development of high-speed railway in China, and discovered that high-speed railway results in dramatic time-space shrinkage and mobility between cities. Shaw et al. (2014) analyzed changes in travel accessibility to cities in China caused by high-speed railways, and found that they improved travel time at the national scale. Preston (2012) observed high-speed railway operation in Britain, and arrived at that the benefit/cost ratio is greater than one, and the timesaving benefit is the largest among the many benefits.
(2) High-speed railways for remolding the economic, social, and urban spatial distributions and promoting regional development (Okada, 1994; EC, 1992, 1994; Xu et al., 2011; Ryder, 2012; Yu, 2015). The Treaty on the European Union (EC, 1992) and White Paper on Growth, Competitiveness and Employment (EC, 1994) both claim that the development of the Trans-Europe Network is an essential element for both promoting economic development and improving the economic and social cohesion of the European Union. Okada (1994) found that the Shinkansen bullet train has significantly influenced the commerce, economy, society, culture, and environment; it has brought direct economic effects, such as high profit and tax revenue and large external effects by remolding city allocation, improving energy efficiency, and reducing air pollution. Ryder (2012) highlighted that countries promoting high-speed railways are building them as part of broader regional economic projects or policies.
(3) Competitive interactions between high-speed railway and air transportation (Govoni, 2005; OECD, 2009; Ding, 2013). OECD (2009) discussed competitive interaction between airports, airlines, and high-speed railways, and reached the conclusion that in many circumstances, high-speed railways have potential as alternative transport to air transport. Givoni (2005) concluded that high-speed railways are a possible solution to congestion and environmental problems faced by air transport industry, and with planned cooperation, high-speed railway and air transport could integrate to realize benefits for both industries. Ding et al. (2013) studied the competitive relationship between high-speed railway and civil aviation based on the Beijing-Shanghai high-speed railway, and found that the impact of high-speed railway on airports in small cities is larger than that in large cities, and the impact on the airports of cities in the middle zone is greater than that of the both ends.
Existing research has primarily focused on social and economic effects after high-speed railways are implemented, and little focus has been given on preliminary studies that evaluating risk prior to construction, which are urgently needed for construction of the China-Mongolia-Russia high-speed railways. Therefore, based on the strategic demands of the China-Mongolia-Russia high-speed railway construction, and our research group’s long-term scientific and field research on local economic, social, and ecological conditions of the trans-border areas of China, Mongolia, and Russia, this study tries to meet this challenge. Here, we identify the primary risks of China-Mongolia-Russia high-speed railway construction by establishing the integrated risk evaluation model (IREM) and scientifically evaluate the magnitude and spatial distribution of risks. Then, we make targeted suggestions to mitigate construction risks, which are scientific support for rational designs of China-Mongolia-Russia high-speed railways, and is of great theoretical and practical significance.

2 Research area

National Development and Reform Commission of China has planned two corridors for the China-Mongolia-Russia Economic Corridor, the east and west corridor. The east corridor is from Northeast China-Manzhouli-Russia-Mongolia and the west corridor is from Jing-Jin-Ji area-Hohhot-Mongolia-Russia (CEH, 2015). The two corridors form the two China-Mongolia-Russia high-speed railways that most urgently to be constructed, aptly termed the east and west China-Mongolia-Russia high-speed railways. There are 11 regions along these corridors, Liaoning, Jilin, Heilongjiang, Inner Mongolia, Beijing, Tianjin, and Hebei in China; Zabaykalsky Krai, Republic of Buryatia and Irkutsk Oblast in Russia; and Mongolia. Among these regions, high-speed railways from Beijing-Tianjin, Beijing-Shijiazhuang, Dalian- Shenyang-Changchun-Harbin, Harbin-Qiqihar, were completed and officially began operating on August 1, 2008; December 26, 2012; December 1, 2012; and August 17, 2015, respectively. Their corresponding track lengths are 281 km, 120 km, 921 km, and 282 km. Meanwhile, the high-speed railways for Beijing-Kalgan, track length 174 km, and Kalgan-Hohhot, track length 286.8 km, have been constructed, and completion and operation are expected in 2019 and 2018, respectively. The segment from Hohhot-Ulanqab has been finished and officially begun operating on August 3, 2017, with a length of 126 km. In addition, according to China’s Medium- and Long-term Railway Network Plan, the Suifenhe-Manzhouli high-speed railway channel has been planned with a planned route of Suifenhe-Mudanjiang-Harbin-Qiqihar-Hailar-Manzhouli. Therefore, in the future, the east high-speed railway only needs to extend as Qiqihar-Manzhouli-Russia- Mongolia, and the west high-speed railway needs to extend as Beijing-Kalgan-Hohhot- Mongolia-Russia. Therefore, the research area for this study includes eight research units, Beijing, Hebei, Inner Mongolia, Heilongjiang, Mongolia, Zabaykalsky Krai, Republic of Buryatia, and Irkutsk Oblast, as shown in Figure 1.

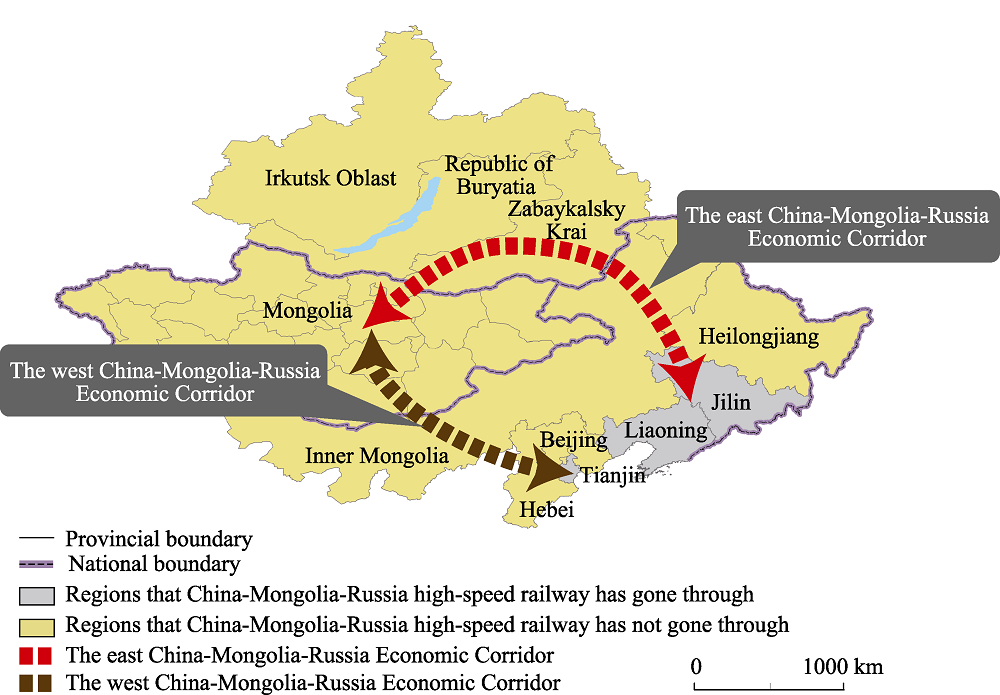

Figure 1 Map showing the research area and locations of the proposed economic corridors
The research area is not only the core area of the China-Mongolia-Russia Economic Corridor, but also the strategic area that connects the trans-Siberian railway, linking vibrant East Asia with the well-developed Europe Economic Circle. Constructing the China-Mongolia-Russia high-speed railways and developing an international land transportation corridor is crucial to link the regions and boost common regional development.
By analyzing changes in railway passenger traffic volume for Chinese research units along the China-Mongolia-Russia high-speed railways over the last eleven years (Figure 2), we found out that high-speed railways obviously boosted railway passenger traffic volume. There were three peaks in growth of railway passenger traffic volume. The first occurred in 2008, with a growth rate of 9.55% when the first high-speed railway in China, the Beijing-Tianjin high-speed railway, began operating; this coincided with the 29th Olympic Games in Beijing, which brought a sharp rise of railway passenger traffic volume in Beijing and Tianjin with growth rates of 10.57% and 23.58%, respectively. The second occurred in 2013, one year after the Beijing-Shijiazhuang and Harbin-Dalian high-speed railways began operating, with a growth rate of 7.05%. Along these two high-speed railways, growth rates for Beijing, Tianjin, Hebei, Liaoning, and Jilin reached 12.33%, 12.85%, 11.67%, 8.20%, and 5.8%, respectively. The third peak occurred in 2016, one year after the Harbin-Qiqihar high-speed railway began operating; the growth rate for Heilongjiang increased by 6.23%, while prior to operation, railway passenger traffic volume in Heilongjiang had decreased successively for four years. Clearly, high-speed railway operation affects railway passenger traffic volume and boosts resident mobility. Therefore, constructing the China-Mongolia-Russia high-speed railways is important for promoting connection and cooperation between China, Mongolia and Russia. However, the research area includes eight regions from three countries, and passes through multiple geographical units, including the North China Plain, Northeast China Plain, Mongolian Plateau, and Eastern Siberian Plateau. The overall ecological environment is characterized by transitivity, diversity, complexity, vulnerability, and sensitivity (Dong et al., 2017). At the same time, there are large differences in economic, social, and ecological development within these regions, so constructing these high-speed railways will significantly affect economic, social, and ecological development of regions along the high-speed railways, but it also has many potential risks. Clarifying the sources of risk and scientifically evaluating their magnitude and spatial distribution will allow us to formulate targeted risk avoidance measures.

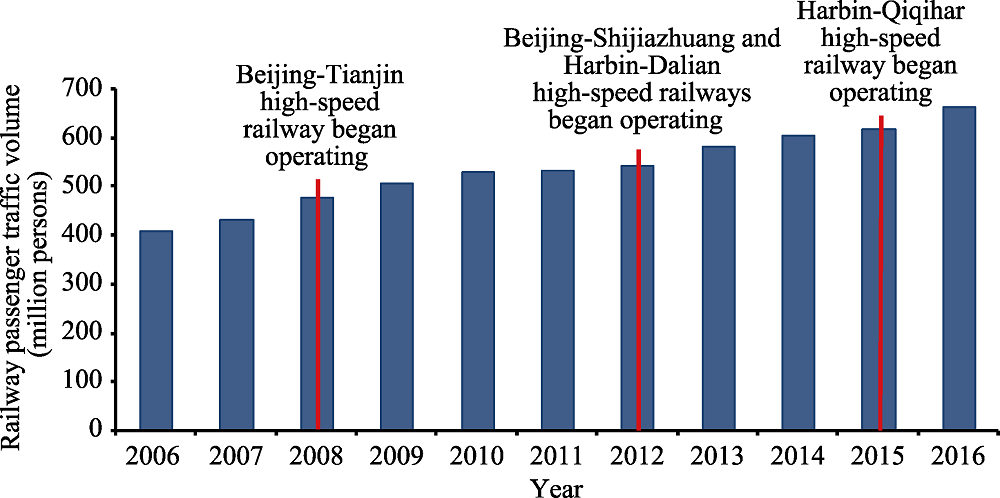

Figure 2 Railway passenger traffic volume for research units in China along the China-Mongolia-Russia high-speed railways from 2006 to 2016

3 Methods and data

3.1 The integrated risk evaluation model (IREM)

Evaluating risks derived from constructing the China-Mongolia-Russia high-speed railways requires establishing a multi-layer and multi-objective comprehensive evaluation index system. At present, widely used methods for such a system include Comprehensive Scoring, Multivariate Statistics, Coordination Degree, Analytic Hierarchy Process (AHP), and Data Envelopment Analysis (DEA). Methods for determining weights include subjective methods, such as Expert Scoring and Delphi, and objective methods, such as Entropy, AHP, and Principal Component Analysis (Song et al., 2003; Chen et al., 2004; Peng et al., 2015). However, due to their own shortcomings, a single evaluation method has difficulty meeting the needs of a comprehensive evaluation. Therefore, comparing the advantages and disadvantages of these methods in detail, we created the IREM to scientifically evaluate risks from the China-Mongolia-Russia high-speed railway construction. The IREM consists of the following four steps.
Step 1: Establishing a comprehensive evaluation index system. According to research objects and subjects, we establish a multi-layer and multi-objective comprehensive evaluation index system.
Step 2: Index screening. Quantitatively screen the evaluation indices by applying Factor Analysis. According to the rotated component matrix, larger factor loading (as shown in equation 1) corresponds to a higher correlation between the index and factor, which means the index is more important. Applying the Factor Analysis guarantees the objectivity of the index system.
Step 3: Weight determination. The objective and subjective methods are combined. First, using Principal Component Analysis, the index’s objective weight is obtained as shown in equations 2 and 3. Then, by applying Expert Scoring, the objective weights are revised to optimally reflect index information.
Step 4: Risk evaluation. The data are nondimensionalized using the Maximum Difference Normalization method shown in equation 4. After nondimensionalization, all data are transferred to [0, 1], where larger values indicate higher risk. Then, based on the determined index weights, the magnitude of the risks from constructing the China-Mongolia-Russia high-speed railways can be evaluated (equation 5).
${{a}_{ij}}=\frac{\operatorname{cov}({{x}_{i}},{{f}_{j}})}{\sqrt{D({{x}_{i}})}\sqrt{D({{f}_{j}})}}$ (1)
${{w}_{i}}=\frac{{\sum\limits_{j=1}^{m}{{{a}_{ij}}}}/{\sqrt{{{\lambda }_{j}}}}\;\times {{\phi }_{j}}}{\sum\limits_{j=1}^{m}{{{\phi }_{j}}}}$ (2)
$n{{w}_{i}}=\frac{{{w}_{i}}}{\sum\limits_{i=1}^{n}{{{w}_{i}}}}$ (3)
$\begin{align}& n{{x}_{i}}=\frac{{{x}_{i}}-{{x}_{\min }}_{i}}{{{x}_{\max i}}-{{x}_{\min i}}}\ \ \ \ {{x}_{i}}\ for\text{ }positive\text{ }index \\ n{{x}_{i}}=\frac{{{x}_{i}}-{{x}_{\text{max}}}_{i}}{{{x}_{\min i}}-{{x}_{\max i}}}\ \ \ \ {{x}_{i}}\ for\text{ }negative\text{ }index \\ \end{align}$ (4)
${{D}_{o}}=\sum\limits_{i=1}^{n}{{}}n{{w}_{i}}\times n{{x}_{i}}$ (5)
In equations 1-5, xi represents index i, fj represents component j, and aij represents the factor loading. λj represents the characteristic root of component j. φj represents the variance contribution rate of component j, and wi and nwi are the weights of index i before and after normalization, respectively. xmax i and xmin i represent the maximum and minimum of index i, nxi represents the value of index i after nondimensionalization, and Do represents the magnitude of risk for research object o.

3.2 Comprehensive evaluation index system of risks for China-Mongolia-Russia high-speed railway construction based on the IREM

3.2.1 Primary risks derived from high-speed railway construction
The construction of high-speed railway is a complicated and systematic project that requires large investments, with a long payback period, and great potential construction difficulties that involves multiple industrial sectors and requires regional economic, social, and ecological contributions. Therefore, during high-speed railway construction and operation, construction risks must be fully considered, manifested from the following perspectives.
(1) Economic risk. Construction cost per km of high-speed railways that travel at a speed of 350 km/h is between 16.27 million and 20.35 million US dollars in China (Ou et al., 2014); the huge investment leads to high economic risk. Therefore, economic factors, such as economic development, passenger capacity, capacity to pay, and construction infrastructure in the regions along the high-speed railway, and particularly cities with planned railway stations, must be evaluated. However, most research units in Russia and Mongolia are sparsely populated and economically less developed. For example, in 2015, the population densities in Mongolia, Zabaykalsky Krai, Republic of Buryatia, and Irkutsk Oblast were all < 3.5 persons/km2, and gross domestic product (GDP) per capita was < 4000 US dollars, excluding Irkutsk Oblast. Therefore, constructing high-speed railways in these regions may carry high risks from insufficient passengers and capacity to pay. In addition, China-Russia-Mongolia high-speed railways go through multiple regions with complicated geographic conditions. The east China-Mongolia-Russia high-speed railway goes through seven provinces; the construction distance is about 3100 km, covering a high proportion of hilly and mountainous terrain. The west China-Mongolia-Russia high-speed railway goes through five provinces and Mongolia; the construction distance is about 3000 km, with gobi as the main terrain. Excluding high-speed railways that are operating and under construction, the remaining construction distances for the east and west China-Mongolia-Russia high-speed railways are about 1891 km and 2251 km, respectively, while hilly and mountainous terrain accounts for nearly 70% of the former, and Gobi accounts for more than 80% of the latter. Here we use the Hohhot-Kalgan high speed railway for reference, which is with the most similar geographical conditions to the west China-Mongolia-Russia high-speed railway, whose construction per km was approximately 18.35 million US dollars, but consider the harsh terrain and weather conditions in regions along the China-Mongolia-Russia high-speed railways, the construction cost per km will be much more.
Furthermore, Mongolia and Russia have different rail gauges with China. To solve this problem, China has started to develop and build the next generation high-speed trains that suit gauges for China, Russia, and Mongolia. The new high-speed trains will be equipped with two sets of wheel rails, which can be used in all three countries. Therefore, although the gauge problem will no longer be a barrier to constructing China-Mongolia-Russia high-speed railways, it will increase construction complexity and cost. In conclusion, the China-Mongolia-Russia high-speed railways may face great economic risks from the inability to recover construction costs.
(2) Social risk. Because high-speed railway construction, especially trans-border high- speed railway construction has great influence on economic and social development, the ecology, and geo-environment, social factors, such as government and residential support, and social stability along the high-speed railway, directly determines the feasibility of high-speed railway construction. Social risks need to be investigated accurately and thoroughly by field research and long-term interviews with local governments and residents.
(3) Ecological risk. High-speed railways require complex construction, which is significantly affected by local geological and ecological conditions, but also has a direct impact on the local ecological environment. Factors such as the geological status, the ecological environment, disasters, and biodiversity are also direct risk restraining factors (He et al., 2009; Ozturk et al., 2010; Popp et al., 2017), even risks factors that must be avoided during high-speed railway construction. Thus, ecological risk is the most important risk that needs serious research.
3.2.2 Comprehensive evaluation index system of economic, social, and ecological risks from China-Mongolia-Russia high-speed railway construction
Based on the IREM, according to the described risks from high-speed railway construction, and combined with the indices selection principles of availability, typicality, and comparability, the following comprehensive evaluation index system was established.
(1) Indices of economic risk. To evaluate economic risk from China-Mongolia-Russia high-speed railway construction, we chose GDP per capita and GDP growth rate to reflect economic development; population density, population growth rate to reflect passenger capacity; transportation infrastructure to reflect high-speed railway construction foundation; and energy, mineral, tourism, and intellectual resources to reflect regional attractive power. Among these indices, transportation infrastructure was represented by the railway network density, where lower density results in higher costs for exploring and evaluating local geology, geomorphology, and the natural environment for construction planning, and corresponding greater economic risks. Tourism resources were represented by the proportion of international tourism revenue to export value, intellectual resources were represented by the number of students studying in colleges, universities and institutions of higher learning per 100,000 people, energy and mineral resources were evaluated by the abundance of strategic energy and mineral resources. Regions with backward economic development, sparse population, poor transportation infrastructure, and scarce resources have high economic risk.
(2) Indices of social risk. We chose government and residential support and social stability as the primary social risk indices. Data of government and residential support was obtained based on our group’s long-term research with the governments and residents of trans-border areas of China, Mongolia, and Russia. Social stability was represented by unemployment rate. Lower government and residential support and social stability correspond to greater social risk.
(3) Indices of ecological risk. Disasters and ecological destruction are the two primary ecological risks faced by constructing high-speed railways; therefore, they were chosen as the ecological risk indices. For disasters, natural disaster was represented by forest fire, which is the most serious natural disaster in the trans-border areas of China, Mongolia and Russia; here, we used the area of forest fire per 10,000 km2 as an index. Degree of geological disaster was represented by the number of geological disasters occurred. Ecological destruction risk was evaluated using regional forest coverage rate, number of natural reserves, and abundance of biodiversity. The greatest ecological risks correspond to the most serious disasters, best ecological environment, and richest biodiversity.

3.3 Data

As indicated previously, government and residential support was obtained by our group’s long-term research in the trans-border areas of China, Mongolia, and Russia; we used a 10-point scoring system to evaluate the degree of support, where lesser support corresponded to greater social risk. Energy resources, mineral resources, and biodiversity were evaluated based on the reserves of strategic energy resources (oil and gas), mineral resources (iron and copper), and existing rare species respectively, and the evaluation results were divided into excellent, good, medium, and poor, with their corresponding scores as 8, 6, 4, and 2. For energy and mineral resources, lower scores indicate greater risk; for biodiversity, lower scores indicate lower risk. Other data were sourced from the “2016 China Statistical Yearbook, 2016 Mongolia Statistical Yearbook, 2016 Irkutsk Oblast Statistical Yearbook, 2016 Republic of Buryatia Statistical Yearbook, 2016 Zabaykalsky Krai Statistical Yearbook, and World Bank Open Data. All statistical indices are based on data for 2015.
According to the IREM, we screened the indices and determined their weights, as shown in Table 1.
Table 1 Comprehensive index system for evaluating economic, social, and ecological risks from China-Mongolia-Russia high-speed railway construction and their normalized weights
Object Standard Sub-standard Index Weight Type
Comprehensive economic-
ecological risk
Economic risk Economic
GDP per capita 0.0883 Negative
Growth rate of GDP 0.0394
Passenger capacity Population density 0.0743
Growth rate of population 0.0216
Transportation infrastructure Railway network density 0.0282
Attractive power Tourism resources 0.0120
Energy resources 0.0120
Mineral resources 0.0120
Education resources 0.0120
Social risk Government and residential support Government and residential support for high-speed railway construction 0.1015
Social stability Unemployment rate 0.0985 Positive
Ecological risk Disaster Area of forest fire per 10,000 km2 0.1048
Number of geologic hazards 0.1497
Ecological destruction Forest coverage rate 0.0934
Number of natural reserves 0.0751
Biodiversity 0.0770

4 Results

Based on the IREM, the economic, social, and ecological risks from China-Mongolia-Russia high-speed railway construction were evaluated, as shown in Table 2.
Table 2 The magnitude of economic, social, and ecological risks from China-Mongolia-Russia high-speed railway construction
Mongolia 0.2237 0.1002 0.0743 0.0282 0.0211 0.1662 0.0677 0.0985 0.3203 0.2545 0.0658 0.7102
Republic of
0.2498 0.1158 0.0879 0.0273 0.0187 0.1422 0.1015 0.0407 0.2191 0.0733 0.1459 0.6111
Zabaykalsky Krai 0.2672 0.1255 0.0944 0.0266 0.0207 0.1586 0.1015 0.0571 0.1765 0.0507 0.1259 0.6024
Irkutsk Oblast 0.2122 0.0744 0.0920 0.0274 0.0183 0.1184 0.0677 0.0507 0.1660 0.0213 0.1447 0.4966
Heilongjiang 0.2224 0.0753 0.0913 0.0236 0.0323 0.0500 0.0000 0.0500 0.1700 0.0000 0.1700 0.4425
Inner Mongolia 0.1738 0.0367 0.0882 0.0249 0.0241 0.0371 0.0000 0.0371 0.1390 0.0171 0.1219 0.3499
Hebei 0.1907 0.0712 0.0644 0.0152 0.0399 0.0355 0.0000 0.0355 0.0746 0.0171 0.0576 0.3009
Beijing 0.0467 0.0023 0.0097 0.0000 0.0347 0.0000 0.0000 0.0000 0.1144 0.0748 0.0396 0.1611
Abbreviations: EN for economic risk, ED for economic development, PC for passenger capacity, TI for transportation infrastructure, AP for attractive power, S for social risk, SGP for government and residential support, ST for social stability, EC for ecological risk, D for disaster, EDT for ecological destruction, CESE for comprehensive economic-social-ecological risk.

4.1 Economic risks from China-Mongolia-Russia high-speed railway construction

According to the IREM results, the economic risks in some regions along China-Mongolia- Russia high-speed railways primarily manifested as follows:
(1) Some regions are characterized by backward economic development and slow even negative economic growth, which suggests poor profitability for high-speed railways in the short-term. Zabaykalsky Krai, Republic of Buryatia, and Mongolia have the highest economic development risks among the research units, 0.1255, 0.1158, and 0.1002, respectively. In 2015, GDP per capita for these three regions were all < 4000 dollars, GDP growth rates were < 2.5%. The GDP growth rate for Zabaykalsky Krai and Republic of Buryatia even showed negative growth, -5.8% and -1.7%, and were the least developed and most serious regions of economic downward. The backward economic development and economic downturn pressure may result in local residents not having enough capacity nor desire to pay for high-speed railways; the profitability of high-speed railways is difficult to guarantee (Table 2).
(2) Populations are sparsely distributed and have negative growth; therefore, the local passenger capacity may not be high enough. Zabaykalsky Krai, Irkutsk Oblast, and Heilongjiang face high passenger capacity risk, with magnitudes of 0.0944, 0.0920, and 0.0913, respectively (Table 2); these are the highest of the research units. In 2015, population densities of Zabaykalsky Krai, Irkutsk Oblast, and Heilongjiang were 2.5 persons/km2, 3.1 persons/km2, and 82 persons/km2, respectively, i.e., all < 1% of Beijing. Concurrently, the population in these regions showed negative growth, -3.7‰, -0.8‰, and -5.4‰, respectively. Low population density and declining population may lead to high risk of insufficient passenger capacity for high-speed railways.
(3) Transportation infrastructures is poor, and the foundation to construct high-speed railways is weak. Transportation infrastructure in Mongolia, Irkutsk Oblast, Republic of Buryatia, and Zabaykalsky Krai is poor. In 2015, the railway network densities of these four regions were 11 km/10,000 km2, 32 km/10,000 km2, 35 km/10,000 km2, and 56 km/10,000 km2, while that of Beijing was 783 km/10,000 km2. Poor transportation infrastructure may require more comprehensive geology, geomorphology, and ecology exploration and evaluation to construct high-speed railways in these regions, which will result in higher construction costs and a longer construction period. The transportation infrastructure risks for these regions are 0.0282, 0.0274, 0.0273, and 0.0266, respectively.
(4) Scarce resources lead to weak regional attractive power. Tourism and intellectual resources are important indices that reflect regional attraction for tourists and talent. Tourism and intellectual resources in Hebei and Heilongjiang have been poor. In 2015, international tourism revenue only accounted for 1.5% and 4.9% of export value in Hebei and Heilongjiang, which was less than 1/3 of Inner Mongolia. The number of students studying in colleges, universities and institutions of higher learning per 100,000 people was 2141 and 2518, less than 1/2 of Beijing and Mongolia. Furthermore, the relatively scarce energy and mineral resources in Hebei and increasing number of resource-exhausted cities in Heilongjiang exacerbates their risks in attracting people and logistics. These poor characteristics may result in these two regions having high risks in sustaining attracting passengers.
In summary, the magnitudes of the economic risk in the research units decrease in order Zabaykalsky Krai, Republic of Buryatia, Mongolia, Heilongjiang, Irkutsk Oblast, Hebei, Inner Mongolia, and Beijing, as 0.2672, 0.2498, 0.2237, 0.2224, 0.2122, 0.1907, 0.1738, and 0.0467, respectively (Table 2). According to the principle of “equal interval”, we divide the economic risks into high risk, medium risk and low risk, as shown in Table 3. Zabaykalsky Krai, Republic of Buryatia, Mongolia, Heilongjiang, and Irkutsk Oblast are regions with high economic risk. During high-speed railway planning and construction, investment and profit guarantee mechanisms should be established to mitigate economic risk.
Table 3 Categories of economic, social, ecological, and comprehensive risks from China-Mongolia-Russia high-speed railway construction
Risk category Economic risk Social risk Ecological risk Comprehensive risk
Low risk [0.0467, 0.1202] [0, 0.0554] [0.0746, 0.1565] [0.1611, 0.3442]
Medium risk (0.1202, 0.1937] (0.0554, 0.1108] (0.1565, 0.2384] (0.3442, 0.5272)
High risk (0.1937, 0.2672] (0.1108, 0.1662] (0.2384, 0.3203] (0.5272, 0.7102]

4.2 Social risks from China-Mongolia-Russia high-speed railway construction

Social risks of some regions along China-Mongolia-Russia high-speed railways are primarily manifested as:
(1) High unemployment rate and low social stability. In 2015, the unemployment rate in Mongolia reached 7.5%, which exceeded the international warning line of unemployment rate; this high risk to social stability in Mongolia is quantified with a risk magnitude of 0.0985, the highest among research units. In addition, Mongolia also has large income disparity, high crime rate, and poor social security, which aggravate the social stability risk in Mongolia.
(2) Despite the overall support for high-speed railway construction, some regions still have concerns. According to our long-term and comprehensive investigation in the trans-border areas of China, Mongolia, and Russia, local governments and residents generally support constructing the China-Mongolia-Russia high-speed railways. However, due to their potential ecological and geopolitical impacts, some officials and residents still have some concerns, and their attitudes toward the high-speed railway construction may be influenced by some unexpected incidents. For example, China’s enterprises intended to build a bottled water plant near Lake Baikal, which was opposed by Irkutsk residents because of the potential damage to Lake Baikal. As major engineering project, high-speed railway construction will have significant impact on local ecological environment, which leads to relatively high social risks in the Republic of Buryatia, Zabaykalsky Krai, Mongolia, and Irkutsk Oblast, which are 0.1015, 0.1015, 0.0677, and 0.0677, respectively.
The magnitudes of social risks from constructing China-Mongolia-Russia high-speed railways were calculated as decreasing in the order of Mongolia, Zabaykalsky Krai, Republic of Buryatia, Irkutsk Oblast, Heilongjiang, Inner Mongolia, Hebei, and Beijing, with values of 0.1662, 0.1586, 0.1422, 0.1184, 0.0500, 0.0371, 0.0355, and 0, respectively (Table 2). Dividing the social risks into high, medium, and low risk (as shown in Table 3), it shows that regions with high social risks are distributed in Mongolia, Zabaykalsky Krai, Republic of Buryatia, and Irkutsk Oblast. During the planning and construction of high-speed railways, emergency prevention and control mechanism should be established to avoid social stability risk, and efforts to eliminate concerns from officials and residents should be made.

4.3 Ecological risks from China-Mongolia-Russia high-speed railway construction

The ecological risks of some regions along the China-Mongolia-Russia high-speed railways are primarily manifested as:
(1) Ecological destruction risk to the world natural heritage site “Lake Baikal”. Lake Baikal is located in territory of Irkutsk Oblast and Republic of Buryatia. The total volume is about 23.6 trillion m3, and the deepest point reaches 1637 m. It is the largest and deepest fresh water lake in Eurasia, and one of the most famous natural heritage sites, with a good ecological environment, rich biodiversity, and valuable ecological resources, along the China-Mongolia-Russia Economic Corridor. Because the high-speed railway construction and operation will have significant impact on the ecological environment and ecosystem patterns, it may lead to the ecological destruction of Lake Baikal, which needs to be highly emphasized during high-speed railway construction.
(2) Ecological and biodiversity destruction risk. The ecological environment of Heilongjiang, Republic of Buryatia, Irkutsk Oblast, and Zabaykalsky Krai are excellent, with high forest coverage rates and rich biodiversity. In 2015, forest coverage rates for these four regions were 43.2%, 63.7%, 83.6%, and 68.3%, respectively, far above the world average. Meanwhile, the world natural heritage site of Lake Baikal and more than 250 national natural reserves are located in these four regions, which are also important habitats for rare animals, such as moose, muskrat, sable, tiger, and red-crowned crane. However, high-speed railway construction may damage surface vegetation and ecosystems, fragment animal communities, and destroy ecosystem service function and biodiversity. Therefore, these four regions face high ecological destruction risk, calculated as 0.1700, 0.1459, 0.1447, and 0.1259, respectively (Table 2). During the planning of high-speed railways, the designs of high-speed railways should avoid core ecosystem areas, advanced engineering technology, buffer zones, and bridges and tunnels should be applied to minimize ecological damage from construction.
(3) Natural and geological disaster risks. The natural and geological environment in Mongolia is fragile, desertification and soil erosion are serious, disasters occur frequently, which will directly determine the feasibility and safety of high-speed railway construction. In 2015, Land degradation area of Mongolia reached 95,754 km2, accounted for 6.1% of the territory of Mongolia. Nearly 80% of land in Mongolia has been subject to differing desertification intensities, and desertification is expanding to grassland in Dornod aimag and Khentii aimag (XNA, 2017). Meanwhile, the forest fire area in Mongolia reached 415 km2/10,000 km2, which was more than 1000 times that in China, and there were 44 disasters. Therefore, the disaster risk in Mongolia is the highest among the research units, 0.2545, and far beyond the risk in other regions. Construction of high-speed railways in Mongolia should avoid disaster prone areas, and disaster prevention and control mechanisms should be established.
In summary, the magnitudes of the ecological risks were found to decrease in the following order: Mongolia, Republic of Buryatia, Zabaykalsky Krai, Heilongjiang, Irkutsk Oblast, Inner Mongolia, Beijing, and Hebei, with values of 0.3203, 0.2191, 0.1765, 0.1700, 0.1660, 0.1390, 0.1144, and 0.0746, respectively (Table 2). Dividing the ecological risks into high, medium, and low risk, as shown in Table 3.

4.4 Comprehensive economic-social-ecological risks from constructing the China- Mongolia-Russia high-speed railways

Integrating the economic, social, and ecological risks from the China-Mongolia-Russia high-speed railway construction, the comprehensive risk magnitudes decrease in the order of Mongolia, Republic of Buryatia, Zabaykalsky Krai, Irkutsk Oblast, Heilongjiang, Inner Mongolia, Hebei, Beijing, which are 0.7102, 0.6111, 0.6024, 0.4966, 0.4425, 0.3499, 0.3009, and 0.1611, respectively (Table 2). Dividing the comprehensive risks into high, medium, and low risk (see Table 3), there are clear spatial distribution differences in risk. Regions with high comprehensive risk are primarily located in research units in Russia and Mongolia, while medium and low risks are mainly located in research units of China.
Based on our research, both the east and west China-Mongolia-Russia high-speed railways are confronted with great construction risks. The high construction risk from the east China-Mongolia-Russia high-speed railway is found in Zabaykalsky Krai and Republic of Buryatia, represented by high economic, government and residential support, and ecological destruction risks. The region with high construction risk from the west China-Mongolia-Russia high-speed railway is Mongolia, represented by high economic, social stability, and disaster risks. Therefore, designs for the China-Mongolia-Russia high-speed railways need to be scientifically regulated. Concurrently, targeted measures and advanced engineering techniques must be applied to minimize the construction risk from the China-Mongolia-Russia high-speed railways. The spatial distribution of economic, social, ecological, and comprehensive risks from the China-Mongolia-Russia high-speed railway construction is shown in Figure 3.

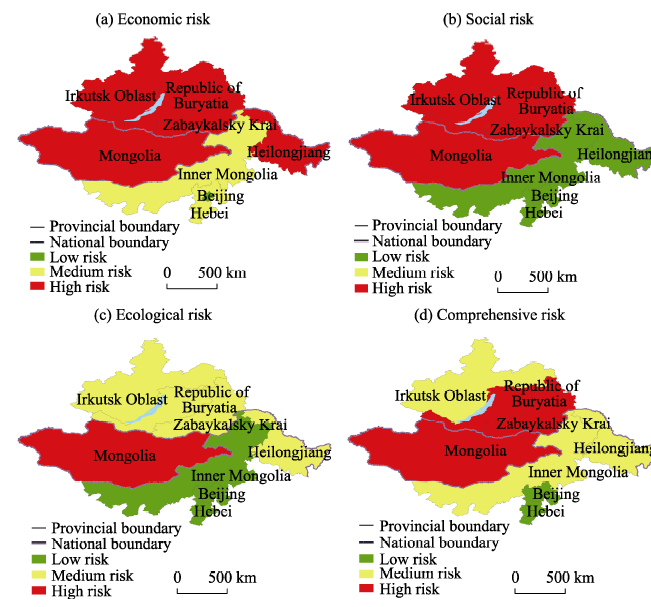

Figure 3 Map of the research area showing the spatial distribution of construction risks arising from the China-Mongolia-Russia high-speed railways

5 Policy suggestions

According to the magnitudes of risk and their spatial distribution, we propose the following suggestions to mitigate construction risks.

5.1 China-Mongolia-Russia high-speed railway designs need to be scientifically regulated

According to the distribution of risks, regions with good economic, social, and ecological conditions should be chosen as node cities for the high-speed railway, and regions with high risk factors should be avoided. For instance, in Mongolia, high-speed railway designs should avoid the disaster-prone area of western Mongolia. For Republic of Buryatia, Irkutsk Oblast, Zabaykalsky Krai, and other regions with good ecological environment, high-speed railway designs should avoid zones with dense forests, rich biodiversity and good ecological environments. Meanwhile, metropolitan cities, such as Ulan Bator and Irkutsk, and important border cities, such as Erenhot and Manzhouli, with good economic development, large population density, strong regional attracting power, and good transportation infrastructure should be selected as the node cities for the China-Mongolia-Russia high-speed railways. After comprehensively analyzing the economic, social, transportation infrastructure conditions of the research units, we suggest the following designs for the China-Mongolia-Russia high-speed railways (Figure 4).

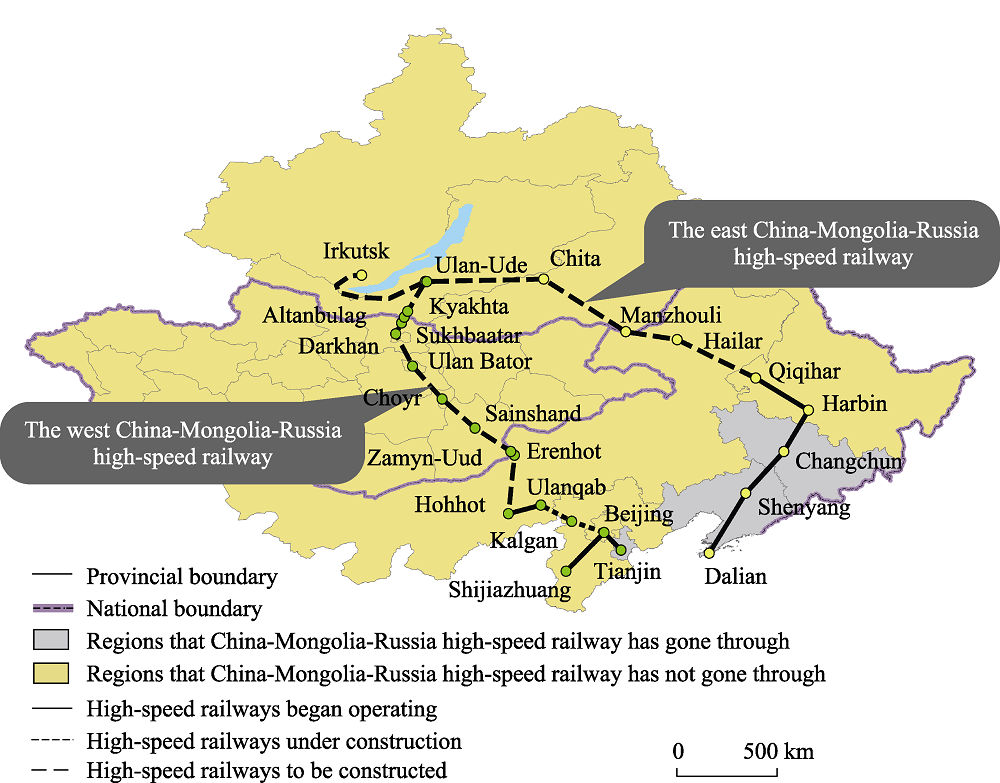

Figure 4 Map showing the proposed east and west China-Mongolia-Russia high-speed railway routes
The east China-Mongolia-Russia high-speed railway: Dalian-Shenyang-Changchun- Harbin-Qiqihar-Hailar-Manzhouli-Chita-Ulan-Ude-Irkutsk.
The west China-Mongolia-Russia high-speed railway: Shijiazhuang/Tianjin-Beijing- Kalgan-Ulanqab-Hohhot-Erenhot-Zamyn-Uud-Sainshand-Choyr-Ulan Bator-Darkhan-Sukhbaatar-Altanbulag-Kyakhta-Ulan-Ude.

5.2 Innovative cooperation can be developed to reduce economic risk

For regions with high economic risks in Russia and Mongolia, although they support the construction of high-speed railways, they are short of investment funds. Innovative cooperation based on “high-speed railway for resources and markets” can be established to reduce economic risk. Namely, China can provide investment funds, technology, equipment, technicians, and the labor force to construct and maintain the high-speed railways, while Russia and Mongolia can transfer development rights for mineral and energy resources and transport resource-based and high-tech products to China as payment for high-speed railway investment. By developing comparative advantages, the three countries can co-develop and reduce economic risk.

5.3 Communication and technology dissemination can be strengthened to reduce
social risk

For regions that have geopolitical and ecological destruction concerns for high-speed railway construction, governmental and non-governmental communication should be strengthened to show China’s friendly cooperation policy toward the world; this can improve China’s international image and eliminate the concerns and prejudices some Mongolian and Russian residents have toward China. In addition, high-tech dissemination activities, such as hosting high-speed railway technology exhibits, making promotional videos, should be provided, to expand residents’ knowledge of the features of high-speed railways and improve their acceptance of high-speed railways.

5.4 Advanced engineering techniques and buffer zones can be applied to reduce
ecological risk

For regions with high ecological risk, such as Irkutsk Oblast, Republic of Buryatia, and Zabaykalsky Krai, high-speed railway designs should avoid zones with dense forests, rich biodiversity, and excellent ecological environment. For dotted forests, grassland, lakes, wetlands that high-speed railway construction cannot avoid, advanced engineering techniques, such as viaducts, tunnels, bridges, ramp transitions, and noise barriers, can be applied to minimize ecological damage. For Lake Baikal and other natural reserves, buffer zones should be designated, and the high-speed railway should be located outside the buffer zones, thus minimizing the disturbances from high-speed railway construction and operation on ecological systems.

5.5 Establishing collaborative prevention and control systems for the three major ecological risks in the China, Mongolia and Russia trans-border areas

According to the distribution of risks from China-Mongolia-Russia high-speed railway construction, collaborative prevention and control systems for three major ecological risks should be established. They are the prevention and control system for forest fire in the China, Mongolia and Russia trans-border areas, the prevention and control system for geological disasters, such as soil erosion, desertification, and sandstorms, in the China and Mongolia trans-border areas, and the prevention and control system for vegetation and biodiversity destruction in the China and Russia trans-border areas. By establishing real-time ecological environment monitoring and information-sharing platform between China, Mongolia, and Russia trans-border areas, real-time warnings and the prevention of ecological risk during construction and operation of China-Mongolia-Russia high-speed railway can be achieved.

5.6 Strategic coordination should be improved to promote economic integration
between China, Mongolia and Russia

By enhancing strategic coordination among China, Mongolia, and Russia, economic integration of the three countries can be promoted, which will boost the construction of China-Mongolia-Russia high-speed railways. Thus, the following aspects can be enhanced. First, strengthen the strategic coordination for the China-Mongolia-Russia Economic Corridor with the “Eurasian Economic Union” and the “Prairie Road Program”. Second, accelerate construction of the China-Mongolia-Russia Free Trade Area and China-Mongolia-Russia cross-border economic cooperation zone. Third, promote trade facilitation and cooperation on major projects. Fourth, strengthen cooperation for the production capacity and strategic resources and increase trade dependence. Fifth, enhance communication and cooperation for talent, science and technology, education resources and implement a visa exemption policy in China, Mongolia, and Russia to promote population flow and improve regional vitality.

6 Conclusions and outlook

6.1 Conclusions

(1) The economic, social, ecological and comprehensive risks of China-Mongolia-Russia high-speed railway construction and their spatial distribution were evaluated. Economic risk along the China-Mongolia-Russia high-speed railways is due to undeveloped economies, slow even negative economic growth, sparse and declining populations, poor transportation infrastructure, and scarce resources. Regions with high economic risk include Zabaykalsky Krai, Republic of Buryatia, Mongolia, Heilongjiang, and Irkutsk Oblast. Social risk is due to high unemployment rate, low social stability, and government and residential concerns despite the overall support for high-speed railway construction. Regions with high social risks are Mongolia, Zabaykalsky Krai, Republic of Buryatia, and Irkutsk Oblast. Ecological risk is due to the potential for ecological destruction in such areas as Lake Baikal and regions with excellent ecological environment, high forest coverage rate, and rich biodiversity. Furthermore, regions with fragile ecological environment and high frequency of disasters are also at high ecological risk. Regions with high ecological destruction risk are Heilongjiang, Buryat Republic, Irkutsk Oblast, and Zabaykalsky Krai. The region with the high disaster risk is Mongolia. Regions with high comprehensive risk are Mongolia, Republic of Buryatia, and Zabaykalsky Krai.
(2) According to the risk distribution pattern and characteristics, the suggested designs for the east and west China-Mongolia-Russia high-speed railways were proposed. The proposed design for the east China-Mongolia-Russia high-speed railway is: Dalian-Shenyang- Changchun-Harbin-Qiqihar-Hailar-Manzhouli-Chita-Ulan-Ude-Irkutsk, and for the west China-Mongolia-Russia high-speed railway: Shijiazhuang / Tianjin-Beijing-Kalgan-Ulanqab-Hohhot-Erenhot-Zamyn-Uud-Sainshand-Choyr-Ulan Bator-Darkhan-Sukhbaatar-Altanbulag-Kyakhta-Ulan-Ude.
(3) Targeted policy suggestions to avoid construction risks were proposed. Developing innovative cooperation of the “high-speed railway for resources and market”, strengthening communication and technology dissemination, applying innovative engineering techniques and setting buffers; establishing collaborative prevention and control systems to mitigate the three major ecological risks in the China, Mongolia, and Russia trans-border areas; and promoting economic integration by improving strategic coordination.
(4) The application of the IREM. The IREM established in this paper can scientifically evaluate the economic, social, and ecological risks from the China-Mongolia-Russia high-speed railway construction, and can also be applied to evaluate risks for other trans-border high-speed railways and other field.

6.2 Outlook

China, Mongolia and Russia have profound historical contacts. China and Russia have a comprehensive strategic partnership of coordination, and China and Mongolia have a comprehensive strategic partnership. In 2016, trade value between China and Russia, and between China and Mongolia reached 69.5 billion US dollars and 4.61 billion dollars, the average annual growth rate was up to 14% and 18% since 2000, respectively (UN Comtrade Database, 2017). Furthermore, with the implementation of the China-Mongolia-Russia Economic Corridor, Eurasian Economic Union, and Prairie Road Program, relationships between China, Mongolia, and Russia are growing increasingly close. In the future, cooperation among the three countries will be more intensive. To accelerate the construction of the China-Mongolia-Russia Economic Corridor and strengthen cooperation among the three countries, other high-speed railways also need to be studied. According to our research, in addition to the east and west Russia-Mongolia-China high-speed railways, another three railways can be considered. They are the coastal high-speed railway, Changchun (Jilin, China)-Hunchun (Jilin)-Vladivostok (metropolis of Primorsky Krai, Russia)-Khabarovsk (metropolis of Khabarovsky Krai, Russia); the northeast high-speed railway, Harbin (Heilongjiang, China)-Heihe (Heilongjiang)-Blagoveshchensk (metropolis of Amur Oblast, Russia); and the northwest high-speed railway, Urumqi (Xinjiang Uygur Autonomous Region, China)-Altai (Xinjiang)-Barnaul (metropolis of Altai Krai, Russia)-Novosibirsk (metropolis of Novosibirsk Oblast, Russia). Together with the east and west China-Mongolia- Russia high-speed railways, this would make five high-speed railways connecting China, Mongolia, and Russia from five directions, which would greatly expand the international land transportation corridor and promote implementation of the China-Mongolia-Russia Economic Corridor. In the future, we will continue to study the construction of the potential coastal, northeast, and northwest high-speed railways.

The authors have declared that no competing interests exist.

Chen C L, 2012. Reshaping Chinese space-economy through high-speed trains: Opportunities and challenges.Journal of Transport Geography, 22: 312-316.78 The introduction of Chinese high-speed train development and approaches. 78Chinese spatial development strategies and anticipated regional and urban impacts. 78 Key challenges in reshaping Chinese space economy through high-speed trains at regional and urban scales.


Chen Y T, Chen G H, Li M J, 2004. Classification and research advancement of comprehensive evaluation methods.Journal of Management Science in China, 7(2): 69-79. (in Chinese)This paper first summarizes and classifies the comprehensive evaluation (CE) methods in different fields, and analyses the principles, virtues, shortages and their application fields of each method. It explores the newly research development of CE methods. There are three major problems in existing methods: The first is the non_consistency about the evaluation conclusion when using different CE methods; the second is the lacking of special treatment in practice; the third is the disjoint between theory researches and practical applications. Based on this, the paper puts forward the new idea that the combined evaluation based on methods integration is to set up an I~3DSS that supports the consistent evaluations.

China Economic Herald (CEH), 2015. Construction of west line of China-Mongolia-Russia economic corridor is of great significance. , 2015-09-25.

China National Bureau of Statistics, 2016. 2016 China Statistical Yearbook. Beijing: China Statistics Press. (in Chinese)

Ding J X, Jin F J, Wang J E ,et al. 2013. Competition game of high-speed rail and civil aviation and its spatial effect: A case study of Beijing-Shanghai high-speed rail.Economic Geography, 33(5): 104-110. (in Chinese)

Dong S C, Li Z H, Li F J ,et al. 2017. The green development mode of the “B&R”. China Economic Times, 05-11(A05). (in Chinese)

European Commission (EC), 1992. The Treaty on the European Union. Luxembourg, Office for Official Publications of the European Communities.

European Commission (EC), 1994. White Paper on Growth, Competitiveness and Employment. Luxembourg: Office for Official Publications of the European Communities.

Givoni, M, 2005. Aircraft and high speed train substitution: The case for airline and railway integration [D]. London: University College London.

Givoni M, 2006. Development and impact of the modern high-speed train: A review.Transport Reviews, 26(5): 593-611.The inauguration of the Shinkansen high peed train service between Tokyo and Osaka, Japan, at 210 kph maximum operating speed some 40 years ago marked the comeback of the train as an important passenger mode of transport. Since then high peed train (HST) services have been introduced in many countries and are planned in many more, and the train has once more become the dominant mode of transport on many routes. This review summarizes the different elements of HST operation with the aim of characterizing HST operation and putting in context its impact in terms of what it is best designed for and what it can deliver. The review concludes that the HST is best designed to substitute conventional railway services on routes where much higher capacity is required and to reduce travel time, further improving the railway service, also against other modes, therefore leading to mode substitution. However, the high investment in HST infrastructure could not be justified based on its economic development benefits since these are not certain. Finally, the following definition for HST services is suggested: high capacity and frequency railway services achieving an average speed of over 200 kph.


He G Z, Zhang L, Lu Y L, 2009. Environmental impact assessment and environmental audit in large-scale public infrastructure construction: The case of the Qinghai-Tibet railway.Environmental Management, 44: 579-589.Abstract Large-scale public infrastructure projects have featured in China's modernization course since the early 1980s. During the early stages of China's rapid economic development, public attention focused on the economic and social impact of high-profile construction projects. In recent years, however, we have seen a shift in public concern toward the environmental and ecological effects of such projects, and today governments are required to provide valid environmental impact assessments prior to allowing large-scale construction. The official requirement for the monitoring of environmental conditions has led to an increased number of debates in recent years regarding the effectiveness of Environmental Impact Assessments (EIAs) and Governmental Environmental Audits (GEAs) as environmental safeguards in instances of large-scale construction. Although EIA and GEA are conducted by different institutions and have different goals and enforcement potential, these two practices can be closely related in terms of methodology. This article cites the construction of the Qinghai-Tibet Railway as an instance in which EIA and GEA offer complementary approaches to environmental impact management. This study concludes that the GEA approach can serve as an effective follow-up to the EIA and establishes that the EIA lays a base for conducting future GEAs. The relationship that emerges through a study of the Railway's construction calls for more deliberate institutional arrangements and cooperation if the two practices are to be used in concert to optimal effect.


Jiang B, Chu N C, Xiu C L et al.Xiu C L , 2016. Comprehensive evaluation and comparative analysis of accessibility in the four vertical and four horizontal HSR networks in China.Acta Geographica Sinica, 71(4): 591-604. (in Chinese)Some limitations exist in the traditional methods of measuring accessibility, such as lacking comprehensive and comparative analysis from various aspects. Therefore, in this study,the evaluation of accessibility is conducted with three indicators, i.e. weighted average time,economic potential, and accessibility gravity center. After the evaluation, dynamic changes of urban accessibility with and without high- speed rail(HSR) are analyzed by Arc GIS method.Then comprehensive variable coefficient, hierarchy analysis and improved Huff model are used to analyze spatial evolution characteristics and regularity of cities and regions along the HSR.Finally, the comprehensive accessibility of various HSR lines(nine HSR lines are involved in this study) is evaluated with Entropy-weight method, based on the accessibility system which is constructed with six indicators, i.e. Ai, Pi, Ci, D- Value, CV and Pij. Results show that the comprehensive accessibility of various HSR lines is different, with the order of their comprehensive strength as follows: Beijing- Guangzhou Beijing- Shanghai ShanghaiKunming Hangzhou-Shenzhen Shanghai-Chengdu Harbin-Dalian Qingdao-Taiyuan Zhengzhou- Xi'an Lanzhou- Urumqi. The accessibility shows a decreasing trend from the eastern and central regions via the northeastern region to the western region. The accessibility of vertical HSR lines is better than the horizontal HSR lines. The increasing rate of economic potential is significantly higher than the decreasing rate of weighted average travel time. The movement of accessibility gravity center results in the spreading and overlapping of different time circles. The HSR spatial linkage mode of "core- core" has gradually developed into the mode of "core- network". "Four national service centers", i.e. Shanghai, Beijing, Guangzhou and Shenzhen, and "six large regional service centers", i.e. Tianjin, Wuhan, Chongqing,Nanjing, Hangzhou and Shenyang have emerged in the HSR network and "multi-center" HSR service patterns and increasingly complicated spatial clusters have been formed. Affected by the HSR network, the gradual change and remodeling of regional spatial pattern have become more and more complicated. Spatial pattern in the "T-shaped" axes presents an evolving trend of polarization to equilibrium and intercity flows accelerate the process of spatial integration.


Jiang H B, Xu J G, Qi Y, 2010. The influence of Beijing-Shanghai high-speed railways on land accessibility of regional center cities.Acta Geographica Sinica, 65(10): 1287-1298. (in Chinese)

Mongolia National Registration and Statistics Office, 2017. 2015 Mongolian Statistical Yearbook..

Mu C L, Lu L, Huang J F ,et al. .2015. Research on Yangtze River Delta tourist traffic pattern and linkage under high-speed rail network.Economic Geography, 35(12): 193-202. (in Chinese)According to the data of 16 cities' shortest travel time and operating frequency of high-speed/conventional rail network as well as the domestic tourism income and domestic tourists number during 2010-2012 in Yangtze River Delta.Using the transportantion accessibility, Hirshman- Herfindahl Index, centralized index measure the spatial pattern of rail tourist transport accessibility, traffic flow in high- speed rail network. On the basis of the shortest travel time modified gravity model among 16 cities in high-speed rail network, the tourism economic linkage intensity,quantity and direction are comprehesively evalued. And the high- speed rail's influence on the tourism linkage in the Yangtze River Delta are identified. The result shows :(1) The continuous improvement of high-speed rail network enhances the tourist transport accessibility among cities,brings about the effect of location superposition,time- space astringency and makes the spatial pattern of accessibility to be balanced.Spatial distribution of the rail traffic flow in Yangtze River Delta represents that Shanghai is the center of this area and the north wing is more assembled than south wing. It highlights the north wing's transportation gateway functions, Shanghai is acted as the hub connecting the north and South wings, and the south wing's traffic function enhanced due to the supply of high-speed rail traffic.(2) The tourism economic linkage intensity shows that Shanghai is the main core,Nanjing and Hangzhou are the vice.The tourism economic linkage quantity shows that Shanghai act as the center, the north wing area is intensive while the south is scattered.The linkage direction appears to be core cities directional and spatial location near directional. It turns out that the spatial distribution characteristics of the Yangtze River Delta's tourism economy in the High- speed rail network are as follows: Shanghai is the main core,Nanjing and Hangzhou is the vice, north and south wings separated bond together within themselves,the economic pattern of" one main core,two vice and two wings "is constituted as a whole.

National Development and Reform Commission (NDRC). Plan for Construction of China-Mongolia-Russia Economic Corridor. , 2016-09-14.

OECD, 2009. Competitive interaction between airports, airlines and high-speed rail. .

Okada H, 1994. Features and economic and social effects of the Shinkanse.Japan Railway & Transport Review, SI, 9-16.

Ou J, Song D, Zhou N Y, 2014. World Bank Report of China high-speed railway: Construction cost analysis. (in Chinese)

Ozturk Z, Ozturk T, 2010. Ecological factor of the land transport: On Istanbul.Teknik Dergi, 21(1): 4979-4985.

Peng Z L, Zhang Q, Yang S L, 2015. Overview of comprehensive evaluation theory and methodology.Chinese Journal of Management Science, 23(11): 245-256. (in Chinese)Comprehensive evaluation is a systemic and complex work,which is one of the important means for people to know,understand,and influence things.It is not only aprocess of management cognition,but also a process of decision making,which has been widely used in many fields such as economy,society,science and technology,education,management and engineering practice.Around the purpose and steps of evaluation,the construction of indicators system,the determination of weight and value,the collection and processing of data,the integration of kinds of evaluation information,the use of the evaluation results and some other aspects,some sophisticated theory and methodology system have been formed.In this paper,an overview of some common comprehensive evaluation theories and methodologies is made,pointing out some problems which are hidden in current theories and methodologies,and present some new thoughts for the future research.Finallly,three research directions about comprehensive evaluation eheory and methodology which are worth to conduct for our researchers are given.

Popp J N, Boyle S P, 2017. Railway ecology: Underrepresented in science?,Basic and Applied Ecology, 19: 84-93.W01hrend der letzten 20 Jahre wurden die Auswirkungen von Stra08en auf wild lebende Tiere intensiv untersucht. Theoretisch haben Eisenbahnstrecken 01hnliche Effekte, aber über deren Ausma08 ist 00kologen wenig bekannt. Obwohl die Stra08en02kologie sich rasant ausweitet, und trotz des hohen Platzbedarfs von Bahnstrecken gibt es einen auff01lligen Mangel an Forschungen zu Bahnstrecken und ihren Auswirkungen auf Wildtiere. Um den Abstand zwischen Wildtieruntersuchungen an Stra08en und Bahnstrecken herauszuarbeiten, nahmen wir eine gründliche Durchsicht von zw02lf Journalen (mit Peer-Review) vor, in denen 00kologen und Naturschutzbiologen h01ufig publizieren. Wir fanden, dass “Eisenbahnstudien” klar unterrepr01sentiert sind – trotz der potentiell negativen 02kologischen Effekte dieser wichtigen technischen Infrastruktur. Wir fanden 259 Untersuchungen zu Stra08en aber nur 17 zu Bahnstrecken, wobei die meisten Stra08enstudien in Nordamerika und die meisten Eisenbahnstudien in Europa konzentriert waren. W01hrend Stra08e-Wildtier-Untersuchungen im Laufe der Zeit zugenommen haben, stagnierte die Zahl der Untersuchungen an Bahnlinien. Wir meinen, dass Forschungen zur “Eisenbahn02kologie” seit langem überf01llig sind.


Preston J, 2012. High speed rail in Britain: About time or a waste of time?,Journal of Transport Geography, 22: 308-311.78 Recent appraisals of High Speed Rail in Britain have produced Benefit Cost Ratios in excess of one. 78 Benefits are largely due to travel time savings. 78 Infrastructure costs are high in Britain. 78 The environmental and wider economic impacts of HSR are relatively small. 78 Alternative investments in existing networks may provide better value for money.


Ryder A, 2012. High speed rail.Journal of Transport Geography, 22: 303-305.


Shaw S L, Fang Z X, Lu S W et al.Lu S W , 2014. Impacts of high speed rail on railroad network accessibility in China.Journal of Transport Geography, 40: 112-122.High speed rail (HSR) is changing the overall travel accessibility of cities in China. There have been a number of studies of high speed rail in China. However, detailed spatiotemporal accessibility pattern of cities affected by the operation of high speed rail in China has not been reported. This study takes a timetable-based accessibility evaluation approach to analyze the changes in travel time, travel cost, and distance accessibility for each of the four main stages of HSR development in China: no HSR service in Stage 1 before August 2008, several HSR lines in Stage 2 between August 2008 and July 2011, reduced operating speed of HSR trains in Stage 3 between August 2011 and November 2012, and addition of new HSR lines and reduction of ticket fares in Stage 4 between December 2012 and January 2013. In addition to the “corridor effect” and the “center-diffusion” pattern, this paper investigates the impacts of HSR on changes in in-vehicle travel time and out-of-vehicle travel time with respect to the policy changes that reduced the operating speed of HSR trains, rearranged the train timetable, and lowered the ticket fare on HSR trains. The analysis results indicate the spatiotemporal pattern of Chinese cities affected by these policy changes. This study is useful for assessing HSR impacts on the accessibility of various cities across China as well as serving as a decision-making support to policies related to adjustments of HSR operation and planning of future HSR routes by considering the existing HSR and non-HSR railway lines.


Song S B, Cai H J, Xu L F, 2003. Indicators system for region sustainable water resources utilization and its assessing methods.Advances in Water Sciences, 14(5): 647-652. (in Chinese)This paper reviews the current state of indicators for sustainable water resources utilization and its assessing methods, analysis problems in establishing indicators for sustainable water resources utilization and evaluating methods Finally, the authors probe into main contents and methods for sustainable water resources utilization

Statistical Department of Irkutsk Oblast, 2016. 2015 Irkutsk Oblast Statistical Yearbook. (in Russian)

Statistical Department of Republic of Buryatia, 2016. 2015 Republic of Buryatia Statistical Yearbook. . . (in Russian)

Statistical Department of Zabaykalsky Krai, 2016. 2015 Zabaykalsky Krai Statistical Yearbook. . (in Russian)

UN Comtrade Database..

Wang D G, 2014. The influence of Beijing-Shanghai high-speed railway on tourist flow and time-space distribution.Tourism Tribune, 29(1): 75-82. (in Chinese)Tourist flow is a concept within tourism geography that examines spatial attributes.It is the focal point of the tourism system,and reflects the travel pattern of tourists within a region.Transportation is the most significant factor influencing the time and space distribution of tourist flow.The high-speed railway(HSR) is an important milestone in today's "transport revolution".It is the most effective way of providing rapid transport for large numbers of passengers in large channels.The development of HSR is now a global phenomenon and is a notable factor influencing tourist flow.High-speed rail has speed,safety and efficiency advantages that produce a " time-space compression" effect.This will allow the tourist travel radius to gradually increase,having a knock-on effect on tourism destination choice,and a long-term impact on the regional tourism spatial pattern.This paper examines nine main stations on the Beijing-Shanghai HSR through field and social network analysis to compare tourist flow time-space distribution pre-and post-HSR.Tourist travel blogs uploaded to the Chinese Web 2.0 self-help website "Youdodo Travel Network"were used to identify the tourist destination choice,tourism spatial behavior and travel time.This study found that Beijing,Shanghai and Nanjing were strengthened as tourist origins and destinations,demonstrating a HSR tourism flow "Matthew effect"(accumulated advantage).HSR prompts being close to the important tourism destinations and tourism competition in inferior HSR.The accumulation field and degree centrality coefficients were relatively small,and decreased after HSR implementation,demonstrating a tourist flow accumulation "aisle effect ".HSR prompts the "urban integration effects"of tourist flow between two cities located in relatively close proximity to each other.Geographical distances from Beijing to Tianjin,Shanghai to Nanjing,and Shanghai to Suzhou are relatively small and there was a strong social network of tourist flow between these cities prior to the arrival of HSR.Since the implementation of HSR,travel flows increased and the social network upgraded to the highest position,demonstrating HSR "urban integration effects".HSR enhanced the accessibility to regions that had a locational disadvantage in respect to their tourism resources and hence enhanced the attraction of these places and dramatically decreasing their dependencies on their core city.The HSR "time-space compression effect"significantly shortened travel times.From the time distribution of tourist flow,the HSR "time-space compression effect"made it possible to visit far-distance destinations over a three-day period,and medium-distance destinations over a weekend,reducing the medium-distance journeys under taken during the China's "golden week".HSR both relieved the burden of travel times and improved the quality of travel.Prior to HSR,long-distance tourists tended to travel during the "golden week"and summer or winter vacations.After the HSR opened,short-stay holidays and weekend travel increased.HSR realized a tourist shift and achieved the target of "cutting the peak to fill the valley".Limited by data,this paper only analyzed the time and space distribution characteristics of tourist flows by train and HSR.Future research will expand the perspective of air,train,car and high-speed rail transportation system,and will consider the surrounding areas influenced by HSR.


Wang D G, Chen T, Lu L et al.Lu L , 2015a. Mechanism and HSR effect of spatial structure of regional tourist flow: Case study of Beijing-Shanghai HSR in China.Acta Geographica Sinica, 70(2): 214-233. (in Chinese)Transportation is one of the most important factors affecting spatial structure of tourist flow. Taking Beijing-Shanghai High-speed Rail(Hereinafter referred to as the HSR) as an example, the paper firstly explores the features and HSR effects of spatial structure of regional tourist flow with the help of social network analysis method. And then it points out the changes of the accessibility in regional transportation. After analyzing the following various influencing factors, e.g. the initial endowment of regional tourist resources, the hospitality facilities, the density of regional tourism transportation network, the location, etc., the paper discusses about the mechanism of HSR effect of spatial structure in regional tourist flow. The results are shown as follows:(1) The HSR effects of spatial structure in regional tourist flow are manifested as the "Matthew effect", the "filtering effect", the "diffusion effect" and the "overlying effect";(2) The "Matthew effect" of HSR is manifested under the obvious interaction of the location condition, the initial endowment of tourist resources, hospitality capacity, tourist transportation network density and the "time-space compression"; the "filtering effect" of HSR is manifested in those tourism nodes without favorable location condition,endowment of tourist resources, hospitality capacity, tourist transportation network density, and obvious "time- space compression"; For those tourist nodes that boast favorable advantages in terms of location condition, endowment of tourist resources, hospitality capacity, tourist transportation network density and obvious "time- space compression", they will become diffusion sources. HSR will strengthen the aggregation effects of tourist flow in those diffusion sources, and thereafter, will diffuse to the peripheral tourist areas, manifesting the mode of "aggregation-diffusion"; HSR has resulted in the multiplicity phenomenon in terms of tourists' traveling spatial range for those from large- scale spaces. However, the "overlying effect" is only generated in those tourist nodes with favorable location condition, endowment of tourist resources, hospitality capacity, tourist transportation network density, and obvious "time-space compression".


Wang D G, Chen Y, Chen T et al.Chen T , 2015b. Optimizing tourist spatial structure for large scale regional metropolitan circles under the Beijing-Shanghai high-speed rail.Resource Science, 37(3): 581-592. (in Chinese)Metropolitan circles refers to densely urbanized regions centered around one or several central cities that keep close social and economic contact with nearby towns. The cities and towns in a metropolitan circle are adjacent to each other in geographical space,mutual cooperation in function showing circle structure in form and have a trend of integration. The spatial structure of metropolitan circles develops as the development mode of core-periphery,with a development goal being the realization of regional integration and equalization. Tourist radiation range of metropolitan areas will further expand with the Time-space Compression effect of high-speed rail and strengthen communication between different metropolitan circles along high-speed rail lines.This is of great importance when analyzing optimization of tourist spatial structures of large scale regions under the drive of high-speed rail regarding metropolitan circles as a basic unit of spatial structure. Here,we determined the important tourist development node,axis and resort system and structured the tourist plate with different grades by applying theories of spatial structure involving core-periphery and plate tourism,summarizing the basic characters of six metropolitan circles for the Beijing-Shanghai high-speed rail,spatial network and spatial effect of tourist flow using optimization of nodes,line connection of and expansion. With the core diffusion influence in both the first class tourist core nodes and first resort systems,the second class tourist plates and third class tourist plates would be integrated into the first tourist plates from the first,second and third class expanded axis;the tourist belt of the Beijing-Shanghai high-speed rail will be structured. In the high-speed rail tourism belt,the effect of Time-space Compression enhanced the spatial contact of various metropolitan circles along the high-speed rail line. Thus,regional cooperation in tourism between metropolitan circles should be strengthened to realize diffusion and superimposed effects.Spillover effects from tourism highlands,rather than siphon phenomenon from tourism highlands to tourism depression,will be promoted. The development of a tourism valley will be realized and achieve the goal of tourist integrative development of the high-speed rail region.

World Bank Open Data, 2017.

Xinhua News Agency (XNA), 2017. Nearly 80% of Mongolia’s land are under desertification in different degrees. , 2017-06-17.

Xu C L, Xun Y A, 2011. Regional influence and significance of the high-speed rail era.Resources and Environment in the Yangtze Basin, 20(6): 650-654. (in Chinese)In recent years,nationwide high-speed rail network construction has been becoming the focus of public concern.High-speed rail is extremely popular with its obvious advantages:fast speed,large transmission capacity,good security,comfort and convenience,less energy consumption,good economic returns,etc.With the building of "four vertical and four horizontal" passenger special line in full swing,our country will step into the high-speed rail age.High-speed rail shortens the travel time and distance of people,goods and information flow.And high-speed rail opens an era of economic circle.Therefore,the approach of the high-speed rail era is bound to have a far-reaching influence and significance to the region.High-speed rail will accelerate and amplify city effect of the urban economic circles,and change the producer type of people,way of life;High-speed rail will speed up regional integration and mutual win-win of central cities leading;High-speed rail will promote upgrading of industry,for example,tourism and real estate,and promote redistribution of city planning along the line;High-speed rail will cause recombination of "aviation,land transportation and waterway" three modern transportation means,bring about diversification of the way people travel.


Yu T, Chen Z, Zhu P Y, 2015. Characteristics and mechanism of high speed rail-driven suburbanization in China: A case study of Beijing-Shanghai high-speed rail.Scientica Geographica Sinica, 37(3): 581-592. (in Chinese)The international theoretical and practical studies suggest that the construction of high-speed rail(HSR) usually influences the development of suburban area.In China,the large-scale construction of HSR,together with the rapid urbanization,makes such influence more complex and profound.In the development of HSR new town,the HSR station works as an "amplifier",thus it promotes suburbanization.In the case study of Beijing-Shanghai High-speed Rail,this article takes both quantitative and qualitative approaches to explore suburbanization's patterns in HSR new town: 1) relatively active suburbanization in major cities;2) exorbitant scale and expectation of urban construction;3) rapidly shifted urban forms.From the perspectives of government,market and society,this article uses urban regime theory to analyze the inter-mechanism of HSR-driven suburbanization.In conclusion,selectivity and uncertainty of HSR's suburbanization are proposed.This article also suggests that it is important to coordinate the locations and relationships of the high-speed railway and cities along the lines at a regional level.Furthermore,the development of HSR and urban space in the new towns should be integrated,and the public participation during the planning and development of HSR new towns should be strengthened.Therefore,the goal of sustainable suburban development by HSR can be reached.


Zhong Y X, Huang J, Wen Y Z, 2015. Impact of high-speed railway on spatial patterns of Chinese cities’ accessibility.Scientica Geographica Sinica, 35(4): 387-395. (in Chinese)Railway is an important way of transportation to combine Chinese cities, and its upgrading plays an important role in improving spatial pattern of cities′ accessibility. Having selected prefecture-level cities as study objects and extracted the shortest-time distances between every two central cites based on data from train schedule, the article calculated the accessibility of 31 central cities by employing the indicator of average accessibility, and analyzed the impact of high-speed railway on central cities′ accessibility. Then the daily communication areas of 31 central cities are abstrcted and the effects of high-speed railway is explored. What′ s more, five cities were selected—Beijing, Shanghai, Guangzhou, Wuhan and Chongqing as typical cases to analyze factors which influenced their spatial patterns of daily communication areas. Results are shown as follows. 1) The accessibility of central city is closely related to spatial location and external traffic condition of the city. 2) High-speed railway network has promoted the accessibility of all central cities, but different city has different improved degree of accessibility under the influence of city′ s spatial location and construction condition of high-speed railway. 3) The impact of high-speed railway on expanding daily communication areas of Chinese cities is significant and it distributes in the east, middle and west zones. Meanwhile, the number of prefecture-level cities covered by daily communication areas is increasing, and these cities are covered by more central cities′ daily communication areas in urban populated areas. 4) The expansion of central city′ s daily communication area is in step with the layout of high-speed railway. Besides, the superior geographic position will be beneficial to the expansion of central city′ s daily communication area, but terrain and water and other geographical barriers will limit its expansion on different direction. 5) The impact of high-speed railway is gradually catching up and will surpass the impact of city′ s spatial location on improving cities′ accessibility.
