Evaluation on glaciers ecological services value inthe Tianshan Mountains, Northwest China

doi:10.1007/s11442-019-1586-1

Abstract

Abstract:

Mountain glaciers, which perform a unique and irreplaceable ecological service, provide the material basis and characteristic cultural foundation of the ecological environment and sustainable socio-economic development in arid areas. However, few studies have estimated the service value of glaciers in regulating ecological environment and providing human welfare. According to the statistics of the First and Second Chinese Glacier Inventory (FCGI/SCGI), this study analyzed the variations in glacier area and ice volume in the Tianshan Mountains in China and modeled the ecosystem service function of mountain glaciers. The service value per unit area and equivalent factor methods were combined to determine the annual value of the ecological service provided by glaciers in the study area. The results show that: (1) In the period 1970-2010, the glacier area decreased by 1274 km² (the ratio of area shrinkage was 13.9%) and the annual average decrease in ice volume was 4.08×10⁹ m³. The increase in glacier area at high altitudes (> 5200 m) may be due to the fact that glacier accumulation caused by increasing precipitation is greater than glacier melting caused by rising temperatures. (2) The annual value of the ecological service provided by glaciers in the study area is 60.2 billion yuan. The values of climate regulation, hydrological regulation, and freshwater resource supply account for 66.4%, 21.6%, and 9.3% of the total value respectively. The annual value of the ecological service provided by hydroelectric power is 350 million yuan. (3) From a comparative analysis of the glaciers, forest, grassland and wetland ecosystems, the supply of freshwater resources/physical production and ecological regulation represent the main contributions of the four types of system, and the ecosystem service value of glaciers per unit area is higher than that of other types of ecosystem. This research will improve the understanding of the impact of glaciers on human welfare and maintenance of the ecological environment and will promote the ecological security of the cryosphere, environmental protection, and the sustainable use of resources.

Key words: glacier, ecological function, service value, estimate, Tianshan Mountains

Zhengyong ZHANG, Lin LIU, Xinlin HE, Zhongqin LI, Puyu WANG. Evaluation on glaciers ecological services value inthe Tianshan Mountains, Northwest China[J].Journal of Geographical Sciences, 2019, 29(1): 101-114.

Figures/Tables 6

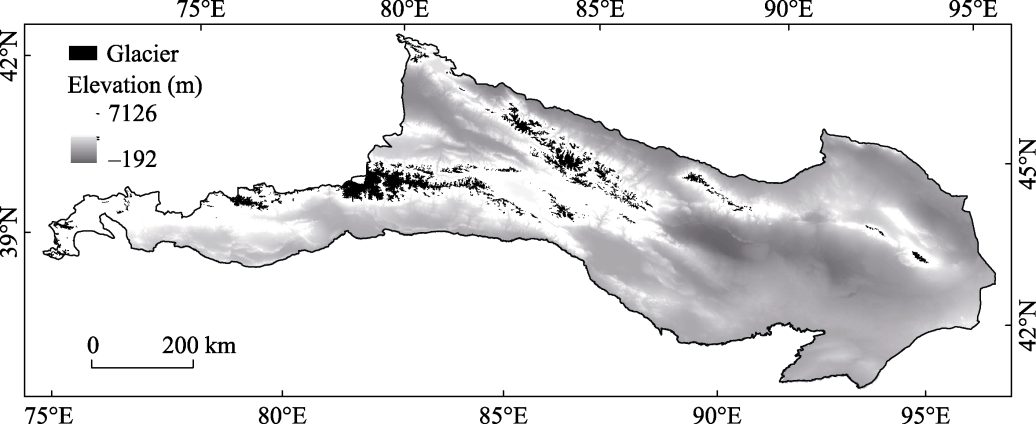

Figure 1

Table 1

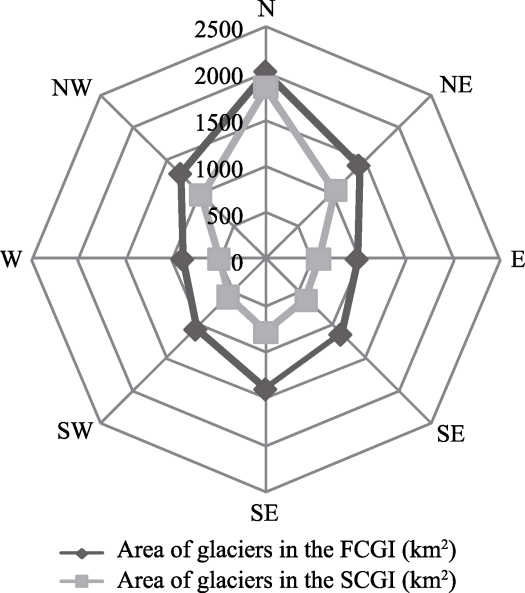

Figure 2

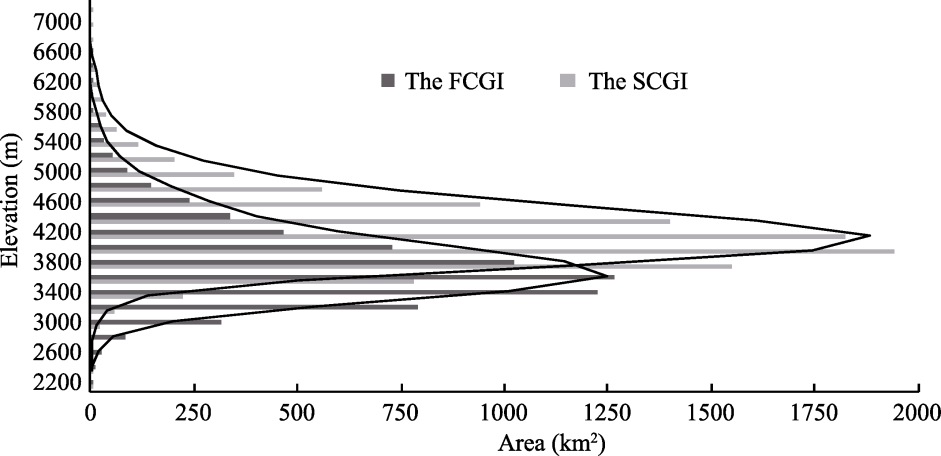

Figure 3

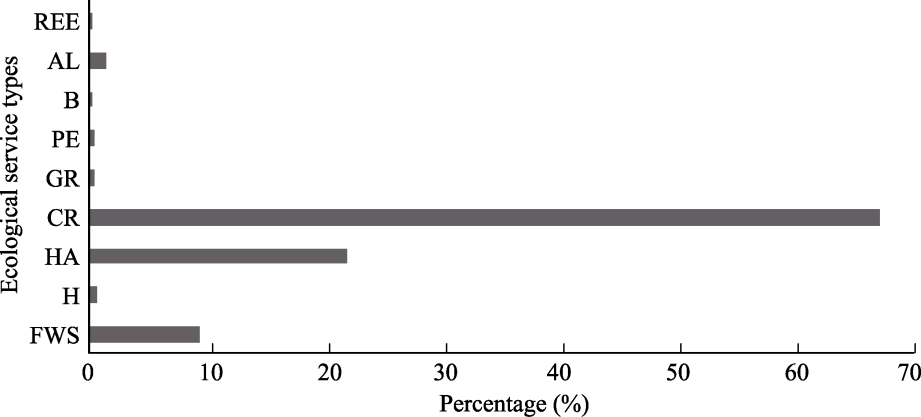

Figure 4

Table 2

References 34

[1]	Aizen V B, Aizen E M,Melack, J M, 1995. Climate, snoe cover, glaciers, and runoff in the Tienshan, Central Asia.Water Resources Bulletin, 31(6): 1113-1129. doi: 10.1111/j.1752-1688.1995.tb03426.x
[2]	Cai F, Zhu Q L, He H L et al., 2005. Estimation and spatio-temporal distribution of monthly mean surface albedo in China.Resources Science, 27(1): 114-120. (in Chinese)
[3]	Che T, Jin R, Li X et al., 2004. Glacial lakes variation and the potentially dangerous glacial lakes in the Pumqu Basin of Tibet during the last two decades.Journal of Glaciology and Geocryology, 26(4): 397-402. (in Chinese) doi: 10.1007/BF02873097
[4]	Duan K Q, Yao T D, Shi P H et al., 2017. Simulation and prediction of equilibrium line altitude of glaciers in the eastern Tibetan Plateau.Scientia Sinica Terrage, 47(1): 104-113. (in Chinese)
[5]	Hall D K, Bayr K J, Schner W et al., 2003. Consideration of the errors inherent in mapping historical glacier positions in Austria from ground and space (1893-2001).Remote Sensing of Environment, 86(4): 566-577. doi: 10.1016/S0034-4257(03)00134-2
[6]	Guo W, Liu S, Xu L et al., 2015. The second Chinese glacier inventory: Data, methods and results. Journal of Glaciology, 61(226): 357-372. doi: 10.3189/2015JoG14J209
[7]	Li J M, Zhang Y T, Bai Z Q et al., 2016. Assessment of service functions value of mountain forest ecosystem in Xinjiang Province, China.Journal of Southwest Forestry University, 36(4): 97-102. (in Chinese)
[8]	Li Q L, Wang N L, Wu X B et al., 2010. Sources and distribution of polycyclic aromatic hydrocarbons of different glaciers over the Tibetan Plateau.Science China: Earth China, 40(10): 1399-1409. (in Chinese) doi: 10.1007/s11430-010-4047-3
[9]	Li Y H, Zan L Y, Chen L Q, 2014. Advances in the study of methane in the Arctic Ocean.Advances in Earth Science, 29(12): 1355-1361. (in Chinese)
[10]	Li Z Q, Han T D, Jin Z F et al., 2003. Summary of 40-year observed variation facts of climate and Glacier No.1 at headwater of Urumqi River, Tianshan, China.Journal of Glaciology and Geocryology, 25(2): 117-123. (in Chinese)
[11]	Liu S Y, Yao X J, Guo W Q et al., 2015. The contemporary glaciers in China based on the Second Chinese Glacier Inventory.Acta Geographica Sinica, 71(1): 3-16. (in Chinese)
[12]	Mansur S, Nasima N, Arslan M, 2016. Analysis on the change of land uses/cover ecological service value in Tomur National Nature Reserve.Geographical Research, 35(11): 2116-2124. (in Chinese) doi: 10.11821/dlyj201611009
[13]	Margold M, Stokes C R, Clark C D, 2015. Ice streams in the Laurentide Ice Sheet: Identification, characteristics and comparison to modern ice sheets.Earth-Science Reviews, 143: 117-146. doi: 10.1016/j.earscirev.2015.01.011
[14]	Pieczonka T, Bolch T, 2015. Region-wide glacier mass budgets and area changes for the Central Tien Shan between similar to 1975 and 1999 using Hexagon KH-9 imagery.Global and Planetary Change, 128: 1-13. doi: 10.1016/j.gloplacha.2014.11.014
[15]	Shangguan D H, Liu S Y, Ding Y J et al., 2009. Glacier changes during the last forty years in the Tarim Interior River basin, Northwest China.Progress in Natural Science, 19(6): 727-732. doi: 10.1016/j.pnsc.2008.11.002
[16]	Shakun J D, Lea D W, Lisiecki L E et al., 2015. An 800-kyr record of global surface ocean delta O-18 and implications for ice volume-temperature coupling.Earth and Planetary Science Letters, 426: 58-68. doi: 10.1016/j.epsl.2015.05.042
[17]	Shi Y F, Liu S Y, 2000. Estimation on the response of glaciers in China to the global warming in the 21st century.Chinese Science Bulletin, 45(7): 668-672. doi: 10.1007/BF02886048
[18]	Stavi I, Bel G, Zaady E, 2016. Soil functions and ecosystem services in conventional, conservation, and integrated agricultural systems: A review.Agronomy for Sustainable Development, 36(2): 1-12. doi: 10.1007/s13593-015-0343-9
[19]	Song C, 2016. Spatial assessment of ecosystem functions and services for air purification of forests in South Korea.Environmental Science & Policy, 63: 27-34. doi: 10.1016/j.envsci.2016.05.005
[20]	Sorg A, Bolch T, Stoffel M et al., 2012. Climate change impacts on glaciers and runoff in Tien Shan (Central Asia).Nature Climate Change, 2(10): 725-731. doi: 10.1038/nclimate1592
[21]	Sun H L, Chen Y N, Li W H et al., 2011. Study on types and ecological services values of the grassland in the Ili River Basin, Xinjiang, China.Journal of Desert Research, 31(5): 1273-1277. (in Chinese) doi: 10.1016/S1671-2927(11)60313-1
[22]	Sun M P, Liu S Y, Yao X J et al., 2015. Glacier changes in the Qilian Mountains in the past half century: Based on the revised First and Second Chinese Glacier Inventory.Acta Geographica Sinica, 70(9): 1402-1414. (in Chinese) doi: 10.1007/s11442-018-1468-y
[23]	Sun Y F, Liu W Z, 2008. Evaluation on the service functional values of the wetland ecosystem in the Bosten Lake Basin, Xinjiang.Arid Zone Research, 25(5): 741-744. (in Chinese)
[24]	Tian R W, Cai X B, Maryamgul et al., 2015. Evaluation on ecosystem services of Xinjiang Aletai Kekesu Wetland Natural Reserve.Wetland Science, 13(4): 491-494. (in Chinese)
[25]	Wang M, Xu B, Cao J et al., 2015. Carbonaceous aerosols recorded in a southeastern Tibetan glacier: Analysis of temporal variations and model estimates of sources and radiative forcing.Atmospheric Chemistry and Physics, 15(3): 1191-1204. doi: 10.5194/acp-15-1191-2015
[26]	Wang S J, Zhang M J, Li Z Q et al., 2011. Response of glacier area variation to climate change in Chinese Tianshan Mountains in the past 50 years.Acta Geographica Sinica, 66(1): 38-46. (in Chinese)
[27]	Wang X H, Zhang Z Q, 2004. Effect of land-use change on ecosystem services value in Heihe river basin.Ecology and Environment, 24(4): 608-611. (in Chinese)
[28]	Xiao C D, Wang S J, Qin D H, 2016. A preliminary study on cryosphere service function and its value estimation. Climate Change Research, 12(1): 45-52. (in Chinese)
[29]	Xie G D, Zhang C X, Zhang L M et al., 2015. Improvement of the evaluation method for ecosystem service value based on per unit area.Journal of Natural Resources, 30(8): 1243-1254. (in Chinese)
[30]	Xie Z Y, Li W H, Xie Z J et al., 2011. Evaluation of the ecological service Ebinur Lake Wetland Nature Reserve.Arid Land Geography, 34(3): 532-540. (in Chinese) doi: 10.3724/SP.J.1011.2011.00421
[31]	Ye M, Xu H L, Wang X P et al., 2006. An assessment of the value and valuation of the grassland ecosystem in Xinjiang.Acta Prataculturae Sinica, 15(5): 122-128. (in Chinese) doi: 10.1360/aps040178
[32]	Zhang H F, Ouyang Z, Zheng H et al., 2009. Valuation of glacier ecosystem services in the Manas River Watershed Xinjiang.Acta Ecologica Sinica, 29(11): 5877-5881. (in Chinese)
[33]	Zhang S H,Hou S G, Qin X et al., 2014. Progress in research on resources of glacial microbiology.Environmental Science & Technology, 18(12): 62-67. (in Chinese)
[34]	Zhang Z Y, He X L, Liu L et al., 2015. Spatial distribution of rainfall simulation and the cause analysis in China's Tianshan Mountains area.Advances in Water Science, 26(4): 500-508. (in Chinese) doi: 10.14042/j.cnki.32.1309.2015.04.006

Service function		Service value (yuan/a)		Percentage (%)
First-class targets	Second-class targets	Unit-area functional price method	Functional price method	Percentage (%)
Supply service function	Freshwater supply	5.6×10⁹	2.4×10⁹	9.30
Supply service function	Hydropower	3.5×10⁸		0.58
Adjustment service function	Hydrological adjustment	1.3×10¹⁰	8.0×10⁹	21.58
	Climate regulation	4.0×10¹⁰	6.1×10⁸	66.40
	Gas regulation		2.0×10⁸	0.33
	Purification environment		1.8×10⁸	0.30
Support differentiated service functions	Biodiversity		1.1×10⁷	0.18
Culturalservice functions	Aesthetic landscape	7.8×10⁸	1.0×10⁸	1.29
Culturalservice functions	Scientific research and environmental education	1.9×10⁷		0.03
Total		6.0×10¹⁰	1.2×10¹⁰	100

Ecological service types of glacier	Percentage of service values (%)
Ecological service types of glacier	Glacier	Forest	Grassland	Wetland
Freshwater supply or production of goods	17.3	1.48	4.82-21.26	0.99-18.86
Hydropower	1.07	-	-	-
Hydrological adjustment or water conservation	23.4	44.16	11-13.54	32.79-82.92
Climate regulation	56.1	-	12.39	-
Gas regulation or carbon fixation and oxygen release	0.32	23.93	2.75-11	4.11-35.08
Purification environment or waste treatment	0.35	5.01	14.75-18.02	0.02-12.06
Biodiversity or habitats	0.02	20.38	8.61-15.00	0.63-37.03
Aesthetic landscape or recreational entertainment	1.4	-	0.55-2.55	0.58-0.91
Scientific research and environmental education or cultural value	0.03	-	2.90	7.54-9.13
