Estimation of maize yield incorporating the synergistic effect of climatic and land use change in Jilin, China

doi:10.1007/s11442-023-2150-6

Abstract

Abstract:

Yield forecasting can give early warning of food risks and provide solid support for food security planning. Climate change and land use change have direct influence on regional yield and planting area of maize, but few studies have examined their synergistic impact on maize production. In this study, we propose an analysis framework based on the integration of system dynamic (SD), future land use simulation (FLUS) and a statistical crop model to predict future maize yield variation in response to climate change and land use change in a phaeozem region of central Jilin province, China. The results show that the cultivated land is likely to reduce by 862.84 km² from 2030 to 2050. Nevertheless, the total maize yield is expected to increase under all four RCP scenarios due to the promotion of per hectare maize yield. Among the scenarios, RCP4.5 is the most beneficial to maize production, with a doubled total yield in 2050. Notably, the yield gap between different counties will be further widened, which necessitates the differentiated policies of agricultural production and farmland protection, e.g., strengthening cultivated land protection and crop management in low-yield areas, and taking adaptation and mitigation measures to coordinate climate change and production.

Key words: maize yield forecast, land use simulation, RCP scenarios, models

WEN Xinyuan, LIU Dianfeng, QIU Mingli, WANG Yinjie, NIU Jiqiang, LIU Yaolin. Estimation of maize yield incorporating the synergistic effect of climatic and land use change in Jilin, China[J].Journal of Geographical Sciences, 2023, 33(8): 1725-1746.

Figures/Tables 21

Figure 1

Table 1

Figure 2

Table 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Table 3

Figure 10

Figure A1

Figure A2

Figure A3

Figure A4

Figure A5

Table A1

Regression coefficients

Model	Unstandardized coefficient		t	Sig.
Model	B	Standard error	t	Sig.
(constant)	-6.226	7.759	-0.802	0.423
T	1.598	0.788	2.029	0.043
T²	-0.043	0.020	-2.163	0.031
P	0.006	0.003	2.254	0.025
P²	-2.622E-05	0.000	-2.146	0.032
machine	-0.006	0.001	-4.633	0.000
machine²	1.284E-04	0.000	3.153	0.002
SH	2.750E-04	8.02 E-04	0.342	0.732
Area=Dongfeng County	0.243	0.104	2.329	0.020
Area=Dongchang District	0.265	0.135	1.971	0.049
Area=Dongliao County	0.251	0.105	2.392	0.017
Area = Fengman District	0.095	0.115	0.821	0.412
Area=Jiutai City	0.035	0.104	0.342	0.733
Area = Erdao District	-0.409	0.102	-4.025	0.000
Area = Erdaojiang District	0.148	0.134	1.105	0.269
Area=Yitong County	0.267	0.102	2.623	0.009
Area=Gongzhuling City	0.652	0.105	6.212	0.000
Area=Nong'an County	0.431	0.105	4.085	0.000
Area = Nanguan District	-0.019	0.109	-0.173	0.863
Area=Shuangyang District	0.316	0.108	2.920	0.004
Area = Kuancheng District	-0.400	0.102	-3.920	0.000
Area=Dehui City	0.298	0.106	2.813	0.005
Area=Changyi District	0.092	0.103	0.888	0.375
Area=Chaoyang District	-0.106	0.113	-0.942	0.346
Area = Liuhe County	0.255	0.112	2.263	0.024
Area = Huadian City	-0.020	0.121	-0.167	0.867
Area=Meihekou City	0.087	0.104	0.834	0.405
(constant)	-6.226	7.759	-0.802	0.423
Area = Lishu County	0.724	0.105	6.916	0.000
Area = Elm City	0.313	0.104	3.019	0.003
Area=Yongji County	0.028	0.103	0.268	0.788
Area=Panshi City	0.106	0.103	1.024	0.306
Area = Green Park	0.055	0.119	0.461	0.645
Area = Shulan City	0.200	0.111	1.810	0.071
Area = Ship Camp Area	0.063	0.105	0.599	0.549
Area = Jiaohe City	0.102	0.116	0.877	0.381
Area = Xi'an District	-0.042	0.103	-0.412	0.680
Area=Huinan County	0.351	0.112	3.130	0.002
Area=Tonghua County	-0.051	0.110	-0.460	0.646
Area=Tiedong District	0.236	0.107	2.200	0.028
Area = Tiexi District	0.449	0.185	2.427	0.016
Area = Ji'an City	-0.098	0.109	-0.894	0.372
Area = Longshan District	-0.055	0.102	-0.538	0.591
Area=Longtan District	0.091	0.105	0.868	0.386

Table A1

Table A2

Table A3

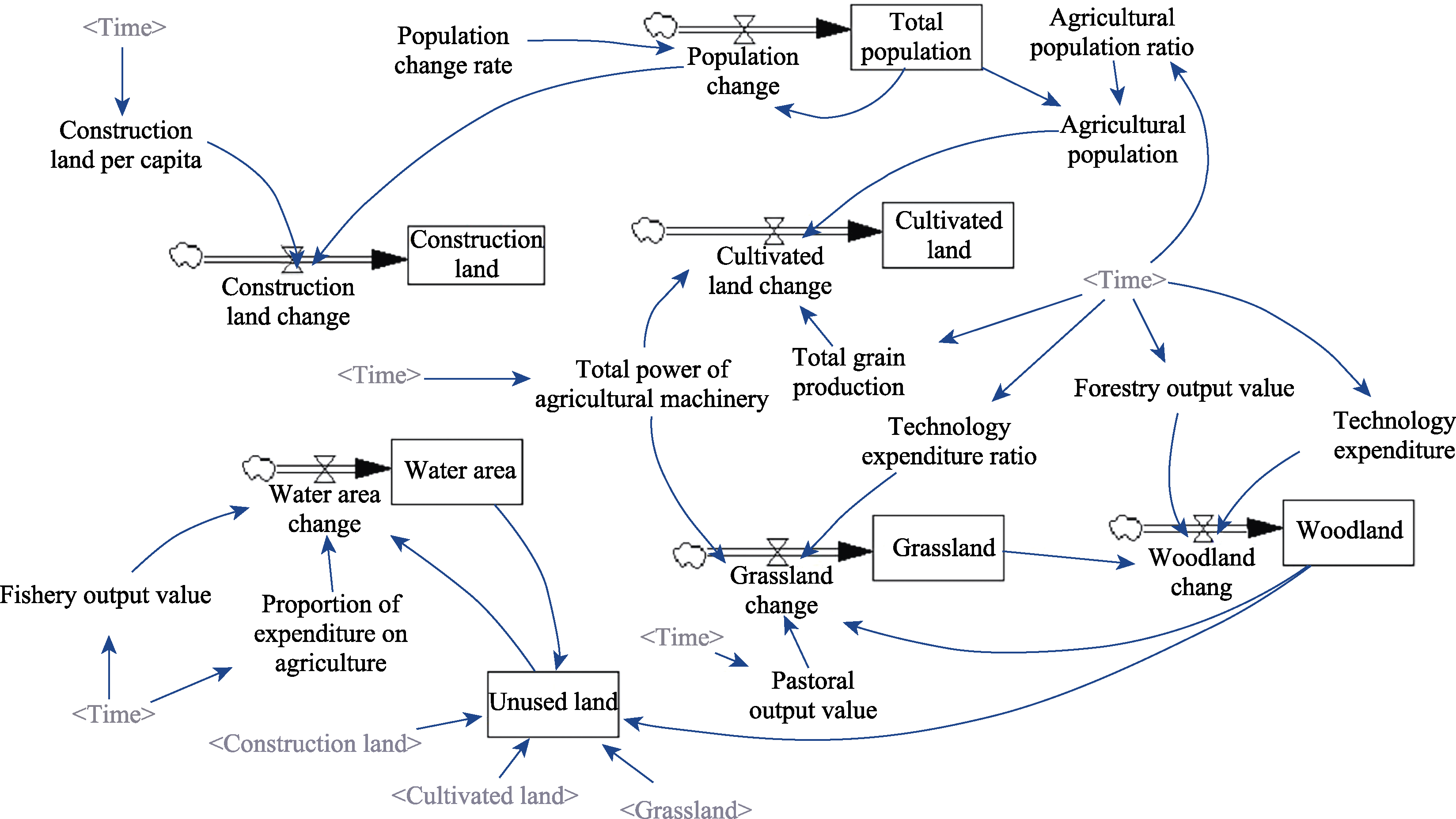

The relation functions used in the SD model

Dependent variable	Independent variable
Dependent variable	Changchun	Jilin		Siping	Liaoyuan	Tonghua
Population change	Population change rate ×Total population
Agricultural population	Agricultural population ratio ×Total population
Construction land change	Population change × Construction land per capita
Construction land per capita	0.02808×(Time-2015) + 2.36822
Total grain production	196696× (Time-2015) + 7.02149e+06	38568.5× (Time-2015)+ 3.61855e+06		223246× (Time-2015)+ 5.19641e+06	17327.5× (Time-2015) + 1.213e+06	17500.5× (Time-2015)+ 1.62026e+06
Technology expenditure ratio	6.5×(Time-2015)+ 0.009628	6.38×(Time-2015)+ 0.005389		76.109× (Time-2015)- 1977.53	27.5× (Time-2015) + 1.23277e+06	1.089×(Time-2015)+ 0.008784
Forestry output value	1977.86× (Time-2015) + 8967.88	6855.19× (Time-2015) + 32268.6		765.905× (Time-2015)+ 12584	2158.23× (Time-2015) - 2693.16	11005.8× (Time-2015) - 22992.2
Technology expenditure	7437.71× (Time-2015) - 17716.6	4166.49× (Time-2015) - 10044.6		761.109× (Time-2015) - 1977.53	804.273× (Time-2015)- 2886.62	5366.08× (Time-2015) - 20759.7
Pastoral output value	144195× (Time-2015)+ 1.15857e+06	138068× (Time-2015)+ 249054		213037× (Time-2015)+ 556231	38851.8× (Time-2015)+ 118363	31078.9× (Time-2015)+ 216560
Fishery output value	4235.14× (Time-2015) - 1124.15	6211.77× (Time-2015) + 38328.4		1548.15× (Time-2015)- 5607.55	611.483× (Time-2015) - 1412.13	3972.97× (Time-2015)+ 2054.63
Proportion of expenditure on agriculture	0.0027× (Time-2015) + 0.0395	0.0027× (Time-2015)+ 0.0395		-0.001092× (Time-2015)+ 0.129638	0.000930× (Time-2015)+ 0.0866	-0.001715× (Time-2015)+ 0.1312
Total power of agricultural machinery	21.428 × (Time-2015)+ 205.236	25.8394× (Time-2015)+ 63.2892		18.9625× (Time-2015)+ 81.9124	10.4513× (Time-2015) + 2.82133	6.58964× (Time-2015)+ 84.9691
Cultivated land change	-109.732+0.0976× Total power of agricultural machinery+ 0.195929× Agricultural population- 1.25146e-06× Total grain production	-108.152+0.0896× Total power of agricultural machinery+ 0.172859× Agricultural population-1.20816e-06× Total grain production		-107.362+0.0976×Total power of agricultural machinery+ 0.29653×Agricultural population+ 1.25146e-06× Total grain production	-45+0.0976×Total power of agricultural machinery+ 0.2× Agricultural population+ 1.25146e-06×Total grain production	-52.732+0.0976× Total power of agricultural machinery+ 0.195929× Agricultural population+ 1.25146e- 06×Total grain production
Water area change	0.4719-2.48582e-05 ×Fishery output value- 9.75115× Proportion of expenditure on agriculture- 0.0114061× Unused land	0.3287+2e-05× Fishery output value- 9.7× Proportion of expenditure on agriculture+ 0.014025×Unused land		0.2693+2e-05× Fishery output value- 9.67103× Proportion of expenditure on agriculture+ 0.0100651×Unused land	0.4+2e-05×Fishery output value- 9.35115×Proportion of expenditure on agriculture+ 0.01×Unused land	0.4178+2e-05× Fishery output value- 9.5115× Proportion of expenditure on agriculture+ 0.024551×Unused land
Grassland change	71.451-0.041978× Woodland -0.0281294×Total power of agricultural machinery+ 1.83056e-07×Pastoral output value-45.069× Technology expenditure ratio	69.451-0.004× Woodland + 0.0311575× Total power of agricultural machinery+ 1.83056e-07× Pastoral output value- 38.405× Technology expenditure ratio	70.895-0.04× Woodland +0.03× Total power of agricultural machinery+ 2.0056e-07× Pastoral output value+41.036× Technology expenditure ratio		64.589-0.035× Woodland + 0.0281294×Total power of agricultural machinery- 1.83056e-07× Pastoral output value-40.853× Technology expenditure ratio	75.186-0.0066× Woodland -0.028× Total power of agricultural machinery-1.8e-07× Pastoral output value+10.853× Technology expenditure ratio
Woodland change	52.0559-0.096× Grassland+ 0.000108421× Forestry output value+ 0.0001×Technology expenditure	46.0559-0.096× Grassland+ 0.000108421× Forestry output value+ 0.0001× Technology expenditure	32.0559-0.097× Grassland- 0.000108421× Forestry output value+0.0001× Technology expenditure		28-0.1×Grassland- 0.00011×Forestry output value +0.001× Technology expenditure	40.0559-0.0966744×Grassland- 0.000108421× Forestry output value- 0.0001× Technology expenditure
Unused land	20528-Cultivated land-Grassland- Woodland -Water area- Construction land	27782.1-Cultivated land-Grassland- Woodland -Water area- Construction land	14355.2-Cultivated land-Grassland- Woodland -Water area- Construction land		5144.74-Cultivated land-Grassland- Woodland -Water area- Construction land	15568.6-Cultivated land-Grassland- Woodland -Water area- Construction land

Table A3

References 87

[1]	Abate M C, Kuang Y-P, 2021. The impact of the supply of farmland, level of agricultural mechanisation, and supply of rural labour on grain yields in China. Studies in Agricultural Economics, 123(1): 33-42.
[2]	Akhtar M K, Wibe J, Simonovic S P et al., 2013. Integrated assessment model of society-biosphere-climate-economy-energy system. Environmental Modelling & Software, 49: 1-21.
[3]	Akpoti K, Kabo-bah A T, Zwart S J, 2019. Agricultural land suitability analysis: State-of-the-art and outlooks for integration of climate change analysis. Agricultural Systems, 173: 172-208. doi: 10.1016/j.agsy.2019.02.013
[4]	Altieri M A, Nicholls C I, 2017. The adaptation and mitigation potential of traditional agriculture in a changing climate. Climatic Change, 140(1): 33-45. doi: 10.1007/s10584-013-0909-y
[5]	Archontoulis S V, Miguez F E, Moore K J, 2014. Evaluating APSIM maize, soil water, soil nitrogen, manure, and soil temperature modules in the Midwestern United States. Agronomy Journal, 106(3): 1025-1040. doi: 10.2134/agronj2013.0421
[6]	Asseng S, Ewert F, Rosenzweig C et al., 2013. Uncertainty in simulating wheat yields under climate change. Nature Climate Change, 3(9): 827-832. doi: 10.1038/nclimate1916
[7]	Banakara K B, Pandya H R, Garde Y A, 2019. Pre-harvest forecast of kharif rice yield using PCA and MLR technique in Naysari district of Gujarat. Journal of Agrometeorology, 21(3): 336-343. doi: 10.54386/jam.v21i3
[8]	Basse R M, Omrani H, Charif O et al., 2014. Land use changes modelling using advanced methods - Cellular automata and artificial neural networks: The spatial and explicit representation of land cover dynamics at the cross-border region scale. Applied Geography, 53: 160-171. doi: 10.1016/j.apgeog.2014.06.016
[9]	Basso B, Liu L, 2019. Seasonal crop yield forecast: Methods, applications, and accuracies. Advances in Agronomy, 154: 201-255. doi: 10.1016/bs.agron.2018.11.002
[10]	Basso B, Liu L, Ritchie J T, 2016. A comprehensive review of the CERES-wheat, -maize and -rice models’ performances. Advances in Agronomy, 136: 27-132.
[11]	Camberlin P, Diop M, 1999. Inter-relationships between groundnut yield in Senegal, interannual rainfall variability and sea-surface temperatures. Theoretical and Applied Climatology, 63(3/4): 163-181. doi: 10.1007/s007040050101
[12]	Chen C Q, Lei C X, Deng A X et al., 2011. Will higher minimum temperatures increase corn production in Northeast China? An analysis of historical data over 1965-2008. Agricultural and Forest Meteorology, 151(12): 1580-1588. doi: 10.1016/j.agrformet.2011.06.013
[13]	Diaz-Zorita M, Buschiazzo D E, Peinemann N, 1999. Soil organic matter and wheat productivity in the semiarid argentine pampas. Agronomy Journal, 91(2): 276-279. doi: 10.2134/agronj1999.00021962009100020016x
[14]	Feng S, Hao Z, Zhang X et al., 2021. Changes in climate-crop yield relationships affect risks of crop yield reduction. Agricultural and Forest Meteorology, 304: 108401.
[15]	Foulkes M J, Slafer G A, Davies W J et al., 2011. Raising yield potential of wheat (III): Optimizing partitioning to grain while maintaining lodging resistance. Journal of Experimental Botany, 62(2): 469-486. doi: 10.1093/jxb/erq300 pmid: 20952627
[16]	Gao J, Liu L, Guo L et al., 2023. The effects of climate change and phenological variation on agricultural production and its risk pattern in the black soil area of northeast China. Journal of Geographical Sciences, 33(1): 37-58. doi: 10.1007/s11442-023-2073-2
[17]	Gao J Q, Yang X G, Zheng B Y et al., 2020. Does precipitation keep pace with temperature in the marginal double-cropping area of northern China? European Journal of Agronomy, 120: 126126. doi: 10.1016/j.eja.2020.126126
[18]	Giri A K, Bhan M, Agrawal K K, 2017. Districtwise wheat and rice yield predictions using meteorological variables in eastern Madhya Pradesh. Journal of Agrometeorology, 19(4): 366-368. doi: 10.54386/jam.v19i4
[19]	Grassini P, Yang H S, Cassman K G, 2009. Limits to maize productivity in Western Corn-Belt: A simulation analysis for fully irrigated and rainfed conditions. Agricultural and Forest Meteorology, 149(8): 1254-1265. doi: 10.1016/j.agrformet.2009.02.012
[20]	He Y, Liang H, Hu K L et al., 2018. Modeling nitrogen leaching in a spring maize system under changing climate and genotype scenarios in arid Inner Mongolia, China. Agricultural Water Management, 210: 316-323. doi: 10.1016/j.agwat.2018.08.017
[21]	Hengl T, de Jesus J M, Heuvelink G B M et al., 2017. SoilGrids250m: Global gridded soil information based on machine learning. Plos One, 12(2): e0169748. doi: 10.1371/journal.pone.0169748
[22]	Hou R, Li H, 2021. Spatial-temporal change and coupling coordination characteristics of land use functions in Wuhan City: Based on the comparison before and after the resource-economical and environment-friendly society experimental zone establishment. China Land Science, 35(1): 69-78. (in Chinese)
[23]	Huang J, Tang Z, Liu D et al., 2020. Ecological response to urban development in a changing socio-economic and climate context: Policy implications for balancing regional development and habitat conservation. Land Use Policy, 97: 104772. doi: 10.1016/j.landusepol.2020.104772
[24]	Huang J Y, Hartemink A E, Kucharik C J, 2021. Soil-dependent responses of US crop yields to climate variability and depth to groundwater. Agricultural Systems, 190: 103085.
[25]	Iglesias A, Garrote L, 2015. Adaptation strategies for agricultural water management under climate change in Europe. Agricultural Water Management, 155: 113-124. doi: 10.1016/j.agwat.2015.03.014
[26]	Jiang R, He W T, He L et al., 2021. Modelling adaptation strategies to reduce adverse impacts of climate change on maize cropping system in Northeast China. Scientific Reports, 11(1): 810. doi: 10.1038/s41598-020-79988-3 pmid: 33436721
[27]	Kang Y H, Ozdogan M, Zhu X J et al., 2020. Comparative assessment of environmental variables and machine learning algorithms for maize yield prediction in the US Midwest. Environmental Research Letters, 15(6): 064005.
[28]	Knutti R, 2014. IPCC Working Group I AR5 snapshot: The rcp26 experiment. Retrieved from: https://doi.org/10.1594/WDCC/ETHr2.
[29]	Kolotii A, Kussul N, Shelestov A et al., 2015. Comparison of biophysical and satellite predictors for wheat yield forecasting in Ukraine. 36th International Symposium on Remote Sensing of Environment, 47(w3): 39-44.
[30]	Kowalik W, Dabrowska-Zielinska K, Meroni M et al., 2014. Yield estimation using SPOT-VEGETATION products: A case study of wheat in European countries. International Journal of Applied Earth Observation and Geoinformation, 32: 228-239. doi: 10.1016/j.jag.2014.03.011
[31]	Kriegler E, Edmonds J, Hallegatte S et al., 2014. A new scenario framework for climate change research: The concept of shared climate policy assumptions. Climatic Change, 122(3): 401-414. doi: 10.1007/s10584-013-0971-5
[32]	Laudien R, Schauberger B, Makowski D et al., 2020. Robustly forecasting maize yields in Tanzania based on climatic predictors. Scientific Reports, 10(1): 19650. doi: 10.1038/s41598-020-76315-8 pmid: 33184303
[33]	Leng G, Hall J W, 2020. Predicting spatial and temporal variability in crop yields: An inter-comparison of machine learning, regression and process-based models. Environmental Research Letters, 15(4): 044027. doi: 10.1088/1748-9326/ab7b24
[34]	Li E, Zhao J, Pullens J W M et al., 2022. The compound effects of drought and high temperature stresses will be the main constraints on maize yield in Northeast China. Science of the Total Environment, 812: 152461. doi: 10.1016/j.scitotenv.2021.152461
[35]	Li X, Chen G Z, Liu X P et al., 2017. A new global land-use and land-cover change product at a 1-km resolution for 2010 to 2100 based on human-environment interactions. Annals of the American Association of Geographers, 107(5): 1040-1059. doi: 10.1080/24694452.2017.1303357
[36]	Li Y, Conway D, Xiong W et al., 2011. Effects of climate variability and change on Chinese agriculture: A review. Climate Research, 50(1): 83-102. doi: 10.3354/cr01038
[37]	Li Y, Hu Z, Wang X et al., 2020. Characterization of a polysaccharide with antioxidant and anti-cervical cancer potentials from the corn silk cultivated in Jilin province. International Journal of Biological Macromolecules, 155: 1105-1113. doi: S0141-8130(19)36743-1 pmid: 31712136
[38]	Li Z, Tan J, Tang P et al., 2016. Spatial distribution of maize in response to climate change in northeast China during 1980-2010. Journal of Geographical Sciences, 26(1): 3-14. doi: 10.1007/s11442-016-1250-y
[39]	Liang S, Zhang X B, Sun N et al., 2019. Modeling crop yield and nitrogen use efficiency in wheat and maize production systems under future climate change. Nutrient Cycling in Agroecosystems, 115(1): 117-136. doi: 10.1007/s10705-019-10013-4
[40]	Lin Y M, Wu W X, Ge Q S, 2015. CERES-Maize model-based simulation of climate change impacts on maize yields and potential adaptive measures in Heilongjiang province, China. Journal of the Science of Food and Agriculture, 95(14): 2838-2849. doi: 10.1002/jsfa.7024 pmid: 25428548
[41]	Liu X, Liang X, Li X et al., 2017. A future land use simulation model (FLUS) for simulating multiple land use scenarios by coupling human and natural effects. Landscape and Urban Planning, 168: 94-116. doi: 10.1016/j.landurbplan.2017.09.019
[42]	Liu Y, Ren H L, Klingaman N P et al., 2021. Improving long-lead seasonal forecasts of precipitation over Southern China based on statistical downscaling using BCC_CSM1.1m. Dynamics of Atmospheres and Oceans, 94: 101222. doi: 10.1016/j.dynatmoce.2021.101222
[43]	Lobell D B, Burke M B, 2010. On the use of statistical models to predict crop yield responses to climate change. Agricultural and Forest Meteorology, 150(11): 1443-1452. doi: 10.1016/j.agrformet.2010.07.008
[44]	Lobell D B, Schlenker W, Costa-Roberts J, 2011. Climate trends and global crop production since 1980. Science, 333(6042): 616-620. doi: 10.1126/science.1204531 pmid: 21551030
[45]	Loboguerrero A M, Campbell B M, Cooper P J M et al., 2019. Food and earth systems: Priorities for climate change adaptation and mitigation for agriculture and food systems. Sustainability, 11(5): 1372. doi: 10.3390/su11051372
[46]	Malik M A, Wani A H, Mir S H et al., 2021. Elucidating the role of silicon in drought stress tolerance in plants. Plant Physiology and Biochemistry, 165: 187-195. doi: 10.1016/j.plaphy.2021.04.021 pmid: 34049031
[47]	Manatsa D, Nyakudya I W, Mukwada G et al., 2011. Maize yield forecasting for Zimbabwe farming sectors using satellite rainfall estimates. Natural Hazards, 59(1): 447-463. doi: 10.1007/s11069-011-9765-0
[48]	Morugan-Coronado A, Perez-Rodriguez P, Insolia E et al., 2022. The impact of crop diversification, tillage and fertilization type on soil total microbial, fungal and bacterial abundance: A worldwide meta-analysis of agricultural sites. Agriculture Ecosystems & Environment, 329: 107867. doi: 10.1016/j.agee.2022.107867
[49]	Murchie E H, Niyogi K K, 2011. Manipulation of photoprotection to improve plant photosynthesis. Plant Physiology, 155(1): 86-92. doi: 10.1104/pp.110.168831 pmid: 21084435
[50]	Mustafa A, Heppenstall A, Omrani H et al., 2018. Modelling built-up expansion and densification with multinomial logistic regression, cellular automata and genetic algorithm. Computers Environment and Urban Systems, 67: 147-156. doi: 10.1016/j.compenvurbsys.2017.09.009
[51]	Ning J, Liu J, Kuang W et al., 2018. Spatiotemporal patterns and characteristics of land-use change in China during 2010-2015. Journal of Geographical Sciences, 28(5): 547-562. doi: 10.1007/s11442-018-1490-0
[52]	O'Neill B C, Kriegler E, Riahi K et al., 2014. A new scenario framework for climate change research: The concept of shared socioeconomic pathways. Climatic Change, 122(3): 387-400. doi: 10.1007/s10584-013-0905-2
[53]	Olesen J E, Trnka M, Kersebaum K C et al., 2011. Impacts and adaptation of European crop production systems to climate change. European Journal of Agronomy, 34(2): 96-112. doi: 10.1016/j.eja.2010.11.003
[54]	Pan Z, He J, Liu D et al., 2020. Predicting the joint effects of future climate and land use change on ecosystem health in the Middle Reaches of the Yangtze River Economic Belt, China. Applied Geography, 124: 102293. doi: 10.1016/j.apgeog.2020.102293
[55]	Peng S S, Piao S L, Ciais P et al., 2013. Asymmetric effects of daytime and night-time warming on Northern Hemisphere vegetation. Nature, 501(7465): 88. doi: 10.1038/nature12434
[56]	Peralta N R, Assefa Y, Du J et al., 2016. Mid-season high-resolution satellite imagery for forecasting site-specific corn yield. Remote Sensing, 8(10): 848. doi: 10.3390/rs8100848
[57]	Pontius R G, Boersma W, Castella J C et al., 2008. Comparing the input, output, and validation maps for several models of land change. Annals of Regional Science, 42(1): 11-37. doi: 10.1007/s00168-007-0138-2
[58]	Poornima S, Pushpalatha M, 2019. Prediction of rainfall using intensified LSTM based recurrent neural network with weighted linear units. Atmosphere, 10(11): 668. doi: 10.3390/atmos10110668
[59]	Pu L M, Zhang S W, Yang J H et al., 2020. Assessing the impact of climate changes on the potential yields of maize and paddy rice in Northeast China by 2050. Theoretical and Applied Climatology, 140(1/2): 167-182. doi: 10.1007/s00704-019-03081-7
[60]	Rao A, Chandran M A S, Bal S K et al., 2022. Evaluating area-specific adaptation strategies for rainfed maize under future climates of India. Science of the Total Environment, 836: 155511. doi: 10.1016/j.scitotenv.2022.155511
[61]	Rojas O, 2007. Operational maize yield model development and validation based on remote sensing and agro-meteorological data in Kenya. International Journal of Remote Sensing, 28(17): 3775-3793. doi: 10.1080/01431160601075608
[62]	Rojas-Downing M M, Nejadhashemi A P, Harrigan T et al., 2017. Climate change and livestock: Impacts, adaptation, and mitigation. Climate Risk Management, 16: 145-163. doi: 10.1016/j.crm.2017.02.001
[63]	Rotz S, Gravely E, Mosby I et al., 2019. Automated pastures and the digital divide: How agricultural technologies are shaping labour and rural communities. Journal of Rural Studies, 68: 112-122. doi: 10.1016/j.jrurstud.2019.01.023
[64]	Rutgersson A, Kjellstrom E, Haapala J et al., 2022. Natural hazards and extreme events in the Baltic Sea region. Earth System Dynamics, 13(1): 251-301. doi: 10.5194/esd-13-251-2022
[65]	Sakamoto T, 2020. Incorporating environmental variables into a MODIS-based crop yield estimation method for United States corn and soybeans through the use of a random forest regression algorithm. Isprs Journal of Photogrammetry and Remote Sensing, 160: 208-228. doi: 10.1016/j.isprsjprs.2019.12.012
[66]	Shan Y, Huang Q, Guan D et al., 2020. China CO₂ emission accounts 2016-2017. Scientific Data, 7(1): 54. doi: 10.1038/s41597-020-0393-y
[67]	Sharma L K, Bali S K, Dwyer J D et al., 2017. A case study of improving yield prediction and sulfur deficiency detection using optical sensors and relationship of historical potato yield with weather data in maine. Sensors, 17(5): 1095. doi: 10.3390/s17051095
[68]	Shi W, Tao F, Zhang Z, 2013. A review on statistical models for identifying climate contributions to crop yields. Journal of Geographical Sciences, 23(3): 567-576. doi: 10.1007/s11442-013-1029-3
[69]	Tripathy R, Chaudhari K N, Mukherjee J et al., 2013. Forecasting wheat yield in Punjab state of India by combining crop simulation model WOFOST and remotely sensed inputs. Remote Sensing Letters, 4(1): 19-28. doi: 10.1080/2150704X.2012.683117
[70]	Urban D, Roberts M J, Schlenker W et al., 2012. Projected temperature changes indicate significant increase in interannual variability of U.S. maize yields. Climatic Change, 112(2): 525-533. doi: 10.1007/s10584-012-0428-2
[71]	van Vuuren D P, Carter T R, 2014. Climate and socio-economic scenarios for climate change research and assessment: Reconciling the new with the old. Climatic Change, 122(3): 415-429. doi: 10.1007/s10584-013-0974-2
[72]	Vancutsem C, Marinho E, Kayitakire F et al., 2013. Harmonizing and combining existing land cover/land use datasets for cropland area monitoring at the African continental scale. Remote Sensing, 5(1): 19-41. doi: 10.3390/rs5010019
[73]	Vermeulen S J, Aggarwal P K, Ainslie A et al., 2012. Options for support to agriculture and food security under climate change. Environmental Science & Policy, 15(1): 136-144.
[74]	Wang X H, Peng L Q, Zhang X P et al., 2014. Divergence of climate impacts on maize yield in Northeast China. Agriculture Ecosystems & Environment, 196: 51-58. doi: 10.1016/j.agee.2014.06.009
[75]	Wang Y P, Chang K W, Chen R K et al., 2010. Large-area rice yield forecasting using satellite imageries. International Journal of Applied Earth Observation and Geoinformation, 12(1): 27-35. doi: 10.1016/j.jag.2009.09.009
[76]	Wang Z M, Song K S, Li X Y et al., 2007. Effects of climate change on yield of maize in maize zone of Songnen Plain in the past 40 years. Arid Zone Resources and Environment, (9): 112-117. (in Chinese)
[77]	Wu T W, Yu R C, Zhang F et al., 2010. The Beijing Climate Center atmospheric general circulation model: Description and its performance for the present-day climate. Climate Dynamics, 34(1): 123-147. doi: 10.1007/s00382-008-0487-2
[78]	Xie W, Huang J K, Wang J X et al., 2020. Climate change impacts on China’s agriculture: The responses from market and trade. China Economic Review, 62: 101256. doi: 10.1016/j.chieco.2018.11.007
[79]	Yang H, Huang J L, Liu D F, 2020. Linking climate change and socioeconomic development to urban land use simulation: Analysis of their concurrent effects on carbon storage. Applied Geography, 115: 102135. doi: 10.1016/j.apgeog.2019.102135
[80]	Yang Q, Shi L, Han J et al., 2019. Deep convolutional neural networks for rice grain yield estimation at the ripening stage using UAV-based remotely sensed images. Field Crops Research, 235: 142-153. doi: 10.1016/j.fcr.2019.02.022
[81]	Yang X, Lin E, Ma S M et al., 2007. Adaptation of agriculture to warming in Northeast China. Climatic Change, 84(1): 45-58. doi: 10.1007/s10584-007-9265-0
[82]	Yin X G, Jabloun M, Olesen J E et al., 2016. Effects of climatic factors, drought risk and irrigation requirement on maize yield in the Northeast Farming Region of China. Journal of Agricultural Science, 154(7): 1171-1189.
[83]	Yu D, Hu S, Tong L et al., 2020. Spatiotemporal dynamics of cultivated land and its influences on grain production potential in Hunan province, China. Land, 9(12): 510. doi: 10.3390/land9120510
[84]	Zhang H B, Qi Y, 2010. Strategic thinking on low-carbon economy development in China: The example of Beijing-Tianjin-Hebei economic circle. China Population· Resources and Environment, 20(5): 6-11. (in Chinese)
[85]	Zhang P, Yang Q, Zhao Y, 2012. Relationship between social economic agglomeration and labor productivity of core cities in Northeast China. Chinese Geographical Science, 22(2): 221-231. doi: 10.1007/s11769-012-0522-4
[86]	Zhang Y Q, Liu H P, Qi J Y et al., 2023. Assessing impacts of global climate change on water and food security in the black soil region of Northeast China using an improved SWAT-CO₂ model. Science of the Total Environment, 857: 159482. doi: 10.1016/j.scitotenv.2022.159482
[87]	Zhong L H, Hu L N, Zhou H, 2019. Deep learning based multi-temporal crop classification. Remote Sensing of Environment, 221: 430-443. doi: 10.1016/j.rse.2018.11.032

Data	Data type	Original spatial resolution	Temporal coverage	Data source
Expenditure and production value of agriculture, forestry, animal husbandry and fishery	Excel	N/A	2000-2015	Jilin Province Statistical Yearbook
Total mechanical power, total grain production
The proportion of urban population, total urban and rural population
Science and technology expenditure
County-level maize yield data
Historical climate data			2000-2015	http://data.cma.cn/
Annual precipitation and annual average temperature	NetCDF	1.125°	2006-2100	https://doi.org/10.1594/WDCC/ETHr2
Land use map	TIFF	30 m	2000-2015	http://data.casearth.cn/
Spatial distribution of GDP		1 km	2000, 2015	http://www.resdc.cn/
Spatial distribution of population density		1 km
DEM		30 m
Road network	shapefile	N/A		https://www.openstreetmap.org/
Administrative boundary	shapefile	N/A	2015	http://www.resdc.cn/

Scenarios		Growth rate
RCP2.6	Level	High
RCP2.6	Growth rate	+7%
RCP4.5	Level	Relatively high
RCP4.5	Growth rate	+5%
RCP6.0	Level	Moderate
RCP6.0	Growth rate	+3%
RCP8.5	Level	Low
RCP8.5	Growth rate	0

Scenarios	2030 (megatons)	Change rate 2011-2030 (%)	2050 (megatons)	Change rate 2030-2050 (%)
RCP2.6	24.02	38.61	54.03	124.92
RCP4.5	23.50	35.61	58.52	149.01
RCP6.0	22.54	30.03	55.93	148.19
RCP8.5	20.50	18.28	53.50	161.00

Region	$Var\left( \log \left( \epsilon \right) \right)$	Region	$Var\left( \log \left( \epsilon \right) \right)$
Changyi District	0.025572075	Liuhe County	0.044541441
Chaoyang District	0.195618882	Yongsan District	0.088251022
Ship Camp Area	0.014275893	Longtan District	0.019158748
Dehui	0.033632781	Green Park	0.249584034
Dongchang District	0.014318566	Meihekou	0.009294256
Dongfeng County	0.026302486	Nanguan District	0.14462959
Dongliao County	0.049171297	Nong'an County	0.011689685
Erdaojiang District	0.031237137	rock city	0.01400162
Erdao District	0.431996676	Shulan	0.01074008
plump area	0.048536536	Shuangliao	0.038542727
Gongzhuling	0.010237088	Shuangyang District	0.072074432
Huadian	0.026221195	Tiedong District	0.039590128
Huinan County	0.070030835	Tiexi District	0.079287917
Ji'an	0.023745877	Tonghua County	0.011766734
Jiaohe	0.046481507	Xi'an District	0.344605244
Jiutai District	0.0508169	Yitong County	0.071153589
Kuancheng District	0.28749462	Yongji County	0.043845527
Lishu County	0.030609236	Elm City	0.012829379
