Spatio-temporal variations and influencing factors of energy-related carbon emissions for Xinjiang cities in China based on time-series nighttime light data

doi:10.1007/s11442-022-2028-z

Abstract

Abstract:

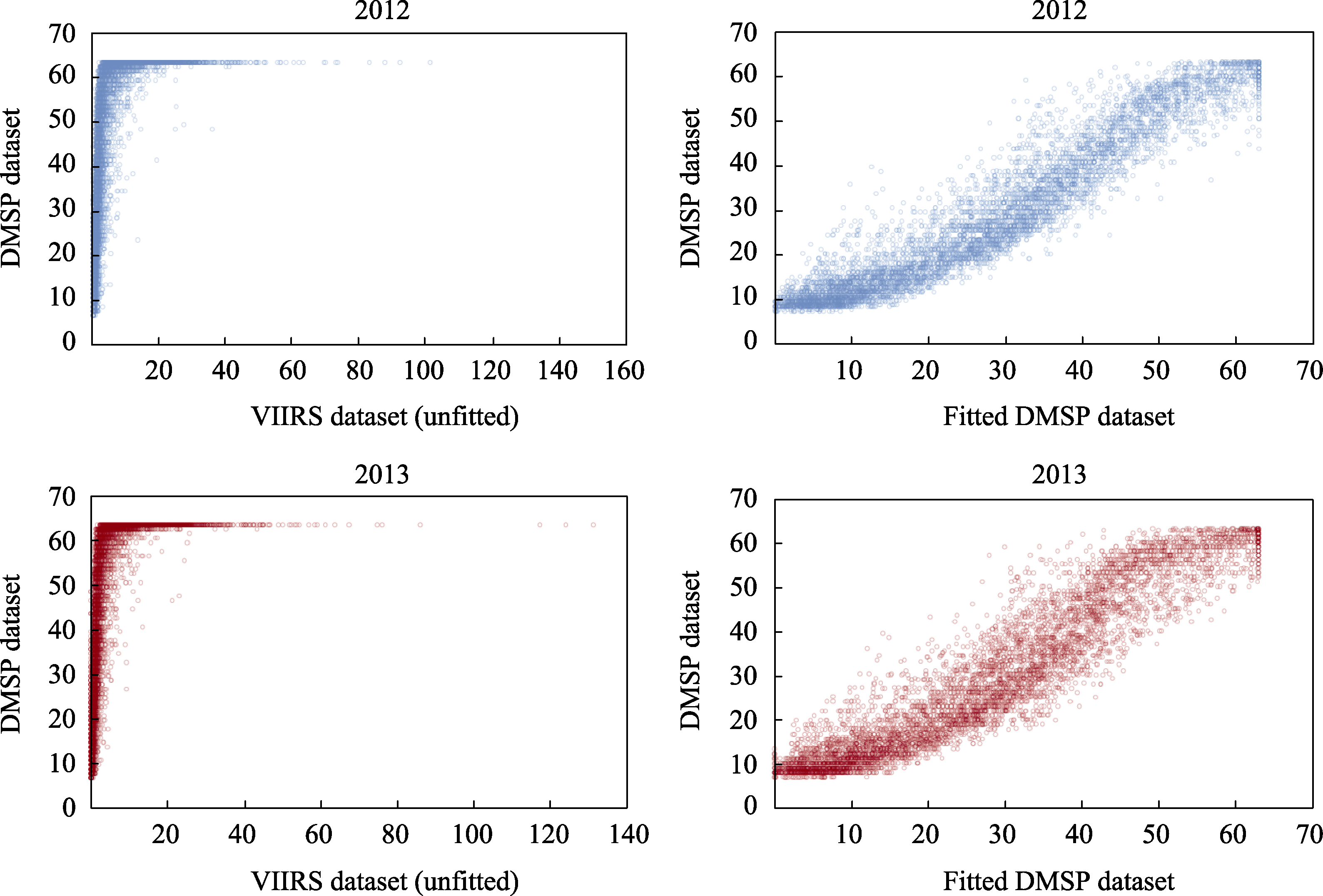

This essay combines the Defense Meteorological Satellite Program Operational Linescan System (DMSP-OLS) nighttime light data and the Visible Infrared Imaging Radiometer Suite (VIIRS) nighttime light data into a “synthetic DMSP” dataset, from 1992 to 2020, to retrieve the spatio-temporal variations in energy-related carbon emissions in Xinjiang, China. Then, this paper analyzes several influencing factors for spatial differentiation of carbon emissions in Xinjiang with the application of geographical detector technique. Results reveal that (1) total carbon emissions continued to grow, while the growth rate slowed down in the past five years. (2) Large regional differences exist in total carbon emissions across various regions. Total carbon emissions of these regions in descending order are the northern slope of the Tianshan (Mountains) > the southern slope of the Tianshan > the three prefectures in southern Xinjiang > the northern part of Xinjiang. (3) Economic growth, population size, and energy consumption intensity are the most important factors of spatial differentiation of carbon emissions. The interaction between economic growth and population size as well as between economic growth and energy consumption intensity also enhances the explanatory power of carbon emissions’ spatial differentiation. This paper aims to help formulate differentiated carbon reduction targets and strategies for cities in different economic development stages and those with different carbon intensities so as to achieve the carbon peak goals in different steps.

Key words: carbon emissions, nighttime light data, spatio-temporal variations, influencing factors, Xinjiang

ZHANG Li, LEI Jun, WANG Changjian, WANG Fei, GENG Zhifei, ZHOU Xiaoli. Spatio-temporal variations and influencing factors of energy-related carbon emissions for Xinjiang cities in China based on time-series nighttime light data[J].Journal of Geographical Sciences, 2022, 32(10): 1886-1910.

Figures/Tables 17

Figure 1

Figure 2

Figure 3

Figure 4

Table 1

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Table 2

Table 3

References 44

[1]	Chen J, Gao M, Cheng S et al., 2020. County-level CO₂ emissions and sequestration in China during 1997-2017. Scientific Data, 7(1): 1-12. doi: 10.1038/s41597-019-0340-y
[2]	Cui C, Shan Y, Liu J et al., 2019. CO₂ emissions and their spatial patterns of Xinjiang cities in China. Applied Energy, 252: 113473. doi: 10.1016/j.apenergy.2019.113473
[3]	Elvidge C D, Baugh K, Zhizhin M et al., 2017. VIIRS night-time lights. International Journal of Remote Sensing, 38(21): 5860-5879. doi: 10.1080/01431161.2017.1342050
[4]	Friedlingstein P, O'Sullivan M, Jones M W et al., 2020. Global Carbon Budget 2020. Earth System Science Data, 12(4): 3269-3340. doi: 10.5194/essd-12-3269-2020
[5]	Guan D, Hubacek K, Weber C L et al., 2008. The drivers of Chinese CO₂ emissions from 1980 to 2030. Global Environmental Change, 18(4): 626-634. doi: 10.1016/j.gloenvcha.2008.08.001
[6]	Han M, Yao Q, Lao J et al., 2020. China’s intra- and inter-national carbon emission transfers by province: A nested network perspective. Science China Earth Sciences, 63(6): 852-864. doi: 10.1007/s11430-019-9598-3
[7]	Han M, Yao Q, Liu W et al., 2018. Tracking embodied carbon flows in the Belt and Road regions. Journal of Geographical Sciences, 28(9): 1263-1274. doi: 10.1007/s11442-018-1524-7
[8]	Hausfather Z, Peters G P, 2020. Emissions: The ‘business as usual’ story is misleading. Nature, 577(7792): 618-620. doi: 10.1038/d41586-020-00177-3
[9]	Li X, Li D, Xu H et al., 2017. Intercalibration between DMSP/OLS and VIIRS night-time light images to evaluate city light dynamics of Syria’s major human settlement during Syrian Civil War. International Journal of Remote Sensing, 38(21): 5934-5951. doi: 10.1080/01431161.2017.1331476
[10]	Liu Y, Yan B, Zhou Y, 2016. Urbanization, economic growth, and carbon dioxide emissions in China: A panel cointegration and causality analysis. Journal of Geographical Sciences, 26(2): 131-152. doi: 10.1007/s11442-016-1259-2
[11]	Liu Z, Guan D, Moore S et al., 2015a. Climate policy: Steps to China’s carbon peak. Nature, 522(7556): 279-281. doi: 10.1038/522279a
[12]	Liu Z, Guan D, Wei W et al., 2015b. Reduced carbon emission estimates from fossil fuel combustion and cement production in China. Nature, 524(7565): 335-338. doi: 10.1038/nature14677
[13]	Liu Z, He C, Zhang Q et al., 2012. Extracting the dynamics of urban expansion in China using DMSP-OLS nighttime light data from 1992 to 2008. Landscape and Urban Planning, 106(1): 62-72. doi: 10.1016/j.landurbplan.2012.02.013
[14]	Luo W, Jasiewicz J, Stepinski T et al., 2016. Spatial association between dissection density and environmental factors over the entire conterminous United States. Geophysical Research Letters, 43(2): 692-700. doi: 10.1002/2015GL066941
[15]	Ma J, Guo J, Ahmad S et al., 2020. Constructing a new inter-calibration method for DMSP-OLS and NPP-VIIRS nighttime light. Remote Sensing, 12(6): 937. doi: 10.3390/rs12060937
[16]	Meng L, Graus W, Worrell E et al., 2014. Estimating CO₂ (carbon dioxide) emissions at urban scales by DMSP/OLS (Defense Meteorological Satellite Program’s Operational Linescan System) nighttime light imagery: Methodological challenges and a case study for China. Energy, 71: 468-478. doi: 10.1016/j.energy.2014.04.103
[17]	Mi Z, Meng J, Guan D et al., 2017. Chinese CO₂ emission flows have reversed since the global financial crisis. Nature Communications, 8(1): 1-10. doi: 10.1038/s41467-016-0009-6
[18]	Shan Y, Fang S, Cai B et al., 2021. Chinese cities exhibit varying degrees of decoupling of economic growth and CO₂ emissions between 2005 and 2015. One Earth, 4(1): 124-134. doi: 10.1016/j.oneear.2020.12.004
[19]	Shan Y, Liu J, Liu Z et al., 2019. An emissions-socioeconomic inventory of Chinese cities. Scientific Data, 6: 190027. doi: 10.1038/sdata.2019.27
[20]	Shi K, Chen Y, Yu B et al., 2016. Detecting spatiotemporal dynamics of global electric power consumption using DMSP-OLS nighttime stable light data. Applied Energy, 184: 450-463. doi: 10.1016/j.apenergy.2016.10.032
[21]	Su W, Liu Y, Wang S et al., 2018. Regional inequality, spatial spillover effects, and the factors influencing city-level energy-related carbon emissions in China. Journal of Geographical Sciences, 28(4): 495-513. doi: 10.1007/s11442-018-1486-9
[22]	Su Y, Chen X, Li Y et al., 2014. China’s 19-year city-level carbon emissions of energy consumptions, driving forces and regionalized mitigation guidelines. Renewable and Sustainable Energy Reviews, 35: 231-243. doi: 10.1016/j.rser.2014.04.015
[23]	Su Y, Chen X, Wang C et al., 2015. A new method for extracting built-up urban areas using DMSP-OLS nighttime stable lights: A case study in the Pearl River Delta, southern China. Giscience & Remote Sensing, 52(2): 218-238.
[24]	Wang C, Miao Z, Chen X et al., 2021. Factors affecting changes of greenhouse gas emissions in Belt and Road countries. Renewable and Sustainable Energy Reviews, 147: 111220. doi: 10.1016/j.rser.2021.111220
[25]	Wang C, Wang F, Zhang H et al., 2014. China’s carbon trading scheme is a priority. Environmental Science & Technology, 48(23): 13559-13559. doi: 10.1021/es505198t
[26]	Wang C, Wang F, Zhang X et al., 2017a. Examining the driving factors of energy related carbon emissions using the extended STIRPAT model based on IPAT identity in Xinjiang. Renewable and Sustainable Energy Reviews, 67: 51-61. doi: 10.1016/j.rser.2016.09.006
[27]	Wang C, Wang F, Zhang X et al., 2017b. Influencing mechanism of energy-related carbon emissions in Xinjiang based on the input-output and structural decomposition analysis. Journal of Geographical Sciences, 27(3): 365-384. doi: 10.1007/s11442-017-1382-8
[28]	Wang C, Zhang H, Wang F et al., 2019a. Slash local emissions to protect Tibetan Plateau. Nature, 566(7745): 455.
[29]	Wang J, Lu F, 2021. Modeling the electricity consumption by combining land use types and landscape patterns with nighttime light imagery. Energy, 234: 121305. doi: 10.1016/j.energy.2021.121305
[30]	Wang J F, Li X H, Christakos G et al., 2010. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. International Journal of Geographical Information Science, 24(1): 107-127. doi: 10.1080/13658810802443457
[31]	Wang J F, Zhang T L, Fu B J, 2016. A measure of spatial stratified heterogeneity. Ecological Indicators, 67: 250-256. doi: 10.1016/j.ecolind.2016.02.052
[32]	Wang S, Gao S, Huang Y et al., 2020a. Spatiotemporal evolution of urban carbon emission performance in China and prediction of future trends. Journal of Geographical Sciences, 30(5): 757-774. doi: 10.1007/s11442-020-1754-3
[33]	Wang S, Huang Y, Zhou Y, 2019b. Spatial spillover effect and driving forces of carbon emission intensity at the city level in China. Journal of Geographical Sciences, 29(2): 231-252. doi: 10.1007/s11442-019-1594-1
[34]	Wang S, Liu X, 2017. China’s city-level energy-related CO₂ emissions: Spatiotemporal patterns and driving forces. Applied Energy, 200: 204-214. doi: 10.1016/j.apenergy.2017.05.085
[35]	Wang Y, Li G, 2017. Mapping urban CO₂ emissions using DMSP/OLS ‘city lights’ satellite data in China. Environment and Planning A: Economy and Space, 49(2): 248-251. doi: 10.1177/0308518X16656374
[36]	Wang Y, Liu Z, He C et al., 2020b. Quantifying urbanization levels on the Tibetan Plateau with high-resolution nighttime light data. Geography and Sustainability, 1(3): 233-244. doi: 10.1016/j.geosus.2020.08.004
[37]	Wang Y, Wang S, Li G et al., 2017c. Identifying the determinants of housing prices in China using spatial regression and the geographical detector technique. Applied Geography, 79: 26-36. doi: 10.1016/j.apgeog.2016.12.003
[38]	Wei Y, Liu H, Song W et al., 2014. Normalization of time series DMSP-OLS nighttime light images for urban growth analysis with pseudo invariant features. Landscape and Urban Planning, 128: 1-13. doi: 10.1016/j.landurbplan.2014.04.015
[39]	Welsby D, Price J, Pye S et al., 2021. Unextractable fossil fuels in a 1.5 °C world. Nature, 597(7875): 230-234. doi: 10.1038/s41586-021-03821-8
[40]	Wu K, Wang X, 2019. Aligning pixel values of DMSP and VIIRS nighttime light images to evaluate urban dynamics. Remote Sensing, 11(12): 1463. doi: 10.3390/rs11121463
[41]	Yang Y, Wu J, Wang Y et al., 2021a. Quantifying spatiotemporal patterns of shrinking cities in urbanizing China: A novel approach based on time-series nighttime light data. Cities, 118: 103346. doi: 10.1016/j.cities.2021.103346
[42]	Yang Z, Chen Y, Guo G et al., 2021b. Using nighttime light data to identify the structure of polycentric cities and evaluate urban centers. Science of the Total Environment, 780: 146586. doi: 10.1016/j.scitotenv.2021.146586
[43]	Ye Y, Wu K, Xie Y et al., 2019. How firm heterogeneity affects foreign direct investment location choice: Micro-evidence from new foreign manufacturing firms in the Pearl River Delta. Applied Geography, 106: 11-21. doi: 10.1016/j.apgeog.2019.03.005
[44]	Zhang Y, Pan J, Zhang Y et al., 2021. Spatial-temporal characteristics and decoupling effects of China’s carbon footprint based on multi-source data. Journal of Geographical Sciences, 31(3): 327-349. doi: 10.1007/s11442-021-1839-7

Energy category	Coal	Coke	Crude	Gasoline	Kerosene	Diesel	Fuel oil	Natural gas	Electricity
Standard coal coefficient B_i (tce/t)	0.7143	0.9714	1.4285	1.4714	1.4714	1.4571	1.4286	1.33	0.1229
Carbon emission coefficients K_i (t/tce)	0.7559	0.855	0.5857	0.5538	0.5714	0.5921	0.6185	0.4483	0.272

Influencing factor	Index	q
Influencing factor	Index	1992	2000	2010	2020
Economic growth	Gross Domestic Product (GDP)	0.654***	0.685***	0.746***	0.431*
Economic growth	The secondary industry output value (SV)	0.564***	0.612***	0.672***	0.440***
Industrial structure	The ratio of secondary industry output value to GDP (SP)	0.211**	0.352***	0.215***	0.133**
Population size	Population size (POP)	0.517**	0.420	0.462*	0.398*
Population size	Urban population size (UP)	0.529**	0.571***	0.562***	0.391*
Urbanization level	Urbanization rate (UR)	0.115*	0.313***	0.258***	0.197**
Energy consumption intensity	Energy consumption intensity per unit of GDP (EIG)	0.354***	0.205*	0.268	0.378*

Interacting factors	1992	Interacting factors	2000	Interacting factors	2010	Interacting factors	2020
GDP∩EIG	0.990	SV∩EIG	0.934	GDP∩EIG	0.942	SV∩EIG	0.869
POP∩EIG	0.905	GDP∩EIG	0.918	SV∩EIG	0.857	GDP∩EIG	0.860
SV∩EIG	0.879	POP∩SP	0.782	SV∩UR	0.830	UP∩ EIG	0.789
UP∩ EIG	0.866	UP∩SP	0.777	GDP∩UR	0.816	POP∩EIG	0.777
POP∩GDP	0.798	POP∩SV	0.768	SV∩UP	0.813	UR∩ EIG	0.616
POP∩SP	0.714	UP∩ EIG	0.768	POP∩SV	0.811	UR∩ POP	0.602
GDP∩SP	0.709	SV∩UP	0.746	GDP∩SP	0.794	POP∩SP	0.583
SV∩SP	0.701	SV∩UR	0.733	SV∩SP	0.793	UR∩ SV	0.582
GDP∩POP	0.674	GDP∩SP	0.749	GDP∩POP	0.774	SV∩UP	0.544
GDP∩SV	0.673	GDP∩POP	0.724	UR∩POP	0.757	SV∩POP	0.543
