Sensitivity of arid/humid patterns in China to future climate change under a high-emissions scenario

MA Danyang; DENG Haoyu; YIN Yunhe; WU Shaohong; ZHENG Du

doi:10.1007/s11442-019-1582-5

PDF(2422 KB)

Journal of Geographical Sciences ›› 2019, Vol. 29 ›› Issue (1) : 29-48. DOI: 10.1007/s11442-019-1582-5

Research Articles

Sensitivity of arid/humid patterns in China to future climate change under a high-emissions scenario

Author information +

History +

Abstract

Changes in regional moisture patterns under the impact of climate change are an important focus for science. Based on the five global climate models (GCMs) participating in the Coupled Model Intercomparison Project Phase 5 (CMIP5), this paper projects trends in the area of arid/humid climate regions of China over the next 100 years. It also identifies the regions of arid/humid patterns change and analyzes their temperature sensitivity of responses. Results show that future change will be characterized by a significant contraction in the humid region and an expansion of arid/humid transition zones. In particular, the sub-humid region will expand by 28.69% in the long term (2070-2099) relative to the baseline period (1981-2010). Under 2°C and 4°C warming, the area of the arid/humid transition zones is projected to increase from 10.17% to 13.72% of the total of China. The humid region south of the Huaihe River Basin, which is affected mainly by a future increase in evapotranspiration, will retreat southward and change to a sub-humid region. In general, the sensitivity of responses of arid/humid patterns to climate change in China will intensify with accelerating global warming.

Key words

arid/humid patterns / climate change / sensitivity / aridity index / China

Cite this article

EndNote

Ris (Procite)

Bibtex

Download Citations

MA Danyang, DENG Haoyu, YIN Yunhe, WU Shaohong, ZHENG Du. Sensitivity of arid/humid patterns in China to future climate change under a high-emissions scenario[J]. Journal of Geographical Sciences, 2019, 29(1): 29-48 https://doi.org/10.1007/s11442-019-1582-5

1 Introduction

The dynamic responses of terrestrial systems to climate change have been at the frontier for research in the discipline of geography (Wu et al., 2016). A climate zone is the synthesis of many climatic factors and is closely related to broad-scale vegetation type (Bailey, 2009). It allows both moisture and thermal conditions to be examined simultaneously for a better assessment of multivariate climate change (Grundstein, 2008). The mean global surface temperature has increased by ~0.85°C (0.65°C-1.06°C) between the years 1880 and 2012 (IPCC, 2013). Climate scenarios project a further increase in global mean surface temperature of 0.3°C to 4.8°C by the end of 21st century. Accelerating climate change is projected to have majorimplications for climate zones and may cause significant zonal shifts (Mahlstein et al., 2013).

The impact of climate change on the spatial distribution of climate zones has become increasingly evident in recent decades at both global (Chan et al., 2015; Reid et al., 2015; Huang et al., 2016a) and regional (Gerstengarbe et al., 2009; Feng et al., 2012; Zhu et al., 2015) scales. According to observational studies, there have been significant expansions in semi-arid regions worldwide (Huang et al., 2016a), as well as poleward shifts in temperate, continental, and polar climate zones (Chan et al., 2015). Dry and wet climate zones in China have shown marked fluctuations and contrasts over the latter half of the 20th century (Yang et al., 2002). The drying trend in northern China has extended to the east and south (Ma et al., 2005). The boundary between semi-arid and sub-humid regions has likewise migrated (Zheng et al., 2013). The dynamics of climate zones have been used to evaluate the performance of climate models, based on methods such as Köppen classification (Lohmann, 1993; Gnanadesikan et al., 2006), Thornthwaite clustering (Elguindi et al., 2014), and K-means clustering (Zhang et al., 2016). Belda et al. (2015) suggested that the global climate models (GCMs) in the Coupled Model Intercomparison Project Phase 5 (CMIP5) needs to be improved to boost the performance in simulating the distribution of climate classification.

Changes in drought risk and aridity in many regions are among the primary effects anticipated under global warming (Dai, 2013; Trenberth et al., 2013; Greve et al., 2015). Changes associated with moisture conditions have great effects on the spatial and temporal distribution of arid/humid climate regions (AHCRs) (Yin et al., 2015), but quantifying those effects remains a challenge. Recent studies have reported a general consensus that projected changes in temperature and precipitation will cause considerable shifts in AHCRs over the global landmass (Hanf et al., 2012; Feng et al., 2014; Rohli et al., 2015). According to Feng et al. (2014), existing climate types will gradually shift towards warmer and drier types over 2071-2100, with notable expansion in arid and semi-arid climates by between 8.4% and 15.9%. Projections of more arid and/or semi-arid regions in the 21st century have been investigated in West Africa (Sylla et al., 2015), the Mediterranean (Gao et al., 2008; Alessandri et al., 2014), and China (Li et al., 2013; Cheng et al., 2015). As greenhouse gas emissions intensify in future, the area of bioclimatic zones prone to desertification in China will tend to increase (Ci et al., 2002). Under the high-emissions scenario, the range of Cwa(Monsoon-influenced humid subtropical climate)and Dwa(Monsoon-influenced hot-summer humid continental climate)climates in Eastern China is projected to expand (Cheng et al., 2015). Zhao et al. (2014) pointed out that arid and semi-arid areas globally will experience a significant temperature rise under various concentration pathways. Wet regions will become wetter and dry regions become drier. However, to what extent future climate change will affect regional shifts in China is still uncertain and differs from region to region.

Following these considerations, climate observations and CMIP5 GCM simulations were used in this study to estimate reference evapotranspiration based on the revised Penman-Monteith model. Combining reference evapotranspiration with precipitation, an aridity index was constructed to classify arid/humid climate types. We examined the trend in hydroclimatic variables under the high-emissions scenario and investigated the change in AHCR areas. This reveals the sensitivity of arid/humid patterns to climate change and indicates the regions that are most sensitive. The results help to understand more deeply the driving mechanisms responsible for variations in the land surface system, the evolution of plant communities, and the probability of desertification. They also provide a scientific foundation for developing appropriate strategies for adapting to climate change.

2 Materials and methods

2.1 Data sources

2.1.1 Meteorological data

We obtained quality-controlled monthly observations of maximum and minimum air temperatures, precipitation, relative humidity, sunshine duration, and wind speed from 581 meteorological stations in China for the period 1981-2010 (Figure 1). Data were provided by the National Meteorological Center of the China Meteorological Administration (CMA). Observations from individual meteorological stations were deleted from the dataset if a station was built after 1981, one station’s location changed during the study period, another station was closed before 2010, or more than 5% of the data were missing. Missing data were estimated by averaging the values obtained from the same station during other years. To meet the model input requirements, ground-based point meteorological data were interpolated on a 0.5° × 0.5° grid using a thin-plate spline method.

Figure 1 Distribution of 581 meteorological stations and arid/humid climate regions across China for the period 1981-2010

Full size|PPT slide

2.1.2 Climate simulations

To derive the regional mean temperature changes and corresponding spatial and temporal shifts in AHCRs across China, monthly climate data from 1950 to 2099 were utilized from the CMIP5 multi-model dataset (Taylor et al., 2012). These data are available from the Inter-Sectoral Impact Model Intercomparison Project (ISI-MIP) (Hempel et al., 2013; Warszawski et al., 2014). Five GCMs (HadGEM2-ES, IPSL-CM5A-LR, GFDL-ESM2M, MIROC-ESMCHEM, and NorESM1-M) with a horizontal resolution of 0.5°×0.5° participate in the ISI-MIP (Table 1). The representative concentration pathway (RCP) 8.5 scenario with radiative forcing of ~8.5 W m^-2 in 2100 was selected (Moss et al., 2010). This scenario provides a large range of temperature increases and is suitable for assessing the impacts of future climate change (Mahlstein et al., 2013; Piontek et al., 2014; Leng et al., 2015).

Table 1 Global climate models used in this study

Model name	Original resolution (latitude × longitude)	Modeling center	Country
NorESM1-M	1.875° × 2.5°	Norwegian Climate Centre	Norway
MIROC-ESM-CHEM	2.8°×2.8°	Atmosphere and Ocean Research Institute (The University of Tokyo), National Institute for Environmental Studies, and Japan Agency for Marine-Earth Science and Technology	Japan
IPSL-CM5A-LR	1.875°×3.75°	Institut Pierre-Simon Laplace	France
HadGEM2-ES	1.25°×1.875°	Met Office Hadley Centre	UK
GFDL-ESM2M	2.0°×2.5°	Geophysical Fluid Dynamics Laboratory	USA

Before simulation data are used to study climate change impacts, correction is recommended to reduce the bias of climate model simulations compared with the observed climate (Feng et al., 2012; Engelbrecht et al., 2016). Here, the simulated climatic variables were adjusted to have the same climatological annual mean as the real observations over China for the baseline period 1981-2010. First, the annual mean anomalies were calculated, based on differences between observed and GCM-generated data for the baseline period, for each of the five model simulations. The anomalies were then added to the scenario data to provide model inputs for the period 2011-2099 (Yin et al., 2013).

The shifts in climate zones were analyzed under the 21st century warming levels from 1°C to 6°C, relative to the baseline period. Projecting impacts for a given global warming is useful, as this is consistent with the approach of the UNFCCC (United Nations Framework Convention on Climate Change) in phrasing mitigation targets (Vautard et al., 2014; Swain et al., 2015; Roudier et al., 2016; Schleussner et al., 2016). Although global temperature thresholds provide useful information, local conditions are most important to those living with, and adapting to, the consequences of climate change (Joshi et al., 2011). Here, the years of warming over China were determined by applying an 11-year low-pass filter to the annual regional land-surface temperature anomalies, to eliminate inter-annual variability for each model. These years are generally considered to be the central points of the 11-year climatic means, as suggested by difference calculations between climate zones in China (Chen et al., 2015 , Engelbrecht et al., 2016).

The multi-model ensemble (MME) means of the five models were computed. These models are assumed to be independent and are given equal weight in this study. The MME can be used to provide both a consensus representation of the climate system and a measure of the confidence to be placed in the consensus (Taylor et al., 2012). The MME approach is expected to outperform individual models in simulating global and regional climates (Pierce et al., 2009; Knutti et al., 2010; Zhao et al., 2014). The GCM ensemble means show good agreement with observed values in China and are thus able to reproduce variations in aridity during the baseline period (Yin et al., 2015).

2.2 Arid/humid zone classification

Many previous studies have relied on Köppen climate classification schemes (Crosbie et al., 2012; Chan et al., 2016; Engelbrecht et al., 2016), based primarily on temperature and precipitation. The complex interplay of water supply and demand, including both precipitation (P) and reference evapotranspiration (ET_o), is critical for projecting changes in dryness (Cook et al., 2014; Greve et al., 2015; Mcevoy et al., 2016) and dryland dynamics (Huang et al., 2016b). The aridity index (AI), usually expressed as the ratio between ET_o and P (Budyko, 1974; Wu et al., 2010), is widely used as an indicator of regional moisture conditions and is an effective criterion to classify AHCRs.

In general, ET_o reflects the maximum water demand of an environment to maintain its water balance, and P reflects the water supply over large regions. Currently, since it is difficult to obtain observed ET_o over large regions, ET_o is often simulated using models. Reasonable prediction of future ET_o is important to reduce uncertainty in the assessment of climate-zone shifts. One widely used method to simulate ET_o is the Penman-Monteith model (Allen et al., 1998), which emphasizes the important role of radiative and aerodynamic controls on ET_o. It is thus more appropriate for projections of long-term drought and dryland conditions under climate change (Sherwood et al., 2014; Huang et al., 2016b). The modified Penman-Monteith model, recommended in 1998 by the Food and Agriculture Organization (hereafter the FAO56-PM model), has been applied in both arid and humid environments (Allen et al., 1998). Radiation is calculated in the model by an Ångström formula, the accuracy of which is determined by empirical coefficients within regional limits. In our previous studies, solar radiation in the FAO56-PM model was calibrated for China and proved to be suitable in representing arid/humid zones (Yin et al., 2008). Therefore, the Penman-Monteith model was again used in the present study to simulate ET_o over China.

$E{{T}_{\text{o}}}=\frac{0.408\Delta ({{R}_{\text{n}}}-G)+\gamma \frac{900}{T+273}{{U}_{2}}({{e}_{\text{s}}}-{{e}_{\text{a}}})}{\Delta +\gamma (1+0.34{{U}_{2}})}$ (1)

where R_n is the net radiation (MJ m^-2), G is the soil heat flux (MJ m^-2), γis the psychrometric constant (kPa °C^-1),Δis the slope of the saturation vapor pressure curve (kPa °C^-1), T is the average temperature (°C), U₂ is the wind speed at 2 m height (m s^-1), e_s is the mean saturation vapor pressure (kPa), and e_a is the actual vapor pressure (kPa).

Under climate change, the AI has significance for bioclimate beyond the simple association with precipitation and temperature (Moral et al., 2016). According to the study of Wu et al. (2005), AI is conventionally used to classify the land surface at a broad scale into four zones: humid, sub-humid, semi-arid, and arid. These zones are represented by specific types of natural vegetation: forest, forest steppe including meadow, steppe, and desert, respectively (Table 2).

Table 2 Criteria for demarcating the arid/humid climate regions of China according to aridity index (AI)

Arid/humid climate region	Aridity index (AI = ET_o/P)	Natural vegetation type
Humid	AI < 1.0	Forest
Sub-humid	1.0 ≤ AI < 1.5	Forest steppe (including meadow)
Semi-arid	1.5 ≤ AI < 4.0	Steppe (meadow steppe, and desert steppe)
Arid	AI ≥ 4.0	Desert

2.3 Sensitivity assessment of AHCR shifts due to warming

The fundamental idea of sensitivity analysis is to establish a quadratic function relationship between changes in AHCR area and temperature increase, thereby allowing measurement of the sensitivity of AHCR shifts to warming from the slope of the quadratic curve. First, an 11-year running mean was applied to AI series on a grid scale from 2011 to 2099, to reduce the effect of short-term climate variability and improve the robustness of the results. The percentage area change in AHCRs over China was counted year by year, by determining whether climate types shift in future relative to the baseline period. Using a quadratic function, the area of AHCR shift corresponds to temperature increase according to the national mean temperature anomaly, as shown in Eq. 2. The slope of the fitted curve (Eq. 3) is the rate of area change with temperature, which is deemed to reflect the sensitivity of AHCR shifts to warming. A rate of >0 indicates positive sensitivity, whereas a rate of <0 indicates negative sensitivity.

$y=a{{x}^{2}}+bx+c$ (2)

$s=2ax+b$ (3)

wherey is the area change as a function of the regional mean temperature anomaly x, relative to the baseline period; s is the rate of area change; a, b, and c are parameters fitted to the model.

3 Results

3.1 Future changes in ET_o, P, and AI over China

Changes in multi-model projected ET_o, P, and AI under the RCP8.5 scenario relative to 1981-2010 are shown in Figures 2 and 3. Generally, all three variables increase to a greater extent over the long term (2070-2099) than over the mid term (2040-2069), although regional discrepancies exist. According to the MME results, ET_o is likely to increase across almost the entire country, especially in eastern areas. The increase reaches 10%-20% in the mid term and >20% in the long term, for Northeast China and southern parts of the Qinling Mountains-Huaihe River Basin. P has a tendency to increase similar to ET_o but with a different spatial pattern. P tends to increase more in the north, including the Tibetan Plateau, by >30% in the long term, compared with <10% in the south. AI mainly increases in the southeast and decreases in the northwest. The most notable AI increase is in the middle and lower reaches of the Yangtze River and western Xinjiang, where the increase could reach 20% in the long term. The decrease in northwestern areas is likely to be >10% over the mid to long term. AI changes in the range of -10% to ~10% in North and Northeast China, and increases by >10% in the east of Northeast China.

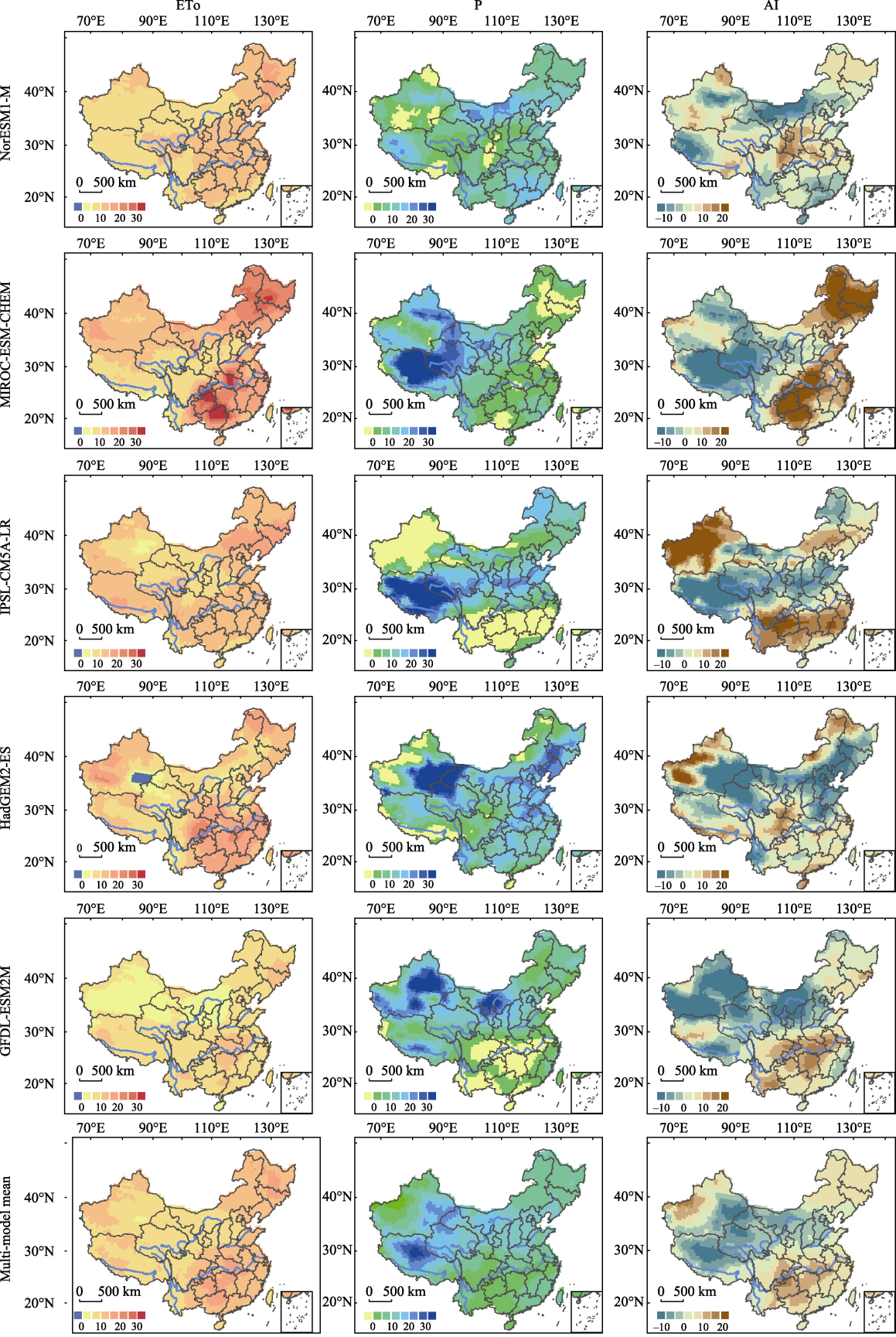

Figure 2 Percentage deviations over China in reference evapotranspiration (ET_o), precipitation (P), and aridity index (AI) for 2040-2069, relative to the baseline period under the RCP8.5 scenario

Full size|PPT slide

Figure 3 Percentage deviations over China in reference evapotranspiration (ET_o), precipitation (P) and aridity index (AI) for 2070-2099, relative to the baseline period under RCP8.5

Full size|PPT slide

Changes in the variables differ between the five GCMs. The most notable change in AI was simulated by the IPSL-CM5A-LR model. AI is likely to increase >20% in the long term in all areas, except in Tibet and the west of Northeast China. With the HadGEM2-ES model, AI increases slightly in the southeast coast and to the west of Xinjiang, whereas the clearest decrease of >10% is seen in most northern parts. As changes in ET_o projected by IPSL-CM5A-LR and HadGEM2-ES are similar, the AI changes are attributed mainly to the changes in P. Relative to the baseline period, P simulated by IPSL-CM5A-LR is negative in Xinjiang and south of the Yangtze River. Therefore, the smallest increase in total P gave the largest increase in AI. P simulated by HadGEM2-ES is positive across almost the entire country, with a 30% increase in the long term. Therefore, the largest increase in total P led to the smallest change in AI. For both ET_o and P, the difference among GCMs in the long term is greater than in the mid term, and the difference in P is larger than that in ET_o.

3.2 Spatio-temporal changes in AHCRs over China

Figure 4 shows the anomalies in areal changes in AHCRs over China relative to the baseline period 1981-2010 under RCP8.5. For the MME mean, the proportion of humid regions shows a significant reduction from 2011 to 2099, at a rate of -0.030% per year (p < 0.01). The areas of sub-humid and semi-arid regions show significant expansions at rates of 0.017% (p < 0.05) and 0.011% (p < 0.05), whereas the arid region shows no significant change. Compared with observations during the baseline period, the sizes of humid and arid regions show an average decline of 1.28% and 1.53%, respectively. The sub-humid region expands by 1.98% on average, and the semi-arid region shows an average anomaly of 0.84%. The differences in simulated AHCR areas between the GCMs are indicated by average standard deviations of 5.14%, 3.44%, 3.74%, and 3.79% for the period 2011-2099.

Figure 4 Area percentages (%) of (a) humid, (b) sub-humid, (c) semi-arid, and (d) arid regions in China during the 21st century, expressed as anomalies relative to the baseline period under RCP8.5. The time series were smoothed using an 11-year running mean

Full size|PPT slide

The spatial distribution of AHCRs in China from the mid to long term under RCP8.5 is shown in Figure 5, with summary statistics presented in Table 3. Both humid and arid regions are likely to shrink in future, and their respective areas are projected to reduce by 5.93% and 1.95% over 2040-2069 relative to the baseline period. The humid region will evidently shrink, as shown by its projected 12.61% decrease over 2070-2099. On the contrary, sub-humid and semi-arid regions are likely to expand, with projected increases of 16.28% and 1.38% in the mid term, respectively. The expansion of the sub-humid region reaches 28.69% in the long term. The arid region mainly decreases in the mid term, but increases over the long term. The areas of humid and sub-humid regions vary much more over the long term than over the mid term.

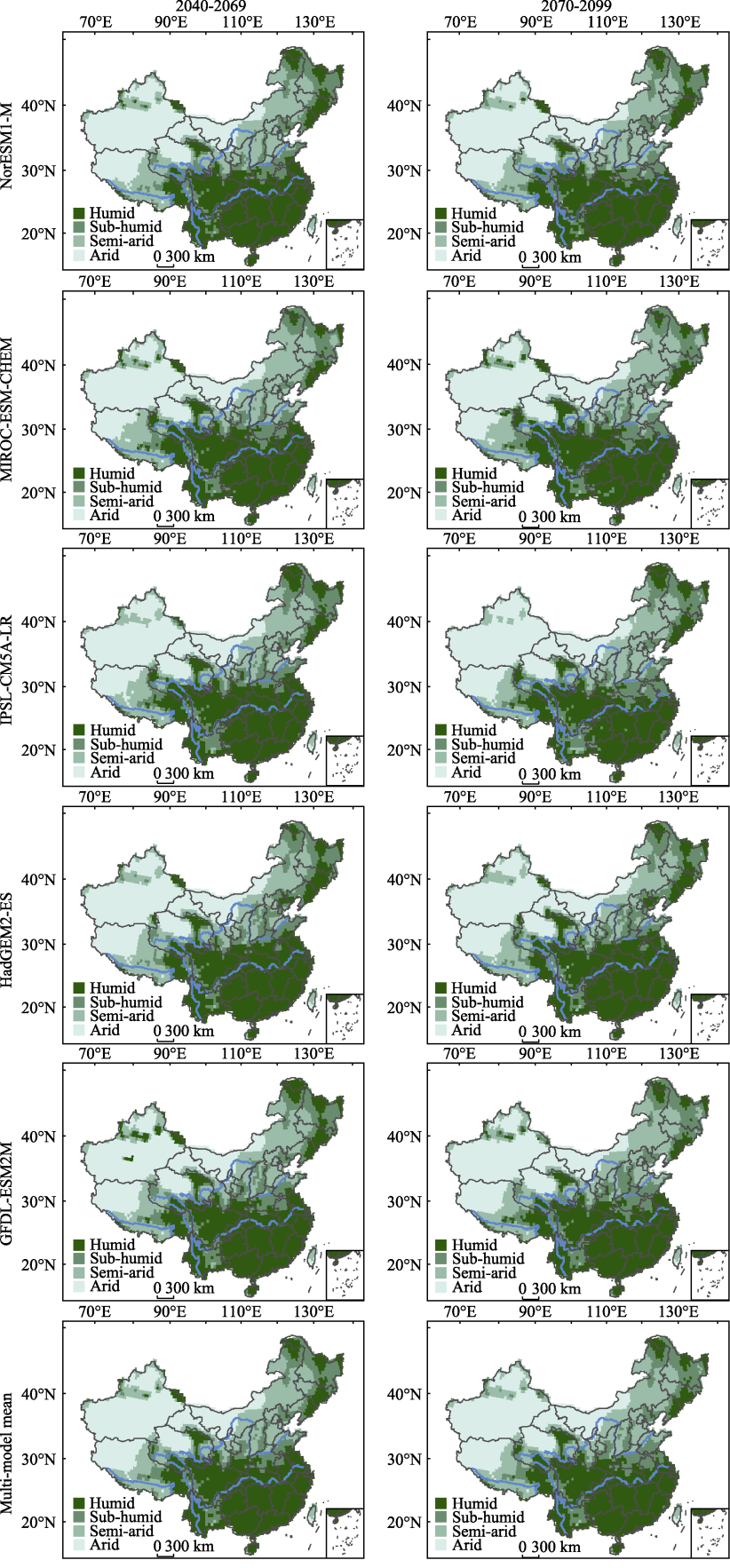

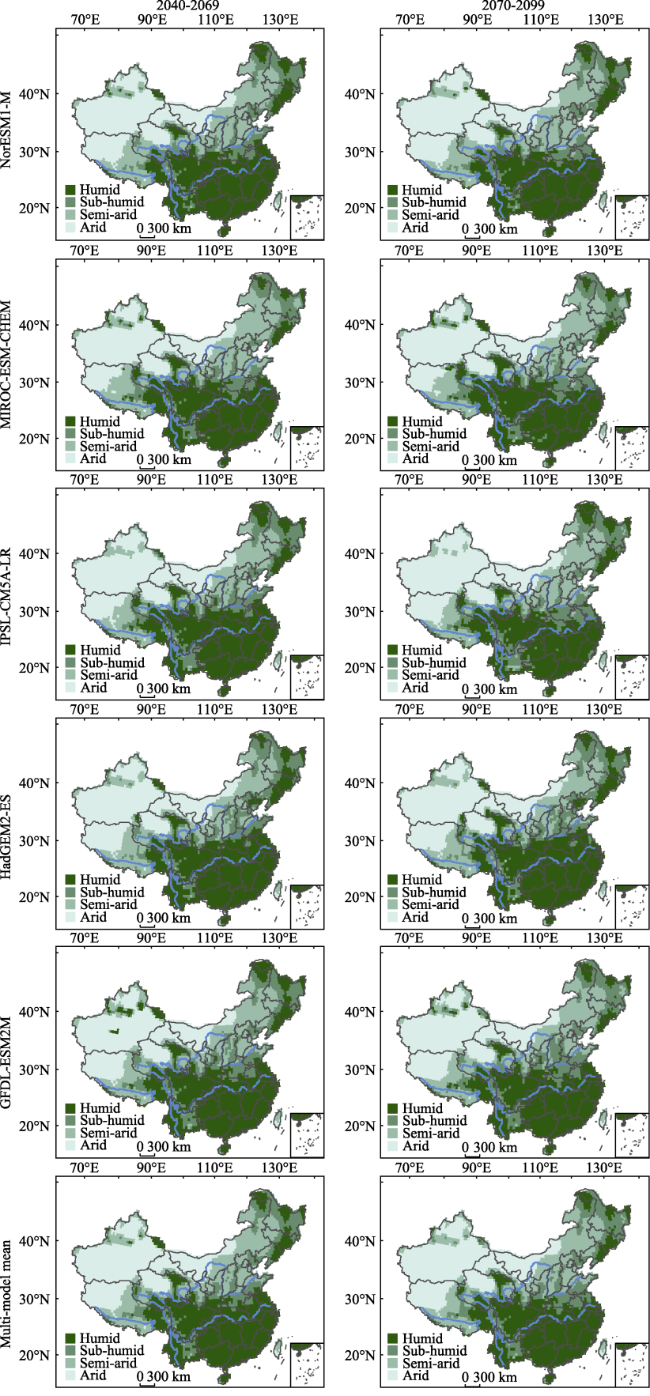

Figure 5 Spatial distribution of arid/humid climate regions (AHCRs) across China during 2040-2069 and 2070-2099 under RCP8.5

Full size|PPT slide

Table 3 Percentage areas (%) of arid/humid climate regions (AHCRs) in China for the periods 2040-2069 and 2070-2099 under RCP8.5, and the amount of change (%) relative to the baseline period

GCM	Period	Humid		Sub-humid		Semi-arid		Arid
		Area	Change	Area	Change	Area	Change	Area	Change
	1981-2010	35.76		13.94		24.61		25.69
NorESM1-M	2040-2069	32.78	-8.33	15.27	9.54	26.65	8.29	25.29	-1.56
NorESM1-M	2070-2099	31.47	-12	16.26	16.64	26.04	5.81	26.23	2.1
MIROC-ESM-CHEM	2040-2069	32.13	-10.15	16.24	16.5	27.62	12.23	24.01	-6.54
MIROC-ESM-CHEM	2070-2099	32.75	-8.42	17.02	22.09	26.8	8.9	23.43	-8.8
IPSL-CM5A-LR	2040-2069	35.37	-1.09	16.35	17.29	22.33	-9.26	25.95	1.01
IPSL-CM5A-LR	2070-2099	30.18	-15.6	18.87	35.37	23.14	-5.97	27.81	8.25
HadGEM2-ES	2040-2069	34.45	-3.66	17.15	23.03	21.67	-11.95	26.74	4.09
HadGEM2-ES	2070-2099	33.97	-5.01	18.71	34.22	21.54	-12.47	25.78	0.35
GFDL-ESM2M	2040-2069	34.15	-4.5	17.14	22.96	26.15	6.26	22.56	-12.18
GFDL-ESM2M	2070-2099	30.26	-15.38	20.03	43.69	26.13	6.18	23.57	-8.25
Multi-model mean	2040-2069	33.64	-5.93	16.21	16.28	24.95	1.38	25.19	-1.95
Multi-model mean	2070-2099	31.25	-12.61	17.94	28.69	24.98	1.5	25.83	0.54

The multi-model simulated distributions of AHCRs across China show certain similarities (Figure 5). Northwest China is the main arid region, where a clear increase in future precipitation may result in a significant decrease in aridity index. Shrinkage of the arid region will occur primarily in the northwest, especially in northwest Tibet, possibly leading to a northward shift in the arid region’s southern boundary (Figures 1 and 5). In addition, part of the semi-arid region north of Xinjiang may become arid, causing the entire region to shift northward. The boundary between semi-arid and sub-humid regions is projected to shift northwards in the east of the Tibetan Plateau, and shift southeastwards in Northeast China and east of the North China Plain. With the semi-arid region of Inner Mongolia shifting eastwards, the semi-arid region in Northeast China will expand.

The increase in evapotranspiration will likely cause a significant rise in the aridity index over most areas in the east of China (Figures 2 and 3). Thus, the humid regions of Northeast China and in the south will shrink relative to the baseline period (Figures 1 and 5). Generally, the humid region will shift to the south. The humid region of the Huaihe River basin is projected to shrink and be gradually replaced by the sub-humid region. This means that the boundary between humid and sub-humid regions will lie in the far south. Moreover, the humid region will become sub-humid in Daxing’an, Xiaoxing’an, and the Changbai Mountains in Northeast China and part of the southeast of the country. Changes simulated by different GCMs for humid and sub-humid regions are essentially consistent, but the results concerning semi-arid and arid regions are variable. Specifically, NorESM1-M, MIROC-ESM-CHEM, and GFDL-ESM2M show that the semi-arid region mainly shrinks but the arid region mainly expands. However, the other two GCMs give contrasting results (Figure 5).

3.3 Sensitivity of AHCR shifts to warming

Using the 11-year running mean of the AI series from 2011 to 2099, the proportions of AHCR areas that shift relative to the baseline period under RCP8.5 were calculated. Figure 6a

shows a quadratic curve that fits the areas of change and the temperature anomalies. Figure 6b shows the corresponding rates indicating the sensitivity of AHCR shifts to warming. All shifting areas show an increasing trend as the temperature anomaly rises. Among the GCMs, the GFDL-ESM2M changes from a decreasing to an increasing trend at ~2°C. The MME results show that the percentage area affected by AHCR shifts in China increases from 10.24 ± 1.89% to 14.19 ± 3.30% for the common 1.14%-3.87% range of temperature anomalies.

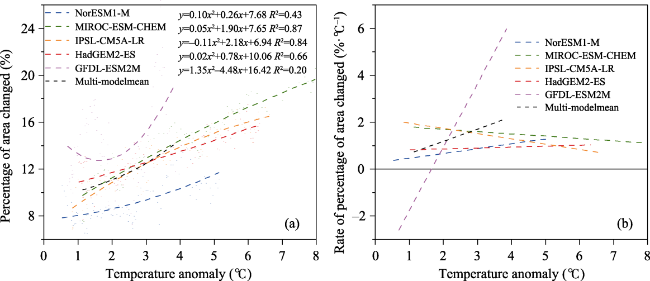

Figure 6 Shifts in arid/humid climate regions (AHCRs) across China and the rate of change with temperature anomaly relative to the baseline period under RCP8.5. (a) Percentage area change (%). (b) Rate of percentage area change (%°C^-1). Before quadratic curve fitting, data were smoothed using an 11-year running mean. The original data points are shown as dots in (a)

Full size|PPT slide

Whereas the GFDL-ESM2M rate changes from negative to positive, all other GCMs show continuously positive rates. Specifically, the changing rates of MIROC-ESM-CHEM and IPSL-CM5A-LR gradually slow down with rising temperatures, suggesting a weakening sensitivity of AHCR shifts to warming. For the MME mean, the greater the temperature increment, the higher the sensitivity of AHCR shifts. In general, the rate of change ranged from 0.73 (± 1.34%°C^-1) to 2.16 (± 2.16%°C^-1). This means that the area of AHCR shift will increase by 1.44% as the average temperature rises by 1°C.

3.4 AHCR shifts with 2°C and 4°C warming

Figures 7 and 8 illustrate the changed and unchanged areas of AHCRs, as projected after 2°C and 4°C warming under RCP8.5, simulated by various GCMs. From the MME statistics (Table 4), given 2°C and 4°C warming relative to the baseline period, the following results emerge. The humid region mainly shrinks, with its area projected to reduce by 13.03% and 9.95%, occupying 3.56% and 4.66% of the country, respectively. The sub-humid region considerably expands, increasing by 33.15% and 50.29%, occupying 4.62% and 7.01% of the country for 2°C and 4°C warming, respectively. The semi-arid region also expands, projected to increase by 13.49% and 16.65%, and occupying 3.32% and 4.10% of the country, respectively. The arid region remains mostly unchanged. The AHCR areas of expansion and contraction increase from 2°C to 4°C warming, except for the arid region. According to the MME results, the total area of change in China is projected to increase from 10.17% for 2°C warming to 13.72% for 4°C warming, bringing a further increase of 3.55%.

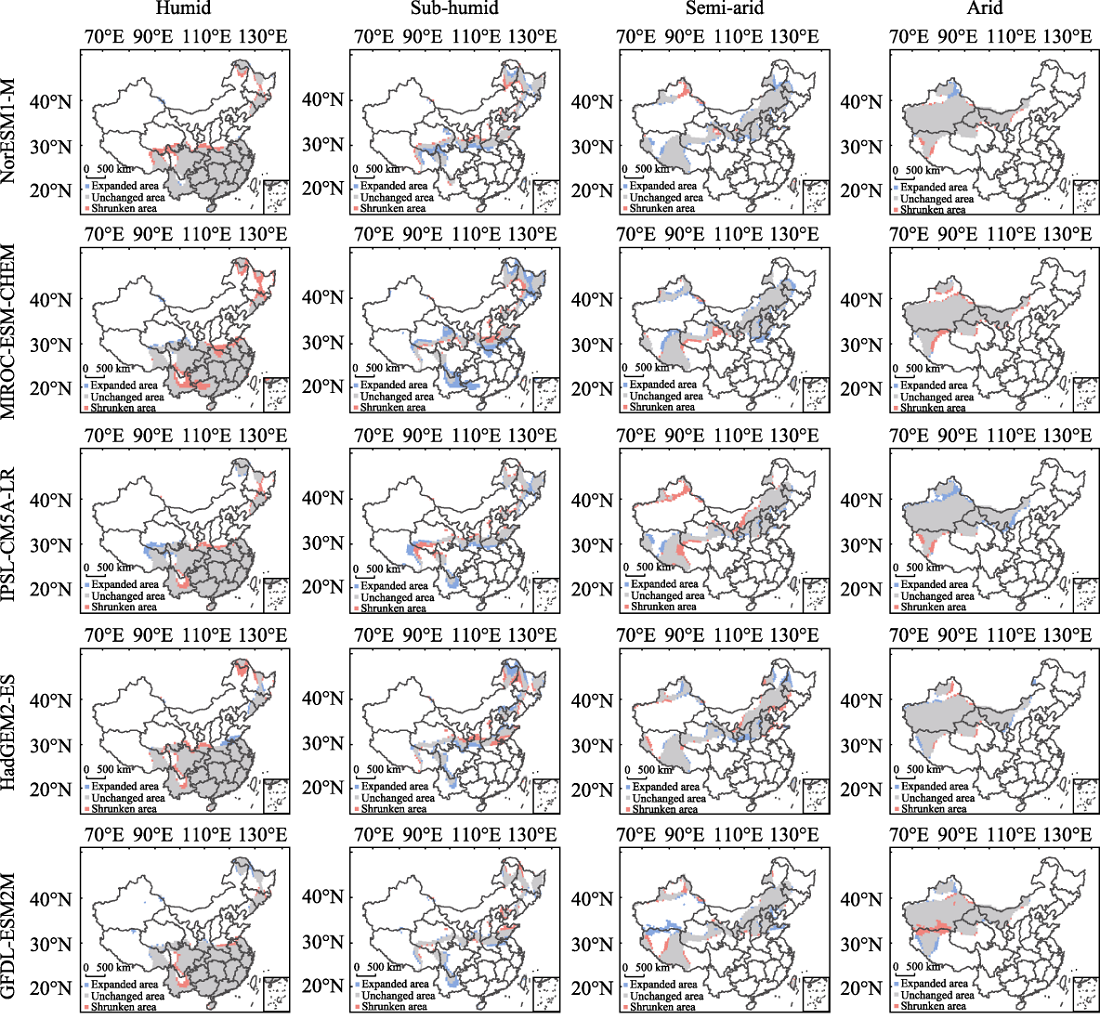

Figure 7 Spatial distribution of humid, sub-humid, semi-arid, and arid regions over China for 2°C warming under RCP8.5, showing changed and unchanged areas relative to the baseline period

Full size|PPT slide

Figure 8 Spatial distribution of humid, sub-humid, semi-arid, and arid regions over China for 4°C warming under RCP8.5, showing changed and unchanged areas relative to the baseline period

Full size|PPT slide

Table 4 Percentage change in the areas of humid, sub-humid, semi-arid, and arid regions over China for 2°C and 4°C warming under RCP8.5, relative to the baseline period

GCM		2°C				4°C
GCM		Humid	Sub- humid	Semi- arid	Arid	Humid	Sub- humid	Semi- arid	Arid
NorESM1-M	Expansion	0.47	3.61	3.26	0.73	0.72	6.28	4.84	1.10
	Contraction	3.23	2.54	1.19	1.09	5.05	4.07	2.38	1.44
	Total changed	8.06				12.93
MIROC-ESM-CHEM	Expansion	0.87	8.05	4.24	0.13	1.64	8.33	4.92	0.54
	Contraction	6.61	2.84	1.68	2.17	6.15	4.06	2.64	2.57
	Total changed	13.29				15.42
IPSL-CM5A-LR	Expansion	1.59	3.75	2.25	2.55	3.17	7.00	2.63	1.61
	Contraction	2.50	2.89	3.85	0.90	2.95	3.63	5.74	2.10
	Total changed	10.13				14.41
HadGEM2-ES	Expansion	1.23	4.97	3.35	1.24	1.22	7.81	3.41	1.58
	Contraction	3.57	3.68	2.69	0.86	4.08	3.33	5.32	1.30
	Total changed	10.79				14.03
GFDL-ESM2M	Expansion	1.12	2.72	3.50	1.21	0.58	5.62	4.70	0.88
	Contraction	1.87	2.04	2.00	2.64	5.08	3.05	1.34	2.32
	Total changed	8.55				11.78
Multi-model mean	Expansion	1.06	4.62	3.32	1.17	1.47	7.01	4.10	1.14
	Contraction	3.56	2.80	2.28	1.53	4.66	3.63	3.48	1.94
	Total changed	10.17				13.72

In spatial terms, the Huaihe River Basin and Northeast China are the primary regions experiencing a shrinking humid region and expanding sub-humid region, as well as parts of Southwest China. Expansion of the semi-arid region would occur mainly in the transition zone between the sub-humid and semi-arid parts of eastern China, and in the transition zone between arid and semi-arid parts of western China. The difference between the models is projected to be larger for the reduced humid region and expanded sub-humid region. Standard deviations are 1.83% and 2.08% at 2°C warming, and 1.20% and 1.10% at 4°C warming, respectively. The difference between the models is projected to be the smallest in terms of the amount of arid-region change.

Concerning differences between GCMs, the reduction in the humid region and expansion of the sub-humid region are both projected to be the largest by the MIROC-ESM-CHEM model, as is the total area of change (13.29% for 2°C warming and 15.42% for 4°C warming). For GFDL-ESM2M, although the total area of change is projected to be the smallest among models (8.55% for 2°C warming and 11.78% for 4°C warming), the contraction of the humid region and expansion of the sub-humid region are greater for 4°C warming than for 2°C warming. The NorESM1-M model projects the largest increase (4.87%) in the total area of change from 2°C to 4°C warming, caused mainly by a shift from a humid to a sub-humid climate in the Huaihe River basin, and shifts from a sub-humid to a semi-arid climate in the Loess Plateau and the North China Plain.

According to the models indicating change, the various climate regions are more likely to shrink or expand at their peripheries (Figure 9). Almost all of the contraction of the humid region (99.73% for 2°C warming and 99.75% for 4°C warming) would be replaced by the sub-humid region. The area of shrinkage in the sub-humid region to the east of 105°E would mostly become semi-arid (67.86% for 2°C warming and 72.20% for 4°C warming), whereas elsewhere it would mostly become humid (64.77% for 2°C warming and 73.45% for 4°C warming). Similarly, the reduced part of the semi-arid region in Northwest China would become mostly arid (73.91% for 2°C warming and 82.08% for 4°C warming), or become sub-humid elsewhere (63.05% for 2°C warming and 85.03% for 4°C warming). In addition, over 90% of the decrease in the arid region would be replaced by a semi-arid climate.

Figure 9 Spatial distribution of humid, sub-humid, semi-arid, and arid regions over China for 2°C and 4°C warming under RCP8.5 relative to the baseline period, showing the number of models projecting change within each region

Full size|PPT slide

4 Discussion

This study used an aridity index (AI) to classify arid/humid climate regions (AHCRs) in China. Changes in AHCR patterns under future warming were then analyzed. Results indicate that changes in the 21st century under the RCP8.5 scenario are characterized by a significant contraction in the humid region and a significant expansion in the arid/humid transition zone. This is consistent with the conclusions of Wang et al. (2016), who posited that the boundaries of the East Asian climate transition zone would shift southeast and northwest, with a higher migration rate for the southern boundary. Research based on the Köppen classification system has shown that the subtropical humid region in Southeast China will contract substantially by the end of the 21st century, relative to the end of 20th century, particularly for the higher-emission scenarios RCP6.0 and RCP8.5 (Chan et al., 2016). Other research that used soil moisture to classify AHCRs also showed a significant contraction in the humid region of China, and a southeast expansion of the semi-arid and sub-humid climate zones in Northern China (Li et al., 2013). A global-scale study indicated that dryland areas will occupy 50% and 56% of the global land area under the RCP4.5 and RCP8.5 scenarios, respectively, with the greatest expansion in semi-arid regions (Huang et al., 2016b). In contrast, our study shows a greater expansion in the sub-humid region. This discrepancy possibly relates to the index ranges used for climate classification, as the semi-arid definition (AI = P/ET_o, 0.2 ≤AI< 0.5) employed by Huang et al. (2016b) covers a wider range than that used here.

Changes in AHCR areas and boundaries are closely related to regional arid/humid trends, and are influenced by both natural factors and human activities. Based on observations and model simulations (Dai, 2013; Fu et al., 2015), some scholars regard changes in atmospheric circulation and sea-surface temperature as key drivers of land-surface precipitation change, and consider that decreasing precipitation is the main reason for the intensification of drought in many tropical and subtropical regions. However, temperature change may have additional important effects on shifts in climatic regimes as global warming continues during the 21st century (Feng et al., 2014). Rising temperatures will lead to increasing deficits in water vapor pressure, increasing evaporation demands, and decreasing soil moisture. The mutual reinforcement of these effects will promote drought processes (Sherwood et al., 2014; Huang et al., 2016b), and thus change the regional arid/humid patterns.

Changes in vegetation cover caused by climate change or human activities may in turn affect drought trends or moisture conditions. Zeng et al. (2009) used an air-ocean-land coupling model to investigate the dynamics of vegetation composition. They found that the superposition of warming effects and albedo feedback from vegetation cover may enhance the expansion of deserts in subtropical semi-arid regions in the future. In our study, the atmospheric water-demand increase due to climate warming exceeds the precipitation increase. The tendency for a shift towards greater aridity in most humid regions in Eastern China may therefore affect the evolution of the AHCR pattern. This finding is essentially consistent with Wang et al. (2014) analysis based on the Palmer drought severity index (PDSI).

We also investigated the sensitivity of AHCR patterns to climate change in China. We found an increase in area of the arid/humid transition zone, as derived from the multi-model average, with an increase in regional average temperature. Moreover, the faster the temperature rise, the faster the response of the arid/humid transition zone. For Köppen climate zones at the global scale, changes under the RCP8.5 scenario will accelerate with rising temperatures, with the rate by the end of the 21st century reaching approximately twice that of the early 20th century (Mahlstein et al., 2013). As a result, nearly one-third of temperate arid lands will change to subtropical arid lands over the next century, possibly accompanied by changes in vegetation type and ecosystem services (Schlaepfer et al., 2017).

Our research also indicates how the junction between arid/humid zones in China is usually the area of significant transformation. Affected by the interaction of the East Asian summer monsoon and the mid-latitude westerly winds (Qian et al., 2009), the arid/humid transition zone extending from southwest to northeast China displays strong gradients in climate and ecosystem types (Fu, 1992). Agricultural and grazing land uses overlap. However, the ecological environment of the transition zone is fragile and highly sensitive to both climate change and human activity (Shi, 1996). As global warming intensifies, the arid/humid transition zone may face a growing risk of natural disasters, land degradation, and desertification (Huang et al., 2016b; Wang et al., 2016). Jiang et al. (2017) found that the sub-humid and semi-arid regions are similarly sensitive to climate change under the RCP4.5 scenario, that climate-sensitive regions will expand in China, and that humid regions will change to sub-humid regions in future.

Accurate climate modeling is crucial for simulating changes in the geographical distribution and areas of various climatic types (Zhang et al., 2016). Model uncertainty is one source of general uncertainty in climate prediction, and the discrepancies between models vary with time, space, and amount of warming (Mahlstein et al., 2013; Chen et al., 2015; Belda et al., 2016). Mahlstein et al. (2013) posited that under the RCP8.5 scenario, ~20% of the world’s land area will experience a change in Köppen climate zone by the end of this century. Results vary from 17% to 27% for individual models, and the discrepancies between models increase with higher global average temperatures. For multi-model simulations, Belda et al. (2016) showed that the difference was the smallest for desert climates, the largest for northern and tundra climates, and that scenario RCP8.5 resulted in a greater difference than RCP4.5. Chen et al. (2015) found that for simulations of extreme temperature and precipitation indices in China, the uncertainty increases over time. Furthermore, the contribution of scenario uncertainty will exceed climate-model uncertainty towards the end of the century. In a study of future AHCR change in China, Yin et al. (2015) noted that aridity index values show a stronger volatility and a weaker trend compared with other climatic factors such as temperature, precipitation, and potential evapotranspiration, and that the difference between models is relatively small. Based on the corrected aridity index, the present study found that multi-model difference in humid zone variation in China is slightly larger than that for the three drier climate zones.

5 Conclusions

We combined climate observation data, CMIP5 GCM forecast data, and simulated reference evapotranspiration (ET_o) data based on the revised Penman-Monteith model to calculate aridity index (AI) values across China. Projected spatial patterns of arid/humid zones corresponding to different levels of climate warming were then mapped. By analyzing future changes in the areas covered by arid/humid zones and their sensitivity to temperature increase, the following main conclusions were arrived at.

On the whole, ET_o, P, and AI all increase under the RCP8.5 scenario, relative to the baseline period 1981-2010. The ET_o increment is high in the east and low in the west, whereas the P increment is high in the north and low in the south. The AI increases in the southeast and decreases in the northwest. The projected amount of change differs between models, but is generally greater in the long term (2070-2099) than in the mid term (2040-2069). The degree of change in evapotranspiration is generally higher than that for precipitation. This may result in a humid to sub-humid transition for the southern part of the Huaihe River Basin.

During the 21st century, the humid region will contract significantly (p < 0.01), whereas the sub-humid and semi-arid regions will expand (p < 0.05). Compared with observed values for the baseline period, the sub-humid region will change the most. Its percentage of the national land area in China will increase at an average rate of 1.98%, to expand by 28.69% in the long term. The humid region will contract in Eastern China, causing a southward shift in the boundary between humid and sub-humid zones in the Huaihe River basin, a southeastward shift in the boundary between sub-humid and semi-arid zones in North and Northeast China. In contrast, aridity will decrease in Western China, causing a northward shift in the boundary between arid and semi-arid zones.

Under the RCP8.5 scenario, areal changes in arid/humid zones according to the multi-model mean will continue increasing with rising temperature. For most GCMs, the temperature sensitivity of changes in arid/humid climate regions will gradually increase as the temperature anomaly increases. In general, the humid region will mainly contract, whereas sub-humid and semi-arid regions are mainly projected to expand. The national total area of land experiencing such changes will increase from 10.17% for 2°C warming to 13.72% for 4°C warming.
