Reconstruction of Lu-level cropland areas in the Northern Song Dynasty (AD976-1078)

Author information +
History +

Abstract

Based on data on taxed-cropland area and on the number of households in historical documents, a probabilistic model of cropland distribution and a cropland area allocation model were designed and validated. Cropland areas for the years AD976, 997, 1066, and 1078 were estimated at the level of Lu (an administrative region of the Northern Song Dynasty). The results indicated that (1) the cropland area of the whole study region for AD976, 997, 1066, and 1078 was about 468.27 million mu (a Chinese unit of area, with1 mu=666.7m2), 495.53 million mu, 697.65 million mu, and 731.94 million mu, respectively. The fractional cropland area (FCA) increased from 10.7% to 16.8%, and the per capita cropland area decreased from 15.7 mu to 8.4 mu. (2) With regard to the cropland spatial pattern, the FCA of the southeast, north, and southwest regions of the Northern Song territory increased by 12.0%, 5.2%, and 1.2%, respectively. The FCA of some regions in the Yangtze River Plain increased to greater than 40%, and the FCA of the North China Plain increased to greater than 20%. However, the FCA of the southwest region (except for the Chengdu Plain) in the Northern Song territory was less than 6%. (3) There were 84.2% Lus whose absolute relative error was smaller than 20% in the mid Northern Song Dynasty. The validation results indicate that our models are reasonable and that the results of reconstruction are credible.

Key words

land use/cover change / cropland area / Lu-level reconstruction / spatial-temporal characteristics / Northern Song Dynasty

Cite this article

EndNote

Ris (Procite)

Bibtex

Download Citations
HE Fanneng, Li Meijiao, Li Shicheng. Reconstruction of Lu-level cropland areas in the Northern Song Dynasty (AD976-1078)[J]. Journal of Geographical Sciences, 2017, 27(5): 606-618 https://doi.org/10.1007/s11442-017-1395-3

1 Introduction

Anthropogenic land use and land cover change (LUCC) is an important factor involved in a number of global changes. It influences climate change through both biogeochemical and biogeophysical mechanisms (Ramankutty et al., 2006; Tian et al., 2012a; Tao et al., 2013). In the historical period, LUCC has transformed the Earth’s surface and has had a strong impact on global and regional climate and the carbon cycle (Pongratz et al., 2008; Flato et al., 2013). Therefore, reconstruction of historical LUCC is an important task when modeling climate change and its ecological effects (Brovkin et al., 2004; Strassmann et al., 2008; Kaplan et al., 2012), and has increasingly come to be recognized as a core theme in global climate change research (Gaillard et al., 2010; Kaplan et al., 2011; Tian et al. 2014; Mazier et al., 2015; Santana-Cordero et al., 2016).
In recent years, many studies related to historical LUCC have been carried out. Two representative global-scale LUCC datasets have been developed: a global land use database for the period AD1700-1992 was established by the Center for Sustainability and the Global Environment (SAGE) at the University of Wisconsin-Madison (Ramankutty and Foley, 1999), and the Historical Database of the Global Environment (HYDE) was established by the Netherlands Environmental Assessment Agency (Klein Goldewijk et al., 2001). HYDE has been updated several times, with HYDE3.1 now covering the period 10000BC-AD2000 (Klein Goldewijk et al., 2011). Based on the AD1700 land cover maps of the SAGE dataset, Pongratz et al. (2008) reconstructed cropland and pastureland cover for AD800-1700 (hereinafter referred to as the PJ dataset) by using historical population data as a proxy. An anthropogenic land cover change dataset named KK10 (Kaplan et al., 2009, 2011) reconstructed land use from 8000BC to AD1850. However, the accuracy of these global datasets is poor at regional scales, as noted, for example, by Ramankutty et al., (2010), Li et al., (2012), Klein Goldewijk et al. (2013), He et al. (2013), and Zhang et al. (2013). Based on local historical documents, Chinese scholars have made great progress in the reconstruction of historical LUCC at national and regional scales (Ge et al., 2008; Ye et al. 2009; He et al., 2015; Jin et al., 2015; Wei et al., 2015; Ye et al., 2015; Li et al., 2016). However, most research has covered only the last three centuries, and few datasets have covered the whole of the last millennium.
The Northern Song Dynasty dates to the start of the 11th century in China (more precisely, to the period AD960-1127). Cropland area estimation for this period is significant for cropland area reconstruction over the whole millennium in China. In our previous studies (He et al., 2012), the cropland area for the mid Northern Song Dynasty(roughly representing AD1078) was estimated at the level of the Lu (an administrative region of the Northern Song Dynasty) by analyzing historical taxed-cropland records and related policies. However, because of a lack of historical records, cropland areas were probably underestimated for some Lus, including Zizhou Lu, Lizhou Lu, Kuizhou Lu, Guangnandong Lu, and Guangnanxi Lu. In addition, cropland area estimation was not possible at the Lu level for some other periods of the Northern Song Dynasty for which only national-level taxed-cropland records are available.
In the present study, the underestimation of taxed-cropland area in the north and south of the Northern Song Dynasty was analyzed; appropriate ranges of cropland area per household in the Northern Song Dynasty are discussed, and a revised determination is made of the underestimation of cropland area per household for the above-mentioned Lus. On the basis of this analysis, we first re-estimate the Lu-level cropland area of the mid Northern Song Dynasty. We then estimate the Lu-level cropland area for another three periods, based on the calibrated national-level taxed-cropland area data and the allocation method that we have developed. Finally, we analyze the spatial-temporal characteristics of the cropland area changes for the period AD976-1078 and make a comparison with the results of previous studies.

2 Data sources and processing

2.1 Study area

The study area is the territory of the Northern Song Dynasty (Figure 1). It is bounded by the Haihe River in Tianjin, Bazhou in Hebei Province, and Yanmenguan in Shanxi Province to the south, and by Hengshan Mountain in Shaanxi Province, the eastern Gansu Province, the Huangshui River basin in Qinghai Province, Minshan Mountain, and the Dadu River in Sichuan Province to the east. The Lu boundaries of the Northern Song Dynasty changed many times during the period AD960-1127. In this study, the 19 Lu-level units of the mid Northern Song Dynasty were employed for comparison purposes. Based on historical records, the study area was divided into two regions: the north and the south. The north includes Lus numbers 1-6, and the south Lus numbers 7-19.

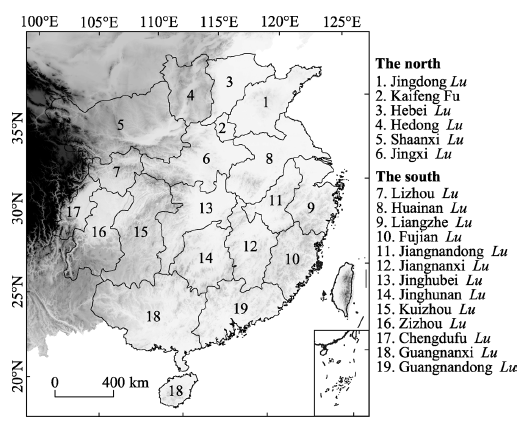

Figure 1 Location of the study area

Full size|PPT slide

2.2 Data sources

The data used in this study include taxed-cropland area and the number of households. The data on taxed-cropland area are used as raw materials for estimating cropland area, and the data on number of households are used to estimate population.
Data on taxed-cropland area were obtained mainly from two sources:
1.Collections of Historical Governmental Archives: The Lu-level taxed-cropland area for AD1078 and the national-level taxed-cropland area for the other five periods (Table 1) were obtained from this document.
2.Xinan Gazetteer: Data on taxed-cropland area and on the measured cropland area for six counties in Jiangnandong Lu for AD1174-1189 are recorded in this document and were employed in this study.
Data on the number of households were obtained from Collections of Historical Governmental Archives (Table 1) and the History of Chinese Population (Wu et al., 2000). Wu et al. calibrated the number of households at the Lu level based on a number of historical documents, including the National Gazette, General Condition of Society and Natural Environment in Yuanfeng Term, and Monograph on Geography from the History of Song Dynasty.
Table 1 National-level taxed-cropland area and the number of households in the Northern Song Dynasty
Year Number of households (104) Taxed-cropland area (106 Song-mu)
AD976 309.1 295.33
AD997 413.3 312.53
AD1021 867.8 524.76
AD1051 — 228.00
AD1066 1291.7 440.00
AD1083 1721.2 461.66
Song-mu: area unit of the Northern Song Dynasty, 1 Song-mu=584.0 m2 (Wu, 2006).

2.3 Data processing

2.3.1 Selection of taxed-cropland area data
The taxed-cropland area data in historical documents are not real cropland areas, as has been acknowledged by many researchers. However, they can still reflect the trend of changes in real cropland area (Zhou, 2001). The national-level taxed-cropland area data in Table 1 indicate that cropland area showed an overall increase during the Northern Song Dynasty, which is consistent with the increase in population and the intensification of land use in this period (Qi, 1987; Han, 1993). Note that the taxed-cropland area data for AD1021 and 1051 in Table 1 are quite different from the general trend of changes in cropland area, which casts doubts upon their validity (Qi, 1987). Therefore, only the taxed-cropland area data for AD976, 997, 1066, and 1083 were selected to reconstruct the cropland area at the Lu level.
2.3.2 Estimation of population data
We obtained data on the number of households for the Northern Song Dynasty with a resolution at the Lu level for AD980-989, 1078, and 1102 from the History of Chinese Population (Wu et al., 2000). The time periods of the data on number of households show a mismatch with those for the data on taxed-cropland area. In this study, for AD1066 and 1078, data on the number of households from the Collections of Historical Governmental Archives and the calibrated national-level results of Wu et al. (2000) were used, respectively. For AD976 and 997, linear interpolation and cross-calibration methods were used, based on the records for AD976 and 997 and the calibrated results for AD980-989 in the History of Chinese Population (Wu et al., 2000). Population data were calculated based on the number of households and conversion coefficients of 5.4 for the north and 5.2 for the south (Wu et al., 2000).

3 Reconstruction method

3.1 Method framework

The objective of this study was reconstruction of cropland area at the Lu level for the Northern Song Dynasty (Figure 2). It involved two major steps:
1) Estimation of Lu-level cropland area for the mid Northern Song Dynasty (AD1078). Based partly on real cropland area data obtained from the projects Land Measurement and Tax Equalization Law (方田均税法) for the north and Land Boundary Survey Law (经界法) for the south, we calculated the ratios of taxed-cropland area and real cropland area for the north and south. We used these ratios to estimate the real cropland area at the Lu level. Subsequently, the results were revised again based on cropland area per household.
2) Reconstruction of Lu-level cropland area for other periods of the Northern Song Dynasty, including AD976, 997, and 1066.The national-level cropland area data for the three periods were revised based on the underestimation ratios for AD1078. Then, by analyzing the relationship between crop distribution on the one hand and elevation, slope, and population on the other, we developed a cropland area distribution model. This model was used to reconstruct the cropland area at the Lu level for AD976, 997, and 1066. Finally, the changes in cropland area at the Lu level for the whole of the Northern Song Dynasty (AD976-1078) were analyzed.

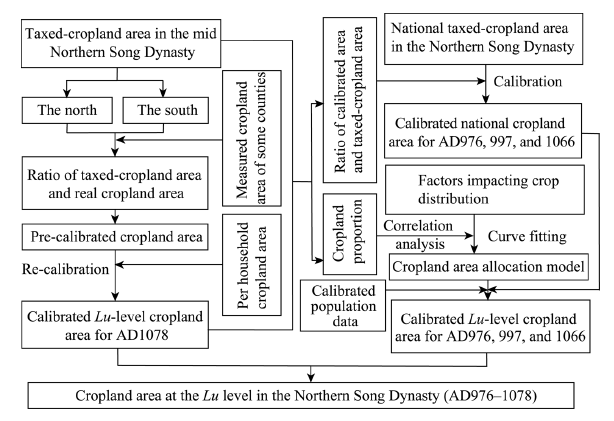

Figure 2 Scheme for reconstruction of cropland area at the Lu level in the Northern Song Dynasty

Full size|PPT slide

3.2 Estimation of cropland area for the mid Northern Song Dynasty (AD1078)

In the Northern Song Dynasty, land policy featured free land exchange and mergers. As a result, some people used to underreport their cropland area to the government in order to avoid agricultural tax. We analyzed the underestimation of cropland area and re-estimated cropland area for the mid Northern Song Dynasty in our previous research (Li et al., 2017). Therefore, only three major steps are described here.
3.2.1 Calibration of cropland area
For the north, we were able to use the results of a huge project conducted by Wang Anshi in AD1072 to measure the real cropland area. Data for five Lus in the north (except Jingxi Lu) have been preserved in historical records, and, based on these, we calculated the ratio between real cropland area and registered taxed-cropland area, obtaining a value of 2.08. For the south, some cropland data from the Land Boundary Survey Law project (Qi, 1984) were preserved in a local gazetteer in Huizhou, and we were able to use these to calculate the ratio between real cropland area and registered taxed-cropland area, obtaining a value of 1.93.
3.2.2 Assessment of the calibrated cropland area
Subsequently, we used per-household cropland area (PHCA) to assess the validity of the calibrated cropland area. Based on historical records of per-worker cropland area and per-household workers (1-2) (Wu et al., 2000) in the Song Dynasty, we estimated the PHCA of the Northern Song Dynasty to lie in the range from 20 to 100 Song-mu (Figure 3). Based on this estimate, the PHCA in Zizhou Lu, Lizhou Lu, Kuizhou Lu, Guangnandong Lu, and Guangnanxi Lu is clearly lower than the acceptable range, and therefore we implemented further revisions for these Lus.

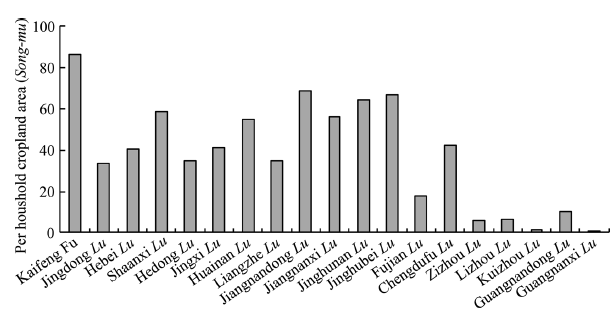

Figure 3 Preliminary revised results for cropland area per household in each Lu in the mid Northern Song Dynasty

Full size|PPT slide

3.2.3 Revision of the calibrated cropland area
The above-mentioned five Lus are located in the southwest of the Northern Song Dynasty. Therefore, we analyzed the grain output per Song-mu (Cheng, 2008), the cropping system (Zeng, 2005), and the mean persons in each household recorded in historical documents in the southwest, finding that the basic cropland demand of each household in Zizhou Lu, Lizhou Lu, and Guangnandong Lu was about 20 Song-mu, while in Kuizhou Lu and Guangnanxi Lu it was about 30 Song-mu. Based on these results, we revised the cropland areas of the five Lus (Table 2).
Table 2 Estimates of cropland area in five Lus in the mid Northern Song Dynasty
Lu Pre-revision results (106 Song-mu) Number of families (104) Re-estimated results (106 Song-mu)
Zizhou 2.84 47.8 9.56
Lizhou 2.49 37.2 7.45
Kuizhou 0.43 25.4 7.63
Guangnandong 6.07 57.9 11.59
Guangnanxi 0.11 23.8 7.15

3.3 Reconstruction of cropland area for AD976, 997, and 1066

3.3.1 Calibration of national-level cropland area
In the earlier periods of the Northern Song Dynasty, the government of the Northern Song also carried out a series of projects to survey the real cropland area of the country, but most of these were not implemented effectively and no records were saved (Qi, 1984). In this study, we used the ratios between taxed-cropland area and estimated cropland area of the mid Northern Song Dynasty to calibrate the national-level taxed-cropland area for AD976, 997, and 1066.
3.3.2 Cropland allocation
To reveal the spatial-temporal characteristics of cropland area changes more clearly, we tried to obtain a cropland area dataset with higher spatial resolution, i.e., Lu-level. An approach was developed to convert national-level cropland area into Lu-level cropland area.
Generally, cropland distribution is influenced by both natural factors (including topography, heat, water, soil, and vegetation) and social factors (including population, politics, economy, and war). However, the major drivers may be quite different in different regions or at different scales. Our study area is mainly located in the traditional cultivated area of China. Thus, topography (altitude and slope) is the most important natural factor influencing cropland distribution (Lin et al., 2009). In terms of social factors, the need to feed a growing population, especially during the historical period, led to an increasing area being devoted to cropland for grain production. Therefore, population is the major social factor influencing historical cropland distribution. Other factors, including politics and war, will also influence cropland distribution by their effects on population. Thus, the question arises as to whether topography or population is the dominant factor influencing cropland distribution at the Lu level.
To identify the dominant factor, we implemented correlation analyses at the Lu level between altitude and cropland proportion, between slope and cropland proportion, and between population proportion and cropland proportion. We calculated the average altitude and slope values of each Lu based on the 1 km DEM database (http://www.geodata.cn) and ArcGIS 10.1 (http://www.esri.com/software/arcgis/arcgis-for-desktop). The population proportion here is defined as the population in each Lu expressed as a proportion of the population of the whole country. Similarly, the cropland proportion is the cropland area in each Lu expressed as a proportion of the cropland area of the whole country. The correlation coefficients between altitude and cropland proportion, between slope and cropland proportion, and between population proportion and cropland proportion are -0.183, -0.287, and 0.823, respectively. These results indicate that population is the most important factor influencing cropland distribution at the Lu level.
The impact of population on cropland distribution is quantified by fitting the relationship between population proportion P(i) and cropland proportion C(i) in the mid Northern Song Dynasty (Figure 4). The fitting equation is as follows:
where C(i,tv)andP(i,tv)denote the cropland and population proportions, respectively, of Luiin year tv.

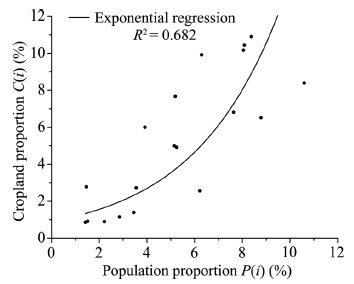

Figure 4 Fitting curve between cropland proportion and population proportion in the mid Northern Song Dynasty

Full size|PPT slide

The population proportion can be taken as equivalent to the cropland proportion when the per capita cropland area (PCCA) is similar in each Lu. However, we have found great differences in PCCA among the Lus in the mid Northern Song Dynasty. To eliminate the impact of PCCA on the allocation result, the fitting equation is modified by the introduction of a PCCA index. The PCCA index of Lu i in the mid Northern Song Dynasty is calculated as
where Cp(i) denotes the PCCA of Lu i in the mid Northerm Song Dynasty and max(Cp(i))denotes the maximum value of Cp(i). The modified equation, giving the probabilistic model of the cropland distribution, is then
where δ(i, tv) denotes the distribution probability of cropland area of Lu i in year tv. Equation (3) shows that the greater the population proportion and per capita cropland resource in one Lu, the greater is the cropland distribution probability. The cropland area allocation model is as follows:
where X(i, tv) denotes the cropland area of Lu i in year tv and A(tv) denotes the national-level cropland area in year tv.
Note that from the early to the middle period of the Northern Song Dynasty, there was an overall increase in population, and as a result the cropland area also increased. And to the mid Northern Song Dynasty, the cropland area of each Lu reached the greatest value of the study period (Qi, 1984). Therefore, when the cropland area in any of the Lus exceeded the value in the mid Northern Song Dynasty, the cropland area values of these Lus are replaced by their values in the mid Northern Song Dynasty, and with the extra cropland area being allocated to other Lus with lower cropland areas than those in the mid Northern Song Dynasty based on Equations (3) and (4).
To validate our reconstruction model, we used it to reconstruct the Lu-level cropland area for the mid Northern Song Dynasty, comparing the results with the Lu-level data based on historical records (Figure 5). It can be seen that the absolute relative error of our reconstruction at the Lu level is low overall. There are 19 Lus whose errors are smaller than 30%, and thenumber of Lus whose absolute relative error ranges from 0% to 10%, from 10% to 20%, and from 20% to 30% are 13, 3, and 3, respectively. This comparison indicates that our model provides a good transformation from national-level cropland area to Lu-level cropland area.

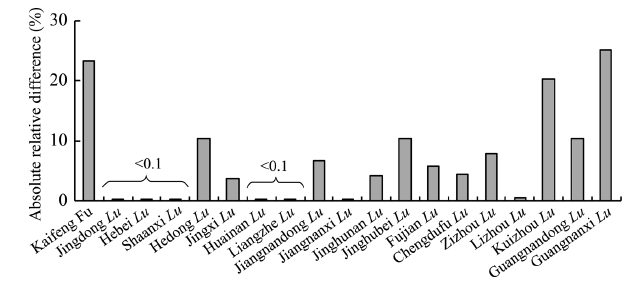

Figure 5 Absolute relative error of our reconstruction results in the mid Northern Song Dynasty

Full size|PPT slide

4 Results and analysis

4.1 Trend of changes in national-level cropland area

The national-level cropland area in the Northern Song Dynasty showed a tendency to increase over a 100-year period. Driven by rapid population growth, with an increase from 29.83 million in AD976 to 87.30 million in AD1078, and a series of policies and regulations enacted by government to encourage deserted cropland reclamation, the national-level cropland area increased from 468.27 million mu in AD976 to 731.94 million mu in AD1078, i.e., an increase of 263.67 million mu over 100 years (Table 3). The fractional cropland area (FCA) increased from 10.8% in AD976 to 16.9% in AD1078, an increase of 6%. However, the per capita cropland area decreased from 15.7 mu in AD976 to 8.4 mu in AD1078.
Table 3 Reconstruction results of cropland area and population for the Northern Song Dynasty
Year Cropland area
(106mu)		 Fractional cropland
area (%)		 Population
(104)		 Per capita cropland
area (mu)
AD976 468.27 10.8 2982.7 15.7
AD997 495.53 11.4 3988.5 12.4
AD1066 697.65 16.1 6791.9 10.3
AD1078 731.94 16.9 8730.4 8.4

4.2 Trend of changes in Lu-level cropland area

Based on the reconstructed Lu-level cropland area and the land area of each Lu as provided in the Historical Atlas of China (Tan, 1982), we calculated the FCA of each Lu for AD976, 997, 1066, and 1078 (Figure 6). It can be seen from Figure 6 that in the early Northern Song Dynasty, the cropland area was distributed mainly in the Yangtze River Plain, the North China Plain, the Guanzhong Basin, and the Chengdu Plain. The FCA in the Northern Song Dynasty then steadily increased and agricultural activities were gradually restored, with reclamation of cropland expanding to the west and south.

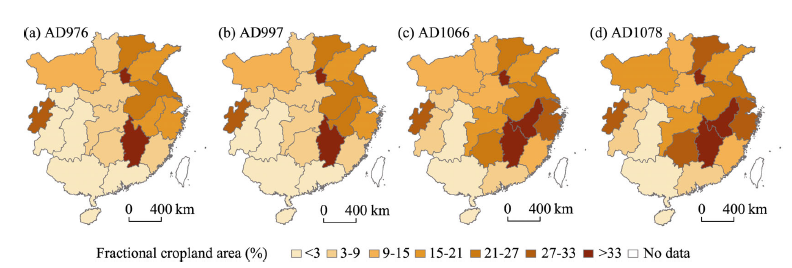

Figure 6 Fractional cropland area for AD976, 997, 1066, and 1078 in the Northern Song Dynasty

Full size|PPT slide

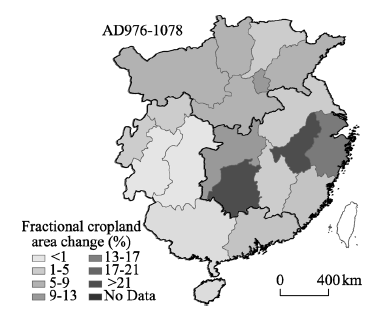

Figure 7 FCA changes in each region of the Northern Song Dynasty during AD976-1078

Full size|PPT slide

Figure 7 illustrates the changes in Lu-level FCAs of the Northern Song Dynasty during AD976-1078. Based on the characteristics of FCA changes, we divided the study area into three regions: north, southeast, and southwest. We then analyzed the trends of changes in FCAs of the whole country, of each region, and of each Lu.
As the traditionally most widely cultivated region of China, the north has been the main cropland distribution area during the historical period. After the establishment of the Northern Song Dynasty, the population increased and a series of land policies were carried out by the local government, promoting cropland expansion and land intensification. As a result, the FCA for the north increased from 12.7% in AD976 to 17.9% in AD1078 (Figures 6a and 6d; Table 4), and the FCAs of all Lus were greater than 10% in AD1078. In particular, the FCA for the North China Plain was greater than 20%.
The FCA of the southeast showed the greatest growth rate of the three regions in this period, increasing from 16.3% in AD976 to 28.3% in AD1078 as a consequence of increased immigration from the north. Agricultural activity greatly intensified and cropland expanded from the North China Plain to the middle-lower reaches of the Yangtze River Plain. At the Lu level, the three most obvious Lus showing increases in FCA were Jiangnandong Lu (a 33.3% increase), Liangzhe Lu (16.1%), and Jinghunan Lu (22.9%) (Figure 7). In contrast, the FCA only increased by 2.8% in Fujian Lu. In the mid Northern Song Dynasty, the FCAs for some regions of the middle-lower reaches of the Yangtze River Plain were greater than 40% (Figure 6d).
In the southwest (except for the Chengdu Plain), agricultural development was greatly restricted by natural conditions. This situation did not change during the Northern Song Dynasty, so the cropland area increased slowly in the southwest. From AD 976 to AD1078, the FCA of the southwest increased from 3.8% to 5.0% (Figures 6a and 6d; Table 4). At the Lu level, the FCA increased by 3.3% in Guangnandong Lu, 2.8% in Guangnanxi Lu, 1.5% in Chengdufu Lu, and less than 1% in the other Lus (Figure 7). In AD1078, the FCA increased to 32.2% in the Chengdufu Lu, while the FCAs of other Lus were less than 6% (Figure 6d), with values of only about 2% in Kuizhou Lu and Guangnanxi Lu.
Table 4 Changes in FCA in each region of the study area during AD976-1078 (%)
Year North Southeast Southwest
AD976 12.7 16.3 3.8
AD1078 17.9 28.3 5.0
Change 5.2 12.0 1.2

4.3 Comparative analysis with existing datasets

The previous land use datasets that have been used for conducting a comparative analysis of the outcome of restructuring historical cropland in the Northern Song Dynasty are primarily HYDE (Klein Goldewijk et al., 2011; Klein Goldewijk et al., 2001) and PJ (Pongratz et al., 2008). HYDE, PJ, and the dataset used in the present study have different temporal intervals and spatial resolutions. In order to facilitate comparison, data related to 19 Lus in AD1100 were drawn from HYDE and PJ, and then compared with this study. The results of this comparison indicate that the estimates of the total cropland area for the study area obtained from HYDE and PJ datasets, 565.50 and 492.60 million mu, respectively, were both lower than the estimate of 731.94 million mu obtained in the present study. The result using HYDE is closer to ours, so we performed another comparison with this dataset, but this time at the Lu level. The results show that the differences between the total cropland area of the Lus drawn from HYDE and those from this study are greater, with about one-third of Lus showing a difference of more than 75%. The cropland areas of Jiangnanxi Lu, Jiangnandong Lu, and Chengdufu Lu drawn from HYDE are less than those from this study by 76.2%, 77.2%, and 79.1%, respectively. In contrast, the cropland areas of Jingdong Lu, Zizhou Lu, and Guangnanxi Lu drawn from HYDE are greater than those from this study by 75.7%, 218.9%, and 410.5%, respectively (Figure 8).

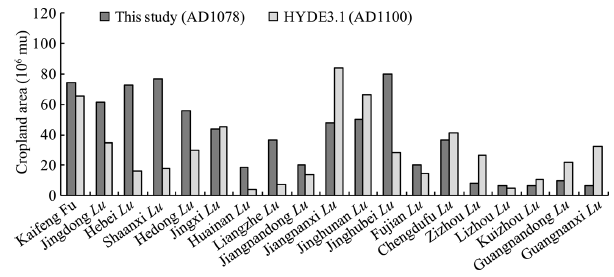

Figure 8 Comparison of reconstructed cropland areas in the mid Northern Song Dynasty at the Lu level

Full size|PPT slide

5 Conclusions

In this study, we have reconstructed the cropland area in the Northern Song Dynasty. The major findings of the study can be summarized as follows:
(1) Based on historical documents and an analysis of the factors influencing cropland distribution at the Lu level, a probabilistic model of cropland distribution and a cropland area allocation model have been developed. The number of Lus with absolute relative errors in the ranges from 0-20% is 16, accounting for 84.2% of all Lus, which indicates that the model provides a good representation of the spatial distribution of cropland in the Northern Song Dynasty.
(2) The cropland area of the whole country for the years AD 976, 997, 1066, and 1078 was about 468.27 million, 495.53 million, 697.65 million, and 731.94 million mu, respectively. The national-level cropland area showed a tendency to increase over a period of 100 years. The population of the whole country for AD976, 997, 1066, and 1078 was about 29.83 million, 39.89 million, 67.92 million, and 87.30 million, respectively. The FCA increased from 10.8% in AD976 to 16.9% in AD1078. PCCA in the Northern Song Dynasty decreased from 15.7 mu to 8.4 mu.
(3) In terms of the spatial patterns of cropland change during the period AD976-1078, the FCA of the southeast, north, and southwest regions of the Northern Song territory increased by 12.0%, 5.2%, and 1.2%, respectively. The FCA for some regions in the Yangtze River Plain was greater than 40% in AD1078, and for the North China Plain it was greater than 20%. The FCAs of the Lus in the southwest (except for the Chengdu Plain) of the Northern Song territory were less than 6%. The FCA was only about 2% in Kuizhou Lu and Guangnanxi Lu.
