Glacier area changes in the Nujiang-Salween River Basin over the past 45 years

doi:10.1007/s11442-022-1991-8

Abstract

Abstract:

Automated image classification and visual interpretation of Landsat imagery were used to extract the glacier boundary in the Nujiang-Salween River Basin (NSRB) around the years 1975, 2000, and 2020. The spatiotemporal characteristics of glacier area changes in the NSRB were determined and the reasons for the spatial heterogeneity in glacier area changes were discussed, based on comparative analyses of temperature and precipitation data from meteorological stations around the NSRB. The results indicate that 1) the total glacier area in the NSRB decreased by 477.78 km² (28.17%) at a rate of -0.62%/a in 1975-2020. Most shrinkage occurred at low and mid altitudes, with the most severe occurring at 5290-5540 m, accounting for 40% of the total shrinkage. Considering other river basins in China, the relative glacier area change rate in the NSRB was similar to that for typical inland river basins in northwest China but lower than that for other transboundary river basins in the southeastern Tibetan Plateau. 2) These areal changes in the NSRB presented obvious regional differences. The glaciers in the Hengduan Mountains retreated significantly, followed by those in the Nyainqentanglha Mountains, with relatively low shrinkage observed in the Tanggula Mountains. The number of cold and hot spots indicating areal changes increased after 2000, along with their spatial heterogeneity. 3) The glacier shrinkage rate over different time intervals was positively correlated with temperature. Thus, spatial heterogeneity of climate change effects could elucidate differences in the glacier area change rate in different regions of the NSRB. The temperature rise was determined as the primary reason for the significant glacial retreat over the past 45 years. As the significant warming trend continues, the glacier area in the NSRB is likely to shrink further.

Key words: glacier change, climate change, remote sensing, Nujiang-Salween River Basin, international river

JI Xuan, CHEN Yunfang, JIANG Wei, LIU Chang, YANG Luyi. Glacier area changes in the Nujiang-Salween River Basin over the past 45 years[J].Journal of Geographical Sciences, 2022, 32(6): 1177-1200.

Figures/Tables 20

Figure 1

Table 1

Table S2

Figure 2

Figure S1

Table S1

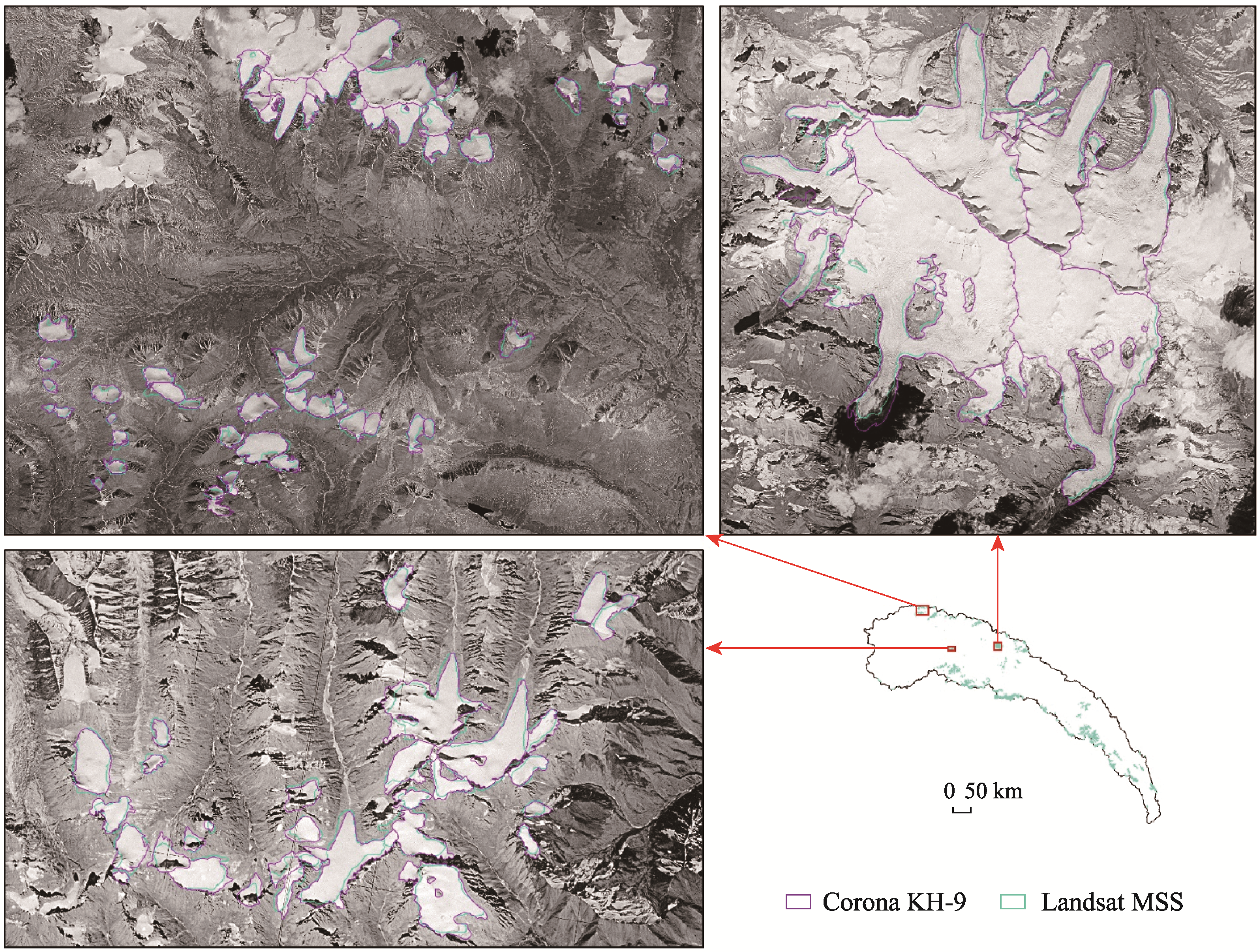

Comparison of glacier area extracted based on MSS data and KH data

No.	GLIMS_ID	Area (km²)		Deviation (km²)	Error rate (%)
No.	GLIMS_ID	KH-9	MSS	Deviation (km²)	Error rate (%)
1	G092530E32610N	0.37	0.28	-0.08	-22.45
2	G092531E32593N	0.13	0.07	-0.06	-45.19
3	G092533E32623N	1.20	1.26	0.06	5.25
4	G092537E32591N	0.30	0.25	-0.04	-14.44
5	G092553E32562N	0.15	0.12	-0.03	-22.23
6	G092557E32598N	0.77	0.65	-0.12	-15.27
7	G092560E32589N	0.11	0.13	0.02	15.06
8	G092564E32569N	0.42	0.40	-0.02	-4.10
9	G092564E32581N	0.33	0.42	0.09	26.66
10	G092581E32605N	0.73	0.72	-0.01	-0.67
11	G092585E32600N	0.80	1.08	0.28	35.21
12	G092597E32594N	0.38	0.25	-0.13	-33.06
13	G092608E32559N	0.76	0.27	-0.49	-64.90
14	G092614E32580N	0.72	0.50	-0.22	-30.52
15	G092615E32564N	0.46	0.35	-0.11	-23.52
16	G092623E32729N	1.16	1.17	0.01	1.26
17	G092627E32593N	1.33	1.38	0.05	3.77
18	G092627E32712N	0.54	0.58	0.03	6.19
No.	GLIMS_ID	Area (km²)		Deviation (km²)	Error rate (%)
No.	GLIMS_ID	KH-9	MSS	Deviation (km²)	Error rate (%)
19	G092629E32576N	2.13	1.97	-0.17	-7.79
20	G092629E32720N	0.66	0.66	-0.01	-1.00
21	G092631E32710N	0.58	0.74	0.16	26.93
22	G092638E32571N	0.68	0.53	-0.15	-22.24
23	G092640E32610N	0.70	0.62	-0.08	-11.20
24	G092641E32715N	2.23	2.14	-0.09	-3.95
25	G092646E32596N	0.62	0.67	0.06	9.15
26	G092646E32604N	0.60	0.54	-0.06	-10.56
27	G092647E32616N	0.84	0.79	-0.05	-6.03
28	G092650E32712N	0.62	0.78	0.16	26.06
29	G092653E32719N	0.56	0.71	0.14	25.52
30	G092656E32591N	0.97	0.81	-0.16	-16.52
31	G092662E32724N	1.83	1.73	-0.10	-5.42
32	G092664E32596N	0.27	0.26	-0.01	-5.01
33	G092666E32592N	0.16	0.18	0.02	9.69
34	G092672E32587N	0.89	0.93	0.04	4.58
35	G092673E32713N	0.37	0.29	-0.08	-21.13
36	G092679E32736N	3.22	3.23	0.02	0.48
37	G092680E32586N	0.51	0.56	0.05	10.45
38	G092680E32708N	0.71	0.71	0.00	0.36
39	G092690E32720N	4.99	4.95	-0.05	-0.97
40	G092694E32707N	1.75	1.56	-0.18	-10.59
41	G092701E32585N	0.81	0.59	-0.23	-27.97
42	G092707E32583N	0.34	0.33	-0.01	-3.29
43	G092708E32696N	0.91	0.99	0.08	8.51
44	G092709E32706N	1.40	1.25	-0.15	-10.90
45	G092714E32719N	0.52	0.69	0.17	32.79
46	G092728E32696N	1.46	1.28	-0.19	-12.88
47	G092746E32619N	1.12	0.97	-0.15	-13.36
48	G092770E32720N	0.86	1.07	0.20	23.70
49	G092794E32716N	0.46	0.66	0.20	42.86
50	G092795E32707N	0.22	0.22	0.00	1.07
51	G092801E32724N	1.61	1.87	0.27	16.52
52	G092811E32717N	0.63	0.86	0.23	35.80
53	G092812E32698N	0.39	0.40	0.01	2.42
54	G092816E32690N	0.53	0.53	0.00	-0.78
55	G093384E31763N	1.11	1.16	0.05	4.26
56	G093390E31752N	0.49	0.38	-0.11	-22.60
57	G093391E31737N	0.08	0.10	0.02	20.86
58	G093394E31745N	0.64	0.67	0.02	3.36
59	G093400E31763N	0.13	0.20	0.07	50.87
60	G093402E31768N	0.20	0.19	-0.01	-3.85
No.	GLIMS_ID	Area (km²)		Deviation (km²)	Error rate (%)
No.	GLIMS_ID	KH-9	MSS	Deviation (km²)	Error rate (%)
61	G093403E31742N	0.50	0.39	-0.10	-20.26
62	G093409E31746N	0.18	0.12	-0.05	-30.08
63	G093413E31738N	0.87	0.80	-0.07	-8.57
64	G093414E31748N	0.04	0.03	-0.01	-16.42
65	G093424E31734N	0.28	0.20	-0.08	-28.98
66	G093434E31735N	0.32	0.30	-0.02	-5.35
67	G093435E31740N	0.33	0.20	-0.13	-39.78
68	G093439E31741N	0.15	0.09	-0.06	-36.70
69	G093439E31748N	0.36	0.33	-0.03	-8.86
70	G093439E31756N	0.42	0.44	0.02	5.13
71	G093448E31742N	2.08	1.70	-0.37	-17.86
72	G093463E31801N	0.46	0.41	-0.05	-11.19
73	G093465E31763N	0.79	0.74	-0.05	-6.35
74	G093466E31746N	0.86	1.01	0.14	16.36
75	G093467E31754N	0.28	0.22	-0.06	-20.94
76	G093472E31771N	2.73	2.45	-0.29	-10.51
77	G093475E31732N	2.11	1.74	-0.37	-17.49
78	G093475E31758N	0.43	0.36	-0.07	-17.21
79	G093488E31767N	2.25	2.25	0.00	0.07
80	G093496E31745N	0.22	0.16	-0.06	-25.92
81	G093496E31761N	0.39	0.33	-0.06	-15.93
82	G093497E31752N	0.17	0.16	-0.01	-8.70
83	G093501E31771N	0.39	0.35	-0.04	-9.13
84	G093514E31798N	0.58	0.60	0.02	4.06
85	G093515E31792N	0.47	0.40	-0.07	-14.18
86	G094626E31817N	3.80	3.46	-0.34	-8.86
87	G094626E31837N	5.98	5.87	-0.11	-1.90
88	G094631E31856N	2.37	1.88	-0.49	-20.67
89	G094667E31807N	37.81	36.25	-1.56	-4.12
90	G094684E31847N	17.64	16.90	-0.74	-4.19
91	G094692E31769N	2.10	1.72	-0.38	-17.95
92	G094702E31775N	0.85	0.76	-0.09	-10.96
93	G094702E31855N	0.60	0.62	0.02	3.82
94	G094710E31868N	1.87	1.82	-0.05	-2.49
95	G094713E31856N	0.39	0.48	0.09	23.16
96	G094716E31863N	0.21	0.26	0.04	20.69
97	G094720E31839N	11.34	11.06	-0.28	-2.48
98	G094728E31782N	24.11	22.62	-1.50	-6.20
99	G094732E31843N	0.65	0.55	-0.10	-15.37
100	G094745E31824N	15.36	14.97	-0.40	-2.57
Sum		193.21	184.64	-8.57
Avg					-4.40

Table S1

Figure 3

Figure 4

Table 2

Figure 5

Figure 6

Table 3

Figure 7

Figure 8

Table 4

Figure 9

Figure 10

Table 5

Figure S2

Table 6

References 59

[1]	Alipour M, Kibler K M, Alizadeh B, 2022. Flow alteration by diversion hydropower in tributaries to the Salween River: A comparative analysis of two streamflow prediction methodologies. International Journal of River Basin Management, 20(1): 33-43. doi: 10.1080/15715124.2020.1760289
[2]	Bolch T, 2007. Climate change and glacier retreat in northern Tien Shan (Kazakhstan/Kyrgyzstan) using remote sensing data. Global and Planetary Change, 56(1/2): 1-12. doi: 10.1016/j.gloplacha.2006.07.009
[3]	Bolch T, Kulkarni A, Kääb A, et al., 2012. The state and fate of Himalayan glaciers. Science, 336(6079): 310-314. doi: 10.1126/science.1215828 pmid: 22517852
[4]	Church J A, White N J, Konikow L F, et al., 2011. Revisiting the Earth’s sea-level and energy budgets from 1961 to 2008. Geophysical Research Letters, 38(18): L18601.
[5]	Duan H Y, Yao X J, Liu S Y, et al., 2019. Glacier change in the Tanggula Mountains, Tibetan Plateau, in 1969-2015. Journal of Mountain Science, 16(11): 2663-2678. doi: 10.1007/s11629-018-5011-5
[6]	Fan H, He D M, 2015. Temperature and precipitation variability and its effects on streamflow in the upstream regions of the Lancang-Mekong and Nu-Salween rivers. Journal of Hydrometeorology, 16(5): 2248-2263. doi: 10.1175/JHM-D-14-0238.1
[7]	Farinotti D, Longuevergne L, Moholdt G, et al., 2015. Substantial glacier mass loss in the Tien Shan over the past 50 years. Nature Geoscience, 8(9): 716-722. doi: 10.1038/NGEO2513
[8]	Feng Y, He D M, Li Y G, 2010. Ecological changes and the drivers in the Nu River basin (upper Salween). Water International, 35(6): 786-799. doi: 10.1080/02508060.2010.534619
[9]	Garg P K, Shukla A, Jasrotia A S. 2017. Influence of topography on glacier changes in the Central Himalaya, India. Global and Planetary Change, 155: 196-212. doi: 10.1016/j.gloplacha.2017.07.007
[10]	Gao Y, Chen F, Lettenmaier D P, et al., 2018. Does elevation-dependent warming hold true above 5000 m elevation? Lessons from the Tibetan Plateau. npj Climate and Atmospheric Science, 1: 19. https://doi.org/10.1038/s41612-018-0030-z. doi: 10.1038/s41612-018-0030-z
[11]	Getis A, Ord J K, 1992. The analysis of spatial association by use of distance statistics. Geographical Analysis, 24: 189-206. doi: 10.1111/j.1538-4632.1992.tb00261.x
[12]	Grinsted A, 2013. An estimate of global glacier volume. The Cryosphere, 7(1): 141-151. doi: 10.5194/tc-7-141-2013
[13]	Guo W Q, Liu S Y, Xu J L, et al., 2015. The second Chinese glacier inventory: Data, methods and results. Journal of Glaciology, 61(226): 357-372. doi: 10.3189/2015JoG14J209
[14]	Huai B J, Li Z Q, Wang S J, et al., 2014. RS analysis of glaciers change in the Heihe River Basin, Northwest China, during the recent decades. Journal of Geographical Sciences, 24(6): 993-1008. doi: 10.1007/s11442-014-1133-z
[15]	Huss M, Hock R, 2018. Global-scale hydrological response to future glacier mass loss. Nature Climate Change, 8(2): 135-140. doi: 10.1038/s41558-017-0049-x
[16]	Immerzeel W W, Van Beek L P, Bierkens M F, 2010. Climate change will affect the Asian water towers. Science, 328(5984): 1382-1385. doi: 10.1126/science.1183188 pmid: 20538947
[17]	IPCC, 2019. IPCC Special Report on the Ocean and Cryosphere in a Changing Climate. (in press)
[18]	Ji Q, Dong J, Li H R, et al., 2020. Glacier variations in the Himalaya from 1990 to 2015 based on remote sensing. The Cryosphere Discussions, [preprint]. https://doi.org/10.5194/tc-2019-297.
[19]	Ji Q, Yang T B, Dong J, et al., 2018. Glacier variations in response to climate change in the eastern Nyainqêntanglha Range, Tibetan Plateau from 1999 to 2015. Arctic, Antarctic, and Alpine Research, 50(1): e1435844.
[20]	Kääb A, Berthier E, Nuth C, et al., 2012. Contrasting patterns of early twenty-first-century glacier mass change in the Himalayas. Nature, 488(7412): 495-498. doi: 10.1038/nature11324
[21]	Kendall S B, 1975. Enhancement of conditioned reinforcement by uncertainty. Journal of the Experimental Analysis of Behavior, 24(3): 311-314. pmid: 16811882
[22]	Lan C, Zhang Y X, Zhu F X, et al., 2014. Characteristics and changes of streamflow on the Tibetan Plateau: A review. Journal of Hydrology: Regional Studies, 2: 49-68. doi: 10.1016/j.ejrh.2014.08.004
[23]	Li B F, Chen Y N, Shi X, 2020. Does elevation dependent warming exist in high mountain Asia? Environmental Research Letters, 15: 024012. https://doi.org/10.1088/1748-9326/ab6d7f. doi: 10.1088/1748-9326/ab6d7f
[24]	Li Y J, Ding Y J, Shangguan D H, et al., 2019. Regional differences in global glacier retreat from 1980 to 2015. Advances in Climate Change Research, 10(4): 203-213. doi: 10.1016/j.accre.2020.03.003
[25]	Liu J, Yao X J, Liu S Y, et al., 2020. Glacial changes in the Gangdisê Mountains from 1970 to 2016. Journal of Geographical Sciences, 30(1): 131-144. doi: 10.1007/s11442-020-1719-6
[26]	Liu Q, Liu S Y, Guo W Q, et al., 2015. Glacier changes in the Lancang River Basin, China, between 1968-1975 and 2005-2010. Arctic, Antarctic, and Alpine Research, 47(2): 335-344. doi: 10.1657/AAAR0013-104
[27]	Liu S Y, Ding Y J, Zhang Y, et al., 2006. Impact of the glacial change on water resources in the Tarim River Basin. Acta Geographica Sinica, 61(5): 482-490. (in Chinese)
[28]	Liu S Y, Guo W Q, Xu J L, 2019. The Second Chinese Glacier Inventory (V 1.0). National glacial and frozen desert scientific data center (). doi: 10.12072/ncdc.Westdc.db0006.2020. doi: 10.12072/ncdc.Westdc.db0006.2020
[29]	Luo W, Zhang G Q, Chen W F, et al., 2020a. Response of glacial lakes to glacier and climate changes in the western Nyainqentanglha range. Science of The Total Environment, 735: 139607. doi: 10.1016/j.scitotenv.2020.139607
[30]	Luo X, Fan X M, Ji X, et al., 2020b. Hydrological impacts of interannual variations in surface soil freezing processes in the upper Nu-Salween River basin. Arctic, Antarctic, and Alpine Research, 52(1): 1-12. doi: 10.1080/15230430.2019.1698893
[31]	Mann H B, 1945. Nonparametric tests against trend. Econometrica, 13(3): 245-259. doi: 10.2307/1907187
[32]	Nie Y, Pritchard H D, Liu Q, et al., 2021. Glacial change and hydrological implications in the Himalaya and Karakoram. Nature Reviews Earth & Environment, 2(2): 91-106.
[33]	Nie Y, Zhang Y L, Liu L S, et al., 2010. Glacial change in the vicinity of Mt. Qomolangma (Everest), central high Himalayas since 1976. Journal of Geographical Sciences, 20(5): 667-686. doi: 10.1007/s11442-010-0803-8
[34]	Oerlemans J, 2005. Extracting a climate signal from 169 glacier records. Science, 308(5722): 675-677. pmid: 15746388
[35]	Paul F, Bolch T, Kääb A, et al., 2015. The glaciers climate change initiative: Methods for creating glacier area, elevation change and velocity products. Remote Sensing of Environment, 162: 408-426. doi: 10.1016/j.rse.2013.07.043
[36]	Pepin N, Bradley R S, Diaz H F, et al., 2015. Elevation-dependent warming in mountain regions of the world. Nature Climate Change, 5(5): 424-430. doi: 10.1038/nclimate2563
[37]	Rankl M, Kienholz C, Braun M, 2014. Glacier changes in the Karakoram region mapped by multimission satellite imagery. The Cryosphere, 8(3): 977-989. doi: 10.5194/tc-8-977-2014
[38]	Ren Y Y, Ren G Y, Sun X B, et al., 2017. Observed changes in surface air temperature and precipitation in the Hindu Kush Himalayan region over the last 100-plus years. Advances in Climate Change Research, 8(3): 148-156. doi: 10.1016/j.accre.2017.08.001
[39]	Sahu R, Gupta R, 2020. Glacier mapping and change analysis in Chandra basin, Western Himalaya, India during 1971-2016. International Journal of Remote Sensing, 41(18): 6914-6945. doi: 10.1080/01431161.2020.1752412
[40]	Sen P K, 1968. Estimates of the regression coefficient based on Kendall’s tau. Journal of the American Statistical Association, 63(324): 1379-1389. doi: 10.1080/01621459.1968.10480934
[41]	Sun M P, Liu S Y, Yao X J, et al., 2018. Glacier changes in the Qilian Mountains in the past half-century: Based on the revised First and Second Chinese Glacier Inventory. Journal of Geographical Sciences, 28(2): 206-220. doi: 10.1007/s11442-018-1468-y
[42]	Taft L, Kühle L, 2018. Glacier changes between 1976 and 2015 in the source area of the Ayeyarwady (Irrawaddy) River, Myanmar. Water, 10(12): 1850. doi: 10.3390/w10121850
[43]	Wang W C, Xiang Y, Gao Y, et al., 2015. Rapid expansion of glacial lakes caused by climate and glacier retreat in the Central Himalayas. Hydrological Processes, 29(6): 859-874. doi: 10.1002/hyp.10199
[44]	Wang X, Chai K G, Liu S Y, et al., 2017. Changes of glaciers and glacial lakes implying corridor-barrier effects and climate change in the Hengduan Shan, southeastern Tibetan Plateau. Journal of Glaciology, 63(239): 535-542. doi: 10.1017/jog.2017.14
[45]	Wu K P, Liu S Y, Jiang Z L, et al., 2018. Recent glacier mass balance and area changes in the Kangri Karpo Mountains from DEMs and glacier inventories. The Cryosphere, 12(1): 103-121. doi: 10.5194/tc-12-103-2018
[46]	Xiao X M, Shen Z X, Qin X G, 2001. Assessing the potential of VEGETATION sensor data for mapping snow and ice cover: A Normalized Difference Snow and Ice Index. International Journal of Remote Sensing, 22(13): 2479-2487. doi: 10.1080/01431160119766
[47]	Xing W C, Li Z Q, Zhang H, et al., 2017. Spatial-temporal variation of glacier resources in Chinese Tianshan Mountains since 1959. Acta Geographica Sinica, 72(9): 1594-1605. (in Chinese)
[48]	Xu A W, Yang T B, Wang C Q, et al., 2016. Variation of glaciers in the Shaksgam River Basin, Karakoram Mountains during 1978-2015. Progress in Geography, 35(7): 878-888. (in Chinese)
[49]	Yan L, Liu X, 2014. Has climatic warming over the Tibetan Plateau paused or continued in recent years. Journal of Earth, Ocean and Atmospheric Sciences, 1(1): 13-28.
[50]	Yang Y H, Weng B S, Yan D H, et al., 2021. Partitioning the contributions of cryospheric change to the increase of streamflow on the Nu River. Journal of Hydrology, 598: 126330. doi: 10.1016/j.jhydrol.2021.126330
[51]	Yao T D, Pu J C, Lu A X, et al., 2007. Recent glacial retreat and its impact on hydrological processes on the Tibetan Plateau, China, and surrounding regions. Arctic, Antarctic, and Alpine Research, 39(4): 642-650. doi: 10.1657/1523-0430(07-510)[YAO]2.0.CO;2
[52]	Yao T D, Thompson L N, Yang W, et al., 2012. Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings. Nature Climate Change, 2(9): 663-667. doi: 10.1038/nclimate1580
[53]	Yao T D, Yu W S, Wu G J, et al., 2019. Glacier anomalies and relevant disaster risks on the Tibetan Plateau and surroundings. Chinese Science Bulletin, 64(27): 2770-2782.
[54]	Ye B S, Ding Y J, Liu F J, et al., 2003. Responses of various-sized alpine glaciers and runoff to climatic change. Journal of Glaciology, 49(164): 1-7. doi: 10.3189/172756503781830999
[55]	Ye Q H, Zong J B, Tian L D, et al., 2017. Glacier changes on the Tibetan Plateau derived from Landsat imagery: Mid-1970s-2000-13. Journal of Glaciology, 63(238): 273-287. doi: 10.1017/jog.2016.137
[56]	Zhang Q F, Chen Y N, Li Z, et al., 2019. Glacier changes from 1975 to 2016 in the Aksu River Basin, Central Tianshan Mountains. Journal of Geographical Sciences, 29(6): 984-1000. doi: 10.1007/s11442-019-1640-z
[57]	Zhang X W, Li H J, Zhang Z H, et al., 2018. Recent glacier mass balance and area changes from dems and landsat images in upper reach of Shule River Basin, northeastern edge of Tibetan Plateau during 2000 to 2015. Water, 10(6): 796. doi: 10.3390/w10060796
[58]	Zhang Y G, Hao Z C, Xu C Y, et al., 2020. Response of melt water and rainfall runoff to climate change and their roles in controlling streamflow changes of the two upstream basins over the Tibetan Plateau. Hydrology Research, 51(2): 272-289. doi: 10.2166/nh.2019.075
[59]	Zhou Z H, Han N, Liu J J, et al., 2020. Glacier variations and their response to climate change in an arid inland river basin of Northwest China. Journal of Arid Land, 12: 357-373. doi: 10.1007/s40333-020-0061-2

Period	Date	Path/Row	Cloud cover (%)	Sensor	Spatial resolution
Around 1975	1974-01-05	142/41	2.0	Landsat MSS	80 m
	1975-11-30	143/41	3.0
	1974-01-05	142/40	4.0
	1976-10-19	143/40	6.0
	1976-10-19	143/39	3.0
	1976-11-25	144/39	15.0
	1977-08-05	145/38	17.0
	1977-08-06	146/38	3.0
	1977-08-05	145/39	42.0
	1976-12-15	146/39	21.0
	1976-12-15	146/38	5.0
	1976-12-16	147/37	1.0
	1976-12-16	147/39	12.0
	1976-12-16	147/38	6.0
	1976-12-17	148/37	1.0
	1976-12-17	148/38	3.0
2000s	2001-07-04	133/40	19.0	Landsat TM	30 m
	2000-07-17	133/40	18.0
	1999-09-24	134/40	26.0
	1999-06-04	134/39	17.0
	2001-07-09	136/38	26.0
	2000-07-22	136/38	22.0
	1999-09-22	136/38	7.0
	2000-07-22	136/39	31.0
	1999-09-22	136/39	3.0
	2000-08-30	137/37	0.0
	2000-12-25	132/41	0.0	Landsat ETM+
	2000-12-25	132/40	0.0
	2001-12-19	133/39	0.0
	2001-12-19	133/40	10.0
	2001-10-23	134/39	0.0
	2001-10-23	134/38	10.0
	1999-09-23	135/39	0.0
	1999-09-23	135/38	0.0
	2001-07-08	137/39	21.0
	2000-12-28	137/39	10.0
	2000-12-28	137/38	10.0
Period	Date	Path/Row	Cloud cover (%)	Sensor	Spatial resolution
2020s	2019-08-16	132/41	6.2	Landsat OLI	30 m
	2020-12-24	132/40	0.5
	2020-08-25	133/40	21.7
	2017-10-20	133/40	9.6
	2020-09-01	134/39	15.0
	2017-09-25	134/39	27.9
	2019-08-14	134/39	23.8
	2020-10-10	135/39	35.6
	2020-10-10	135/38	0.9
	2019-06-25	136/38	14.0
	2020-12-20	136/38	0.9
	2020-10-17	136/38	1.0
	2019-06-25	136/39	54.6
	2020-10-24	137/39	0.4
	2021-01-28	137/38	0.2
	2021-01-28	137/37	0.4
	2020-10-31	138/38	1.1

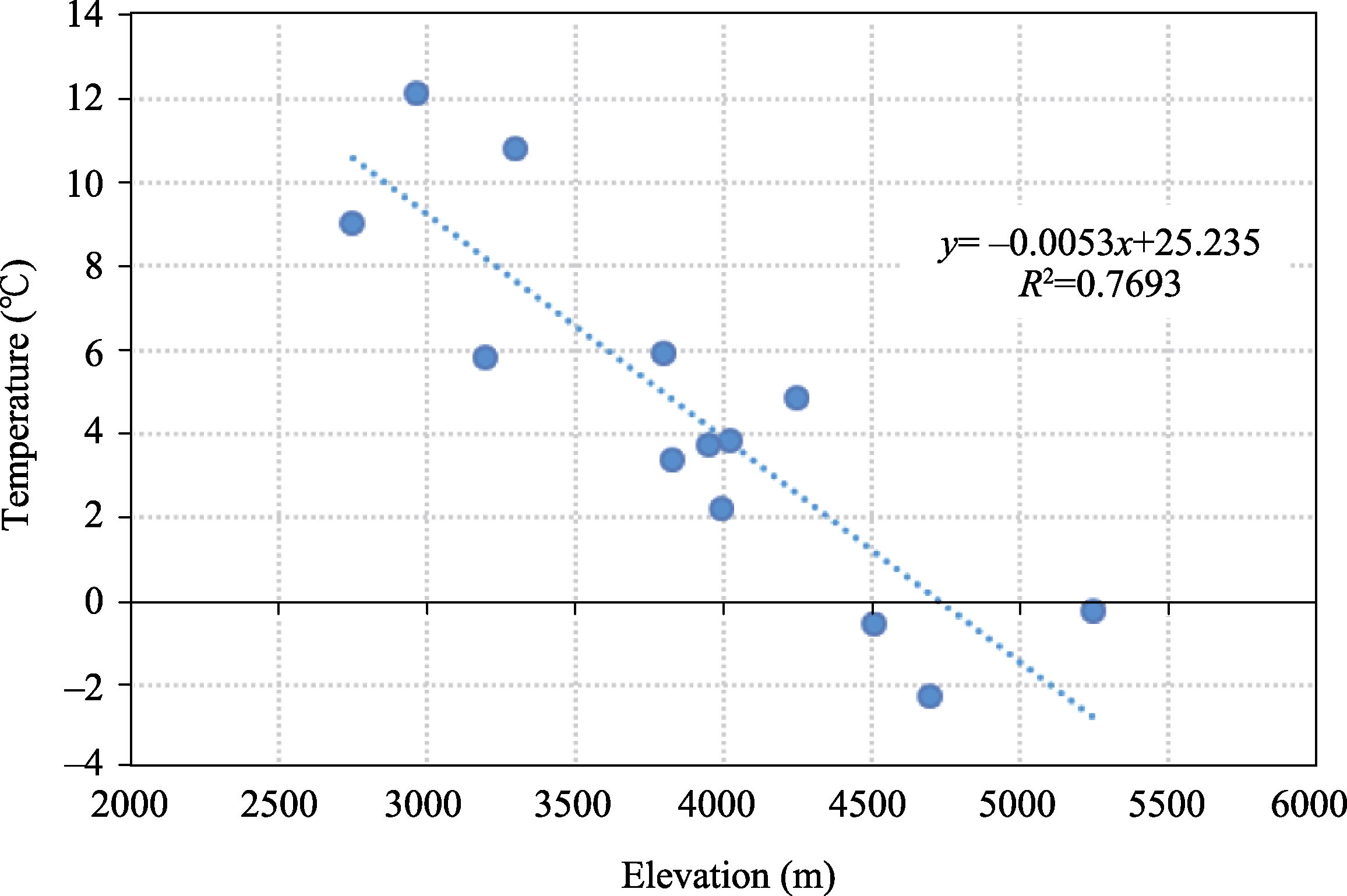

Name	Station ID	Elevation (m)	Annual average temperature (℃)
Anduo	55294	4694	-2.26
Naqu	55299	4508	-0.52
Suoxian	56106	3995	2.24
Biru	56109	4019	3.85
Dingqing	56116	3948	3.77
Leiwuqi	56128	3826	3.42
Jiali	56202	5246	-0.21
Bomi	56227	2745	9.06
Basu	56228	3294	10.83
Zuogong	56331	4244	4.88
Luolong	56233	3797	5.94
Chayu	56434	2959	12.14
Deqing	56444	3197	5.85

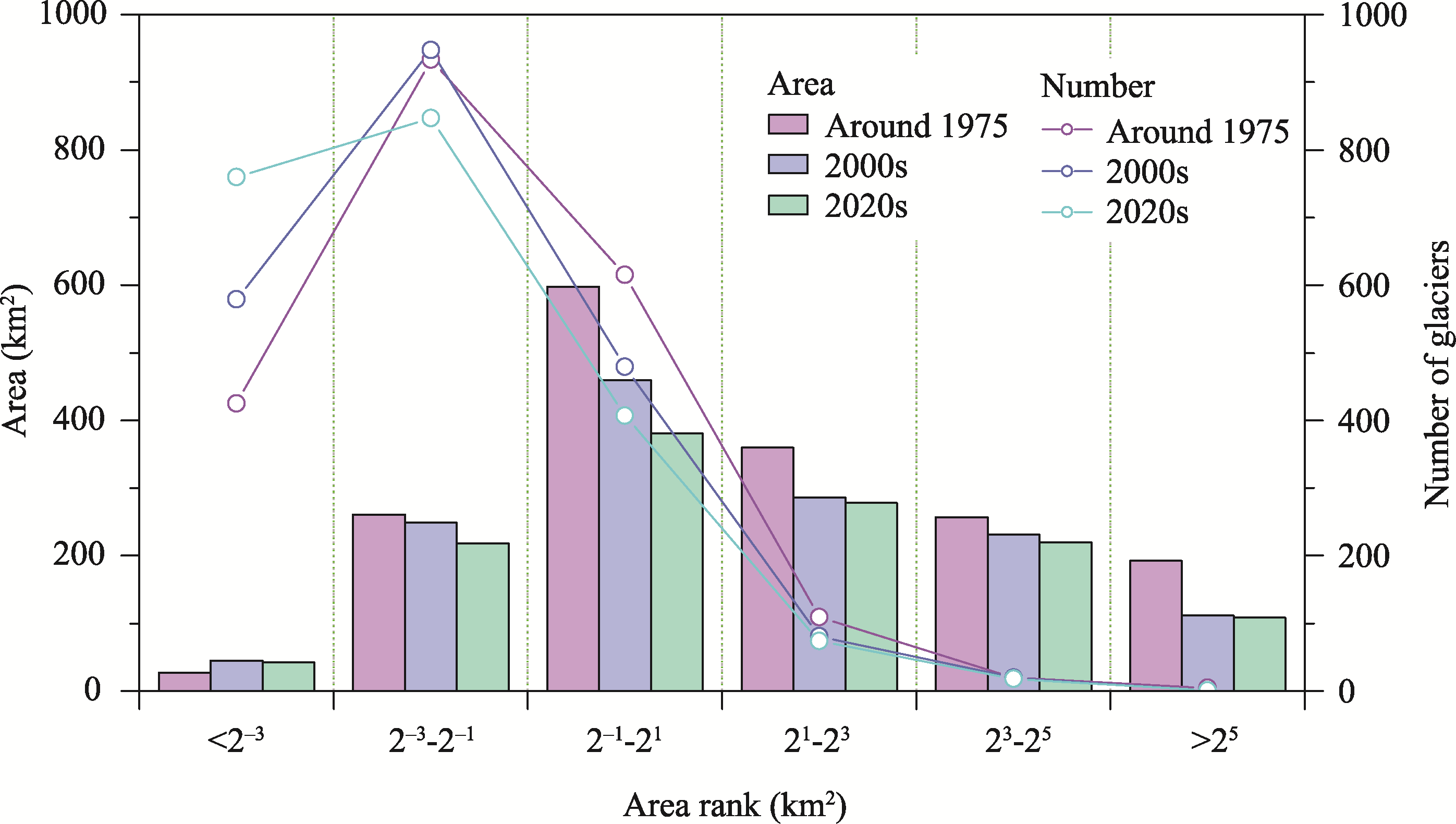

Area rank (km²)	APAC (%/a)
Area rank (km²)	Around 1975-2000s	2000s-2020s	Around 1975-2020s
< 2^-3	-0.01	-1.29	-0.67
2^-3-2^-1	-0.90	-1.31	-0.90
2^-1-2¹	-1.06	-0.89	-0.89
2¹-2³	-1.03	-0.33	-0.72
2³-2⁵	-0.64	-0.23	-0.47
> 2⁵	-0.75	-0.15	-0.46
In total	-0.80	-1.16	-0.84

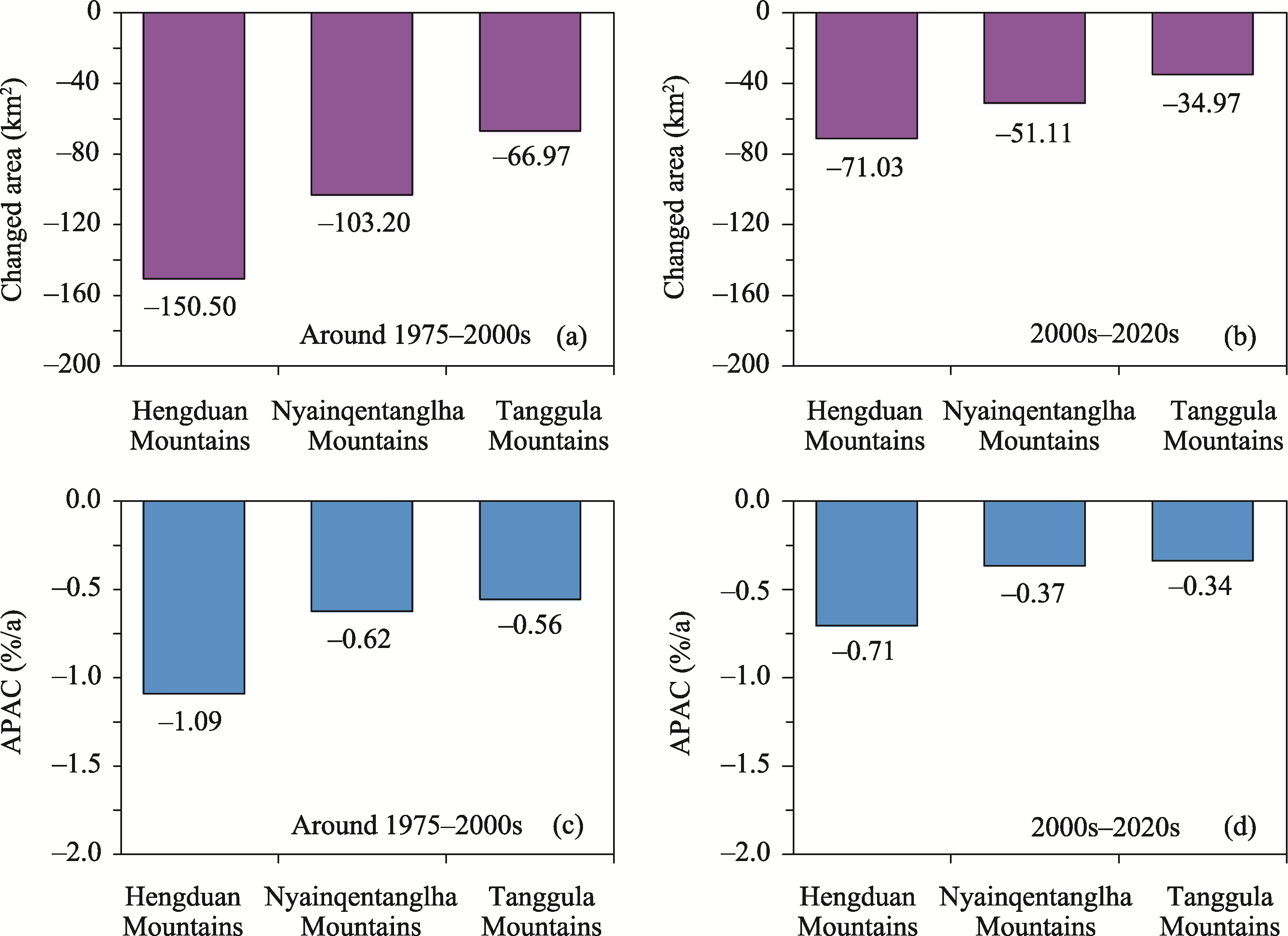

Mountains	Around 1975		2000s		2020s
Mountains	Area (km²)	Percentage (%)	Area (km²)	Percentage (%)	Area (km²)	Percentage (%)
Hengduan Mountains	552.86	32.60	402.36	29.25	331.32	27.20
Nyainqentanglha Mountains	662.66	39.07	559.46	40.68	508.35	41.73
Tanggula Mountains	480.52	28.33	413.55	30.07	378.59	31.08

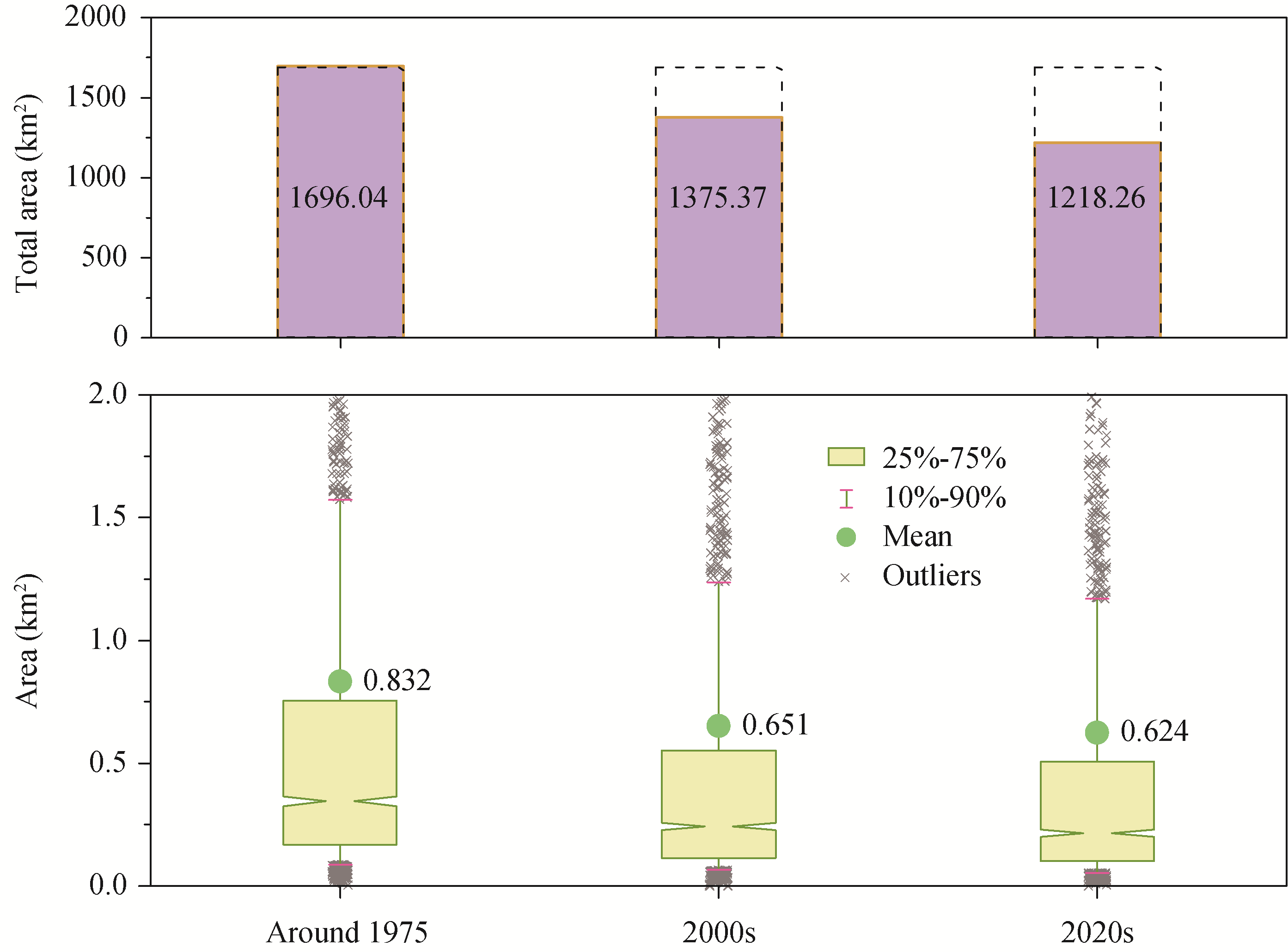

Total	1696.04	100	1375.37	100	1218.26	100

Hot and cold spots confidence level	Proportion of glacier number (%)		Average change area (km²)		Variance
Hot and cold spots confidence level	Around 1975- 2000s	2000s-2020s	Around 1975 -2000s	2000s-2020s	Around 1975 -2000s	2000s-2020s
Cold spot-99% confidence	0	3.02	-	0.04	-	0.002
Cold spot-95% confidence	0	6.67	-	0.03	-	0.002
Cold spot-90% confidence	0	6.28	-	0.04	-	0.004
Not significant	95.51	65.79	0.16	0.08	0.058	0.009
Hot spot-90% confidence	1.05	3.56	0.66	0.19	0.304	0.044
Hot spot-95% confidence	1.01	5.78	0.67	0.22	0.285	0.055
Hot spot-99% confidence	2.45	8.85	1.81	0.23	5.605	0.085
