Journal of Geographical Sciences ›› 2019, Vol. 29 ›› Issue (11): 1823-1840.doi: 10.1007/s11442-019-1681-3
• Research Articles • Previous Articles Next Articles
Alexander SHCHETNIKOV1,2,3, Elena V. BEZRUKOVA2,4
Received:
2017-12-12
Accepted:
2018-05-03
Online:
2019-11-25
Published:
2019-12-05
About author:
Shchetnikov Alexander, PhD and Senior Researcher, specialized in geomorphology and Quaternary geology. E-mail: shch@crust.irk.ru
Supported by:
Alexander SHCHETNIKOV, Elena V. BEZRUKOVA. Lakes of the Jom-Bolok Volcanoes Valley in the East Sayan Mts., Baikal region: Morphogenesis and potential for regional paleoenvironmental studies[J].Journal of Geographical Sciences, 2019, 29(11): 1823-1840.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

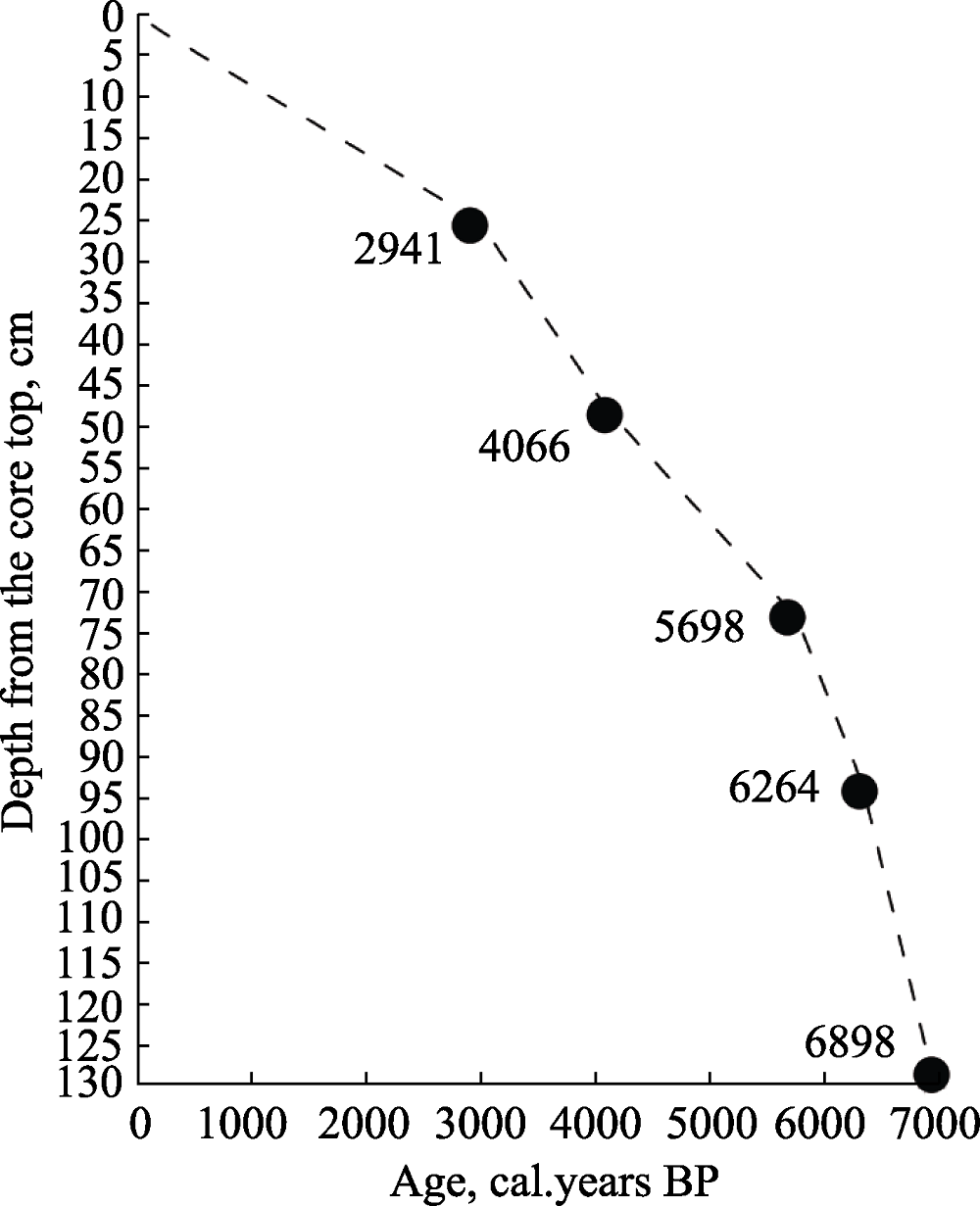

Table 1
AMS radiocarbon dates from the Jom-Bolok lakes cores. Radiocarbon years before present were converted to calendar years after Ramsey (2009)"
Lake | Sample depth (cm) | Dated material | 14C age (yr BP; 68% range) | Cal. age (yr BP; 68% range) | Laboratory number | Mean sedimentation rates (mm/yr) |
---|---|---|---|---|---|---|
Khara-Nur | 25 | Grey-brownish soft silt | 2830 ± 35 | 2941 ± 47 | Poz-76467 | 0.08 |
Khara-Nur | 48 | Brown compact silt | 3715 ± 35 | 4066 ± 60 | Poz-76466 | 0.2 |
Khara-Nur | 73 | Light-gray-brownish silt | 4970 ± 35 | 5698 ± 38 | Poz-76465 | 0.15 |
Khara-Nur | 93 | Brown compact silt | 5470 ± 40 | 6264 ± 37 | Poz-76603 | 0.35 |
Khara-Nur | 127 | Peat-peaty soil | 6035 ± 35 | 6881 ± 53 | Poz-58391 | 0.6 |
Tukhuren-Nur | 98 | Blue clay | 11350±120 | 13209±113 | Poz-58387 | 0.07 |
Borik-Nur | 86 | Gray-brownish clay | 4070±30 | 4577 ± 93 | Poz-58388 | 0.19 |
Khikhushka | 87 | Grey-brownish silt | 8320 ± 50 | 9333 ± 79 | Poz-58421 | 0.09 |
Nomto-Nur | 127 | Grey-brownish silt | 2650 ± 30 | 2769 ± 22 | Poz-58389 | 0.46 |
Shas-Nur | 192 | Grey-brownish silt | 5245 ± 35 | 6019 ± 72 | Poz-58389 | 0.32 |

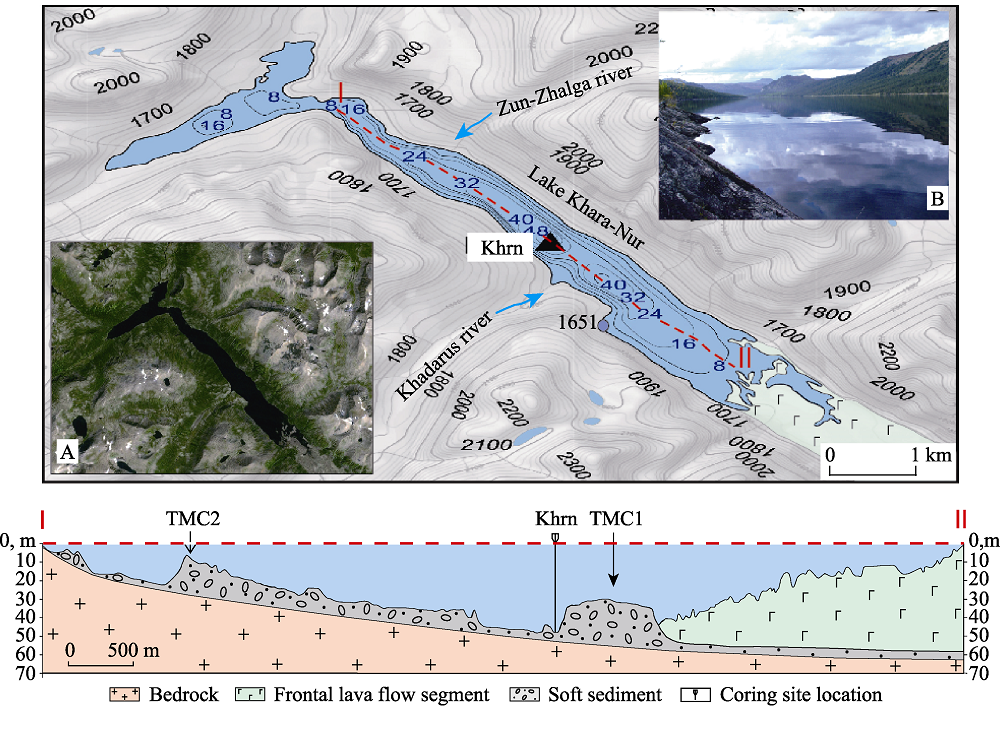

Figure 6
Bathymetric plan of the Lake Khara-Nur (contours are digitized in meters), the black triangle shows the sampling point of the Khrn core. I-II - the lengthwise geological-geomorphological section of the lake basin. The arrows show terminal moraine complexes (TMC). A - a space image of the Lake Khara-Nur location (Image ? 2017 DigitalGlobe); B - the Lake Khara-Nur, view from the south-east (Picture taken by the authors)"

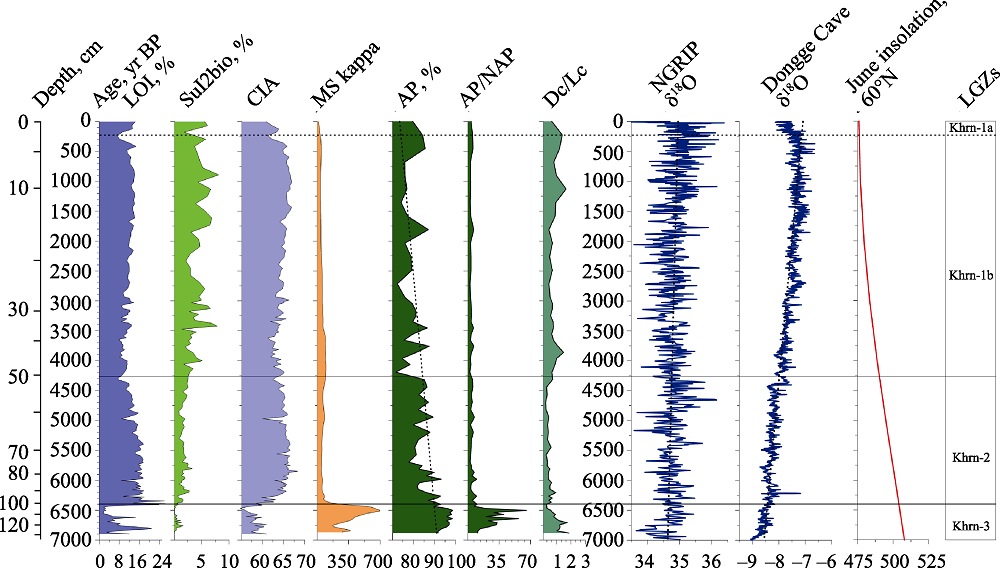

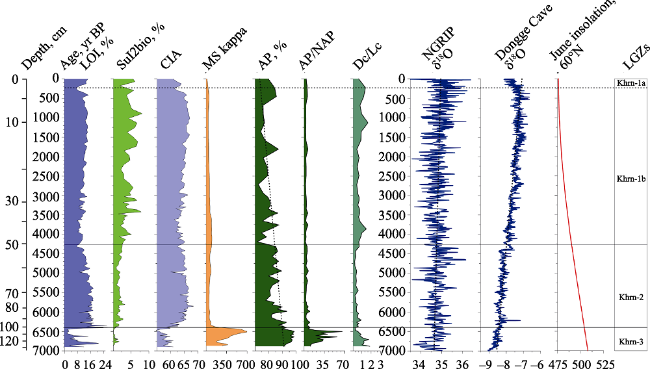

Figure 11
Comparison of the selected environmental indexes from the Khara-Nur lake sediments (this study), the NGRIP δ18O record from Greenland, as indicator of the Northern Hemisphere air temperature (after Svensson et al., 2008) and δ18O record from Chinese stalagmites (Dongge Cave, after Wang et al., 2001; Yuan et al., 2004), as indicator of the Pacific monsoon intensity, the Northern Hemisphere June insolation at 60°N (after Berger and Loutre, 1991), plotted along their respective time scales. LOI - loss on ignition, AP - arboreal pollen, NAP - non-arboreal pollen, MS - magnetic susceptibility, DC - dark conifers, LC - light conifers, LGZs - local geoecological zones, CIA (Al2O3/(Al2O3 + CaO + Na2O + K2O))*100 - chemical index of alteration (Nesbitt, Young, 1982)"
[1] | Adamovich A F, Grossvald M G, Zonenshain L P , 1959. New data on Kropotkin and Peretolchin volcanoes. Transactions of All-Union Aerogeology Trust, 5:79-90. (in Russian) |
[2] | Amosova A A, Panteeva S V, Chubarov V M et al., 2016. Determination of major elements by wavelength-dispersive X-ray fluorescence spectrometry and trace elements by inductively coupled plasma mass spectrometry in igneous rocks from the same fused sample (110 mg). Spectrochimica Acta Part B: Atomic Spectroscopy, 122:62-68. |
[3] | Arzhannikov S G, Braucher R , Jolivet M et al.Jolivet M , 2012. History of Late Pleistocene glaciations in the central Sayan-Tuva Upland (southern Siberia). Quaternary Science Reviews, 49:16-32. |
[4] | Arzhannikov S G, Ivanov A V, Arzhannikova A et al., 2017. Age of the Jom-Bolok lava fields according to dendrochronological and radiocarbon data. Russian Geology and Geophysics, 1:27-47. |
[5] | Berger A, Loutre M F , 1991. Insolation values for the climate of the last 10 million years. Quaternary Science Reviews, 10(4):297-317. |
[6] | Bezrukova E V, Abzaeva A A, Letunova P P et al., 2005. Post-glacial history of Siberian spruce (Picea obovata) in the Lake Baikal area and the significance of this species as a paleo-environmental indicator. Quaternary International, 136:47-57. |
[7] | Bezrukova E V, Shchetnikov A A, Kuzmin M I et al., 2016. First data on the environment and climate change within the Jom-Bolok Volcanic Field (Eastern Sayan Mountains) in the Middle-Late Holocene. Doklady Earth Science, 468(3):527-531. |
[8] | Bronk R C , 2009. Bayesian analysis of radiocarbon dates. Radiocarbon, 51(1):337-360. |
[9] | Colman S M, Jones G A, Rubin M et al., 1996. AMS radiocarbon analyses from Lake Baikal, Siberia: Challenges of dating sediments from a large, oligotrophic lake. Quaternary Science Reviews, 15:669-684. |
[10] | Demske D, Heumann G, Granoszewski W et al., 2005. Late glacial and Holocene vegetation and regional climate variability evidenced in high-resolution pollen records from Lake Baikal. Global and Planetary Change, 46:255-279. |
[11] | Faegri K, Iverson J, Kaland P E et al., 1989. Textbook of Pollen Analysis. New York: Wiley, 579. |
[12] | Gillespie A R, Burke R M, Komatsu G et al., 2008. Late Pleistocene glaciers in Darhad basin, northern Mongolia. Quaternary Research, 69:169-187. |
[13] | Grimm E C , 1987. CONISS: A Fortran 77 program for stratigraphically constrained cluster analysis by the method of incremental sum of squares. Computer Geoscience, 13:13-35. |
[14] | Grosswald M G , 1965. Development of Relief in the Sayan-Tuva Highland. Moscow: Nauka, 166. (in Russian) |
[15] | Heiri O, Lotter A F , 2001. Effects of low count sums on quantitative environmental reconstructions: An example using subfossil chironomids. Journal of Paleolimnology, 26:343-350. |
[16] | Ivanov A V, Arzhannikov S G, Demonterova E I et al., 2011. Jom-Bolok Holocene volcanic field in the East Sayan Mts., Siberia, Russia: Structure, style of eruptions, magma compositions, and radiocarbon dating. Bulletin of Volcanology, 73:1279-1294. |
[17] | Kiselev A I, Medvedev M E, Golovko G A , 1979. Volcanism of the Baikal Rift Zone and Deep-Seated Magma Formation Problems. Moscow: Nauka, 164. (in Russian) |
[18] | Komatsu G, Arzhannikov S G, Gillespie A R et al., 2009. Quaternary paleolake formation and cataclysmic flooding along the upper Yenisei River. Geomorphology, 104:143-164. |
[19] | Krivonogov S K, Sheinkman V S, Mistryukov A A , 2005. Ice damming of the Darhad paleolake (Northern Mongolia) during the late Pleistocene. Quaternary International, 136:83-94. |
[20] | Kropotkin P A , 1867. A trip to the Oka Guard Post. Memoirs of the Russian Geographical Society, Siberian Division. Irkutsk: Book, 9-10. (in Russian) |
[21] | Mann M E, Zhang Z, Rutherford S et al., 2009. Global signatures and dynamical origins of the Little Ice Age and Medieval Climate Anomaly. Science, 326:1256-1260. |
[22] | Minyuk P S, Borkhodoev V Y, Wennrich V , 2014. Inorganic geochemistry data from Lake El’gygytgyn sediments: Marine isotope stages 6-11. Climate of the Past, 10:467-485. |
[23] | Moberg A, Sonechkin D M, Holmgren K et al., 2005. Highly variable Northern Hemisphere temperatures reconstructed from low- and high-resolution proxy data. Nature, 433:613-617. |
[24] | Mortlock R A, Froelich P N , 1989. A simple method for the rapid determination of biogenic opal in pelagic marine sediments. Deep Sea Research, 36:1415-1426. |
[25] | Nesbitt H W, Young G M , 1982. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites. Nature, 299:715-717. |
[26] | Obruchev S V, Lurye M L , 1954. Kropotkin and Peretolchin volcanoes in East Sayan. Transactions Laboratory of Volcanology, 8:210-225. (in Russian) |
[27] | Pashkova G V, Aisueva T S, Finkelshtein A L et al., 2016. Analytical approaches for determination of bromine in sediment core samples by X-ray fluorescence spectrometry. Talanta, 160:375-380. |
[28] | Sharastepanov B D , 2007. Natural landscapes of the Oka Plateau and their use for tourist and recreational purposes. (Dr. Sci. (Geogr.) dissertation Thesis). 152. (in Russian) |
[29] | Solovyova L N , 1976. Morphology of the Cryolithozone of the Sayan-Baikal Region. Novosibirsk: Nauka, 126. (in Russian) |
[30] | Svensson A, Andersen K K, Bigler M et al., 2008. A 60 000 year Greenland stratigraphic ice core chronology. Climate of the Past, 4:47-57. |
[31] | Wang Y J, Cheng H, Edwards R L et al., 2001. A high-resolution absolute-dated Late Pleistocene Monsoon record from Hulu Cave, China. Science, 294:2345-2348. |
[32] | Yarmolyuk V V, Lebedev V I, Sugorakova A M , 2001. Eastern Tuva area of the youngest volcanism of Central Asia: Stages, products, and character of volcanic activity. Vulkanologiya i Seismologiya, 3:3-32. (in Russian) |
[33] | Yarmolyuk V V, Nikiforov A V, Ivanov V G , 2003. The structure, composition, sources and mechanism of Jombolok valley lava flows (Holocene, South-Baikal volcanic area). Vulkanologiya i Seismologiya, 5:41-59. (in Russian) |
[34] | Yuan D X, Cheng H, Edwards R L et al., 2004. Timing, duration, and transitions of the Last Interglacial Asian monsoon. Science, 304:575-578. |
