How forest gaps shaped plant diversity along an elevational gradient in Wolong National Nature Reserve?

doi:10.1007/s11442-019-1646-6

Abstract

Abstract:

Understanding the underlying ecological processes that control plant diversity within (α-diversity) and among (β-diversity) forest gaps is important for managing natural forest ecosystems, and it is also a prerequisite for identifying the formation and maintenance mechanisms of forest plant communities. In this study, we focused on the interrelationships among habitat type (gap/non-gap plots), gap size, elevation and environmental factors, and we explored their effects on plant diversity (α-diversity and β-diversity). To do this, a total of 21 non-gap (i.e., closed canopy) plots (100 m²) and 63 gap plots, including 21 with large gaps (200-410 m²), 21 with medium gaps (100-200 m²) and 21 with small gaps (38.5- 100 m²),were selected along an elevational gradient in a subalpine coniferous forest of southwestern China. Using structural equation models (SEMs), we analyzed how forest gaps affected plant diversity (α-diversity and β-diversity) along an elevational gradient. The results showed that (1) as elevation increased, unimodal patterns of α-diversity were found in different-sized gaps, and β-diversity showed a consistent sinusoidal function pattern in different-sized gaps. The gap size was positively related to α-diversity, but this effect disappeared above 3500 masl. Moreover, the patterns of α-diversity and β-diversity in non-gap plots were irregular along the elevational gradient. (2) SEMs demonstrated that many environmental factors, such as the annual mean air temperature (AMAT), ultraviolet-A radiation (365 nm, UV-A365), ultraviolet-B1 radiation (297 nm, UV-B297), moss thickness (MT), soil carbon/nitrogen ratio (C/N ratio), NH₄-N and NO₃-N, were significantly affected by elevation, which then affected α-diversity and β-diversity. The photosynthetic photon flux density (PPFD), UV-A365 and UV-B297 were significantly higher in plots with forest gaps than in the non-gap plots. Moreover, the PPFD and UV-A365 were positively and directly affected by gap size. Surprisingly, except for the NH₄-N and the C/N ratios, the below-ground environmental factors showed little or no relationships with forest gaps. All of these effects contributed to plant diversity. Overall, the above-ground environmental factors were more sensitive to gap-forming disturbances than the below-ground environmental factors, which affected α-diversity and β-diversity. The predicted pathway in the SEMs of the elevational effects on α-diversity and β-diversity was relatively complicated compared with the effects of forest gaps. These results can provide valuable insights into the underlying mechanisms driving the diversity-habitat relationship in the subalpine coniferous forests of southwestern China.

Key words: forest gap, elevation, environmental factors, plant diversity, subalpine coniferous forest

Li CHEN, Wangya HAN, Dan LIU, Guohua LIU. How forest gaps shaped plant diversity along an elevational gradient in Wolong National Nature Reserve?[J].Journal of Geographical Sciences, 2019, 29(7): 1081-1097.

Figures/Tables 8

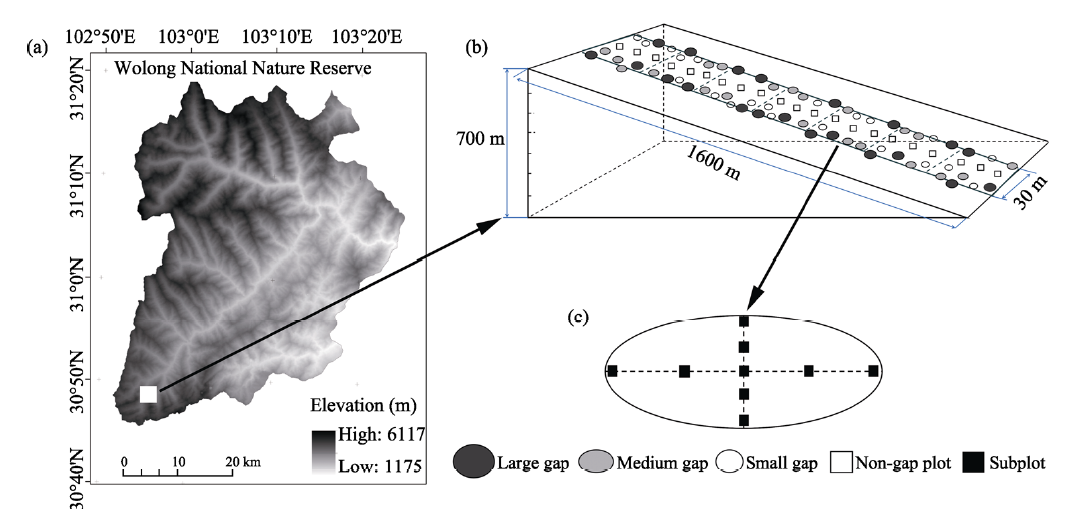

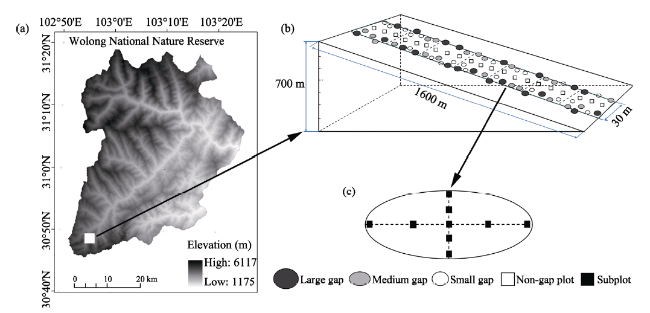

Figure 1

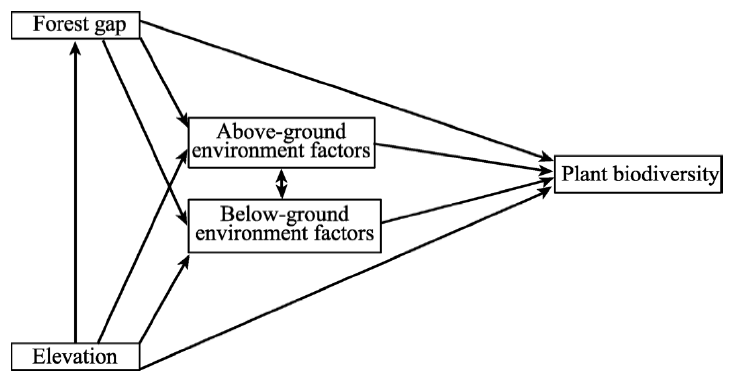

Figure 2

Table 1

Table 2

Table 3

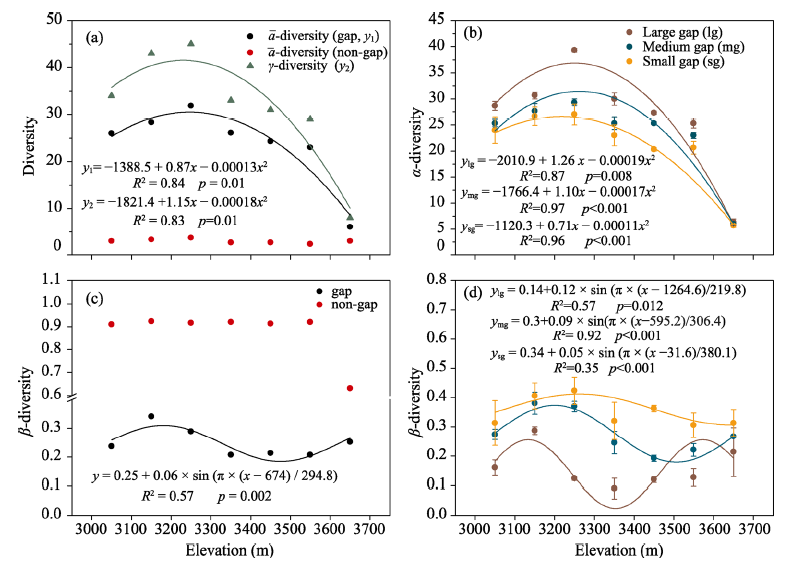

Figure 3

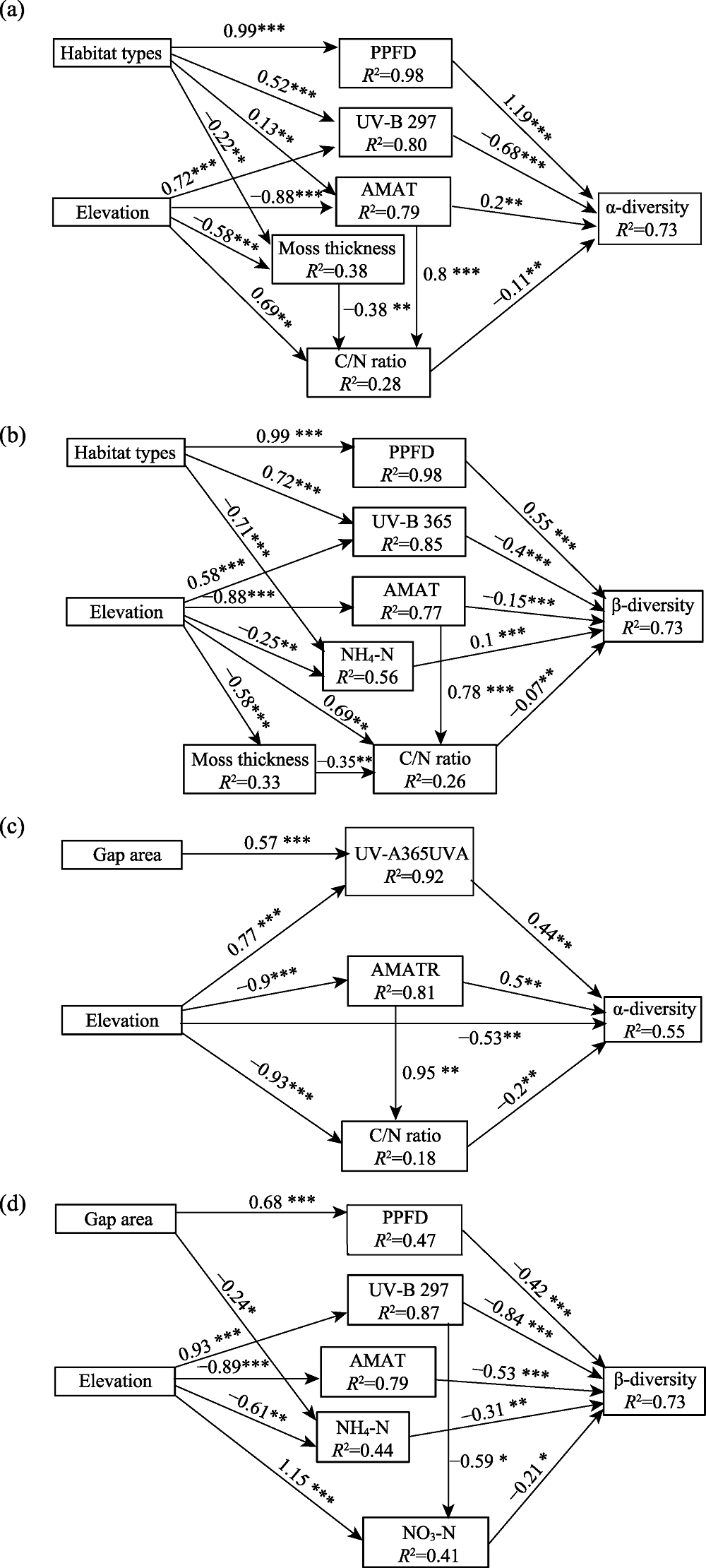

Figure 4

Table 4

References 57

1	Anderson K L, Leopold D J, 2002. The role of canopy gaps in maintaining vascular plant diversity at a forested wetland in New York State. Journal of the Torrey Botanical Society, 129(3): 238-250. doi: 10.2307/3088774
2	Barbier S, Gosselin F, Balandier P, 2008. Influence of tree species on understory vegetation diversity and mechanisms involved: A critical review for temperate and boreal forests. Forest Ecology and Management, 254(3): 1-15. doi: 10.1016/j.foreco.2007.09.038
3	Barnes P W, Ryel R J, Flint S D, 2017. UV screening in native and non-native plant species in the tropical alpine: Implications for climate change-driven migration of species to higher elevations. Frontiers in Plant Science, 8(1): 1451. doi: 10.3389/fpls.2017.01451
4	Battles J J, Shlisky A J, Barrett R H, 2001. The effects of forest management on plant species diversity in a Sierranconifer forest. Forest Ecology and Management, 146(1-3): 211-222. doi: 10.1016/S0378-1127(00)00463-1
5	Beck J, Chey V K, 2008. Explaining the elevational diversity pattern of geometrid moths from Borneo: A test of five hypotheses. Journal of Biogeography, 35(8): 1452-1464. doi: 10.1111/jbi.2008.35.issue-8
6	Bello F D, Lavergne S, Meynard C N et al., 2010. The partitioning of diversity: Showing Theseus a way out of the labyrinth. Journal of Vegetation Science, 21(5): 992-1000. doi: 10.1111/jvs.2010.21.issue-5
7	Bongers F, Poorter F, Hawthorne W et al., 2009. The intermediate disturbance hypothesis applies to tropical forest, but disturbance contributes little to tree diversity. Ecology Letters, 12(8): 798-805. doi: 10.1111/ele.2009.12.issue-8
8	Brown J H, Gillooly J F, Allen A P et al., 2004. Toward a metabolic theory of ecology. Ecology, 85(7): 1771-1789. doi: 10.1890/03-9000
9	Caquet B, Montpied P, Dreyer E et al., 2010. Response to canopy opening does not act as a filter to Fagus sylvatica and Acer sp advance regeneration in a mixed temperate forest. Annals of Forest Science, 67(1): 105p1-105p11.
10	Chen L, Liu, G H, Liu D, 2018. How forest gap and elevation shaped Abiesfaxoniana Rehd. et Wils. Regeneration in a subalpine coniferous forest, Southwestern China. Forests, 9(5). doi: 10.3390/f9050271
11	Cienciala E, Russ R, Santruckova H et al., 2016. Discerning environmental factors affecting current tree growth in Central Europe. Science of the Total Environment, 573: 541-554. doi: 10.1016/j.scitotenv.2016.08.115
12	Condit R, Pitman N, Leigh E G et al., 2002. Beta-diversity in tropical forest trees. Science, 295(5555): 666-669. doi: 10.1126/science.1066854
13	Crist T O, Veech J A, 2006. Additive partitioning of rarefaction curves and species-area relationships: Unifying alpha-, beta- and gamma-diversity with sample size and habitat area. Ecology Letters, 9(8): 923-932. doi: 10.1111/ele.2006.9.issue-8
14	Denslow J S, 1987. Tropical rainforest gaps and tree species diversity. Annual Review of Ecology and Systematics,18: 431-451. doi: 10.1146/annurev.es.18.110187.002243
15	Denslow J S, Ellison A M, Sanford R E, 1998. Treefall gap size effects on above- and below-ground processes in a tropical wet forest. Journal of Ecology, 86(4): 597-609. doi: 10.1046/j.1365-2745.1998.00295.x
16	Diaci J, Adamic T, Rozman A, 2012. Gap recruitment and partitioning in an old-growth beech forest of the Dinaric Mountains: Influences of light regime, herb competition and browsing. Forest Ecology and Management, 285: 20-28. doi: 10.1016/j.foreco.2012.08.010
17	Dolezal J, Srutek M, 2002. Altitudinal changes in composition and structure of mountain-temperate vegetation: A case study from the Western Carpathians. Plant Ecology, 158(2): 201-221. doi: 10.1023/A:1015564303206
18	Duivenvoorden J F, Svenning J C, Wright S J, 2002. Beta diversity in tropical forests. Science, 295(5555): 636-637. doi: 10.1126/science.295.5555.636
19	Fernandezpalacios F M, Denicolas J P, 1995. Attitudinal pattern of vegetation variation on Tenerife. Journal of Vegetation Science, 6(2): 183-190. doi: 10.2307/3236213
20	Galhidy L, Mihok B, Hagyo A et al., 2006. Effects of gap size and associated changes in light and soil moisture on the understorey vegetation of a Hungarian beech forest. Plant Ecology, 183(1): 133-145. doi: 10.1007/s11258-005-9012-4
21	Garbarino M, Mondino E B, Lingua E et al., 2012. Gap disturbances and regeneration patterns in a Bosnian old-growth forest: A multispectral remote sensing and ground-based approach. Annals of Forest Science, 69(5): 617-625. doi: 10.1007/s13595-011-0177-9
22	Gendron F, Messier C, Comeau P G, 1998. Comparison of various methods for estimating the mean growing season percent photosynthetic photon flux density in forests. Agricultural and Forest Meteorology, 92(1): 55-70. doi: 10.1016/S0168-1923(98)00082-3
23	Gray A N, Spies T A, Pabst R J, 2012. Canopy gaps affect long-term patterns of tree growth and mortality in mature and old-growth forests in the Pacific Northwest. Forest Ecology and Management, 281: 111-120. doi: 10.1016/j.foreco.2012.06.035
24	Hardtle W, Oheimb G V, Westphal C, 2003. The effects of light and soil conditions on the species richness of the ground vegetation of deciduous forests in northern Germany (Schleswig-Holstein). Forest Ecology and Management, 182(1-3): 327-338. doi: 10.1016/S0378-1127(03)00091-4
25	Jin Y, Qian H, Yu M, 2015. Phylogenetic structure of tree species across different life stages from seedlings to canopy trees in a subtropical evergreen broad-leaved forest. Plos One, 10(6): e0131162. doi: 10.1371/journal.pone.0131162
26	Kern C C, Montgomery R A, Reich P B et al., 2013. Canopy gap size influences niche partitioning of the ground-layer plant community in a northern temperate forest. Journal of Plant Ecology, 6(1): 101-112. doi: 10.1093/jpe/rts016
27	Korner C, 1992. Why are there global gradients in species richness? Mountains might hold the answer. Trends in Ecology & Evolution, 45(8): 618-619.
28	Kraft N J B, Comita L S, Chase J M et al., 2011. Disentangling the drivers of beta diversity along latitudinal and elevational gradients. Science, 333(6050): 1755-1758. doi: 10.1126/science.1208584
29	Kraft N J B, Cornwell W K, Webb C O et al., 2007. Trait evolution, community assembly, and the phylogenetic structure of ecological communities. American Naturalist, 170(2): 271-283. doi: 10.1086/519400
30	Kreft H, Jetz W, 2007. Global patterns and determinants of vascular plant diversity. Proceedings of the National Academy of Sciences of the United States of America, 104(14): 5925-5930. doi: 10.1073/pnas.0608361104
31	Kubota Y, Murata H, Kikuzawa K, 2004. Effects of topographic heterogeneity on tree species richness and stand dynamics in a subtropical forest in Okinawa Island, southern Japan. Journal of Ecology, 92(2): 230-240. doi: 10.1111/jec.2004.92.issue-2
32	Lindo Z G A, 2010. The bryosphere: An integral and influential component of the Earth’s biosphere. Ecosystems, 13(4): 612-627. doi: 10.1007/s10021-010-9336-3
33	Liu D, Wu X, Shi S L et al., 2016. A hollow bacterial diversity pattern with elevation in Wolong Nature Reserve, Western Sichuan Plateau. Journal of Soils and Sediments, 16(10): 2365-2374. doi: 10.1007/s11368-016-1422-5
34	Loreau M, 2000. Are communities saturated on the relationship between α, β and γ diversity. Ecology Letters, 3(2): 73-76. doi: 10.1046/j.1461-0248.2000.00127.x
35	McCain C, 2007. Area and mammalian elevational diversity. Ecology, 88(1): 76-86. doi: 10.1890/0012-9658(2007)88[76:AAMED]2.0.CO;2
36	Molina-Venegas R, Aparicio A, Lavergne S et al., 2016. How soil and elevation shape local plant biodiversity in a Mediterranean hotspot. Biodiversity and Conservation, 25(6): 1133-1149. doi: 10.1007/s10531-016-1113-y
37	Muscolo A, Bagnato S, Sidari M et al., 2014. A review of the roles of forest canopy gaps. Journal of Forestry Research, 25(4): 725-736. doi: 10.1007/s11676-014-0521-7
38	Muscolo A, Mallamaci C, Sidari M et al., 2011. Effect of gap size and soil chemical properties on the natural regeneration in black pine (Pinusnigra. Arn.) stands. Tree Forest Science Biotechnology, 5: 65-71.
39	Naaf T, Wulf M, 2007. Effects of gap size, light and herbivory on the herb layer vegetation in European beech forest gaps. Forest Ecology and Management, 244(1-3): 141-149. doi: 10.1016/j.foreco.2007.04.020
40	Parent S, Messier C, 1996. A simple and efficient method to estimate microsite light availability under a forest canopy. Canadian Journal of Forest Research, 26(1): 151-154. doi: 10.1139/x26-017
41	Piazena H, Hader D P, 2009. Solar UV-B and UV-A irradiance in arid high-mountain regions: Measurements on the island of Tenerife as compared to previous tropical Andes data. Journal of Geophysical Research-Biogeosciences, 114: 1-15.
42	Ping A, Li X J, Zheng Y R et al., 2015. Distribution of plant species and species-soil relationship in the east central Gurbantunggut Desert, China. Journal of Geographical Sciences, 25(1): 101-112. doi: 10.1007/s11442-015-1156-0
43	Rahbek C, 1995. The elevational gradient of species richness: A uniform pattern. Ecography, 18(2): 200-205. doi: 10.1111/eco.1995.18.issue-2
44	Raymond P, Munson A D, Ruel J C et al., 2006. Spatial patterns of soil microclimate, light, regeneration, and growth within silvicultural gaps of mixed tolerant hardwood - white pine stands. Canadian Journal of Forest Research, 36(3): 639-651. doi: 10.1139/x05-269
45	Ricklefs R E, 2004. A comprehensive framework for global patterns in biodiversity. Ecology Letters, 7(1): 1-15. doi: 10.1046/j.1461-0248.2003.00554.x
46	Runkle J R, 1981. Gap regeneration in some old-growth forests of the eastern United-States. Ecology, 62(4): 1041-1051. doi: 10.2307/1937003
47	Santibáñez-Andrade G, Castillo-Argüero S, Vega-Peña E V et al., 2015. Structural equation modeling as a tool to develop conservation strategies using environmental indicators: The case of the forests of the Magdalena river basin in Mexico City. Ecological Indicators, 54: 124-136. doi: 10.1016/j.ecolind.2015.02.022
48	Sariyildiz T, 2008. Effects of gap-size classes on long-term litter decomposition rates of beech, oak and chestnut species at high elevations in northeast Turkey. Ecosystems, 11(6): 841-853. doi: 10.1007/s10021-008-9164-x
49	Scharenbroch B C, Bockheim J G, 2007. Impacts of forest gaps on soil properties and processes in old growth northern hardwood-hemlock forests. Plant and Soil, 294(1/2): 219-233. doi: 10.1007/s11104-007-9248-y
50	Scharenbroch B C, Bockheim J G, 2008. Gaps and soil C dynamics in old growth northern hardwood-hemlock forests. Ecosystems, 11(3): 426-441. doi: 10.1007/s10021-008-9131-6
51	Tang Z Y, Fang J Y, 2004. A review on the elevational patterns of plant species diversity. Biodiversity Science, 12: 20-28. (in Chinese)
52	Toledo M, Poorter L, Peña-Claros M et al., 2011. Climate is a stronger driver of tree and forest growth rates than soil and disturbance. Journal of Ecology, 99(1): 254-264. doi: 10.1111/jec.2010.99.issue-1
53	Vajari K A, Jalilvand H, Pourmajidian M R et al., 2012. Effect of canopy gap size and ecological factors on species diversity and beech seedlings in managed beech stands in Hyrcanian forests. Journal of Forestry Research, 23(2): 217-222. doi: 10.1007/s11676-012-0244-6
54	Vetaas O R, Grytnes J A, 2002. Distribution of vascular plant species richness and endemic richness along the Himalayan elevation gradient in Nepal. Global Ecology and Biogeography, 11(4): 291-301. doi: 10.1046/j.1466-822X.2002.00297.x
55	Wang G L, Liu F, 2011. The influence of gap creation on the regeneration of Pinus tabuliformis planted forest and its role in the near-natural cultivation strategy for planted forest management. Forest Ecology and Management, 262(3): 413-423. doi: 10.1016/j.foreco.2011.04.007
56	Wang Z, Tang Z Y, Fang J Y, 2007. Altitudinal patterns of seed plant richness in the Gaoligong Mountains, south-east Tibet, China. Diversity and Distributions, 13(6): 845-854. doi: 10.1111/j.1472-4642.2007.00335.x
57	Woch M W, Stefanowicz A M, Stanek M, 2017. Waste heaps left by historical Zn-Pb ore mining are hotspots of species diversity of beech forest understory vegetation. Science of Total Environment, 599: 32-41.

Variables	Habitat types N=84	Elevation (all plots), N=84	Gap size N=63	Elevation (gaps), N=63
Above-ground environmental factors
Annual mean air temperature (℃)	1.34	47.07***	0.115	36.42***
PPFD (μ mol m^-2 s^-1)	3771.46***	0.02	37.41***	0.576
UV-A365 (μ W cm^-2)	91.30***	5.52***	20.43***	12.73***
UV-B297 (μ W cm^-2)	30.50***	15.78***	1.00	144.94***
UV-B254 (μ W cm^-2)	78.16***	6.78***	12.044***	21.503***
Moss thickness (cm)	4.2*	6.81***	0.876	4.74***
Below-ground environmental factors
Annual mean soil temperature (℃)	1.02	285.51***	0.03	314.76***
Soil water content (%)	0.17	10.80***	0.03	13.96***
Soil pH	1.83	3.45**	0.93	3.65**
Soil total carbon (%)	3.18	17.33***	2.83	9.87***
Soil total nitrogen (%)	7.84**	38.77***	2.63	37.38***
Soil total sulfur (%)	5.83***	2.64*	5.60***	3.56***
Carbon/nitrogen ratio	1.94	2.40*	0.35	1.64
NH₄-N (mg kg^-1)	8.20***	1.71	2.47	11.82***
NO₃- N (mg kg^-1)	3.64*	5.71*	0.33	18.06***

	Above-ground environment factors
	PPFD		UV-A365	UV-B297	UV-B254	MT
All plots (N=84)
α-diversity	0.81***		0.43***	0.02	0.39***	0.03
β-diversity	-0.944***		-0.83***	-0.57***	-0.79***	-0.35**
Gaps (N=63)
α-diversity	0.44***		-0.34***	-0.72***	-0.36***	0.28**
β-diversity	-0.54***		-0.61***	-0.3**	-0.54***	0.14
	Below-ground environment factors
	AMST	pH		SWC	STC	STN	C/N ratio	NH₄-N	NO₃-N	STS
All plots (N=84)
α-diversity	0.44^***	0.14		-0.1	0.38^***	0.55^***	0.04	-0.51^***	-0.003	-0.09
β-diversity	0.01	-0.1		0.07	-0.2	-0.23^**	-0.25^**	0.74^***	-0.25^**	0.17
Gaps (N=63)
α-diversity	0.653***	0.03		-0.13	0.38^**	0.59^***	-0.14	0.21	-0.29^**	0.21
β-diversity	0.224	0.12		0.15	-0.13	0.02	-0.13	0.05	-0.25^**	-0.22

Models	Model fit indices
Models	χ²	DF	p	RMSEA	GFI	CFI	AIC
a	3.869	8	0.869	<0.001	0.988	1	59.869
b	9.609	13	0.726	<0.001	0.974	1	73.609
c	0.216	3	0.975	<0.001	0.99	1	36.216
d	10.119	14	0.753	<0.001	0.959	1	54.119
Criterion	-	-	>0.05	<0.05	>0.9	>0.9	Lowest

	All plots (N=84)
	Elevation	Habitat types	AMAT	PPFD	UV-B297	UV-A365	C/N ratio	MT	NH₄-N
Total effect
α-diversity	-0.7	0.77	0.13	1.13	-0.68	—	-0.11	0.04	—
β-diversity	-0.14	-0.9	-0.21	-0.55	—	-0.4	-0.07	0.03	0.1
Direct effect
α-diversity	0	0	0.21	1.13	-0.68	—	-0.11	0	—
β-diversity	0	0	-0.15	-0.55	—	-0.4	-0.07	0	0.1
Indirect effect
α-diversity	-0.7	0.77	-0.09	0	0	—	0	0.04	—
β-diversity	-0.14	-0.9	-0.06	0	—	0	-0.07	0.03	0
	Gaps (N=63)
	Elevation	Gap area	AMAT	PPFD	UV-A365	UV-B297	C/N ratio	NH₄-N	NO₃-N
Total effect
α-diversity	-0.66	0.25	0.31	—	0.44	—	-0.2	—	—
β-diversity	-0.26	-0.21	-0.53	-0.42	—	-0.72	—	-0.31	-0.21
Direct effect
α-diversity	-0.53	0	0.5	—	0.44	—	-0.2	—	—
β-diversity	0	0	-0.53	-0.42	—	-0.84	—	-0.31	-0.21
Indirect effect
α-diversity	-0.13	0.25	-0.19	—	0	—	0	—	—
β-diversity	-0.26	-0.21	0	0	—	0.12	—	0	0
