The effects of urban water cycle on energy consumption in Beijing, China

doi:10.1007/s11442-019-1639-5

Abstract

Abstract:

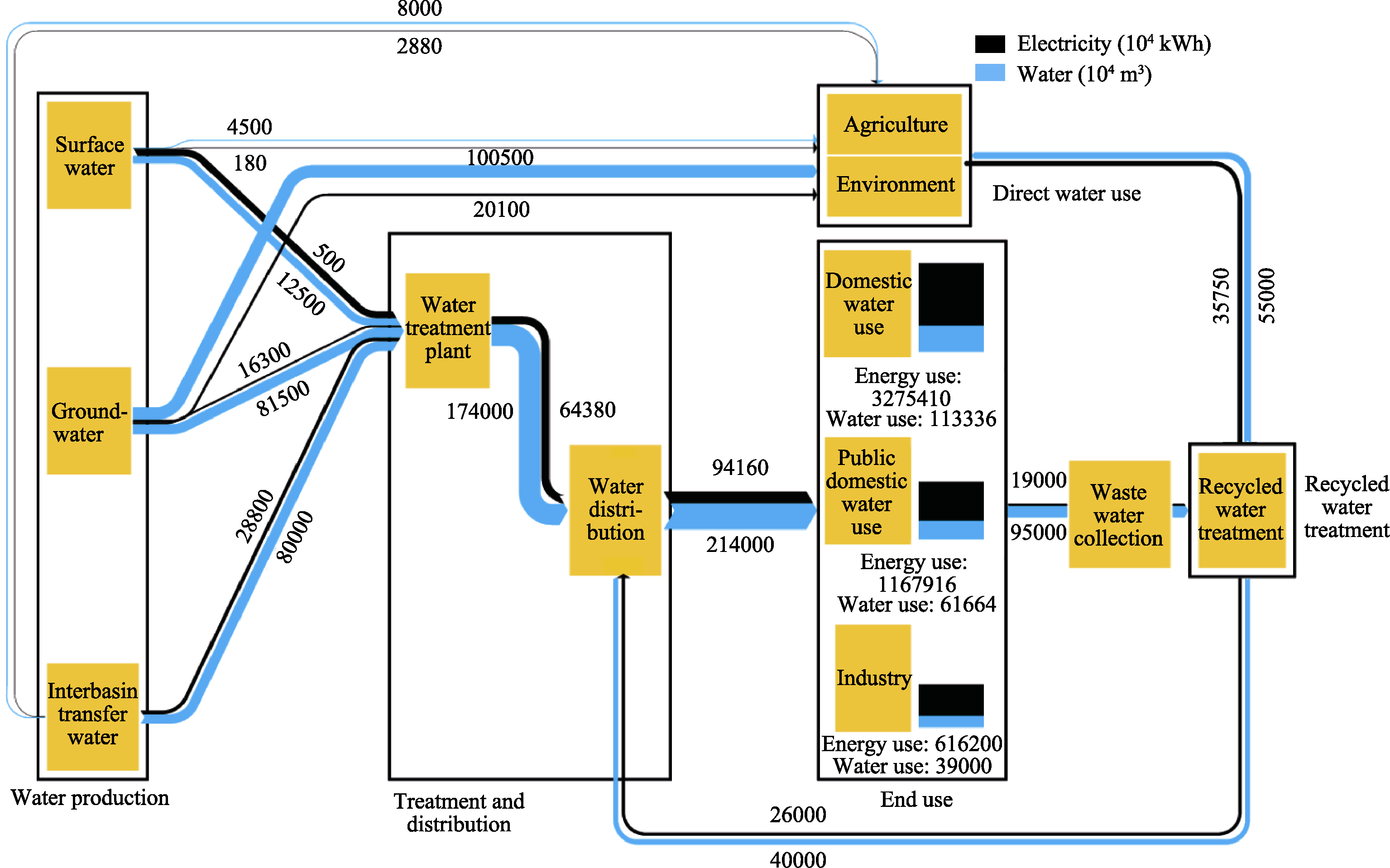

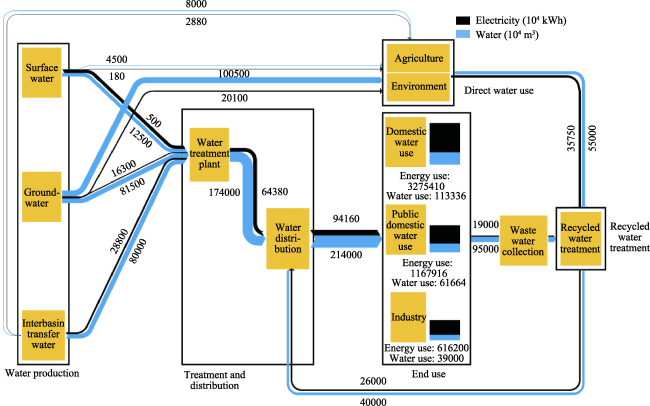

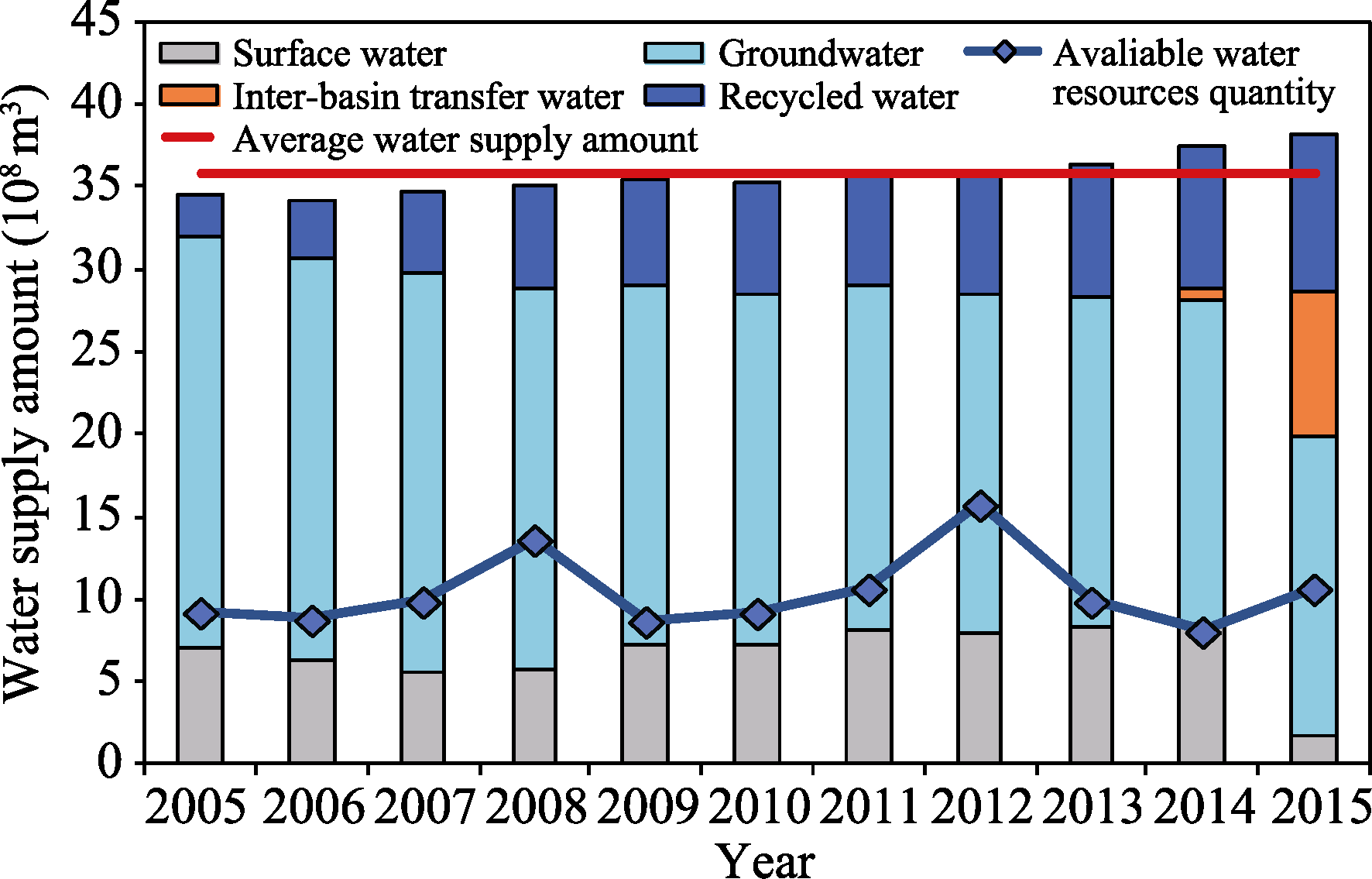

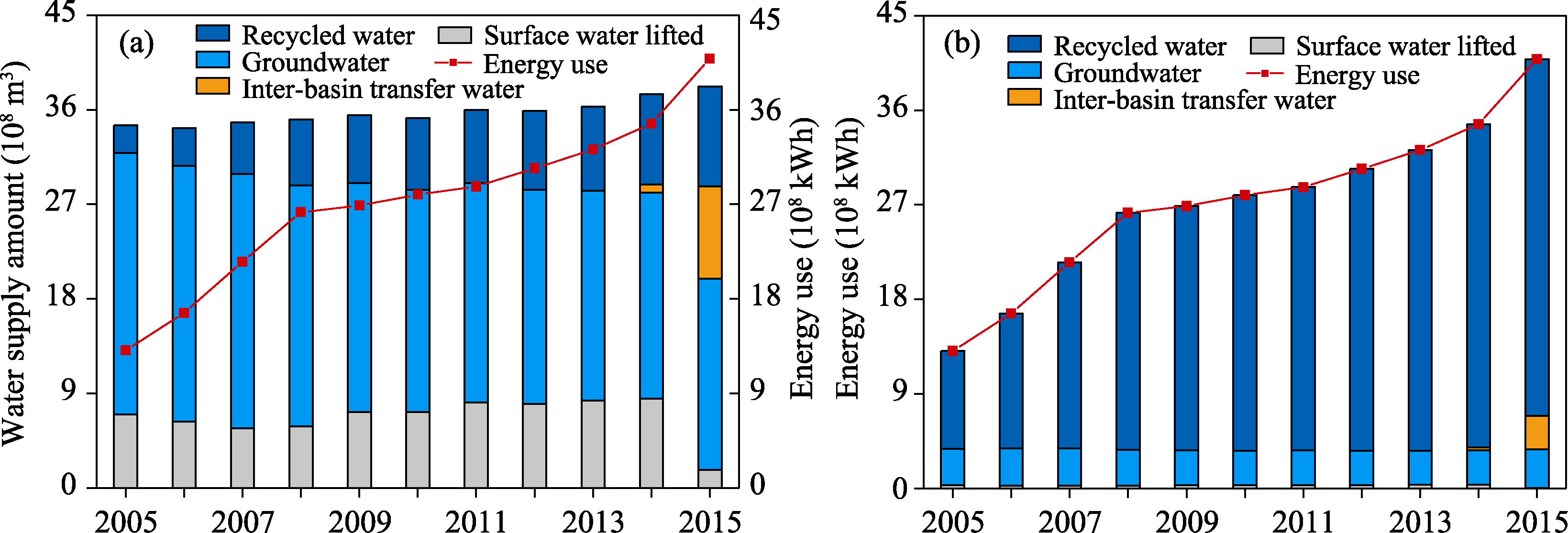

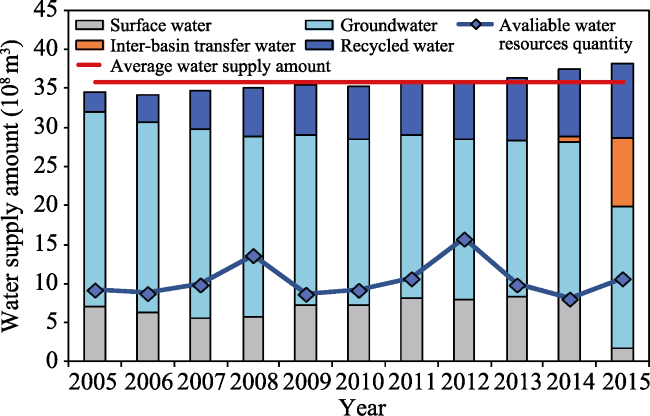

Energy is consumed at every stage of the cycle of water production, distribution, end use, and recycled water treatment. Understanding the nexus of energy and water may help to minimize energy and water consumption and reduce environmental emissions. However, the interlinkages between water and energy have not received adequate attention. To address this gap, this paper disaggregates and quantifies the energy consumption of the entire water cycle process in Beijing. The results of this study show that total energy consumption by water production, treatment and distribution, end use, and recycled water reuse amounts to 55.6 billion kWh of electricity in 2015, or about 33% of the total urban energy usage. While water supply amount increased by only 10% from 2005 to 2015, the related energy consumption increased by 215% due to water supply structural change. The Beijing municipal government plans to implement many water saving measures in the area from 2016 to 2020, however, these policies will increase energy consumption by 74 million kWh in Beijing. This study responds to the urgent need for research on the synergies between energy and water. In order to achieve the goal of low-energy water utilization in the future, water and energy should be integrated in planning and management.

Key words: water-energy nexus, integrated planning, water supply, energy consumption, Beijing

Guohua HE, Yong ZHAO, Jianhua WANG, Yongnan ZHU, Shan JIANG, Haihong LI, Qingming WANG. The effects of urban water cycle on energy consumption in Beijing, China[J].Journal of Geographical Sciences, 2019, 29(6): 959-970.

Figures/Tables 7

Table 1

Figure 1

Figure 2

Figure 3

Table 2

Figure 4

Table 3

References 44

[1]	Arpke A, Hutzler N, 2006. Domestic water use in the United States: A life-cycle approach.Journal of Industrial Ecology, 10(5): 169-184.
[2]	Beijing Water Authority (BWA), 2016. Beijing’s 13th Five-year Water-saving Society Construction Plan. Beijing: China Water & Power Press. (in Chinese)
[3]	China GEO-Environmental Monitoring Institute, 2015. China Groundwater Level Yearbook of GEO-Environmental Monitoring. Beijing: China Land Press. (in Chinese)
[4]	China GEO-Environmental Monitoring Institute, 2016. China Groundwater Level Yearbook of GEO-Environmental Monitoring. Beijing: China Land Press. (in Chinese)
[5]	Che J M, Fu Y C, Wu Z Het al., 2015, Investigation and analysis on household water use level and structure in Beijing.China Rural Water and Hydropower, 93-95. (in Chinese)
[6]	Chen S, Chen B, 2016. Urban energy-water nexus: A network perspective.Applied Energy, 184(15): 905-914. doi: 10.1016/j.apenergy.2016.03.042
[7]	China Irrigation and Drainage Development Center, 2009. Renovation Plan of Large-scale Irrigation and Drainage Pumping Station in China. Beijing: CIDDC Press. (in Chinese)
[8]	Cohen R, Nelson B, Wolff G, 2004. Energy Down the Drain. The Hidden Costs of California’s Water Supply. Pacific Institute & Natural Resources Defense Council.
[9]	Connor R, 2012. Managing Water under Uncertainty and Risk. The United Nations.
[10]	China Urban Water Supply and Drainage Association (CUWSDA), 2015a. China’s Urban Water Supply Yearbook. (in Chinese)
[11]	China Urban Water Supply and Drainage Association (CUWSDA), 2015b. China’s Urban Water Drainage Yearbook. (in Chinese)
[12]	China Water Statistical Yearbook, 2016. China Water Statistical Yearbook 2015. Beijing: China Water Resources and Hydropower Press. (in Chinese)
[13]	Gao J J, 2012. The Nexus of Water Resource and Electricity Production in China. Tianjin: Tianjin University. (in Chinese)
[14]	Goldstein R, Smith W, 2002. Water and Sustainability: US Electricity Consumption for Water Supply and Treatment: The Next Half Century. Electric Power Research Institute.
[15]	Griffiths-Sattenspiel B, Wilson W, 2009. The Carbon Footprint of Water. River Network. .
[16]	Hokoi S, D Ogura, X Fuet al., 2013. Field survey on energy consumption due to hot water supply and cooking in Nanjing and Hefei, China.Frontiers of Architectural Research, 2: 134-146. doi: 10.1016/j.foar.2013.03.001
[17]	Jiang S, Wang J, Zhao Yet al., 2016. Residential water and energy nexus for conservation and management: A case study of Tianjin.International Journal of Hydrogen Energy, 41(35): 15919-15929. doi: 10.1016/j.ijhydene.2016.04.181
[18]	Kahrl F D, Roland-Holst, 2008. China’s water-energy nexus.Water Policy, 3(10): 1-16.
[19]	Karimi P, Qureshi A S, Bahramloo R, 2012. Reducing carbon emissions through improved irrigation and groundwater management: A case study from Iran.Agricultural Water Management, 108(2): 52-60. doi: 10.1016/j.agwat.2011.09.001
[20]	Kenway S, Turner G M, Cook Set al., 2013. Water and energy futures for Melbourne: Implications of land use, water use, and water supply strategy.Journal of Water and Climate Change, 5(2): 163-175.
[21]	Klein G, 2005. California’s Water-Energy Relationship. California Energy Commission.
[22]	Lam K L, Kenway S J, Lant P A, 2017. Energy use for water provision in cities.Journal of Cleaner Production, 143: 699-709. doi: 10.1016/j.jclepro.2016.12.056
[23]	Margat J, Gun J V D, 2013. Groundwater around the World. Boca Raton: CRC Press.
[24]	National Bureau of Statistics of China(NBSC), 2016. China Statistical Yearbook. Beijing: China Statistics Press. .
[25]	Plappally A K, Leinhard V J H, 2012. Energy requirements for water production, treatment, end use, reclamation, and disposal.Renewable & Sustainable Energy Reviews, 16(7): 4818-4848.
[26]	Qin Y, Curmi E, Kopec G Met al., 2015. China’s energy-water nexus: Assessment of the energy sector’s compliance with the “3 Red Lines” industrial water policy.Energy Policy, 82(1): 131-143. doi: 10.1016/j.enpol.2015.03.013
[27]	Rothausen S, Conway D, 2011. Greenhouse-gas emissions from energy use in the water sector.Nature Climate Change, 1(4): 210-219. doi: 10.1038/nclimate1147
[28]	Sanders K T, Webber M E, 2012. Evaluating the energy consumed for water use in the United States.Environmental Research Letters, 7(3): 4034-4045.
[29]	Shah T, Bovolo C I, Parkin Get al., 2009. Climate change and groundwater: India’s opportunities for mitigation and adaptation.Environmental Research Letters, 4(3): 375-383.
[30]	Sina Reports,2006. Beijing has accelerated its Olympic environmental goals. Accessed May 2006, .
[31]	Turiel I, Craig P, Levine Met al., 1987. Estimation of energy intensity by end-use for commercial buildings.Energy, 12(6): 435-446. doi: 10.1016/0360-5442(87)90003-X
[32]	Valek A M, Sušnik J, Grafakos S, 2017. Quantification of the urban water-energy nexus in México City, México, with an assessment of water-system related carbon emissions.Science of the Total Environment, 2(24): 234-245.
[33]	Venkatesh G, Chan A, Brattebø H, 2014. Understanding the water-energy-carbon nexus in urban water utilities: Comparison of four city case studies and the relevant influencing factors.Energy, 17(75): 153-166.
[34]	Vincent L, Michel L, Catherine Cet al., 2014. The energy cost of water independence: The case of Singapore.Water Science & Technology A Journal of the International Association on Water Pollution Research, 70(5): 787-799.
[35]	Vörösmarty C J, Green P, Salisbury Jet al., 2000. Global water resources: Vulnerability from climate change and population growth.Science, 289(5477): 284-288. doi: 10.1126/science.289.5477.284
[36]	Wang J, Rothausen S G S A, Conway Det al., 2012. China’s water-energy nexus: Greenhouse-gas emissions from groundwater use for agriculture.Environmental Research Letters, 7(1): 14035-14044. doi: 10.1088/1748-9326/7/1/014035
[37]	Wang J, Shang Y, Wang Het al., 2015. Beijing’s water resources: Challenges and solutions.Jawra Journal of the American Water Resources Association, 51(3): 614-623. doi: 10.1111/jawr.2015.51.issue-3
[38]	Wang Y, Chen Y S, Weng J Wet al., 2008. Analysis on characteristics of urban public water use in Beijing.Water and Wastewater Engineering, 16(34): 138-143. (in Chinese)
[39]	World Energy Council, 2011. World Energy Resources: 2010 Survey.
[40]	Xiao Z M, 2015. Energy saving analysis of industrial water cycle system.Industry, 284-285. (in Chinese)
[41]	Xinhua Report, Beijing water resources per capita decreases to 100 m3. Accessed May 2011, .
[42]	Xue Y, Tian H, Yan Jet al., 2016. Temporal trends and spatial variation characteristics of primary air pollutants emissions from coal-fired industrial boilers in Beijing, China.Environmental Pollution, 15(213): 717-726.
[43]	Zhang H H, Brown D F, 2005. Understanding urban residential water use in Beijing and Tianjin, China.Habitat International, 29(3): 469-491. doi: 10.1016/j.habitatint.2004.04.002
[44]	Zhu Y X, 2017. An Analysis of Energy Consumption on Whole Water Cycle Processes in Jing-Jin-Ji. Beijing: China Institute of Water Resources and Hydropower Research. (in Chinese)

Item		Value	Data sources
Water supply amount	Water supply amount of different sources (10⁸ m3)	—	CWSY (2016)
Pumping lift	Groundwater pump (m)	—	CGMY (2015)
Pumping lift	Surface water lift (m)	—	CIAD Centre (2009)
Parameters and energy quota	Efficiency of electrical motors (%)	40	Shah et al. (2009) Karimi et al. (2012)
	Efficiency of diesel motors (%)	15	Shah et al. (2009) Karimi et al. (2012)
	Water lost rate in water supply network (%)	15	Beijing 13th Five-year Water- saving Plan (2016)
	Fresh water treatment (kWh/m3)	0.374	CUWSD (2015a)
	Fresh water distribution (kWh/m3)	0.441	CUWSD (2015b)
	Wastewater collection (kWh/m3)	0.2	Gao (2012)
	Wastewater treatment (kWh/m3)	0.33	CUWSD (2015b)
	Recycled water treatment (kWh/m3)	0.84	CUWSD (2015b)
	Energy intensity for bathing (kWh/m3)	31.5	Zhu (2017)
	Energy intensity for cooking water use (kWh/m3)	99.2	Zhu (2017)
	Energy intensity for hot water drinking (kWh/m3)	99.2	Zhu (2017)
	Energy intensity for washing machine (kWh/m3)	7.5	Plappally and Leinhard (2012)
	Energy intensity for office water use (kWh/m3)	6.6	Arpke and Hutzler (2006)
	Energy intensity for school water use (kWh/m3)	5.7	Arpke and Hutzler (2006)
	Energy intensity for hotel water use (kWh/m3)	22	Arpke and Hutzler (2006)
	Energy intensity for restaurant water use (kWh/m3)	69	Turiel et al. (1987) Arpke and Hutzler (2006)
	Energy intensity for hospital water use (kWh/m3)	58	Turiel et al. (1987) Arpke and Hutzler (2006)

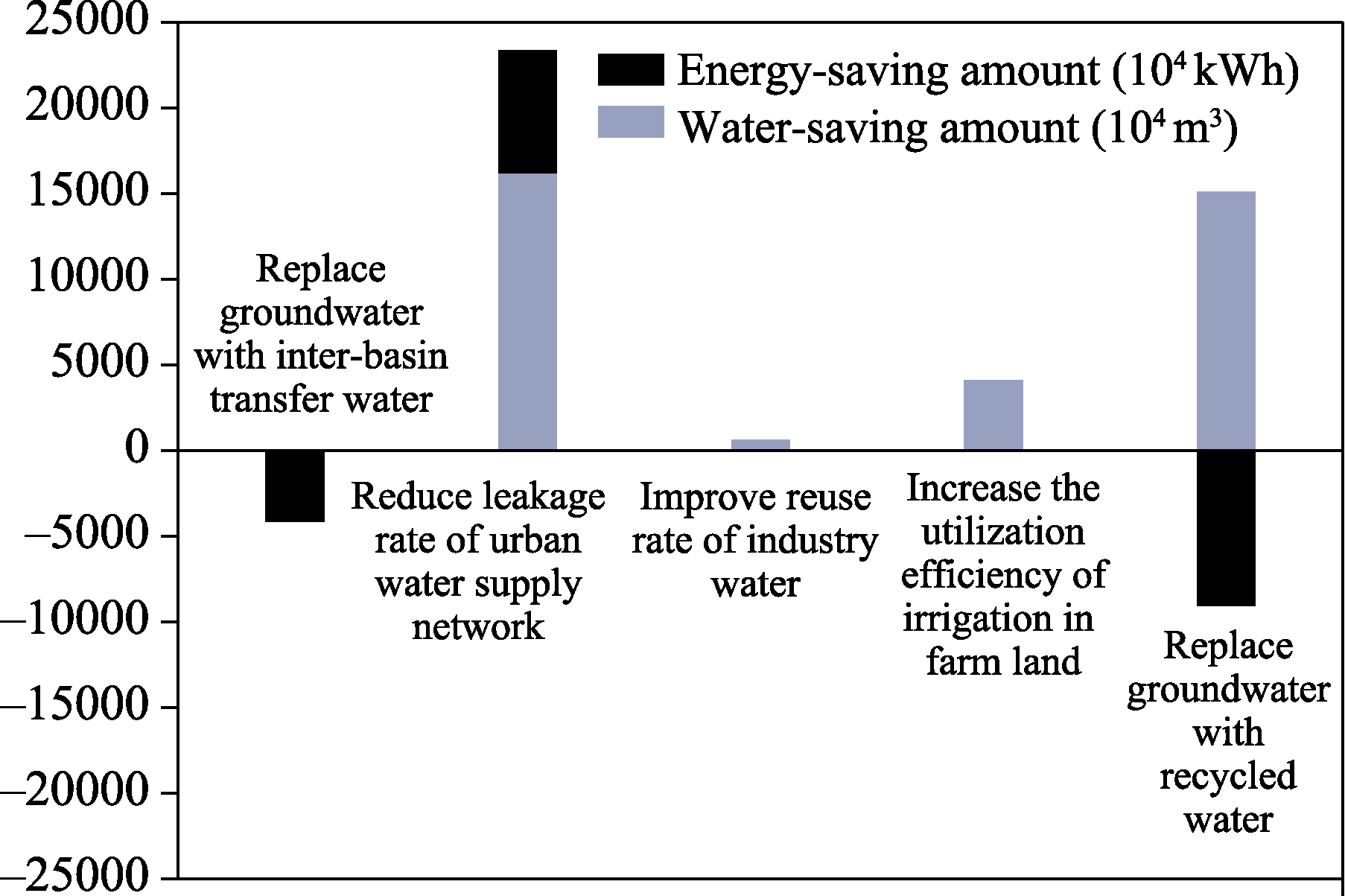

Water cycle	Option	Unit	Current value	Plan value in 2020
Water production	Reduce groundwater exploitation by increasing the use of inter-basin transfer water	10⁴ m3	0	26000
Treatment and distribution	Reduce leakage rate of urban water supply network	%	15	10
End use	Improve industrial water recycling rate	%	89.7	91.4
End use	Improve the utilization efficiency of irrigation water in farmland	%	0.705	0.75
Recycled water treatment	Reduce groundwater exploitation by increasing the use of recycled water	10⁴ m3	0	15100

Author and region	Water-sector processes	Estimated energy intensity (kWh/m3)	Beijing water sector processes	Estimated energy intensity (kWh/m3)
Cohen et al. San Diego, USA	Supply and treatment	0.06-3.4	Water production (Surface water, ground-water and inter-basin transfer water)	0.25
	Residential end use	0-22	Fresh water treatment	0.374
	Wastewater treatment	0.11-0.79	Fresh water distribution	0.441
Klein California, USA	Water supply/conveyance	0-3.69	Wastewater collection	0.2
	Water treatment	0.03-4.23	Wastewater treatment	0.33
	Water distribution	0.2-0.32	Recycled water treatment	0.84
	Wastewater collection and treatment	0.29-1.22	Domestic water use	28.9
	Recycled water treatment and distribution	0.11-0.32	Public domestic use	18.9
Goldstein and Smith, USA	Surface-water treatment	0.371-0.392	Industry	15.8
	Wastewater treatment	0.177-0.780
Griffiths, USA	Heating of residential water	32
