Uncertainty of forest biomass carbon patterns simulation on provincial scale: A case study in Jiangxi Province, China

doi:10.1007/s11442-016-1286-z

Abstract

Abstract:

Forest vegetation carbon patterns are significant for evaluating carbon emission and accumulation. Many methods were used to simulate patterns of forest vegetation carbon stock in previous studies, however, uncertainty apparently existed between results of different methods, even estimates of same method in different studies. Three previous methods, including Atmosphere-vegetation interaction model 2 (AVIM2), Kriging, Satellite-data Based Approach (SBA), and a new method, High Accuracy Surface Modeling (HASM), were used to simulate forest vegetation carbon stock patterns in Jiangxi Province in China. Cross-validation was used to evaluate methods. The uncertainty and applicability of the four methods on provincial scale were analyzed and discussed. The results showed that HASM had the highest accuracy, which improved by 50.66%, 33.37% and 28.58%, compared with AVIM2, Kriging and SBA, respectively. Uncertainty of simulation of forest biomass carbon stock was mainly derived from modeling error, sampling error and statistical error of forest area. Total forest carbon stock, carbon density and forest area of Jiangxi were 288.62 Tg, 3.06 kg/m² and 94.32×10⁹ m² simulated by HASM, respectively.

Key words: forest carbon stock, HASM, AVIM2, Kriging, Satellite-data Based Approach (SBA)

Yifu WANG, Tianxiang *YUE, Yuancai LEI, Zhengping DU, Mingwei ZHAO. Uncertainty of forest biomass carbon patterns simulation on provincial scale: A case study in Jiangxi Province, China[J].Journal of Geographical Sciences, 2016, 26(5): 568-584.

Figures/Tables 9

Table 1

Table 2

Figure 1

Table 3

Figure 2

Table 4

Table 5

Figure 3

Table 6

References 50

1	Brown Sandra, Lugo Ariel E, 1984. Biomass of tropical forests: A new estimate based on forest volumes.Science, 223(4642): 1290-1293. doi: 10.1126/science.223.4642.1290 pmid: 17759366
2	Cao Mingkui, Woodward F IaN, 1998. Net primary and ecosystem production and carbon stocks of terrestrial ecosystems and their responses to climate change.Global Change Biology, 4: 185-198. doi: 10.1046/j.1365-2486.1998.00125.x
3	Chen Chuanfa, Yue Tianxiang, 2010. A method of DEM construction and related error analysis.Computers & Geosciences, 36: 717-725. doi: 10.1016/j.cageo.2009.12.001
4	Chen Chuanfa, Li Yanyan, Yue Tianxiang, 2013a. Surface modeling of DEMs based on a sequential adjustment method.International Journal of Geographical Information Science, 27: 1272-1291. doi: 10.1080/13658816.2012.704037
5	Chen Chuanfa, Yue Tianxiang, Dai Hongleiet al., 2013b. The smoothness of HASM.International Journal of Geographical Information Science, 27: 1651-1667. doi: 10.1080/13658816.2013.787146
6	Dixon R K, Brown S, Houghton R Aet al., 1994. Carbon pools and flux of global forest ecosystems.Science, 263: 185-188. pmid: 328177476486437475544292223222217839174814876566802718920976
7	Fan Zemeng, Li Jing, Yue Tianxiang, 2013. Land-cover changes of biome transition zones in Loess Plateau of China.Ecological Modelling, 252: 129-140. doi: 10.1016/j.ecolmodel.2012.07.039
8	Fang Jingyun, Chen Anping, Peng Changhuiet al., 2001. Changes in forest biomass carbon storage in China between 1949 and 1998.Science, 292(5525): 2320-2322. doi: 10.1126/science.1058629 pmid: 11423660
9	Fang Jingyun, Guo Zhaodi, Piao Shilonget al., 2007. Terrestrial vegetation carbon sinks in China, 1981-2000.Science in China Series D-Earth Sciences, 50(9): 1341-1350. doi: 10.1007/s11430-007-0049-1
10	Fang Jingyun, Liu Guohua, Xu Songling, 1996, Biomass and net production of forest vegetation in China.Acta Ecologica Sinica, 16(5): 497-508. (in Chinese)
11	Fang Jingyun, Wang G Geoff, Liu Guohuaet al., 1998. Forest biomass of China: An estimate based on the biomass-volume relationship.Ecological Applications, 8(4): 1084-1091. doi: 10.2307/2640963
12	Foody Giles M, Boyd Doreen S, Cutler Mark E J, 2003. Predictive relations of tropical forest biomass from Landsat TM data and their transferability between regions.Remote Sensing of Environment, 85(4): 463-474. doi: 10.1016/S0034-4257(03)00039-7
13	Huang Mei, 2005. Simulation of water, heat flux and carbon cycle of terrestrial ecosystem in China [D]. Beijing: Institute of Geographic Sciences and Natural Resources Research, CAS. (in Chinese)
14	IPCC, 2007. Climate Change 2007: Impacts, Adaptation, and Vulnerability. New York: Cambridge University Press.
15	Ji Jinjun, Huang Mei, Li Kerang, 2008. Prediction of carbon exchanges between China terrestrial ecosystem and atmosphere in 21st century.Science in China, Series D-Earth Sciences, 51(6): 885-898. doi: 10.1007/s11430-008-0039-y
16	Kleijnen Jack P C, 2009. Kriging metamodeling in simulation: A review.European Journal of Operational Research, 192(3): 707-716. doi: 10.1016/j.ejor.2007.10.013
17	Krige D G, 1951. A statistical approach to some basic mine valuation problems on the Witwatersrand.The Journal of the Chemical, Metallurgical and Mining Society of South Africa, 52(6): 119-139. doi: 10.1016/0022-3115(94)90253-4
18	Li Haikui, Lei Yuancai, Zeng Weisheng, 2011. Forest carbon storage in China estimated using forestry inventory data.Scientia Silvae Sinicae, 47(7): 7-12. (in Chinese) doi: 10.11707/j.1001-7488.20110702
19	Li Kerang, Wang Shaoqiang, Cao Mingkui, 2003. Vegetation and soil carbon stock of China.Science in China, Series D-Earth Sciences, 33(1): 72-80. (in Chinese)
20	Li Xin, Ouyang Xunzhi, Liu Qijing, 2011. Carbon storage of forest vegetation and its geographical pattern in China’s Jiangxi Province during 2001-2005.Journal of Natural Resources, 26(4): 655-665. (in Chinese) doi: 10.11849/zrzyxb.2011.04.011
21	Nie Daoping, 1994. Structural dynamics of bamboo forest stands.Scientia Silvae Sinicae, 30(3): 201-208. (in Chinese)
22	Pan Yude, Birdsey Richard A, Fang Jingyunet al., 2011. A large and persistent carbon sink in the world’s forests.Science, 333(6045): 988-993. doi: 10.1126/science.1201609 pmid: 174893267101550638
23	Pan Yude, Luo Tianxiang, Birdsey Richard Aet al., 2004. New estimates of carbon storage and sequestration in China’s forests: Effects of age-class and method on inventory-based carbon estimation.Climatic Change, 67(2/3): 211-236.
24	Parton W J, Schimel D S, Cole C Vet al., 1987. Analysis of factors controlling soil organic-matter levels in great-plains grasslands.Soil Science Society of America Journal, 51(5): 1173-1179.
25	Parton W J, Scurlock J M O, Ojima D Set al., 1993. Observations and modeling of biomass and soil organic-matter dynamics for the grassland biome worldwide.Global Biogeochemical Cycles, 7(4): 785-809. doi: 10.1029/93GB02042
26	Piao Shilong, Fang Jingyun, Zhu Biaoet al., 2005. Forest biomass carbon stocks in China over the past 2 decades: Estimation based on integrated inventory and satellite data.Journal of Geophysical Research-Biogeosciences, 110(G1): 12. doi: 10.1029/2005JG000014 pmid: 6844585
27	Ren Yin, Wei Xiaohua, Zhang Liet al., 2011. Potential for forest vegetation carbon storage in Fujian Province, China, determined from forest inventories.Plant and Soil, 345(1/2): 125-140. doi: 10.1007/s11104-011-0766-2
28	Running Steven W, 1994. Testing forest: BGC ecosystem process simulations across a climatic gradient in Oregon.Ecological Applications, 4(2): 238-247. doi: 10.2307/1941930
29	Sales Marcio H, Souza Carlos M, Kyriakidis Phaedon Cet al., 2007. Improving spatial distribution estimation of forest biomass with geostatistics: A case study for Rondonia, Brazil.Ecological Modelling, 205(1/2): 221-230. doi: 10.1016/j.ecolmodel.2007.02.033
30	Shi Wenjiao, Liu Jiyuan, Du Zhengpinget al., 2009. Surface modelling of soil pH.Geoderma, 150(1/2): 113-119. doi: 10.1016/j.geoderma.2009.01.020
31	Shi Wenjiao, Liu Jiyuan, Du Zhengpinget al., 2011. Surface modeling of soil properties based on land use information.Geoderma, 162: 347-357. doi: 10.1016/j.geoderma.2011.03.007
32	Shi Wenjiao, Liu Jiyuan, Du Zhengping et al., 2012. Development of a surface modeling method for mapping soil properties.International Journal of Geographical Information Science, 2012, 22(4): 752-760. doi: 10.1007/s11442-012-0960-z
33	Sitch S, Smith B, Prentice I Cet al., 2003. Evaluation of ecosystem dynamics, plant geography and terrestrial carbon cycling in the LPJ Dynamic Global Vegetation Model.Global Change Biology, 9(2): 161-185. doi: 10.1046/j.1365-2486.2003.00569.x pmid: 1703012
34	Sun Xiaofang, Yue Tianxiang, Wang Qing, 2013. High accuracy surface modeling of grassland aboveground biomass.Journal of Remote Sensing, 17(5): 1060-1076. (in Chinese) doi: DOI:10.11834/jrs.20132160
35	Tan Kun, Piao Shilong, Peng Changhuiet al., 2007. Satellite-based estimation of biomass carbon stocks for northeast China’s forests between 1982 and 1999.Forest Ecology and Management, 240(1-3): 114-121. doi: 10.1016/j.foreco.2006.12.018
36	Wang Bin, Liu Moucheng, Zhang Biao, 2009. Dynamics of net production of Chinese forest vegetation based on forest inventory data.Forest Resource Management, 1: 35-43. (in Chinese) doi: 10.1016/j.ica.2009.06.043
37	Wang Xiaoke, Feng Zongwei, Ouyang Zhixun, 2001. The impact of human disturbance on vegetative carbon storage in forest ecosystems in China.Forest Ecology and Management, 148(1-3): 117-123. doi: 10.1016/S0378-1127(00)00482-5
38	Xu Xinliang, Cao Mingkui, Li Kerang, 2007. Temporal-spatial dynamics of carbon storage of forest vegetation in China.Progress in Geography, 26(6): 1-10. (in Chinese) doi: 10.11820/dlkxjz.2007.06.001
39	Yao Z Y, Liu J J, Zhao X Wet al., 2015. Spatial dynamics of aboveground carbon stock in urban green space: A case study of Xi’an, China.Journal of Arid Land, 7(3): 350-360. doi: 10.1007/s40333-014-0082-9
40	Yue Tianxiang, Du Zhengping, Song Dunjianget al., 2007. A new method of surface modeling and its application to DEM construction.Geomorphology, 91: 161-172. doi: 10.1016/j.geomorph.2007.02.006
41	Yue Tianxiang, Tian Yongzhong, Liu Jiyuanet al., 2008. Surface modeling of human carrying capacity of terrestrial ecosystems in China.Ecological Modelling, 214(2-4): 168-180. doi: 10.1016/j.ecolmodel.2008.01.025
42	Yue Tianxiang, Song Dinjiang, Du Zhengpinget al., 2010. High-accuracy surface modelling and its application to DEM generation.International Journal of Remote Sensing, 31(8): 2205-2226. doi: 10.1080/01431161003668982
43	Yue Tianxiang, 2011. Surface Modelling: High Accuracy and High Speed Methods. New York: CRC Press.
44	Yue Tianxiang, Fan Zemeng, Chen Chuanfaet al., 2011. Surface modelling of global terrestrial ecosystems under three climate change scenarios.Ecological Modelling, 222(14): 2342-2361. doi: 10.1016/j.ecolmodel.2010.11.026
45	Yue Tianxiang, Zhao Na, Ramsey R Douglaset al., 2013a. Climate change trend in China, with improved accuracy.Climatic Change, 120(1/2): 137-151. doi: 10.1007/s10584-013-0785-5
46	Yue Tianxiang, Zhao Na, Yang Haiet al., 2013b. The multi-grid method of high accuracy surface modelling and its validation.Trans GIS, 17(6): 943-952.
47	Zhang Chunhua, Ju Weimin, Chen Jing Met al., 2013. China’s forest biomass carbon sink based on seven inventories from 1973 to 2008.Climatic Change, 118(3/4): 933-948.
48	Zhao Mingwei, Yue Tianxiang, Zhao Naet al., 2014. Combining LPJ-guess and HASM to simulate the spatial distribution of forest vegetation carbon stock in China.Journal of Geographical Sciences, 24(2): 249-268. doi: 10.1007/s11442-014-1086-2
49	Zhao Na, Yue Tianxiang, 2014a. A modification of HASM for interpolating precipitation in China.Theoretical and Applied Climatology, 116: 273-285. doi: 10.1007/s00704-013-0952-7
50	Zhao Na, Yue Tianxiang, 2014b. Sensitivity studies of a high accuracy surface modelling method.Science China-Earth Sciences, 57: 1-11. doi: 10.1007/s11430-014-4926-0

Tree species	C_C
Pinus massoniana	0.4596
Pinus densata	0.5009
Pinus elliottii	0.4596
Pinus taeda	0.4596
Cunninghamia lanceolata	0.5201
Coniferous mixed forest	0.5101
Broad-leaved and coniferous mixed forest	0.4978
Cinnamomum camphora	0.4916
Schima superba	0.4916
Liquidambar formosana	0.4916
Oaks	0.5004
Sassafras tzumu	0.4848
Eucalyptus robusta	0.5253
Populus	0.4956
Broad-leaved mixed forest	0.49

GlobCover 2009 land cover map		GLC2000
Class	Class name	Class	Class name
20	Mosaic cropland (50%-70%) / vegetation (grassland/shrubland/forest) (20%-50%)	1	Tree cover: broad-leaved, evergreen
30	Mosaic vegetation (grassland/shrubland/forest) (50%-70%) / cropland (20%-50%)	2	Tree cover: broad-leaved, deciduous, closed
40	Closed to open (>15%) broad-leaved evergreen or semi-deciduous forest (>5 m)	3	Tree cover: broad-leaved, deciduous, open
50	Closed (>40%) broad-leaved deciduous forest (>5 m)	4	Tree cover: needle-leaved, evergreen
60	Open (15%-40%) broad-leaved deciduous forest/woodland (>5 m)	5	Tree cover: needle-leaved, deciduous
70	Closed (>40%) needle-leaved evergreen forest (>5 m)	6	Tree cover: mixed-leaved type
90	Open (15%-40%) needle-leaved deciduous or evergreen forest (>5 m)	7	Tree cover: regularly flooded, fresh water
100	Closed to open (>15%) mixed broad-leaved and needle-leaved forest (>5 m)	8	Tree cover: regularly flooded, saline water
110	Mosaic forest or shrubland (50%-70%) / grassland (20%-50%)	9	Mosaic: Tree cover / Other natural vegetation
120	Mosaic grassland (50%-70%) / forest or shrubland (20%-50%)	10	Tree cover: burnt

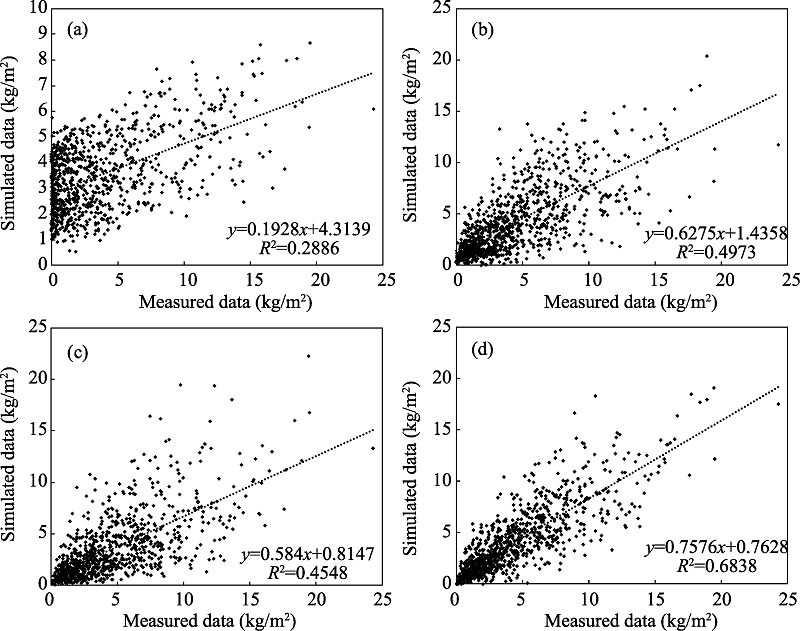

Methods	MAE (kg/m^-2)	MRE (%)
AVIM2	2.63	79.79
Kriging	2.06	62.5
SBA	1.9	57.71
HASM	0.96	29.13

Methods	Components	Area (10⁹ m²)	Carbon density (kg/m²)	Carbon stock (Tg)	Periods	References
Volume-derived	Forest stands	78.93	2.72	214.70	2001-2005	Li X et al., 2011
Volume-derived	Forest	100.33	2.63	263.87	2001-2005	Li X et al., 2011
Volume-derived	Forest stands		3.00		2004-2008	Li H K et al., 2011
Volume-derived	Forest			289.07	2004-2008	Li H K et al., 2011
Volume-derived	Forest	99.80	2.67	297.97	2004-2008	This study
Volume-derived	Forest stands	76.81	3.02	231.97	2004-2008	This study
Volume-derived	Needle-leaved forests	47.05	2.60	122.33	2004-2008	This study
Volume-derived	Broad-leaved forests	21.83	3.84	83.82	2004-2008	This study
Volume-derived	Mixed-leaved forests	7.94	3.25	25.82	2004-2008	This study
Volume-derived	Economic forests	12.03	1.19	14.26	2004-2008	This study
Volume-derived	Bamboos	8.52	2.06	17.54	2004-2008	This study
Volume-derived	Woodlands	0.45	0.99	0.44	2004-2008	This study
Volume-derived	Shrub forests	1.99	0.99	1.96	2004-2008	This study
Volume-derived	Trees in non-forest			31.80	2004-2008	This study
Volume-derived	Forest stands	72.78	2.86	208.15	1999-2003	This study
AVIM2	Forest	94.32	3.71	349.93	2004-2008	This study
Kriging	Forest	94.32	3.04	286.73	2004-2008	This study
SBA	Forest	94.32	3.25	306.54	2004-2008	This study
HASM	Forest	94.32	3.06	288.62	2004-2008	This study
HASM	Forest	94.32	2.88	271.64	1999-2003	This study
