Journal of Geographical Sciences    2015, Vol. 25 Issue (4) : 497-511     DOI: 10.1007/s11442-015-1182-y
Orginal Article |
Spatial morphology evolution of rural settlements induced by tourism: A comparative study of three villages in Yesanpo tourism area, China
Jianchao XI1(),Xinge WANG1,2,Qinqin KONG1,2,Nan ZHANG1,2
1. Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
Download: PDF(487 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks

Rural tourism has become an important driving force of rural urbanization in China. As the main reception base and important tourism attraction, tourism village is the core element of the tourism destination system. Integrating the method of PRA (Participatory Rural Assessment), GIS technology and high-resolution remote sensing images, this study aims to analyze the spatial morphology evolution of rural settlements induced by tourism through a comparative study of three tourism villages in Yesanpo tourism area. The results suggest the emergence of a “core-periphery” pattern of the spatial evolution of rural settlements. The closer to the core scenic spot, the higher degree of land-use intensity the village shows, as well as the more mature tourism function and greater change in landscape pattern. In particular, Gougezhuang shows an increase of the floor area ratio from 0.17 to 0.44, with the most mature tourism function and the lowest authenticity index of 0.448. Liujiahe has gone through the largest increase in construction land area from 17.3564 ha to 34.1128 ha, with moderately mature tourism function and relatively stable authenticity index of 0.566. Shangzhuang has the lowest construction land scale and intensity, with the poorest tourism function and most well-preserved landscape authenticity index of 0.942. Overall, in terms of the spatial morphology, the three villages show the characteristics of “modern town”, “semi-urbanization” and “traditional village” respectively, in corresponding to three land development types: “intensive reconstruction type”, “enclave extension type” and “in situ utilization type”. The spatial evolution patterns of these three villages imply the spatial characteristics of the touristization of traditional villages in different stages, and also have great representative value for the management of rural settlements in tourism areas in China.

Keywords rural settlements      land use      spatial evolution      Yesanpo tourism area
Fund:National Natural Science Foundation of China, No.40971299
About author: Xi Jianchao (1972-), PhD and Associate Professor, specialized in tourism planning, land use change driven by tourism and the environmental effect. E-mail:
Issue Date: 24 June 2015
E-mail this article
E-mail Alert
Articles by authors
Jianchao XI
Xinge WANG
Qinqin KONG
Cite this article:
Jianchao XI,Xinge WANG,Qinqin KONG, et al. Spatial morphology evolution of rural settlements induced by tourism: A comparative study of three villages in Yesanpo tourism area, China[J]. Journal of Geographical Sciences, 2015, 25(4): 497-511.
URL:     OR

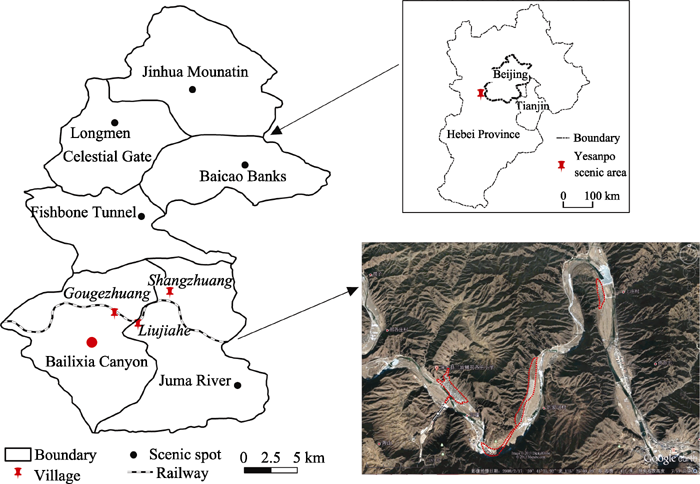

Figure 1  The location of the study villages
Village Household number Labor number Number of tourism employees Per capita income (yuan/person) Distance to the Bailixia Canyon scenic area (km)
Gougezhuang 542 446 942 6500 0.5
Liujiahe 159 177 178 5500 2
Shangzhuang 202 191 86 4200 7.5
Table 1  The outline of the three villages (2010)
Subject Index Standard
(3-5 scores) (1-3 scores) (1 score)
Building History Built before 1970 Built during 1970-1980 Built after 1990
Typicality Buildings with obvious geographical features Buildings with relatively obvious geographical features Buildings with poor geographical features
Locality Traditional building Traditional Building with modern decoration Modern building
Yard The gardening degree of yard Natural plant A small amount of modern decoration Modern decoration
The living function of yard Entirely living function Half living and tourism function Entirely tourism function
The distance among yards Nature configuration and distance Regular configuration and the large distance Regular configuration and equidistant, small distance
Settlement The variety of rural public space With traditional public space at the center With traditional public space away from the center With other space at the center
The convenience of internal village traffic Natural materials, with low accessibility Semi-natural materials, with certain accessibility Human materials, with high accessibility
The integrity of settlement With more than 75% perfectly reserved historic appearance With 25%-75% perfectly reserved historic appearance With less than 25% perfectly reserved historic appearance
Table 2  Evaluation index system of rural settlement landscape authenticity
Village Construction area of initial phase (m2) Construction area of current phase (m2) Expansion area (m2) Expansion
speed (m2/a)
K (%/a)
Gougezhuang 87794 160082 72288 3012.0 3.40
Liujiahe 173564 341128 167564 6981.8 4.00
Shangzhuang 49727 79430 29703 1237.6 2.50
Table 3  Construction expansion of three villages during the period of study

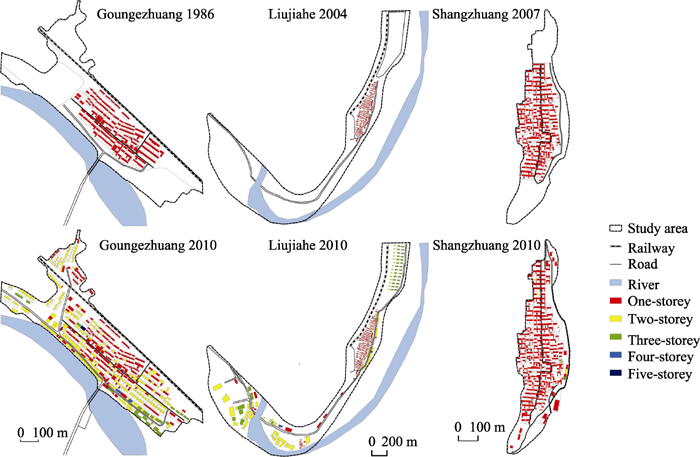

Figure 2  Spatial-temporal changes of land-use expansion of the three villages during the study period
The plot ratio Gougezhuang (1986-2010) Liujiahe (2004-2010) Shangzhuang (2007-2010)
The initial phase 0.17 0.08 0.28
The current phase 0.44 0.34 0.26
The changes 0.27 0.26 -0.02
Table 4  Changes of the villages’ plot ratio during the study period

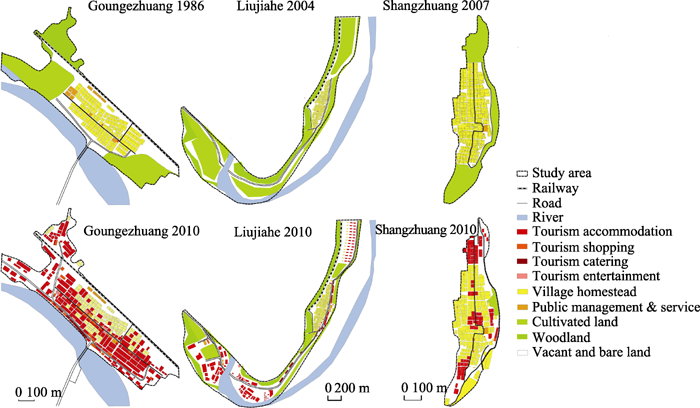

Figure 3  Land-use function changes of the three villages during the study period
Original land use type Conversion of land-use type IV
Gougezhuang Liujiahe Shangzhuang
Public service land Tourist accommodation 4.607 0.000 3.334
Ordinary residential land 0.000 0.000 3.198
Other land 0.000 0.000 21.202
Ordinary residential land Tourist accommodation 821.881 1.236 26.313
Tourist shopping 65.781 0.000 5.289
Tourist entertainment 167.390 0.000 0.000
Other land 0.000 17.623 0.000
Cultivated land Public service land 0.000 1.645 9.388
Other land 677.165 677.165 59.106
Ordinary residential land 0.000 4.333 19.551
Tourist accommodation 25.560 28.785 34.982
Tourist shopping 2.940 1.064 1.240
Tourist entertainment 1.350 1.350 0.000
Other land
vacant and bare land
Ordinary residential land 10.976 18.598 11.490
Tourist accommodation 0.867 18.989 4.907
Tourist shopping 233.617 0.987 0.000
Tourist catering 100.824 0.987 0.000
Tourist entertainment 1.524 0.611 0.000
Public service land 0.000 1.621 0.000
Table 5  Dominant types of land-use change in different villages during the study period
Mandatory layer Index Village score
Gougezhuang Liujiahe Shangzhuang
Building style History 0.277 2.254 4.896
Typicality 0.254 2.569 4.653
Locality 0.251 2.988 4.264
Yard structure The gardening degree of yard 0.364 2.421 4.699
The living function of yard 0.132 3.237 4.635
The special distance between households 0.222 2.452 4.633
The variety of rural public space 0.225 2.136 4.256
The convenience of internal village traffic 0.336 2.251 4.231
The integrity of settlements 0.256 2.241 4.987
AI 0.048 0.566 0.942
Table 6  Total scores of the authenticity of the three villages

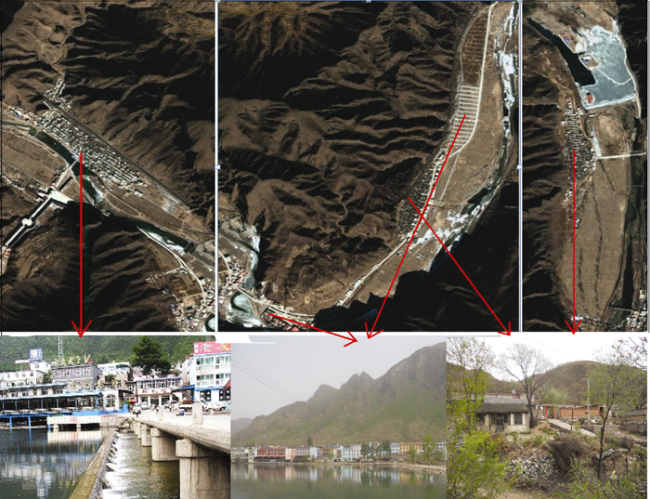

Figure 4  The remote sensing image in 2008 and villages landscape style schematic of Gougezhuang village (left), Liujiahe village (middle), and Shangzhuang village (right) in 2010

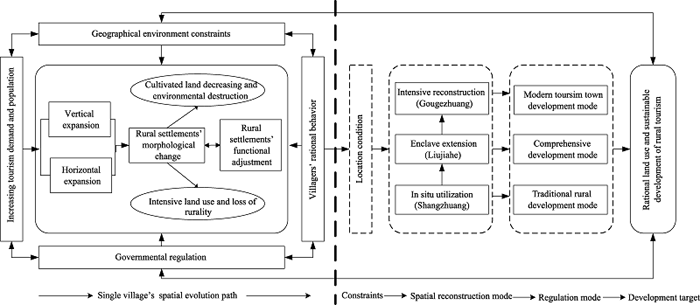

Figure 5  The evolutionary path and its development trend of rural settlements in different geographical locations in Yesanpo tourism area
1 Agarwal S, 2001. Restructuring seaside tourism: The resort lifecyle.Annals of Tourism Research, 29(1): 25-55.
2 Baležentis T, Kriščiukaitienė I, Baležentis Aet al., 2012. Rural tourism development in Lithuania (2003-2010): A quantitative analysis.Tourism Management Perspectives, 2(3): 1-6.
3 Bulter R, 1980. The concept of a tourism area cycle of evolution: Implications for management of resources.Canadian Geographer, 24(1): 5-12.
4 Cheer J M, Reeves K J, Laing J H, 2013. Tourism and traditional culture: Land diving in Vanuatu.Annals of Tourism Research, 43: 435-455.
5 Cheng L S, Feng W Y, Jiang L H, 2001. The analysis of rural settlement hollowizing system of the southeast of Taiyuan Basin.Acta Geographica Sinica, 56(4): 437-446. (in Chinese)
6 Chhabra D, Healy R, Sills E, 2003. Staged authenticity and heritage tourism.Annals of Tourism Research, 30(3): 702-719.
7 Christaller W, 1963. Some considerations of tourism location in Europe: The peripheral regions-underdeveloped countries-recreation areas.Regional Science Association Papers, 12(1): 513-527.
8 Daugstad K, Kirchengast C, 2013. Authenticity and the pseudo-backstage of agri-tourism.Annals of Tourism Research, 43: 170-191.
9 Feng W Y, Chen X M, 2003. Analysis on the rural settlement expansion of the Jinzhong Plain.Human Geography, 18(6): 93-96. (in Chinese)
10 Jansen-Verbeke M, 1986. Inner-city tourism: Resources, tourists and promoters.Annals of Tourism Research, 13(1): 79-100.
11 Kytzia S, Walz A, Wegmann M, 2011. How can tourism use land more efficiently? A model-based approach to land-use efficiency for tourist destinations.Tourism Management, 32(3): 629-640.
12 Lane B, 1994. What is rural tourism? Journal of Sustainable Tourism, 2(1/2): 7-21.
13 Lee S H, Choi J Y, Yoo S Het al., 2013. Evaluating spatial centrality for integrated tourism management in rural areas using GIS and network analysis.Tourism Management, 34: 14-24.
14 Lei Z D, 2002. Rural habitat empty-disusing concept and quantitative analysis modes. Journal of Northwest University (Natural Science Edition), 32(4): 421-424. (in Chinese)
15 Leiper N, 1990. Tourist attraction systems.Annals of Tourism Research, 17(3): 367-384.
16 Li J, Li X J, 2008. The microscopic analysis on village-hollowing in medium income and hilly land region of Henan Province.China Population, Resources and Environment, 18(1): 170-175. (in Chinese)
17 Liu J Y, Zhang Z X, Xu X L, 2010. Spatial patterns and driving forces of land use change in China during the early 21st century.Journal of Geographical Sciences, 20(4): 483-494.
18 Liu S H, Chen T, Cai J M, 2004. Peri-urbanization in China and its major research issues.Acta Geographica Sinica, 59(Suppl.): 101-108. (in Chinese)
19 Long H L, Li T T, 2012. The coupling characteristics and mechanism of farmland and rural housing land transition in China.Journal of Geographical Sciences, 22(3): 548-562.
20 Long H L, Li Y R, Liu Y Set al., 2012. Accelerated restructuring in rural China fueled by ‘increasing vs. decreasing balance’ land-use policy for dealing with hollowed villages.Land Use Policy, 29(1): 11-22.
21 Long H L, Liu Y S, Zou J, 2009a. Assessment of rural development types and their rurality in eastern coastal China.Acta Geographica Sinica, 64(4): 426-434. (in Chinese)
22 Long H L, Zou J, Liu Y S, 2009b. Differentiation of rural development driven by industrialization and urbanization in eastern coastal China.Habitat International, 33(4): 454-462.
23 Long H L, Zou J, Pykett Jet al., 2011. Analysis of rural transformation development in China since the turn of the new millennium.Applied Geography, 31(3): 1094-1105.
24 Maguigad V M, 2013. Tourism planning in archipelagic Philippines: A case review.Tourism Management Perspectives, 7: 25-33.
25 Middleton V T C, 1982. Tourism in rural areas.Tourism Management, 3(1): 52-58.
26 Nelson P B, 2001. Rural restructuring in the American West: land use, family and class discourses.Journal of Rural Studies, 17(4): 395-407.
27 Nepal S K, 2007. Tourism and rural settlements Nepal’s Annapurna region.Annals of Tourism Research, 34(4): 855-875.
28 Panyik E, Costa C, Rátz T, 2011. Implementing integrated rural tourism: An event-based approach.Tourism Management, 32(6): 1352-1363.
29 Papatheodorou A, 2004. Exploring the evolution of tourism resorts.Annals of Tourism Research, 31(1): 219-237.
30 Park D B, Lee K W, Choi H Set al., 2012. Factors influencing social capital in rural tourism communities in South Korea.Tourism Management, 33(6): 1511-1520.
31 Pearce D G, 1978. Form and function in French resorts.Annals of Tourism Research, 5(1): 142-156.
32 Pearce D G, 1999. Tourism in Paris studies at the microscale.Annals of Tourism Research, 26(1): 77-97.
33 Su B, 2011. Rural tourism in China.Tourism Management, 32(6): 1438-1441.
34 Su S, Jiang Z, Zhang Qet al., 2011. Transformation of agricultural landscapes under rapid urbanization: A threat to sustainability in Hang-Jia-Hu region, China.Applied Geography, 31(2): 439-449.
35 Sun Y, Liu Z Q, Wang Q Bet al., 2011. Spatial expansion of urban land use and its driving forces in Shenyang city over the past century. Resources Science, 33(11): 2022-2029. (in Chinese)
36 Vos W, Meekes H, 1999. Trends in European cultural landscape development: Perspectives for a sustainable future.Landscape and Urban Planning, 46(1-3): 3-14.
37 Wall G, 1996. Perspectives on tourism in selected Balinese villages.Annals of Tourism Research, 23(1): 123-137.
38 Wang C X, Yao S M, Chen C H, 2005. Empirical study on “village-hollowing” in China.Scientia Geographica Sinica, 25(3): 257-262.
39 Williams A M, Shaw G, 2009. Future play: Tourism, recreation and land use.Land Use Policy, 26(1): 326-335.
40 Wu G C, Niu X, Xu H Z, 2013. Study on land transfer risk evaluation during the development of rural tourism.Economic Geography, 33(3): 187-191. (in Chinese)
41 Xi J C, Zhao M F, Ge Q S, 2011. The micro-scale analysis of rural settlement land-use pattern: A case study of Gougezhuang village of Yesanpo scenic area in Hebei Province.Acta Geographica Sinica, 66(12): 1707-1717. (in Chinese)
42 Xu S H, 2004. The integral regimes and countermeasure study on hollow-oriented houses in rural regions.Territory & Natural Resources Study, (1): 11-12. (in Chinese)
43 Xue L, 2001. Study on the inner decaying village and the countermeasures with Jiangsu Province as the case.City Planning Review, 25(6): 8-13. (in Chinese)
44 Xue L, Wu M, 2001. A discussion about the heteromorphism of the rural settlements and its policy in Jiangsu Province.Urban Planning Forum, (1): 41-45. (in Chinese)
45 Zhu H Y, Li X B, He S Jet al., 2001. Spatio-temporal change of land use in Bohai Rim.Acta Geographica Sinica, 56(3): 253-260. (in Chinese)
46 Zou D C, 1994. Floor area ratio.Urban Planning, (1): 19-23. (in Chinese)
47 Zurick D N, 1992. Adventure travel and sustainable tourism in the peripheral economy of Nepal.Annals of the Association of American Geographers, 82(4): 604-628.
